ASUS Unveils GeForce GTX 1660 Ti EVO Series Graphics Cards

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
36,830 (8.67/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Colorful iGame GTX 1070 Ti Vulcan X
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Antec EarthWatts Pro Gold 750W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro

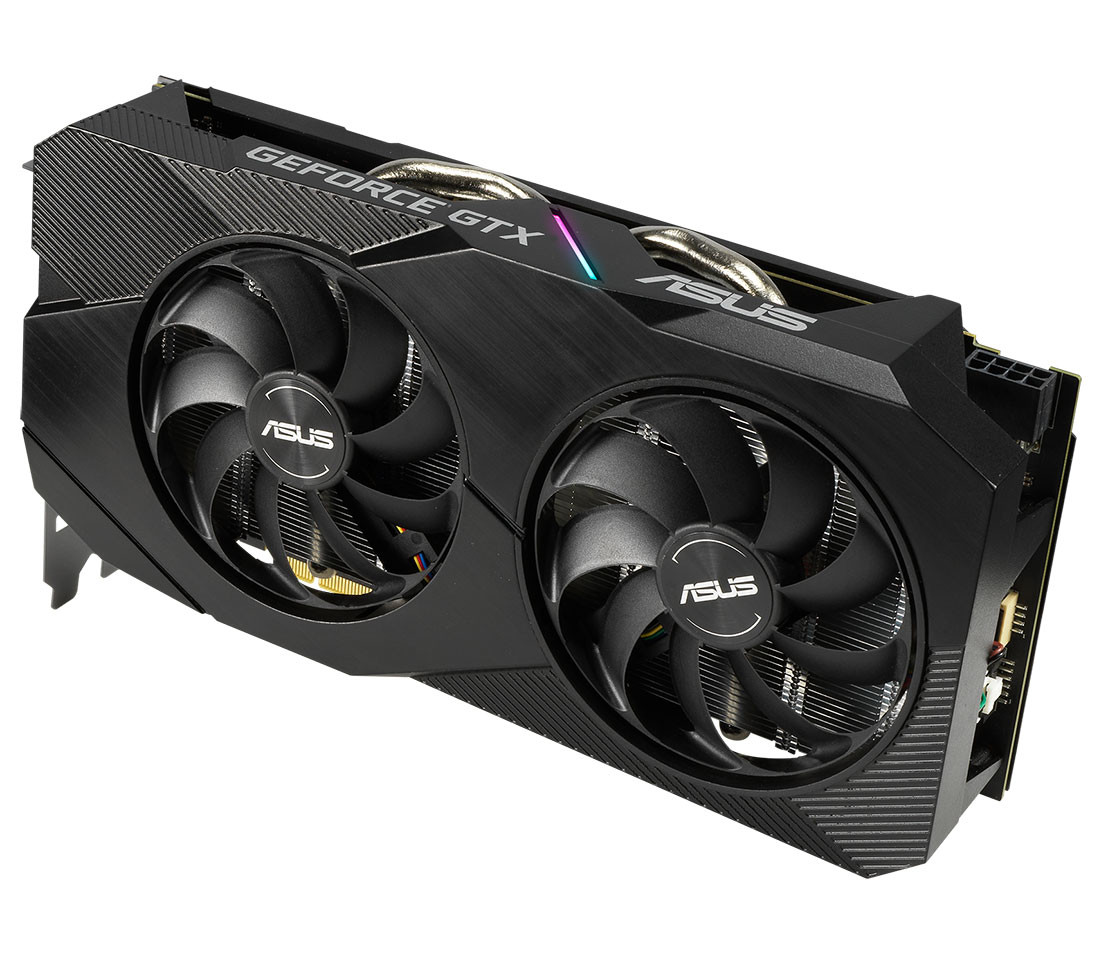

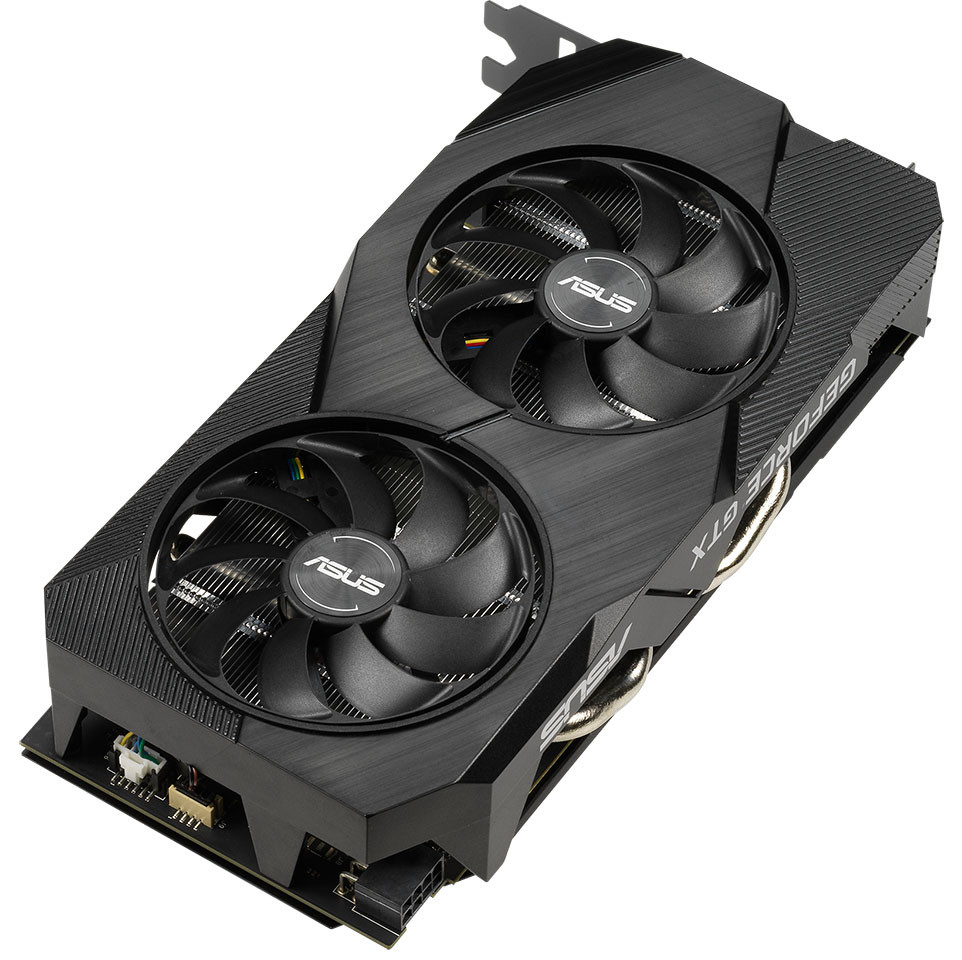

ASUS today unveiled the Dual GeForce GTX 1660 Ti EVO series graphics card, which comes in three variants, a base model, a moderately overclocked A6G model, and the fastest O6G overclocked variant. All three stick to a common board design, which involves a 24.2 cm-long and 13 cm-tall PCB, and a 3-slot thick custom-design cooler. This cooler features a DirectCU II heatsink ventilated by a pair of 80 mm Axial Tech fans. These fans feature barrier rings that run along the periphery of the impeller to prevent lateral airflow, guiding all of it axially (downwards onto the heatsink). The cooler features idle fan-stop.

The cooling solution uses a pair of nickel-plated copper heat pipes that make direct contact with the "TU116" ASIC, conveying heat to the edges of the aluminium fin-stack. The shroud features a tiny RGB LED diffuser. A metal back-plate is included. The card draws power from a single 8-pin PCIe power connector. Display outputs include two HDMI 2.0b, and one each of DisplayPort 1.4 and dual-link DVI-D. The base variant comes with NVIDIA-reference clock speeds of 1500 MHz core and 1770 MHz GPU Boost. The A6G variant has a negligibly increased GPU Boost frequency of 1785 MHz. The O6G variant leads this pack at 1845 MHz. The memory remains untouched at 12 Gbps on all three variants. The company didn't reveal pricing.



View at TechPowerUp Main Site

Joined
Oct 22, 2014
Messages
7,165 (4.27/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel Xeon E5-2680 10c/20t 2.8GHz @ 3.0GHz
Motherboard Asrock X79 Extreme 11
Cooling Coolermaster 240 RGB A.I.O.
Memory G. Skill 16Gb (4x4Gb) 2133Mhz
Video Card(s) Nvidia GTX 710
Storage Sandisk X 400 256Gb
Display(s) AOC 22" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Home Premium 64 bit
It's a fat little thing isn't it, despite that, it's not bad looking.

Joined
Nov 20, 2012
Messages
206 (0.09/day)
Location
Hungary
System Name masina
Processor Ryzen R5 1600 @ 3.6GHz
Motherboard GigaByte AB350-Gaming 3
Cooling Scythe Kabuto 3 + Arctic BioniX P120 fan
Memory 16GB (2x8) DDR4-3000 Corsair Vengeance LPX
Video Card(s) MSI GTX 1060 Armor OC 6GB
Storage 500GB Crucial MX500, 640GB WD Black
Display(s) LG IPS224-V
Case Zalman Z9 Neo /Black/
Power Supply be Quiet! Pure Power L8 430W CM
Mouse Logitech G203
Keyboard Cooler Master MasterKeys L PBT
Software Win 10 Pro
Heh... they finally bothered to but a decent cooler on a GTX 1660 Ti. Yay I guess?
Still the other cards in their GTX 1660 line up have terrible cooling and are effectively thermal throttling, which is quite sad to be honest... not really that quality we know and love ASUS for.

Joined
Oct 18, 2013
Messages
1,138 (0.56/day)
Location
Depends.... on where YOU are
System Name The Big RED One
Processor i7-6700k, oc'd to 4.7 ghz
Motherboard Gigabyte G1 Gaming 7- Z170x
Cooling H110i-GT w/3-AF140's in custom config, 4-AF140 (side int) + 3-AF140 (rear/top exh) All w/Red LED's
Memory 32GB Corsair Vengence Red RBG DDR4-3200 (4x 8GB) in XMP 2x
Video Card(s) Zotac GTX 1060/6GB w/15% o/c
Storage 2x WD Black SN750 1TB nvme, 2x Sammy 960 Pro 256GB nvme on pcie risers, 2x WD Black 2TB spinners
Display(s) 2x Samsung 32" LCD's @1920x1280 60hz
Case Thermaltake TT900 Super Tower w/custom paint and trim treatment
Audio Device(s) Bluetooth 4 optical amplifier & Speakers, + standard onboard components
Power Supply EVGA G2 SuperNova 850W Modular
Mouse Logitech MX5500 combo
Keyboard see above
Software Windows 10 pro 64 bit, with all the unnecessary background shiite turned OFF !
Benchmark Scores Quicker than flies on a dung pile
Meh, nothin new to see here kiddies, back to nappy time now :roll:


FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
19,164 (4.34/day)
Location
London,UK
System Name Codename: Icarus Mk.IV
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling Corsair H105 {2x Corsair ML 120 Pro}
Memory 16 Corsair Vengeance White LED DDR4 3200Mhz
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White) {1x Corsair ML120 Pro |3x ML140 Pro}
Audio Device(s) Creative SB Z {AVR:Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150}
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻
Heh... they finally bothered to but a decent cooler on a GTX 1660 Ti. Yay I guess?
Still the other cards in their GTX 1660 line up have terrible cooling and are effectively thermal throttling, which is quite sad to be honest... not really that quality we know and love ASUS for.
I mean you say this but. In TPUs reviews the differences are almost negligible.

Single fan vs dual fan cooling solution - 2-3'c difference. though the EVGA reviewed has lower idle temps because the fan doesnt stop like the MSI.

Heres another example. The Strix OC version with triple fan config - this is a bigger improvement over all.

Joined
Dec 15, 2016
Messages
539 (0.60/day)
Heh... they finally bothered to but a decent cooler on a GTX 1660 Ti. Yay I guess?
Still the other cards in their GTX 1660 line up have terrible cooling and are effectively thermal throttling, which is quite sad to be honest... not really that quality we know and love ASUS for.
Wich models are thermal throttling? I´ve never seen evidence of that, I mean, these cards use low power even. Not saying they don´t thermal throttle but can you provide links or something?

Joined
Nov 20, 2012
Messages
206 (0.09/day)
Location
Hungary
System Name masina
Processor Ryzen R5 1600 @ 3.6GHz
Motherboard GigaByte AB350-Gaming 3
Cooling Scythe Kabuto 3 + Arctic BioniX P120 fan
Memory 16GB (2x8) DDR4-3000 Corsair Vengeance LPX
Video Card(s) MSI GTX 1060 Armor OC 6GB
Storage 500GB Crucial MX500, 640GB WD Black
Display(s) LG IPS224-V
Case Zalman Z9 Neo /Black/
Power Supply be Quiet! Pure Power L8 430W CM
Mouse Logitech G203
Keyboard Cooler Master MasterKeys L PBT
Software Win 10 Pro
Wich models are thermal throttling? I´ve never seen evidence of that, I mean, these cards use low power even. Not saying they don´t thermal throttle but can you provide links or something?
User reviews on hungarian tech forums. People are very dissapointed in the cooling on Phoenix, DUAL and TUF models of GTX 1660 & 1660 Ti models and rightfully so. Most of them are experiencing 80-87°C GPU temps under load, but no wonder as the heatsink under the fans is basically the exact same small extruded AL block.

DUAL and TUF are simply terrible especially considering their price, as for the same money I could get an MSI Armor OC with decent size heatsink with heatpipe and two large fans and a backplate... or better yet for a grand total of €6 more opt for a Gaming X, which is still €30 cheaper compared to a STRIX model that actually has decent cooling.


Single fan vs dual fan cooling solution - 2-3'c difference. though the EVGA reviewed has lower idle temps because the fan doesnt stop like the MSI.
Not really a fan or the amount of fans... in this case its the amount of heatsink (or lack there of) is the issue, just look at this... I mean you can see the PCB directly under the fans. :(

122972

Last edited:
Joined
Mar 18, 2015
Messages
1,918 (1.25/day)
Location
Long Island
Heh... they finally bothered to but a decent cooler on a GTX 1660 Ti. Yay I guess?
Still the other cards in their GTX 1660 line up have terrible cooling and are effectively thermal throttling, which is quite sad to be honest... not really that quality we know and love ASUS for.
What temperature would you say warrants a "decent cooler" designation when under load ? TPU testing has resulted in:

GPU Temperature Comparison / Idle Load Gaming Noise
ASUS GTX 1660 Ti STRIX 33°C 58°C 32 dBA
ASUS GTX 1660 Ti STRIX (quiet BIOS) 45°C 65°C 29 dBA
EVGA GTX 1660 Ti XC Black 33°C 69°C 38 dBA
MSI GTX 1660 Ti Gaming X 50°C 67°C 32 dBA
MSI GTX 1660 Ti Ventus 32°C 68°C 35 dBA
Zotac GTX 1660 Ti 36°C 74°C 30 dBA

With OC included, it typically adds just 0 - 1C. I have never heard of throttling occuring anywhere those temps except in cases with inadequate case cooling.

Joined
Oct 22, 2014
Messages
7,165 (4.27/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel Xeon E5-2680 10c/20t 2.8GHz @ 3.0GHz
Motherboard Asrock X79 Extreme 11
Cooling Coolermaster 240 RGB A.I.O.
Memory G. Skill 16Gb (4x4Gb) 2133Mhz
Video Card(s) Nvidia GTX 710
Storage Sandisk X 400 256Gb
Display(s) AOC 22" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Home Premium 64 bit
Not really a fan or the amount of fans... in this case its the amount of heatsink (or lack there of) is the issue, just look at this... I mean you can see the PCB directly under the fans. PCB.

View attachment 122972
I like the simplistic design of the heatsink and fans, the copper core is over the GPU and the radiating arms help dissipate heat with the fans blowing over them and directly over the PCB, it should be more effective than most cheap monolithic alu blocks.
