ASUS Unveils GeForce RTX 2060 DUAL Mini, Possible RX 5600 XT and EVGA KO Competitor

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
46,283 (7.69/day)
Location
Hyderabad, India
System Name RBMK-1000
Processor AMD Ryzen 7 5700G
Motherboard ASUS ROG Strix B450-E Gaming
Cooling DeepCool Gammax L240 V2
Memory 2x 8GB G.Skill Sniper X
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) ASUS SupremeFX S1220A
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Gamdias Hermes E2
Software Windows 11 Pro

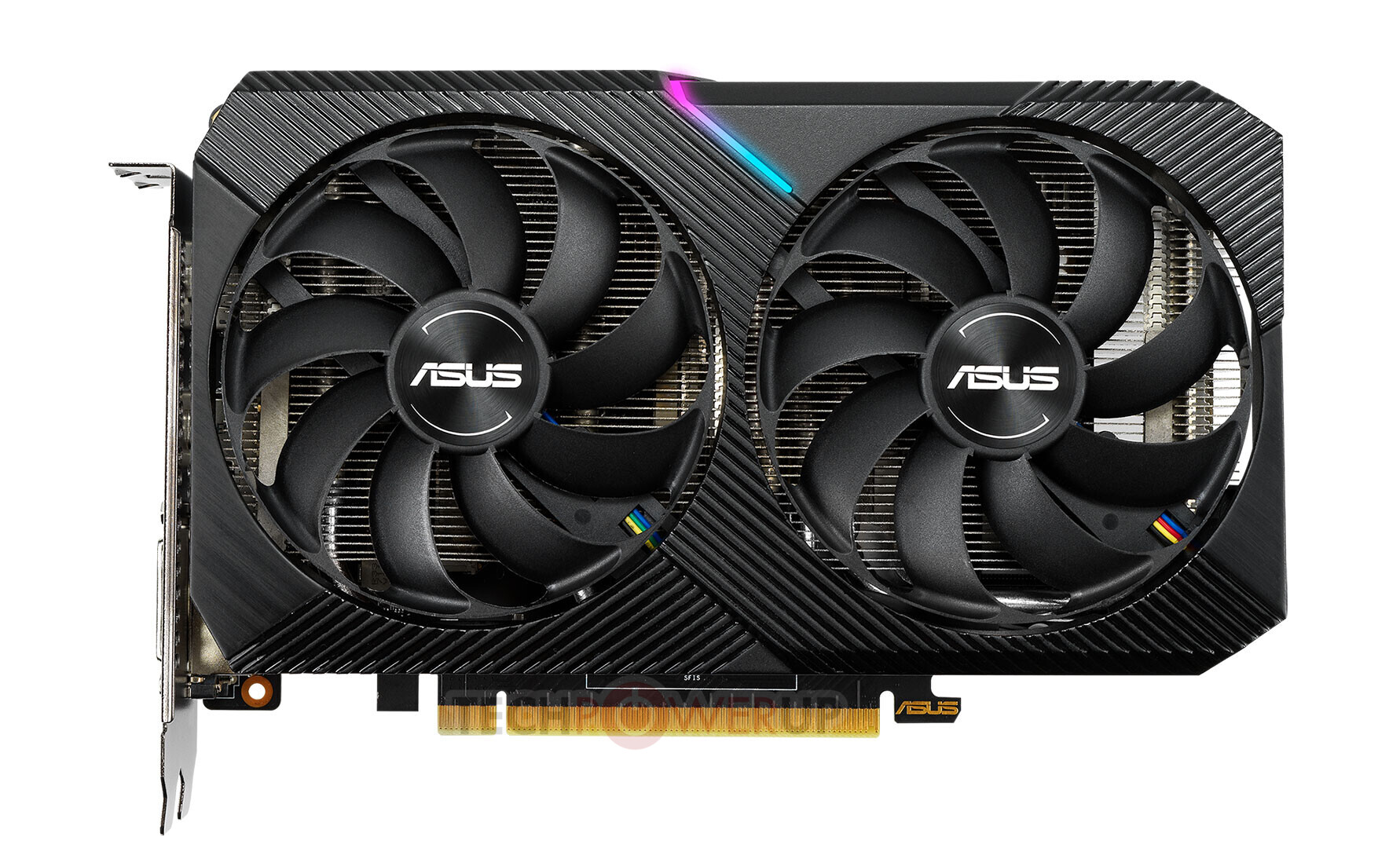

ASUS unveiled the GeForce RTX 2060 DUAL Mini series, a new pair of RTX 2060 graphics cards purpose-built to compete with AMD Radeon RX 5600 XT, and possibly priced to match the EVGA RTX 2060 KO. The series consists of two otherwise identical looking cards differentiated with clock speeds - the reference speed "DUAL-RTX2060-6G-MINI," and the slightly overclocked "DUAL-RTX2060-O6G-MINI." The DUAL Mini common board design measures 19.7 cm in length, 12.1 cm height, and is strictly 2-slot thick. Under the hood is PCB that's built to cost, and probably repurposing the company's GTX 1660 Ti series PCBs, since the TU116 and TU106 are pin-compatible.

The cooling solution of the ASUS RTX 2060 DUAL Mini features an aluminium fin-stack heatsink that makes direct contact with the GPU at the base; ventilated by a pair of 90 mm Axial-Tech fans that are designed to guide all their airflow axially. The impellers of these fans feature IP5X dust-resistance coating. The card also offers idle fan-stop feature. As mentioned earlier, the base RTX 2060 DUAL Mini ticks at NVIDIA reference clock speeds, while the DUAL Mini O6G offers overclocked speeds of 1365 MHz base and 1725 MHz GPU Boost (vs. reference speeds of 1365/1680 MHz). The memory clock is untouched on both cards, at 14 Gbps (GDDR6 effective). The card draws power from a single 8-pin PCIe power connector. Display outputs include one each of dual-link DVI-D, HDMI 2.0b, and DisplayPort 1.4 connectors. The cards don't appear to feature a back-plate. We expect the DUAL Mini to be priced at USD $299, and the DUAL Mini O6G at a $20-30 premium.



View at TechPowerUp Main Site

Joined
Feb 3, 2017
Messages
3,475 (1.33/day)
Processor R5 5600X
Motherboard ASUS ROG STRIX B550-I GAMING
Cooling Alpenföhn Black Ridge
Memory 2*16GB DDR4-2666 VLP @3800
Video Card(s) EVGA Geforce RTX 3080 XC3
Storage 1TB Samsung 970 Pro, 2TB Intel 660p
Display(s) ASUS PG279Q, Eizo EV2736W
Case Dan Cases A4-SFX
Power Supply Corsair SF600
Mouse Corsair Ironclaw Wireless RGB
Keyboard Corsair K60
VR HMD HTC Vive
It's an RTX 2060.
Outside a few peculiarities, so is 2060 KO. KO is just EVGA's name, not a different model.
And yes, RTX 2060 price drop was to counteract RX 5600XT.

I thought this was an ASUS Press Release but that does not seem to be the case.

Joined
Jun 28, 2016
Messages
3,595 (1.27/day)
Nicely short and RGB-less.

I just hope this whole price dropping doesn't affect quality (primary noise).

Joined
Nov 3, 2013
Messages
2,141 (0.56/day)
Location
Serbia
Processor Ryzen 3600
Motherboard X570 I Aorus Pro
Cooling Deepcool AG400
Memory HyperX Fury 2 x 8GB 3200 CL16
Video Card(s) RX 470 Nitro+ 4GB
Storage SX8200 Pro 512 / NV2 512
Display(s) 24G2U
Case NR200P
Power Supply Ion SFX 650
Mouse G703
Keyboard Keychron V1 (Akko Matcha Green) / Apex m500 (gateron milky yellow)
Software W10
A cheap(er) product from ASUS should be an instant avoid.

Joined
Jun 28, 2016
Messages
3,595 (1.27/day)
A cheap(er) product from ASUS should be an instant avoid.
Well, it's cheaper so they would be expected to take some shortcuts.
It surely still works and delivers what's on the box.

Joined
Jul 16, 2014
Messages
8,115 (2.29/day)
Location
SE Michigan
System Name Dumbass
Processor AMD Ryzen 7800X3D
Motherboard ASUS TUF gaming B650
Cooling Artic Liquid Freezer 2 - 420mm
Memory G.Skill Sniper 32gb DDR5 6000
Video Card(s) GreenTeam 4070 ti super 16gb
Storage Samsung EVO 500gb & 1Tb, 2tb HDD, 500gb WD Black
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) - SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Steeseries Esports Wireless
Keyboard Corsair K100
Software windows 10 H
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
so whats the purpose of having DUAL in the name? :rolleyes:

Joined
Oct 18, 2013
Messages
5,415 (1.42/day)
Location
Everywhere all the time all at once
System Name The Little One
Processor i5-11320H @4.4GHZ
Motherboard AZW SEI
Cooling Fan w/heat pipes + side & rear vents
Memory 64GB Crucial DDR4-3200 (2x 32GB)
Video Card(s) Iris XE
Storage WD Black SN850X 4TB m.2, Seagate 2TB SSD + SN850 4TB x2 in an external enclosure
Display(s) 2x Samsung 43" & 2x 32"
Case Practically identical to a mac mini, just purrtier in slate blue, & with 3x usb ports on the front !
Audio Device(s) Yamaha ATS-1060 Bluetooth Soundbar & Subwoofer
Power Supply 65w brick
Mouse Logitech MX Master 2
Keyboard Logitech G613 mechanical wireless
Software Windows 10 pro 64 bit, with all the unnecessary background shitzu turned OFF !
Benchmark Scores PDQ
Hello Asus, this is 2008 calling, and we want all our antiquated DVI ports back, like, yesterday....

They are all belong to us, just in case you didn't know, hehehe :D

Joined
Jan 29, 2012
Messages
6,402 (1.44/day)
Location
Florida
System Name natr0n-PC
Processor Ryzen 5950x/5600x
Motherboard B450 AORUS M
Cooling EK AIO - 6 fan action
Memory Patriot - Viper Steel DDR4 (B-Die)(4x8GB)
Video Card(s) EVGA 3070ti FTW
Storage Various
Display(s) PIXIO IPS 240Hz 1080P
Case Thermaltake Level 20 VT
Audio Device(s) LOXJIE D10 + Kinter Amp + 6 Bookshelf Speakers Sony+JVC+Sony
Power Supply Super Flower Leadex III ARGB 80+ Gold 650W
Software XP/7/8.1/10
Benchmark Scores http://valid.x86.fr/79kuh6
I came for the dual gpu , but left in utter sadness.

Joined
Jan 31, 2011
Messages
238 (0.05/day)
Processor 3700X
Motherboard X570 TUF Plus
Cooling U12
Memory 32GB 3600MHz
Video Card(s) eVGA GTX970
Storage 512GB 970 Pro
Case CM 500L vertical
Is it actually Dual Link DVI, or just Single Link DVI? New Dual Link DVI cards from Nvidia (I don't know about AMD) are rather hard to come by, nowadays, ever since Nvidia dropped them from the Pascal reference designs (in favor of Single Link DVI).

I sold off my last Dual Link DVI screen last year, and that had supported me since 2010/2011 or so. Even then, the Displayport connection was the preferred input for that display, due to the audio passthrough.

The only use I could think of was for really old 1440p/1600p displays that somehow didn't have DP, and old 120Hz+ displays that didn't have DP.

Though I will admit that DP was rather problematic on older builds of Windows 7/8/8.1 and even 10. The display sleep problems seem to have largely gone away since then (though they still pop up on older displays - so I admit to using Dl-DVI on that older display instead of DP, even though I only use DP on my newer display).

Joined
Feb 3, 2017
Messages
3,475 (1.33/day)
Processor R5 5600X
Motherboard ASUS ROG STRIX B550-I GAMING
Cooling Alpenföhn Black Ridge
Memory 2*16GB DDR4-2666 VLP @3800
Video Card(s) EVGA Geforce RTX 3080 XC3
Storage 1TB Samsung 970 Pro, 2TB Intel 660p
Display(s) ASUS PG279Q, Eizo EV2736W
Case Dan Cases A4-SFX
Power Supply Corsair SF600
Mouse Corsair Ironclaw Wireless RGB
Keyboard Corsair K60
VR HMD HTC Vive
Pascal reference design had dual-link DVI.
