Brand new 5700x underperforming in mulitcore

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w

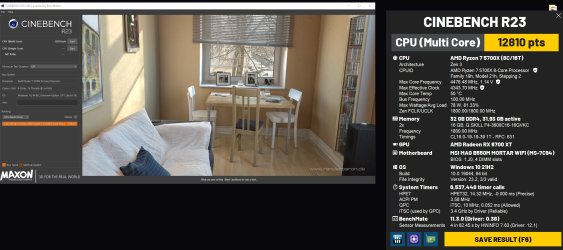

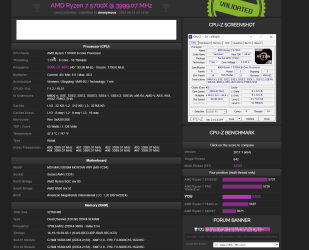

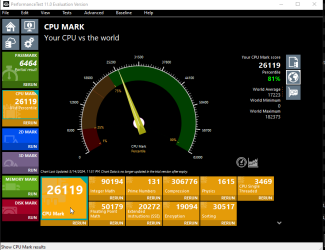

I switched to a 5700x, and it seems I'm not getting the performance I should be, as I see on forums and various tech sites. I updated my chipset drivers, all settings in bios are default my R23 bench is really low only 12810 and not the score I see on here. Furthermore, I checked my temps, and it's low too in the low 60s on a thermaltake 120 assassin which cooled both my 5600x and 5800x (rip) fine underload so no problems there...
Ram is xmp enabled 3600mhz
Motherboard is up to date b550m motar wifi
All core boost is 3.9ghz for multicore shouldn't this be a little higher?


Joined
Aug 10, 2023
Messages
341 (0.70/day)
Uninstall AMD chipset drivers / install it again. If nothing helps, make new Windows installation, that would usually fix the problem. Be sure CPU is properly cooled with good TIM, but I suspect it’s a software problem.

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w


Anything unusual here? I did see it boost in games I'm confused :confused:

Joined
Jul 31, 2024
Messages
161 (1.25/day)
Processor AMD Ryzen 7 5700X
Motherboard ASUS ROG Strix B550-F Gaming Wifi II
Cooling Noctua NH-U12S Redux
Memory 4x8G Teamgroup Vulcan Z DDR4; 3600MHz @ CL18
Video Card(s) MSI Ventus 2X GeForce RTX 3060 12GB
Storage WD_Black SN770, Leven JPS600, Toshiba DT01ACA
Display(s) Samsung ViewFinity S6
Case Fractal Design Pop Air TG
Power Supply Corsair CX750M
Mouse Corsair Harpoon RGB
Keyboard Keychron C2 Pro
VR HMD Valve Index
This looks pretty standard for stock performance. Do you have PBO enabled? It's likely best to look at it in Ryzen Master to see what you're being limited by if not thermals/voltages. As for game boost clocks, games are very single-threaded and will reach those boost clocks more reliably since it's per-core boost behavior and not all-core.

Joined
Feb 29, 2016
Messages
641 (0.20/day)
Location
Chile
System Name Shinano
Processor AMD Ryzen 9 5900X
Motherboard ROG Strix B550-F GAMING WIFI II
Cooling Thermalright Peerless Assassin 120SE
Memory 32GB DDR4 3200MHz
Video Card(s) XFX RX 6700 10GB
Storage 970 EVO Plus 1TB | A1000 480GB
Display(s) Lenovo G27q-20 (1440p, 165Hz)
Case NZXT H510
Audio Device(s) Sony WH-1000XM4 | Edifier R1000T4
Power Supply SuperFlower Leadex Gold III 850W
Mouse Logitech G305
Keyboard IK75 v3 (QMK) | HyperX Alloy Origins
It's not underperforming, the 5700X stock PPT is hilariously low. Try setting PBO to something like 115/85/90 if you want more performance out of it.

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
This looks pretty standard for stock performance. Do you have PBO enabled? It's likely best to look at it in Ryzen Master to see what you're being limited by if not thermals/voltages. As for game boost clocks, games are very single-threaded and will reach those boost clocks more reliably since it's per-core boost behavior and not all-core.

It's on auto I'll need to check it again in game to see what is limiting me. Edit: Yep PPT is maxing out during game loads.

Last edited:

tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
8,161 (2.36/day)
Location
Western Canada
System Name ab┃ob
Processor 7800X3D┃5800X3D
Motherboard B650E PG-ITX┃X570 Impact
Cooling NH-U12A + T30┃AXP120-x67
Memory 64GB 6400CL32┃32GB 3600CL14
Video Card(s) RTX 4070 Ti Eagle┃RTX A2000
Storage 8TB of SSDs┃1TB SN550
Case Caselabs S3┃Lazer3D HT5
It's on auto I'll need to check it again in game to see what is limiting me. Edit: Yep PPT is maxing out during game loads.

78W is pretty much stock (76W stock). Seems pretty normal for out of the box settings.

If you want to go beyond that, then use PBO. You can leave power limits in the board's hands (can work but not usually optimal), or set it to Advanced and work on your power limits yourself.

For Cinebench that really is pretty much all that matters since you won't be limited by Fmax (4650MHz) until you are pushing a serious amount of power.

If you care more about game performance that actually matters, then set boost override to its max +200MHz and see what your CPU can do on 1 or 2 threads, if it can attain 4850.

Last edited:
Joined
Apr 12, 2013
Messages
7,556 (1.77/day)
Anything unusual here? I did see it boost in games I'm confused :confused:
Screenshot (23) (UHD).png

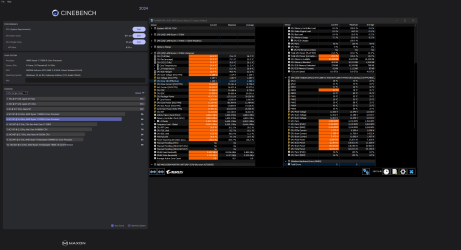

This is me with nearly stock settings for 5800x except a slight undervolt, I have 64GB (4x16) RAM though so it limits some options for me as it's not too stable at faster mem/IF speeds.

Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
I switched to a 5700x, and it seems I'm not getting the performance I should be, as I see on forums and various tech sites. I updated my chipset drivers, all settings in bios are default my R23 bench is really low only 12810 and not the score I see on here. Furthermore, I checked my temps, and it's low too in the low 60s on a thermaltake 120 assassin which cooled both my 5600x and 5800x (rip) fine underload so no problems there...
Ram is xmp enabled 3600mhz
Motherboard is up to date b550m motar wifi
All core boost is 3.9ghz for multicore shouldn't this be a little higher?

View attachment 359863View attachment 359864View attachment 359865
Please do CB R23 again but make visible all values (current, min, max, average) from the sensors.

First

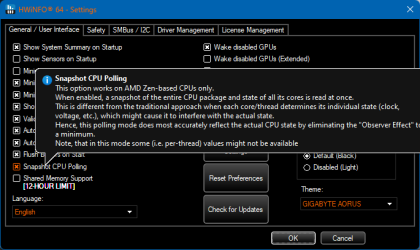

On main settings (right click tray icon) of HWiNFO enable the "Snapshot CPU Polling"


I would like to see all values from the sensors visible below while the benchmark is running for a few sec/mins.
Best way to do this by starting the rendering and then reset values of sensors window with clock down right.
Take the screenshot right before first pass finishes.

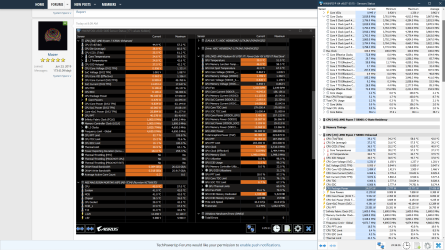

Example of HWiNFO (this is not on load)


Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
Please do CB R23 again but make visible all values (current, min, max, average) from the sensors.

First
On main settings (right click tray icon) of HWiNFO enable the "Snapshot CPU Polling"

View attachment 359907

I would like to see all values from the sensors visible below while the benchmark is running for a few sec/mins.
Best way to do this by starting the rendering and then reset values of sensors window with clock down right.
Take the screenshot right before first pass finishes.

Example of HWiNFO (this is not on load)

View attachment 359908

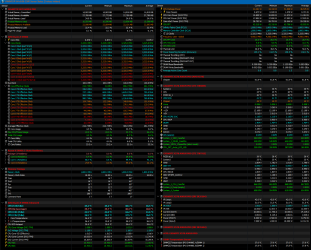

Had snapshot polling enabled.





Last edited:
Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Ok I do not see exactly everything, like PPT, PPT limit, TDC limit, EDC limit… On the second column that stuff at bottom about the drive and GPU is unnecessary, the top end is more important.

But…
If CPU package power sensor value is the same as PPT (usually the have small deviation) then the true power of the CPU during that R23 is:

77.8W divided by 1.105 = 70.4W

That “Power Reporting Deviation” (110.5%) is the key

The true power draw of the CPU is 70.4W
And if “CPU PPT” reports slightly lower than “CPU Package Power” for example 76W then this is more accurate calculation:

76 / 1.105 = 68.7W

So you are missing about 10% of CPU power because the board over-states CPU power back to it, as feedback by about 10% (hence the 110.5%). So the CPU thinks it reached its power limit (76W) and regulates it self accordingly.

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
Oh sorry about that @Zach_01, I will post a better one here

Joined
May 7, 2023
Messages
665 (1.15/day)
Processor Ryzen 5700x
Motherboard Gigabyte Auros Elite AX V2
Cooling Thermalright Peerless Assassin SE White
Memory TeamGroup T-Force Delta RGB 32GB 3600Mhz
Video Card(s) PowerColor Red Dragon Rx 6800
Storage Fanxiang S660 1TB, Fanxiang S500 Pro 1TB, BraveEagle 240GB SSD, 2TB Seagate HDD
Case Corsair 4000D White
Power Supply Corsair RM750x SHIFT
This should be easily doable, 115ppt, 90tdc, 110edc +200mhz core boost, negative 30 CO (ymmv) boosts to 4.6-4.65 all core in CB R23


Incidentally I have the opposite problem as you and my single core won't boost higher than 4.1Ghz for love nor money but MT will happily hit 4.6-4.7Ghz sustained!

Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Oh sorry about that @Zach_01, I will post a better one here
View attachment 359954
Thank you,
I think it doesn't change much of what I said earlier

Its 76 / 110.5 = 68.8W

Your CPU is using 68.8W while it "thinks" that uses 76W
So you are losing some performance

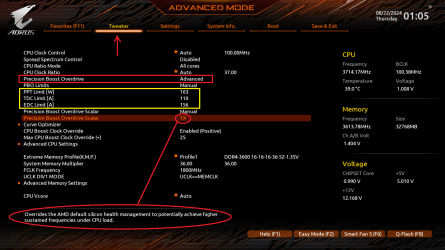

If your max temp is good you can open a little the CPU limits by using PBO advanced.
You have a gigabyte board so lets see if this can help...

Be back in ~5min

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Oh sorry...

Then you have to find the equivalent settings in your BIOS

You can start conservative (I would) by setting

PPT: 90W
TDC: 70A
EDC: 90A

Keep scalar X1 (=default) (read the description in screenshot)

You can add (positive) some clock too on the "Max CPU Boost Clock Override" but dont go to max at once with +200MHz. Go with +50MHz
In Curve Optimizer you can set all cores to negative steps and start with 10 (-10). Thats 30-50mV undervolt that in reality saves some power so the CPU can boost more under the same voltage until it hits again PPT limit.


Whatever you change run CB R23 again and take a screenshot of HWiNFO as we said previously while the render still runs.

Remember that CurveOptimizer benefits mostly multicore loads and max boost override mostly single core loads

There is a high chance that you will not be able to max both of these settings
CO = -30 steps (90-150mV undervolt)
boost override = +200MHz

Unless your CPU is qood silicon quality


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,641 (3.80/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Give it the beans.. 200/140/180 +150 -25

That is what I run my 5600X at lol.. doesn't use it all.. but she boosts.

Joined
Feb 29, 2016
Messages
641 (0.20/day)
Location
Chile
System Name Shinano
Processor AMD Ryzen 9 5900X
Motherboard ROG Strix B550-F GAMING WIFI II
Cooling Thermalright Peerless Assassin 120SE
Memory 32GB DDR4 3200MHz
Video Card(s) XFX RX 6700 10GB
Storage 970 EVO Plus 1TB | A1000 480GB
Display(s) Lenovo G27q-20 (1440p, 165Hz)
Case NZXT H510
Audio Device(s) Sony WH-1000XM4 | Edifier R1000T4
Power Supply SuperFlower Leadex Gold III 850W
Mouse Logitech G305
Keyboard IK75 v3 (QMK) | HyperX Alloy Origins
Y'all got lucky with CO, my CPU gets unstable even at -5 lmao

Give it the beans.. 200/140/180 +150 -25

That is what I run my 5600X at lol.. doesn't use it all.. but she boosts.
In my experience giving it unlimited power ends up with worse performance as voltage goes way up


iNinja9K

New Member
Joined
May 27, 2022
Messages
26 (0.03/day)
Using a more aggressive curve optimizer setting, like -25 or -30, may help improve performance.

Joined
Jan 2, 2024
Messages
594 (1.75/day)
Location
Seattle
System Name DevKit
Processor AMD Ryzen 5 3600 ↗4.0GHz
Motherboard Asus TUF Gaming X570-Plus WiFi
Cooling Koolance CPU-300-H06, Koolance GPU-180-L06, SC800 Pump
Memory 4x16GB Ballistix 3200MT/s ↗3800
Video Card(s) PowerColor RX 580 Red Devil 8GB ↗1380MHz ↘1105mV, PowerColor RX 7900 XT Hellhound 20GB
Storage 240GB Corsair MP510, 120GB KingDian S280
Display(s) Nixeus VUE-24 (1080p144)
Case Koolance PC2-601BLW + Koolance EHX1020CUV Radiator Kit
Audio Device(s) Oculus CV-1
Power Supply Antec Earthwatts EA-750 Semi-Modular
Mouse Easterntimes Tech X-08, Zelotes C-12
Keyboard Logitech 106-key, Romoral 15-Key Macro, Royal Kludge RK84
VR HMD Oculus CV-1
Software Windows 10 Pro Workstation, VMware Workstation 16 Pro, MS SQL Server 2016, Fan Control v120, Blender
Benchmark Scores Cinebench R15: 1590cb Cinebench R20: 3530cb (7.83x451cb) CPU-Z 17.01.64: 481.2/3896.8 VRMark: 8009
This looks pretty standard for stock performance.
For a 5700X? That Passmark CPU bench sucks. My 3600 was kinda doggin it on v10 but I kind of go crazy with voltage.


That shouldn't be scaling so clean to a newer generation 8-core and newer version of the bench tool. Scammed?

Joined
Feb 29, 2016
Messages
641 (0.20/day)
Location
Chile
System Name Shinano
Processor AMD Ryzen 9 5900X
Motherboard ROG Strix B550-F GAMING WIFI II
Cooling Thermalright Peerless Assassin 120SE
Memory 32GB DDR4 3200MHz
Video Card(s) XFX RX 6700 10GB
Storage 970 EVO Plus 1TB | A1000 480GB
Display(s) Lenovo G27q-20 (1440p, 165Hz)
Case NZXT H510
Audio Device(s) Sony WH-1000XM4 | Edifier R1000T4
Power Supply SuperFlower Leadex Gold III 850W
Mouse Logitech G305
Keyboard IK75 v3 (QMK) | HyperX Alloy Origins
For a 5700X? That Passmark CPU bench sucks. My 3600 was kinda doggin it on v10 but I kind of go crazy with voltage.
View attachment 360222

That shouldn't be scaling so clean to a newer generation 8-core and newer version of the bench tool. Scammed?

He got pretty much an average.

You can get a lot more out of a 5700X if you're willing to push PPT higher, but at the same time it stops paying off after a bit. Also passmark is a lil' odd.

newer version of the bench tool
scores aren't comparable between versions

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
Don't mean to bump this thread but I realized I didn't post back with my results.. sometimes life will do that :sleep:

So, I went with 115 PPT, 80 TDC and left EDC alone at 90 stock. I did -20 all cores (best ones are core 2 and 3 according to ryzen master) with +100mhz with scalar set to 1x. Please tell me if anything is too much voltage on anything since I don't want to kill this one like I did with the 5800x on this board (b550m motar wifi) I really don't have the money to blow on more CPUs down the line right now or else I would've bought a 5700x3d haha..


Attachments

  • Cinebench_gXPDNhk5h2.png
    239.3 KB · Views: 38
Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
As long as the CPU is on auto boost and PBO scalar is on default or X1 then all the silicon protections of the CPU are at play.

Can you show a full HWiNFO sensors window (no hidden sensors) while running CB-R23/24 all core?

Joined
Jun 22, 2019
Messages
189 (0.09/day)
Processor Ryzen 7 5600x @ stock
Motherboard B550M motar wifi
Cooling Thermalright assassin 120 se
Memory DDR4 G.skill 32gb @ 3600mhz
Video Card(s) 6700xt
Storage 2x Crucial MX500 1tb SSDs 1TB SN850x
Display(s) Acer nitro XV272U 1440p 170hz
Case Deepcool M370
Power Supply Corsair RMx 850w
Joined
Sep 3, 2019
Messages
3,532 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Unfortunately that screenshot was not taken when CB-R23 all core was still running.

To be honest, even so... I'm not seeing any issues.
CPU temp peaks at around 75C which is safely away from the 90C peak limit.
Actually is what I'm getting on my 5900X temp wise.

Top
