cirrus7 Announces Nimbini 2.5 "Bean Canyon" Fanless NUC

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
39,277 (8.42/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro

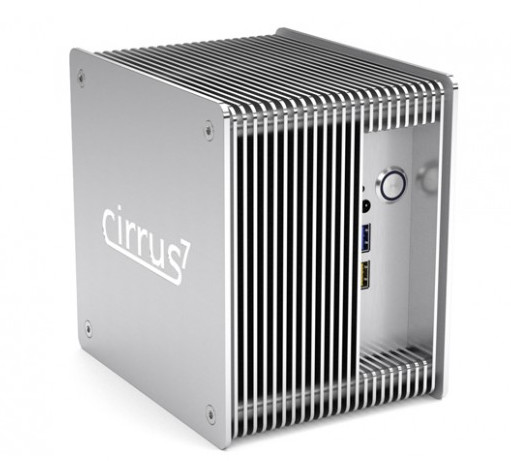

Fanless mini-PC major cirrus7 rolled out the Nimnini 2.5, cube-shaped fanless NUC powered by Intel 8th generation "Coffee Lake" ("Kaby Lake-R") SoC, specifically the Core i7-8559U. This chip features a 4-core/8-thread CPU clocked at 2.70 GHz with 4.50 GHz boost, 8 MB L3 cache, and Intel Iris Plus 655 graphics processor that has 128 MB L4 cache. cirrus7's approach to cooling this 28W TDP MCM is an aluminium fin-stack heatsink that consists of large square aluminium plates that are held together by four 6 mm-thick copper heat pipes. The outer body continues along this design scheme. The company claims the case with its included heatsink runs the i7-8559U a whole 12 °C cooler than Intel's stock fan-heatsink based case.

The base-model of the cirrus7 Nimbini 2.5 includes a Core i3-8109U dual-core SoC, and is priced at 499€. You can configure it with a Core i5-8259U quad-core for an extra 139€, and the i7-8559U for 299€ over the base price. You add your own memory and storage. The NUC board supports up to two DDR4 SO-DIMM modules, holding up to 32 GB of memory. The Nimbini holds a 2.5-inch SATA drive in addition to the NUC board's M.2 slot. The case measures 157 mm x 157 mm x 120 mm (HxDxW), weighing 2.5 kg, including the heatsink and NUC motherboard option you choose.



View at TechPowerUp Main Site

Joined
Jun 15, 2016
Messages
1,041 (0.70/day)
Location
Pristina
System Name My PC
Processor 4670K@4.4GHz
Motherboard Gryphon Z87
Cooling CM 212
Memory 2x8GB+2x4GB @2400GHz
Video Card(s) XFX Radeon RX 580 GTS Black Edition 1425MHz OC+, 8GB
Storage Intel 530 SSD 480GB + Intel 510 SSD 120GB + 2x500GB hdd raid 1
Display(s) HP envy 32 1440p
Case CM Mastercase 5
Audio Device(s) Sbz ZXR
Power Supply Antec 620W
Mouse G502
Keyboard G910
Software Win 10 pro
Ridiculous prices like always.

Joined
Jan 2, 2018
Messages
127 (0.14/day)
Considering the engineering, not really.
What engineering? Drilling holes in metal plates and screwing them together?

All cpu tower coolers have this genious design, but they cost at around 50 Eur for 800grams of ALU and engineering.

This one weighs 2.5kg for 500 eur

Furthermore, Arctic cooling Alpine 12 passive costs 9.80 eur and its 500grams of ALU.
This is rated for 37W TDP, and i can assure you, it does its job very well. I have a 58W TDP non U CPU running with this thing with no fans in an ITX case (26cm x 27cm x 9cm) full of cables.

heck, even intel own NUC with i5-8250 costs 400 eur and it's passive.

There is only one reason somebody would buy this - design. Everything else is terrible for the price tag.

Joined
Jul 16, 2014
Messages
3,699 (1.69/day)
Location
SE Michigan
System Name Dumbass
Processor AMD-9370BE @4.6
Motherboard ASUS SABERTOOTH 990FX R2.0 +SB950
Cooling CM Nepton 280L
Memory G.Skill Sniper 16gb DDR3 2400
Video Card(s) GreenTeam 1080 Gaming X 8GB
Storage C:\SSD (240GB), D:\Seagate (2TB), E:\Western Digital (1TB)
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Logitech G700s
Keyboard Logitech G910 Orion Spark
Software windows 10
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
Before I've had my coffee, I read that as Nimbus 2000, then I put my glasses on.


INSTG8R

Vanguard Beta Tester
Joined
Nov 26, 2004
Messages
6,133 (1.07/day)
Location
Canuck in Norway
System Name Hellbox 4.0(same case new guts)
Processor Ryzen 7 3700X
Motherboard Gigabyte Aorus X570 Pro
Cooling TT Kandalf L.C.S.(Water/Air)EK Velocity CPU Block/Noctua
Memory 2x8GB HyperX Fury 3600
Video Card(s) Sapphire 5700XT Nitro+
Storage WD Caviar Black SATA 3 1TB x2 RAID 0 2xSamsung 850 Evo 500GB RAID 0 1TB WD Blue
Display(s) Samsung CGH70 27” 1440 144hz Freesync 2 HDR
Case TT Kandalf L.C.S.
Audio Device(s) Soundblaster ZX/Logitech Z906 5.1
Power Supply Seasonic X-1050W 80+ Gold
Mouse G502 Proteus Spectrum
Keyboard G19s
Software Win 10 Pro x64
I just LOL’d at Bean Canyon...

Joined
Feb 3, 2017
Messages
2,435 (1.94/day)
Processor i5-8400
Motherboard ASUS ROG STRIX Z370-I GAMING
Cooling Alpenföhn Black Ridge
Memory 2*16GB DDR4-3200 CL16
Video Card(s) Gainward GeForce RTX 2080 Phoenix
Storage 1TB Samsung 970 Pro, 2TB Intel 660p
Display(s) ASUS PG279Q, Eizo EV2736W
Case Dan Cases A4-SFX
Power Supply Corsair SF600
Mouse Logitech G700
Keyboard Corsair K60
All cpu tower coolers have this genious design, but they cost at around 50 Eur for 800grams of ALU and engineering.
This one weighs 2.5kg for 500 eur
Furthermore, Arctic cooling Alpine 12 passive costs 9.80 eur and its 500grams of ALU.
This is rated for 37W TDP, and i can assure you, it does its job very well. I have a 58W TDP non U CPU running with this thing with no fans in an ITX case (26cm x 27cm x 9cm) full of cables.
heck, even intel own NUC with i5-8250 costs 400 eur and it's passive.
There is only one reason somebody would buy this - design. Everything else is terrible for the price tag.
The base price of 499€ includes NUC. One of the NUC8i3 options that cost 250€ or a bit more by itself plus 4GB of RAM.
As far as the price goes it is not all that bad.

Considerable part of the engineering challenge is probably the modularity of the heatsink. When looking at Cirrus7's page they offer the same case/heatsink in different widths and the third picture in the news post seems to illustrate some of that.
https://www.cirrus7.com/produkte/cirrus7-nimbini-v2/overview
Edit: I was wrong about the picture illustrating it. Their blog states these are heatsink variants they tested for the performance targets.

Last edited:
Joined
Jul 5, 2013
Messages
9,820 (3.83/day)
System Name GPD-Q9
Processor Rockchip RK-3288 1.8ghz quad core
Motherboard GPD Q9_V6_150528
Cooling Passive
Memory 2GB DDR3
Video Card(s) Mali T764
Storage 16GB Samsung NAND
Display(s) IPS 1024x600
What engineering? Drilling holes in metal plates and screwing them together?
Try doing it yourself and let's see what BOM you come up with. This kind of engineering isn't as simple or cheap as you might suppose.


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
39,277 (8.42/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Joined
Jan 2, 2018
Messages
127 (0.14/day)
Try doing it yourself and let's see what BOM you come up with. This kind of engineering isn't as simple or cheap as you might suppose.
Have you checked that Alpine radiator? Thats all the engineering that is needed. You only need to make a simple steel/plastic case to hold the MoBo and this heatsink.
This heat sink WITHOUT any heatpipes at all is already overkill for things like i5-8250U and i5-8259U

Intel NUC BOXNUC8i5BEK2 costs 382 eur, that is 250eur cheaper.

Joined
Nov 10, 2015
Messages
36 (0.02/day)
What I am wondering aside from price /engineering ratio is why not go that extra mile and jam in the core i7with the vega chip on board?

Joined
Feb 3, 2017
Messages
2,435 (1.94/day)
Processor i5-8400
Motherboard ASUS ROG STRIX Z370-I GAMING
Cooling Alpenföhn Black Ridge
Memory 2*16GB DDR4-3200 CL16
Video Card(s) Gainward GeForce RTX 2080 Phoenix
Storage 1TB Samsung 970 Pro, 2TB Intel 660p
Display(s) ASUS PG279Q, Eizo EV2736W
Case Dan Cases A4-SFX
Power Supply Corsair SF600
Mouse Logitech G700
Keyboard Corsair K60
What I am wondering aside from price /engineering ratio is why not go that extra mile and jam in the core i7with the vega chip on board?
100W package TDP might have something to do with that ;)

Joined
May 2, 2017
Messages
2,546 (2.18/day)
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case NZXT H200i
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
This is just plain odd.

-The cooler doesn't have heatpipes, but is seemingly held together with copper rods. Look at their ends - they're thick and flat, not tapered or pinched like a heatpipe. That might be a rushed render, of course, but then how do you fit five heatpipes across the core like that? Or is it two U-shaped and one L-shaped? If so: why?
-Not to sound overly snarky, but they came up with a common thermal transfer core that accepts various amounts of aluminium heatsink plates pressed onto it. Whoop de doo. This does not seem all that complicated. I get that there's a difference between napkin engineering and making an actual design and then bringing it to life with all the weirdness that manufacturing throws into the mix, but come on.
-The same goes for the case design: long screws, spacers, aluminium fins. Done. Add or remove holes, screws and spacers for increased rigidity. If the inner fins are the same ones that make up the outer sides, that's pretty clever, but also really, really simple. All that's needed is a half-decent metal workshop.

All in all, the pricing isn't terrible (they have R&D costs, after all, and I can't imagine stuff like this selling in massive quantities), but it's not good either. If the base motherboard is €250 and this is €500, that's at least €100 too much for the case alone.

Joined
Nov 10, 2015
Messages
36 (0.02/day)
100W package TDP might have something to do with that ;)
So what? make it a bit bigger and job done ;) it says in the article that 28w part runs 12° cooler under load then that stupid intel stock thing... it has the reserves as it is right now plus you can make it bigger and add some more reserve cooling capacity...

Joined
Jun 18, 2010
Messages
2,135 (0.58/day)
Processor Intel i7 970 // Intel i7 2600K
Motherboard Asus Rampage III Formula // Asus P8P67 Deluxe
Cooling Zalman CNPS9900MaxB // Zalman CNPS11X
Memory GSkill 2133 12GB // Corsair V 2400 32GB
Video Card(s) ASUS GTX1080 // MSI GTX1070
Storage Samsung 860EVO // Samsung840P
Display(s) HP w2207h
Case CoolerMaster Stacker 830se // Lian Li PC-9F
Audio Device(s) onboard
Power Supply Seasonic X 850w Gold // EVGA 850w G2
Mouse Logitech G9
Keyboard Dell
Software W10 Pro 1909
What engineering? Drilling holes in metal plates and screwing them together?

All cpu tower coolers have this genious design, but they cost at around 50 Eur for 800grams of ALU and engineering.

This one weighs 2.5kg for 500 eur

Furthermore, Arctic cooling Alpine 12 passive costs 9.80 eur and its 500grams of ALU.
This is rated for 37W TDP, and i can assure you, it does its job very well. I have a 58W TDP non U CPU running with this thing with no fans in an ITX case (26cm x 27cm x 9cm) full of cables.

heck, even intel own NUC with i5-8250 costs 400 eur and it's passive.

There is only one reason somebody would buy this - design. Everything else is terrible for the price tag.
The "value proposition" is based on looks and marketing.
If any disagree, go buy a pet rock.
