Colorful Announces Its First Mini-ITX Barebone for Gaming

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,487 (9.18/day)
Likes
17,517
Location
Hyderabad, India
#1
Colorful is well-known for its highly innovative graphics card designs, it is one of China's leading graphics card brands. Some of its graphics card designs have captured our imagination. Its latest creation is a DIY mini-ITX barebones system for gaming, called Desert Eagle. The package consists of Colorful's own-design slim-form-factor (SFF) chassis, which bears a swanky combination of red and black, with ample perforations and and top handles; a custom-design, low-profile Colorfire AMD Radeon HD 6750 graphics card (Colorfire is Colorful's Radeon-selling brand); a mini-ITX socket LGA1155 motherboard based on the Intel H67 chipset (model: i-H67HD U3); and a 300W PSU.

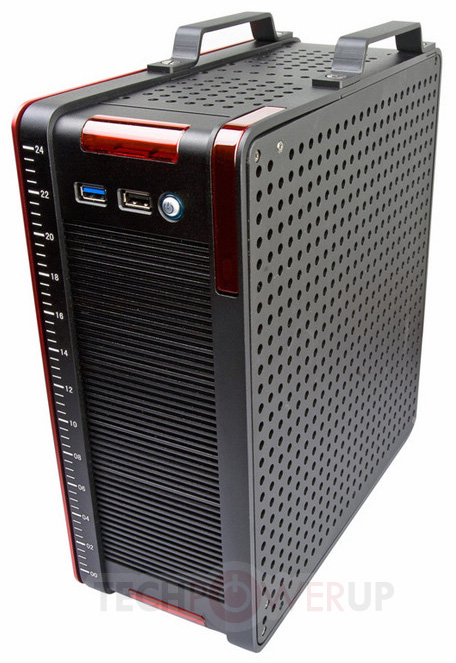

Chassis
The chassis is Colorful's own design, it measures 228 x 262 x 110 mm, weighing 3.7 kg. It's made of an aluminum alloy. The side panels are designed to be hollow, and dampen noise. It has perforations on the front, bottom, top, and left-side to help air-flow. Internally, the chassis features a downside-up layout (think: BTX), so the right-side panel of the chassis opens up to reveal two 2.5" drive bays (well, actually hooks, to screw the drives onto); while the left-side opens up to the motherboard and graphics card. As a result of the design, the fans of the graphics card draw air from the perforations on top of the chassis. The case has two metal handles, that help you transport it to your LAN parties. The front-panel includes one USB 3.0 port, and a USB 2.0.


Graphics Card
As mentioned before, Colorful is packing a Colorfire Radeon HD 6750 1GB graphics card. The card is built in a low-profile design, spans across two expansion slots (which are present, in this case), and uses a dual-fan cooling solution. The card features clock speeds of 700 MHz core, with 1000 MHz (4.00 GHz effective) GDDR5 memory. Display outputs includes one each of DVI and HDMI.

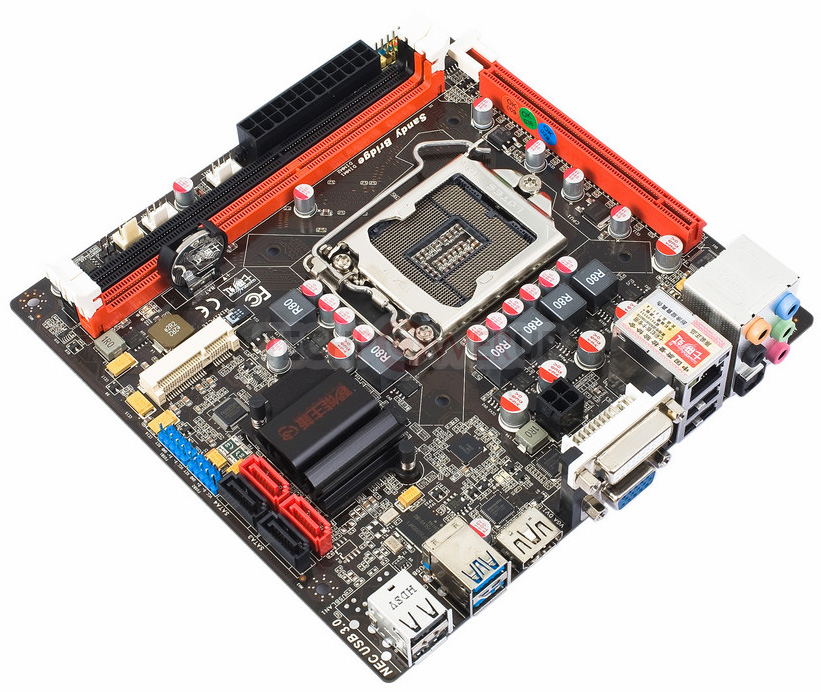

Motherboard
The Desert Eagle kit includes Colorful's own i-H67HD U3 motherboard. This mini-ITX motherboard is based on the Intel H67 chipset, and supports current "Sandy Bridge" and next-gen "Ivy Bridge" Core processors. It uses a 4+1 phase VRM to power the CPU. The CPU is wired to two DDR3 DIMM slots, supporting up to 16 GB of dual-channel DDR3 memory. Expansion slots include one PCI-Express 2.0 x16, and a mini-PCIe (for wireless LAN cards).

SATA connectivity includes two each of SATA 6 Gb/s and SATA 3 Gb/s internal ports. Other connectivity includes 8+2 channel HD audio with optical SPDIF output, gigabit Ethernet, DVI, D-sub, and HDMI for display outputs (which you'll probably not need), and six USB ports on the rear panel, of which two are USB 3.0 SuperSpeed. The board uses high-grade Tantulum capacitors, next to more conventional Japanese conductor-polymer ones.


The PSU
Now, onto the last component of the package, the PSU. Colorful includes a 300W flex-ATX PSU with the Desert Eagle ITX Gaming System barebone. This PSU is 80 Plus Bronze rated, and Colorful claims it provides sufficient power for any of the popular LGA1155 processors and the included Colorfire HD 6750 graphics card. The OEM is Enhance Electronics.


Since the Desert Eagle is a barebones package, you need to augment it with your own LGA1155 processor, DDR3 memory, and storage (SSDs or HDDs). Colorful did not give out pricing details. As for availability, Colorful operates in Asia and Europe, so that should be the availability area, as well.

Last edited:
Joined
Mar 26, 2010
Messages
7,680 (2.69/day)
Likes
1,998
Location
Jakarta, Indonesia
System Name micropage7
Processor Intel G4400
Motherboard MSI B150M Bazooka D3
Cooling Stock ( Lapped )
Memory 16 Gb Team Xtreem DDR3
Video Card(s) Nvidia GTX460
Storage Seagate 1 TB, 5oo Gb and SSD A-Data 128 Gb
Display(s) LG 19 inch LCD Wide Screen
Case HP dx6120 MT
Audio Device(s) Stock
Power Supply Be Quiet 600 Watt
Software Windows 7 64-bit
Benchmark Scores Classified
#2
desert eagle? its the same name with israeli pistols
btw i like the concept, small board with huge card

Joined
May 22, 2010
Messages
2,516 (0.90/day)
Likes
680
Location
Canada
System Name m1dg3t | DeathBox | HairPi 3
Processor 3570k @ 4.0 1.15v BIOS | q9550 @ 3.77 1.325v BIOS
Motherboard Asrock z77e iTX | p5q Dlx 2301 BIOS
Cooling Custom Water | D-14 & HR-03gt | Passive HSF
Memory Samsung MV-3V4G3D 4g x 2 @ 1866 1.35v | OcZ RpR 2g x 4 @ 1067 2.2v
Video Card(s) MSi 7950 tf3 @1000 / 1350 | Asus 5870 V2 @ 900 / 1275
Storage Adata sx900 256Gb / WD 2500 HHTZ | WD 1001 FALS x 2
Display(s) BenQ gw2750hm | 46" Sharp Quatron
Case BitFenix Prodigy - m0dd3d | Antec Fusion Remote MAX
Audio Device(s) Onboard Toslink > Yamaha HTR 6290 | Xonar HDAV1.3 > Yamaha DSP z7
Power Supply Ocz mXp700w | Ocz zx850w | Cannakit 5v 2.5a
Mouse Logitech G700s | Logitech G9x - Cable Repaired
Keyboard TT Meka G1 - Black w Cherry Blacks| Logitech G11
Software Win7 Home | Xp sp3 & Vista ultimate | Raspbian
Benchmark Scores Epeen!! Who needs epeen??
#3
Nice! But why a 6750? Why couldn't hey have used a 6850 or better?

Joined
Dec 14, 2011
Messages
91 (0.04/day)
Likes
42
Location
Deadmonton
System Name Prime Shiz
Processor Intel i7 4770K 4.4Ghz 1.31v
Motherboard MSI Z97A Gaming 6
Cooling Noctua NH-D14
Memory G.Skill Ripjaws X 1866MHz 16GB @ 2200 CL10
Video Card(s) MSI GTX1070 GAMING X 8GB
Storage Crucial BX100 250GB, Corsair Force 3 240GB, Crucial BX100 500GB
Display(s) Asus VS24AH-P
Case Silverstone Fortress FT02 USB3.0
Audio Device(s) Asus Xonar Essense STX
Power Supply EVGA SuperNOVA 650 G2
Mouse Mionix Naos 3200
Keyboard CM Storm Quickfire TK reds
#4
Probably cause that is the best card that is widely available in the slimmed down form factor to fit that m-itx case.

Joined
Mar 2, 2009
Messages
5,026 (1.55/day)
Likes
1,271
Processor Intel Core i7
Motherboard MSI P67
Cooling Cooler Master
Memory Kingston
Video Card(s) temporarily Palit (formerly Inno 3D)
Storage Seagate
Display(s) Acer 23"
Case Thermaltake
Audio Device(s) onboard
Power Supply FSP 700W
Software Windows 7
#5
Nice! But why a 6750? Why couldn't hey have used a 6850 or better?
Power consumption, thus heat, as well as easily being able to make it low-profile.

Joined
May 22, 2010
Messages
2,516 (0.90/day)
Likes
680
Location
Canada
System Name m1dg3t | DeathBox | HairPi 3
Processor 3570k @ 4.0 1.15v BIOS | q9550 @ 3.77 1.325v BIOS
Motherboard Asrock z77e iTX | p5q Dlx 2301 BIOS
Cooling Custom Water | D-14 & HR-03gt | Passive HSF
Memory Samsung MV-3V4G3D 4g x 2 @ 1866 1.35v | OcZ RpR 2g x 4 @ 1067 2.2v
Video Card(s) MSi 7950 tf3 @1000 / 1350 | Asus 5870 V2 @ 900 / 1275
Storage Adata sx900 256Gb / WD 2500 HHTZ | WD 1001 FALS x 2
Display(s) BenQ gw2750hm | 46" Sharp Quatron
Case BitFenix Prodigy - m0dd3d | Antec Fusion Remote MAX
Audio Device(s) Onboard Toslink > Yamaha HTR 6290 | Xonar HDAV1.3 > Yamaha DSP z7
Power Supply Ocz mXp700w | Ocz zx850w | Cannakit 5v 2.5a
Mouse Logitech G700s | Logitech G9x - Cable Repaired
Keyboard TT Meka G1 - Black w Cherry Blacks| Logitech G11
Software Win7 Home | Xp sp3 & Vista ultimate | Raspbian
Benchmark Scores Epeen!! Who needs epeen??
#6
I personally think they could have gone with a 6850 based card and it would have nearly doubled GFX performance, making it "game worthy" :eek:

From what i saw 6850 draw's about 40w more than 6750 but damn near DBL's it in performance, seem's like an easy choice to me but then again WTF do i know :roll:

Joined
Mar 2, 2011
Messages
776 (0.31/day)
Likes
844
Location
Omaha, NE
System Name "The Gift"
Processor Intel Core i5 2500k
Motherboard ASUS Maximus iV Gene-Z/Gen 3
Cooling Cryorig M9i
Memory G. Skill 8GB(2x4GB) Ripjaws "X" Series - DDR3 1600
Video Card(s) HIS HD 7950 IceQ Turbo 3GB
Storage WD Velociraptor Enterprise Edition - 300GB
Display(s) HP e232
Case Fractal Design - Arc Mini
Power Supply Corsair TX650W
Mouse Logitech T400 Zone Touch Mouse
Keyboard HP KBRF57711 Wireless Keyboard
Software Ubuntu 16.04.3 LTS/Windows 7 Professional - 64 bit(GOG/Steam Only)
#7
That 6750 is awesome! I've got a Sapphire HD 6670 low profile in my mini-itx rig(Wesena) now and it plays every game I own just fine in 1080p. No huge eye candy, but decent enough. I'd like an upgrade...hope we can get one in the US.

I also spot a Samuel 17...nice CPU cooler. I've got a few of these in operation.

LC

Last edited:
Joined
Feb 9, 2007
Messages
690 (0.17/day)
Likes
135
Location
Portugal
System Name Quiet Gaming PC v4
Processor Intel Core i7 4770K
Motherboard MSI Z97 Gaming 5
Cooling Thermalright TRUE 120 Rev. C
Memory 16GB G.Skill Sniper DDR3-1866
Video Card(s) Sapphire HD 7970 Dual-X OC
Storage Crucial m4 128GB + Crucial MX100 512GB
Display(s) Dell U2311H + BenQ G2400WD
Case Fractal Design Define R4
Audio Device(s) Realtek ALC1150
Power Supply Corsair AX750
Software Windows 8.1 Pro x64
#8
Last edited:
Joined
Jan 31, 2012
Messages
1,613 (0.74/day)
Likes
554
Location
Bulgaria
System Name HyperMainframe
Processor G4560
Motherboard Asus PRIME H270M-PLUS
Cooling Thermaltake Gravity i1
Memory 1 x 8GB Cruicial 2400 mhz DDR4
Video Card(s) Gigabyte GTX970 4GB
Storage Cruicial M.2 275GB drive + WD black 500 GB + WD Blue 640 GB
Display(s) 2560x1080 LG 29" + LG 22mp67vq-p
Case Thermaltake Urban R31
Audio Device(s) Creative Recon 3D
Power Supply Cooler Master Silent Pro M500W
Mouse Logitech G602
Keyboard Dell Somethin wireless
Software Windows 10 x 64 bits
#9
Release the LIONZZ! :D They make better and better stuff all the time. WANT :D


InnocentCriminal

Resident Grammar Amender
Joined
Feb 21, 2005
Messages
6,477 (1.37/day)
Likes
844
System Name BeeR 6
Processor Intel Core i7 3770K*
Motherboard ASUS Maximus V Gene (1155/Z77)
Cooling Corsair H100i
Memory 16GB Samsung Green 1600MHz DDR3**
Video Card(s) 4GB MSI Gaming X RX480
Storage 256GB Samsung 840 Pro SSD
Display(s) 27" Samsung C27F591FDU
Case Fractal Design Arc Mini
Power Supply Corsair HX750W
Software 64bit Microsoft Windows 10 Pro
Benchmark Scores *@ 4.6GHz **@ 2133MHz
#10
I like it.

:)

Joined
Mar 2, 2011
Messages
776 (0.31/day)
Likes
844
Location
Omaha, NE
System Name "The Gift"
Processor Intel Core i5 2500k
Motherboard ASUS Maximus iV Gene-Z/Gen 3
Cooling Cryorig M9i
Memory G. Skill 8GB(2x4GB) Ripjaws "X" Series - DDR3 1600
Video Card(s) HIS HD 7950 IceQ Turbo 3GB
Storage WD Velociraptor Enterprise Edition - 300GB
Display(s) HP e232
Case Fractal Design - Arc Mini
Power Supply Corsair TX650W
Mouse Logitech T400 Zone Touch Mouse
Keyboard HP KBRF57711 Wireless Keyboard
Software Ubuntu 16.04.3 LTS/Windows 7 Professional - 64 bit(GOG/Steam Only)
#11
rpsgc...Only for sale in Japan.

We had a thread about the HD 6850 on [H], I looked around for one...and couldn't find it. Contacted them through their website and no response. Now I know why.

An HD 6850 in my little wesena ITX...now that would rock, although I think the HD 6670 is pushing the thermal envelope. It get's warm fast, although a little dollop of MX2 helped a little...

Best,

LC

Joined
Sep 5, 2008
Messages
40 (0.01/day)
Likes
6
#12
The 6850 pictured above seems longer than the 6750 Colorful made. That one fits exactly into the space available in that case. That's kinda of a barebone there, several pieces made to fit well with each other.


dieterd

New Member
Joined
Feb 24, 2011
Messages
120 (0.05/day)
Likes
2
System Name The "Average Joe's after work gaming and porn browsing PC"
Processor i5-760 @stock speed
Motherboard Asus P7P55-whatever
Cooling Scythe Mugen2
Memory 2x2GB
Video Card(s) HD6850 Asus
Storage 1TB 7200
Display(s) 23'' samsung
Case Nexus one
Audio Device(s) nope
Power Supply Nexus RX-630(0)
Software Win 7 HP 64bit
#13
what about hd 77xx series? I mean there is slingle slot 7750s out right now and 7770 TDP/Preformance is great too, there would be great use in mini_ITX for those overpriced GPU's.

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#14
I can't wait! Though I would sell the GPU and get one that actually has working drivers.:shadedshu

Joined
Feb 9, 2007
Messages
690 (0.17/day)
Likes
135
Location
Portugal
System Name Quiet Gaming PC v4
Processor Intel Core i7 4770K
Motherboard MSI Z97 Gaming 5
Cooling Thermalright TRUE 120 Rev. C
Memory 16GB G.Skill Sniper DDR3-1866
Video Card(s) Sapphire HD 7970 Dual-X OC
Storage Crucial m4 128GB + Crucial MX100 512GB
Display(s) Dell U2311H + BenQ G2400WD
Case Fractal Design Define R4
Audio Device(s) Realtek ALC1150
Power Supply Corsair AX750
Software Windows 8.1 Pro x64
#15
The 6850 pictured above seems longer than the 6750 Colorful made. That one fits exactly into the space available in that case. That's kinda of a barebone there, several pieces made to fit well with each other.
You're right. The HD 6750 fits very tightly in there.


Unfortunately there's a real shortage of "gaming" low profile cards.

Joined
Feb 9, 2007
Messages
690 (0.17/day)
Likes
135
Location
Portugal
System Name Quiet Gaming PC v4
Processor Intel Core i7 4770K
Motherboard MSI Z97 Gaming 5
Cooling Thermalright TRUE 120 Rev. C
Memory 16GB G.Skill Sniper DDR3-1866
Video Card(s) Sapphire HD 7970 Dual-X OC
Storage Crucial m4 128GB + Crucial MX100 512GB
Display(s) Dell U2311H + BenQ G2400WD
Case Fractal Design Define R4
Audio Device(s) Realtek ALC1150
Power Supply Corsair AX750
Software Windows 8.1 Pro x64
#16
Last edited:
Joined
Jan 31, 2012
Messages
1,613 (0.74/day)
Likes
554
Location
Bulgaria
System Name HyperMainframe
Processor G4560
Motherboard Asus PRIME H270M-PLUS
Cooling Thermaltake Gravity i1
Memory 1 x 8GB Cruicial 2400 mhz DDR4
Video Card(s) Gigabyte GTX970 4GB
Storage Cruicial M.2 275GB drive + WD black 500 GB + WD Blue 640 GB
Display(s) 2560x1080 LG 29" + LG 22mp67vq-p
Case Thermaltake Urban R31
Audio Device(s) Creative Recon 3D
Power Supply Cooler Master Silent Pro M500W
Mouse Logitech G602
Keyboard Dell Somethin wireless
Software Windows 10 x 64 bits
#17
It'll fit in length, but not in width. That card is a standart one, meaning at least ~101mm width. While the Low-profile ones vary between ~69-73. Acording to Amazon's website, this 6750 is 2 inch wide, but I'd say it's about 69mm. I don't pretend for accuracy.
