Colorful Designs Single-Slot ''Ultra Slim'' GeForce GTS 450 Graphics Card

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
46,283 (7.69/day)
Location
Hyderabad, India
System Name RBMK-1000
Processor AMD Ryzen 7 5700G
Motherboard ASUS ROG Strix B450-E Gaming
Cooling DeepCool Gammax L240 V2
Memory 2x 8GB G.Skill Sniper X
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) ASUS SupremeFX S1220A
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Gamdias Hermes E2
Software Windows 11 Pro

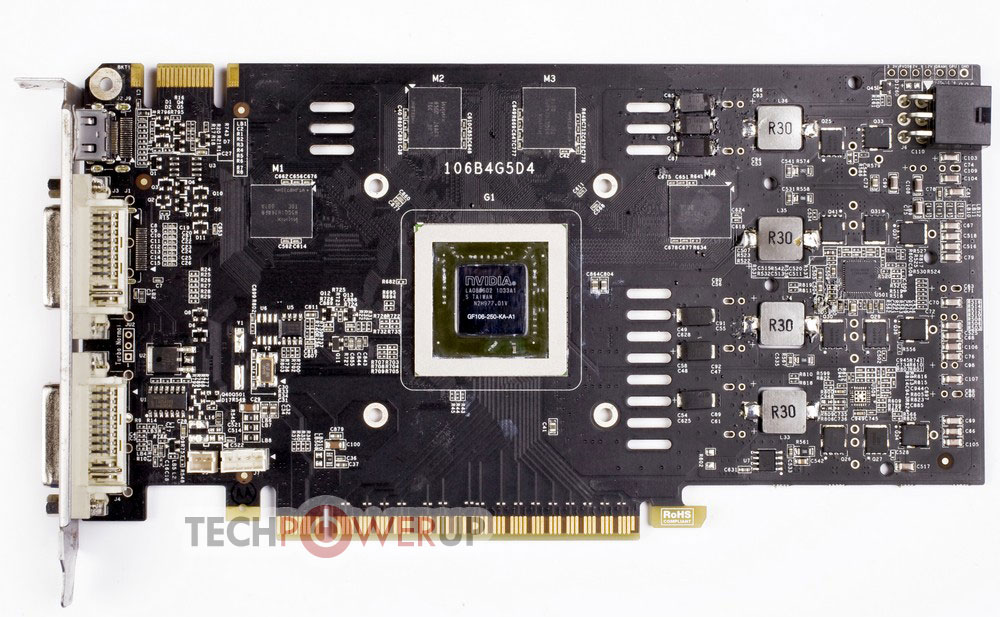

Colorful, the brains behind the iGame series of fully-loaded performance-thru-mainstream graphics cards is continuing to let its creativity fly. This time around, the company is working on a new GeForce GTS 450 graphics card that's "slim" in more ways than one. To begin with, the card will feature a single-slot cooling solution, next, the designers completely did away with "big" and redundant components on the PCB, and replaced them with higher-grade yet compact and less in number components. For example, while most other graphics card vendors fill up the 128-bit wide GDDR5 memory bus of the GeForce GTS 450 with eight 1 Gbit (128 MB) chips, with two chips sharing a 32-bit wide path, Colorful used just four higher-density memory chips. That's four 2 Gbit (256 MB) memory chips made by Hynix to achieve the same capacity, reducing board footprint, and possibly heat and energy draw.

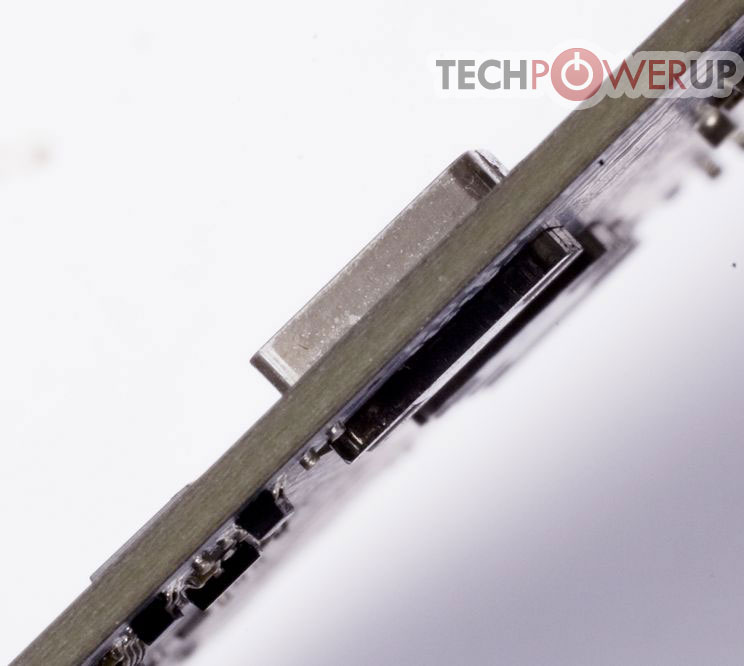

All cylindrical capacitors are replaced by server-grade flatbed high-C POSCAP capacitors. The card uses a simple 3+1 phase VRM, driven by an ON-Semi made controller. The chokes used don't exactly sit on the PCB, rather, they're suspended in openings of the PCB, by their leads, this improves ventilation around the chokes, and reduces the size of the chokes on the obverse side, reducing the obstruction caused to the cooler. The PCB itself is well "ventilated". All free-space on the PCB is used to carve out vents for the cooler to draw in air from. Colorful did not mention when tentatively it plans to release this product.



View at TechPowerUp Main Site

Joined
Jan 29, 2010
Messages
471 (0.09/day)
Location
Houston
System Name Beast
Processor Intel Core i7 860 @ 3.8GHz
Motherboard eVGA P55 FTW
Cooling Coolit Eco ALC with Yate Loon 1700RPM fans
Memory 8 GB Patriot Viper @ DDR3-2000
Video Card(s) EVGA GTX280
Storage 2x 1 TB WD Caviar Black
Case Thermaltake Element V
Power Supply Seasonic X760
Software Win7 x64 Ultimate
wow - looks quite well designed. Wonder what the cooler will look like =)


cadaveca

My name is Dave
Joined
Apr 10, 2006
Messages
17,232 (2.63/day)
Wow. Now there's some innovation. I love the air-suspension components. Novel idea, that one.

Joined
Aug 10, 2007
Messages
2,139 (0.35/day)
Location
Austin TX
Processor i9 11900k
Motherboard Maximus XII Apex
Cooling Custom Liquid W/ 360x60 Radiator
Memory 32Gb Team XTREEM ARGB 3600 b-die
Video Card(s) Waterblocked MSI RTX 4070
Storage Intel 900p 480Gb + 4tb Intel 670p
Display(s) LG C2 evo 42"
Case Geometric Future Model 8
Audio Device(s) HD58X + Sennheiser GSX 1000
Power Supply Corsair RM 750x
Mouse Steelseries Aerox 5 wired
Keyboard Akko Mod 007b HE
VR HMD Samsung Odyssey+
Software Windows 11

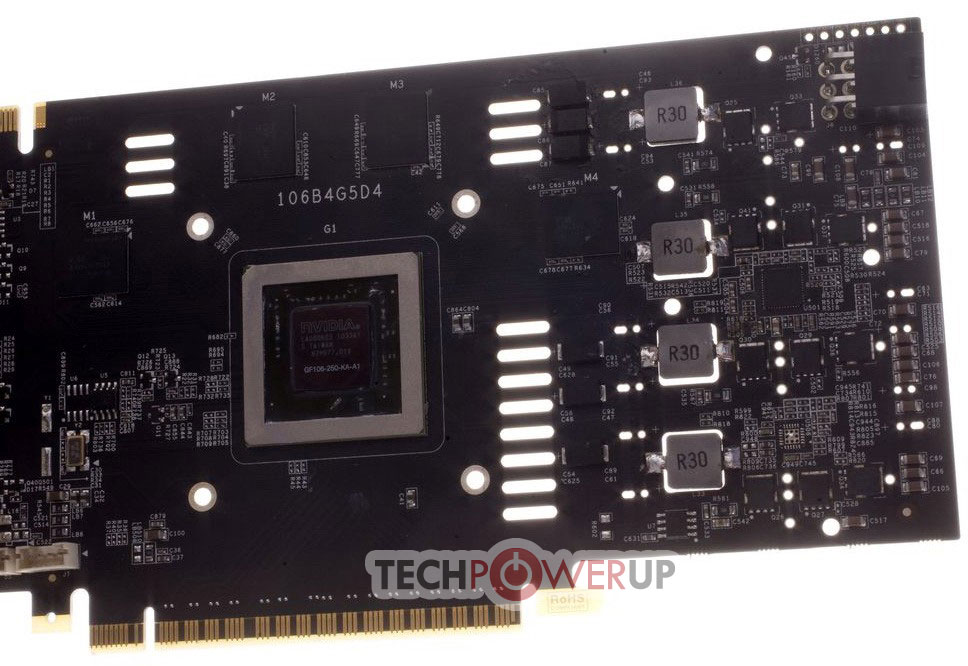

there also appears to be voltage measuring points above the pcie power connection... hmm..

Joined
Dec 9, 2007
Messages
746 (0.13/day)
This is what more companies should aim for, innovation! I would love to buy this particular graphics card, it would suit my poorly OEM ventilated case quite well.

Joined
Aug 11, 2009
Messages
6,823 (1.28/day)
Location
Viking Land
System Name Ivy Biatch
Processor i5 3570K
Motherboard ASSRockzz z77TOTHEEXTREME!!!!
Cooling bleh
Memory 2x4gb crucial 1866
Video Card(s) HD7770, yes it does BF3
Storage 120gb Vertex
Display(s) 226BW
Case whats that, oh my table
Audio Device(s) stock onboard thing
Power Supply HX850W
Software 7
there also appears to be voltage measuring points above the pcie power connection... hmm..

maybe its for their own testing equipment

i doubt it will be good at overclocking with 1slot cooler


TheLostSwede

News Editor
Joined
Nov 11, 2004
Messages
16,001 (2.26/day)
Location
Sweden
System Name Overlord Mk MLI
Processor AMD Ryzen 7 7800X3D
Motherboard Gigabyte X670E Aorus Master
Cooling Noctua NH-D15 SE with offsets
Memory 32GB Team T-Create Expert DDR5 6000 MHz @ CL30-34-34-68
Video Card(s) Gainward GeForce RTX 4080 Phantom GS
Storage 1TB Solidigm P44 Pro, 2 TB Corsair MP600 Pro, 2TB Kingston KC3000
Display(s) Acer XV272K LVbmiipruzx 4K@160Hz
Case Fractal Design Torrent Compact
Audio Device(s) Corsair Virtuoso SE
Power Supply be quiet! Pure Power 12 M 850 W
Mouse Logitech G502 Lightspeed
Keyboard Corsair K70 Max
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/5za05v
Am I the only one that noticed the sloppy soldering?
Besides, it's a GTS 450, who cares? Do this on a decent card and it might make a difference.


Namslas90

New Member
Joined
Aug 27, 2006
Messages
4,846 (0.75/day)
Location
Earth
Am I the only one that noticed the sloppy soldering?
Also, a thin PCB isn't a good thing, as if it gets hot, it'll warp easier...

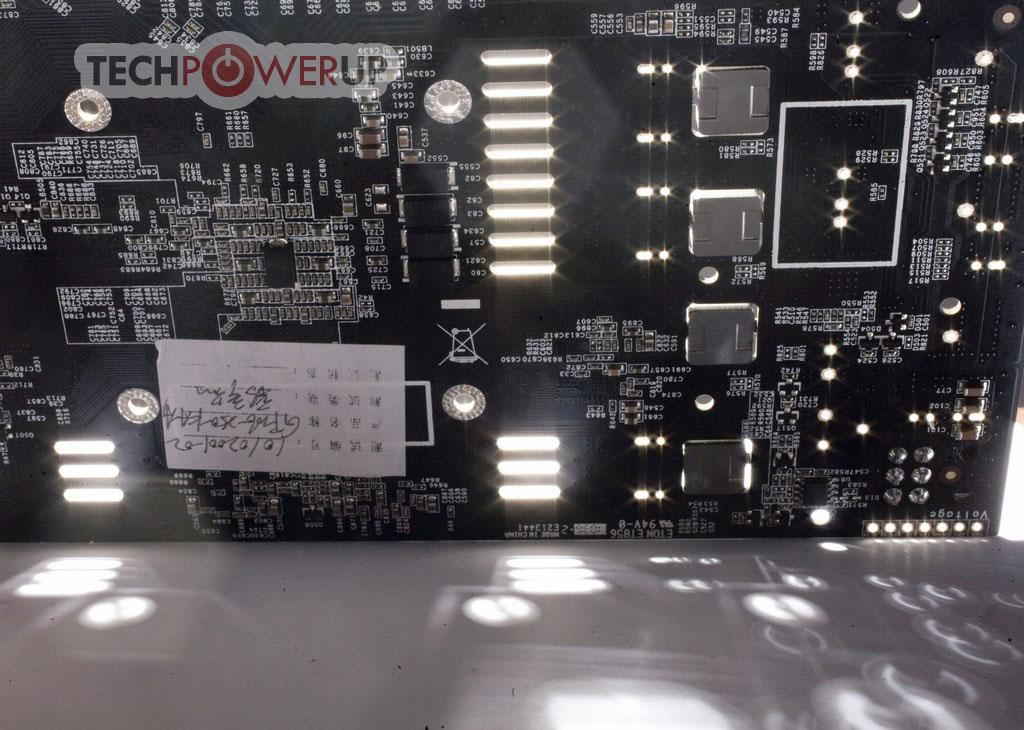

See the label in third pic. That card was hand-made, no solder bath. It is real sloppy though and I would have expected better, especially if they were releasing photos of it to the press.
