Cooler Master Intros Hyper 612S CPU Cooler

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,314
Likes
17,423
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update

specks

New Member
Joined
Feb 27, 2011
Messages
440
Likes
88
System Name Spreadsheet powerhouse
Processor Two P4s glued together
Motherboard Asus P5KPL-AM EPU
Cooling CoolerMaster Hyper TX3
Memory 2gb (2x1gb) Kingston Value Ram DDR2 800mhz
Video Card(s) Sapphire HD4670 1gb GDDR3 w/ Arctic Cooling Accelero L7
Storage 500GB Western Digital Caviar Blue
Display(s) Philips 191EL 18.5"
Case Thermaltake V4 Black Edition
Audio Device(s) Onboard
Power Supply Thermaltake TR2 600W
Software WinXp
#2
With 6 heatpipes i hope it does good compared to other similar coolers.

Joined
Apr 16, 2010
Messages
2,878
Likes
879
Location
Portugal
System Name _JP_'s Daily Driver
Processor AMD Ryzen 7 1700
Motherboard MSI X370 Gaming Plus
Cooling Noctua NH-C12P SE14 + NM-AM4 + NF-P14r
Memory 2x 8GB G.Skill Trident Z (F4-3200C16D-16GTZB)(Hynix)
Video Card(s) MSI AMD Radeon R9 280X Gaming
Storage HyperX Savage 240GB + KC300 240GB + 750EVO 500GB
Display(s) LG Flatron W2361V 23'' FHD
Case NOX Blaze
Audio Device(s) ASUS Xonar DX
Power Supply Corsair TX650M
Mouse Microsoft Comfort Mouse 4500
Keyboard Logitech Media Keyboard (PS/2)
Software Windows 10 x86-64 (1703)
#3
Ventilation is care of a 120 mm fan, although there's provision for dual fan "push-pull" set up.
If CM provides the 2nd plastic support thing, sure, if not, it will a pain in the neck to do a push-pull config.
And for 45€, I can understand why the fan doesn't have PWM.


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,314
Likes
17,423
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#4
There will be a PWM variant of the Hyper 612S, which will have a different fan (600~2000 RPM) with 4-pin header. It will charge a small premium over this. I'm guessing 5 EUR more.


specks

New Member
Joined
Feb 27, 2011
Messages
440
Likes
88
System Name Spreadsheet powerhouse
Processor Two P4s glued together
Motherboard Asus P5KPL-AM EPU
Cooling CoolerMaster Hyper TX3
Memory 2gb (2x1gb) Kingston Value Ram DDR2 800mhz
Video Card(s) Sapphire HD4670 1gb GDDR3 w/ Arctic Cooling Accelero L7
Storage 500GB Western Digital Caviar Blue
Display(s) Philips 191EL 18.5"
Case Thermaltake V4 Black Edition
Audio Device(s) Onboard
Power Supply Thermaltake TR2 600W
Software WinXp
#5
The PWM version is already out. Im not sure if it comes with extra clips though.

Joined
Oct 7, 2009
Messages
396
Likes
61
System Name Just A Gaming Rig.
Processor AMD FX-8320 @4.1GHz, 1.268V
Motherboard ASUS M5A97 Evo R2.0
Cooling Cooler Master Hyper 212 Evo
Memory 8 GB Crucial Ballistix Sport 1600MHz
Video Card(s) Club 3D R9 280X 3GB royalQueen, @1115/1615MHz
Storage OS+Often used stuff: Kingston SSDNow V300 120GB, Mass storage: WD Blue 1TB
Case Zalman Z3 Plus
Audio Device(s) Integrated
Power Supply Corsair CX600M
Software Windows 8.1 64-bit
#6
Any reviews of this heatsink up yet?

Joined
Nov 13, 2009
Messages
5,614
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#7
I just hope the mounting brackets aren't as cheap and crappy as they were on the 212.

Joined
Feb 18, 2006
Messages
5,100
Likes
1,254
Location
AZ
System Name Thought I'd be done with this by now
Processor i7 4790K 4.4GHZ turbo currently at 4.6GHZ at 1.16v
Motherboard MSI Z97-G55 SLI
Cooling Scythe Mugen 2 rev B (SCMG-2100), stock on gpu's.
Memory 8GB G.SKILL Ripjaws Z Series DDR3 2400MHZ 10-12-12-31
Video Card(s) EVGA GTX 760 Superclocked replaced HIS R9 290 that was artifacting
Storage 1TB MX300 M.2 OS + Games, 4x ST31000524NS in Raid 10 Storage and Backup, external 2tb backup,
Display(s) BenQ GW2255 surprisingly good screen for the price.
Case Raidmax Scorpio 668
Audio Device(s) onboard HD
Power Supply EVGA 750 GQ
Software Windows 10
Benchmark Scores no one cares anymore lols
#8
"cooler master intros Scythe mugen 2 with slightly different top"

Joined
Nov 13, 2009
Messages
5,614
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#9
Joined
Nov 2, 2008
Messages
766
Likes
414
Processor Intel Core i3-4370
Motherboard Gigabyte GA-H97-D3H
Cooling Zalman CNPS9500 AT
Memory 16GB Crucial Ballistix Sport DDR3-1600
Video Card(s) Gigabyte GV-N75TOC-2GI GeForce GTX 750 Ti WindForce
Storage Crucial MX100 256GB SSD
Display(s) Acer G245HQ 23.6" LCD
Case Fractal Design Define R4 Black Pearl
Audio Device(s) Realtek ALC1150
Power Supply Corsair CX600M
Mouse Logitech M500
Keyboard Lenovo KB1021 USB
Software Windows 10 Professional x64
#10
"cooler master intros Scythe mugen 2 with slightly different top"
Not really. The Scythe Mugen 2 has a separate stack of fins for each heatpipe. The Hyper 612S is just one big stack with the heatpipes running through it.

Joined
Apr 19, 2011
Messages
1,724
Likes
203
Location
So. Cal.
#11

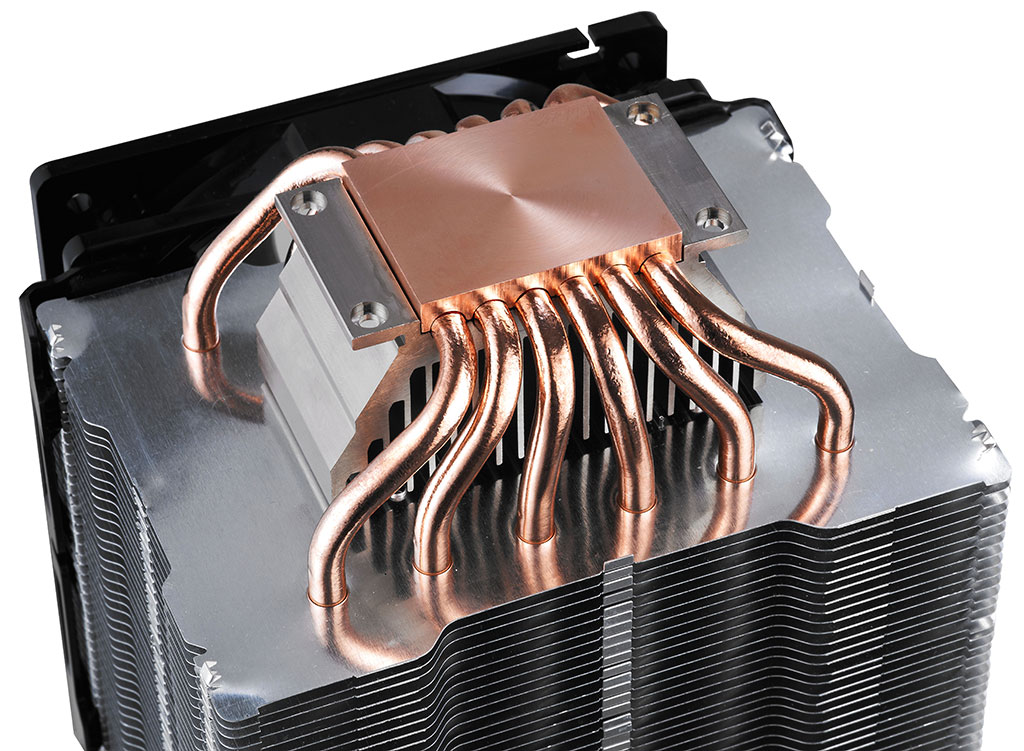

Scythe Mugen 2, has 5 H-P, and they have a nickel plated base, while this C-M has a center turned/ground base (something I've never seen). The extrusion of the aluminum is close, although C-M appears to have a couple extra steps on their profile. If Scythe was making it for C-M I'd bet that extrusion would be the same. The Mugen is a few mm shorter but is 64g heavier. It's more a design of one-up-men-ship!
http://www.scythe-eu.com/en/products/cpu-cooler/mugen-2-cpu-cooler.html

Last edited:

Thatguy

New Member
Joined
Nov 24, 2010
Messages
666
Likes
68
#12

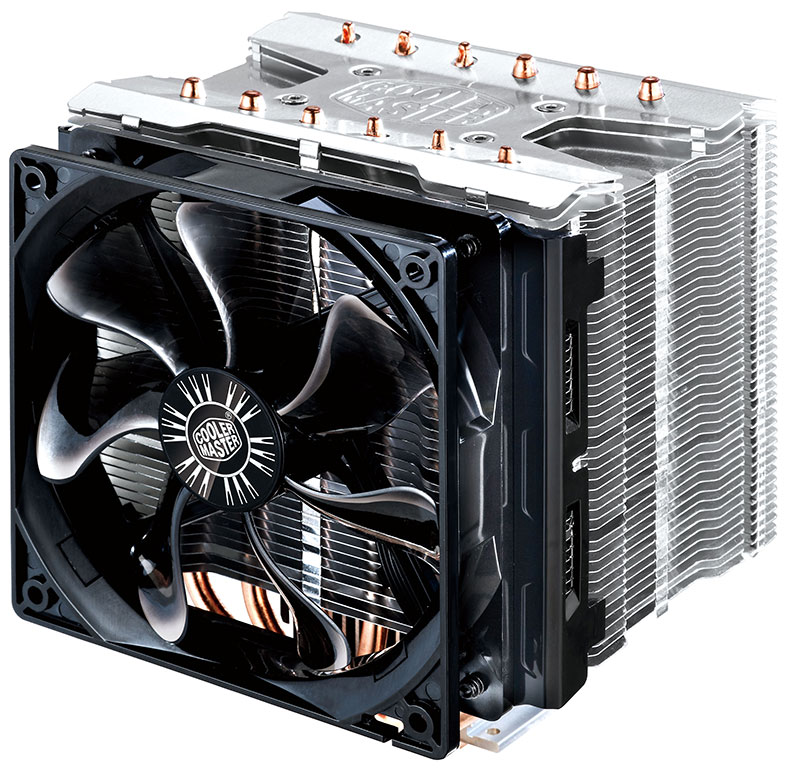

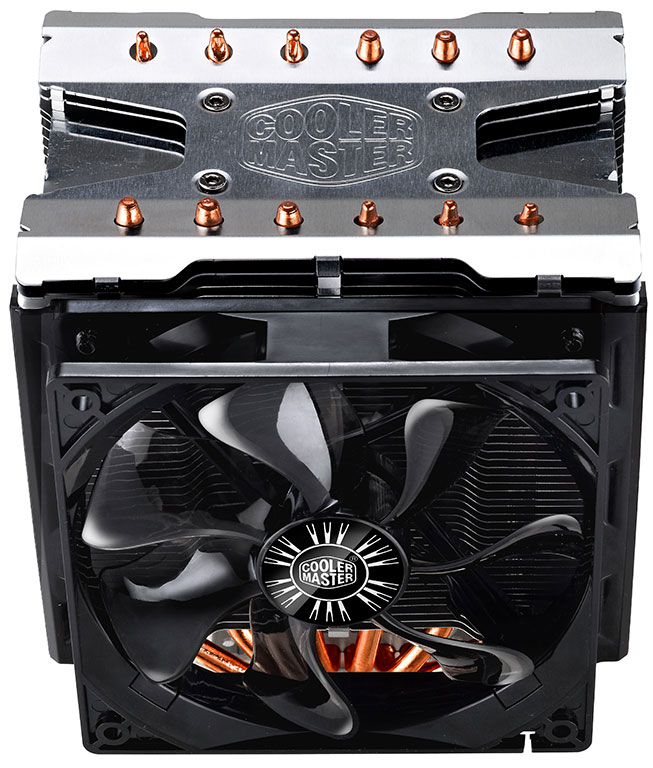

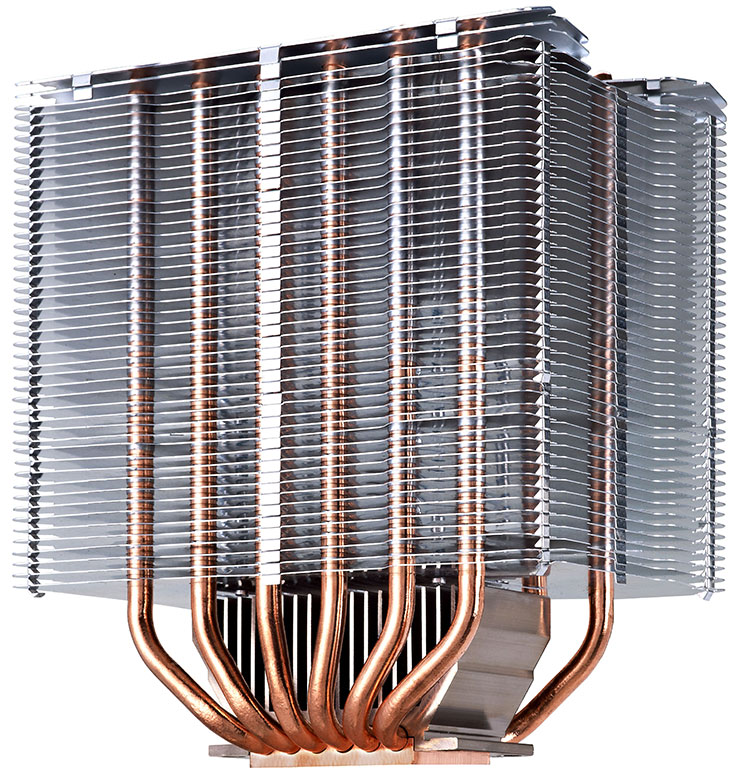

Cooler Master rolled out its newest performance CPU cooler, the Hyper 612S. It is a large tower-type heatsink that is designed to maximize heat dissipation at lower fan speeds. It does so with a different orientation of copper heat pipes. The heat pipes pass through the base, and along the length of the aluminum fin stack, rather than its breadth. As a result heat is dissipated more uniformly along the air column. The fins are designed to curve air path, to improve heat dissipation. Ventilation is care of a 120 mm fan, although there's provision for dual fan "push-pull" set up.

The cooler measures 140x128x163 mm, weighing 806 g. The bundled 120 mm fan has a top speed of 1300 RPM ±10% pushing 52.6 CFM of air, and uses a 3-pin fan connector. A "Silent mode adapter" (intermediate resistor) slows it down to 900 RPM, reducing its air flow to 36.4 CFM. Between full speed and silent modes, the rated noise levels vary between 22.5 and 16.1 dBA. The Hyper 612S supports all current CPU socket types, including Intel LGA1366/1156/1155/775, and AMD Socket AM3/AM2+/AM2. Available in the markets by September, the Hyper 612S is expected to be priced around 45 Euros.

http://www.techpowerup.com/img/11-07-26/121a_thm.jpg http://www.techpowerup.com/img/11-07-26/121b_thm.jpg http://www.techpowerup.com/img/11-07-26/121e_thm.jpg http://www.techpowerup.com/img/11-07-26/121c_thm.jpg http://www.techpowerup.com/img/11-07-26/121d_thm.jpg

This looks really well designed, but heat pipe cooling tech was figured out in the 1960's. All they had to do was read the patents for design info.

Joined
Feb 17, 2010
Messages
520
Likes
161
System Name SKY OC
Processor i3-6100 4.6GHz
Motherboard Z170 FATAL1TY K4/D3
Cooling TPC-612
Memory Trident X 2400CL9
Video Card(s) HD 7850 CFX
Storage Vector 150
Case HAF XB
Power Supply Capstone 550M
#13
Was direct touch heatpipes just a gimmick that is going away?

Joined
Feb 18, 2006
Messages
5,100
Likes
1,254
Location
AZ
System Name Thought I'd be done with this by now
Processor i7 4790K 4.4GHZ turbo currently at 4.6GHZ at 1.16v
Motherboard MSI Z97-G55 SLI
Cooling Scythe Mugen 2 rev B (SCMG-2100), stock on gpu's.
Memory 8GB G.SKILL Ripjaws Z Series DDR3 2400MHZ 10-12-12-31
Video Card(s) EVGA GTX 760 Superclocked replaced HIS R9 290 that was artifacting
Storage 1TB MX300 M.2 OS + Games, 4x ST31000524NS in Raid 10 Storage and Backup, external 2tb backup,
Display(s) BenQ GW2255 surprisingly good screen for the price.
Case Raidmax Scorpio 668
Audio Device(s) onboard HD
Power Supply EVGA 750 GQ
Software Windows 10
Benchmark Scores no one cares anymore lols
#14
Was direct touch heatpipes just a gimmick that is going away?
yup, flattenting the heatpipes = less heat pipe performance. not to mention several of them left 1 or 2 heat pipes hanging without any access to the cpu die.
