DTS DCH Driver for Realtek HDA [DTS:X]

[Ferather]

Reminder:

To reset all endpoints (Realtek-Windows can be weird), disable all endpoints (recording then playback), restart, wait a few seconds, enable (recording then playback), restart again.

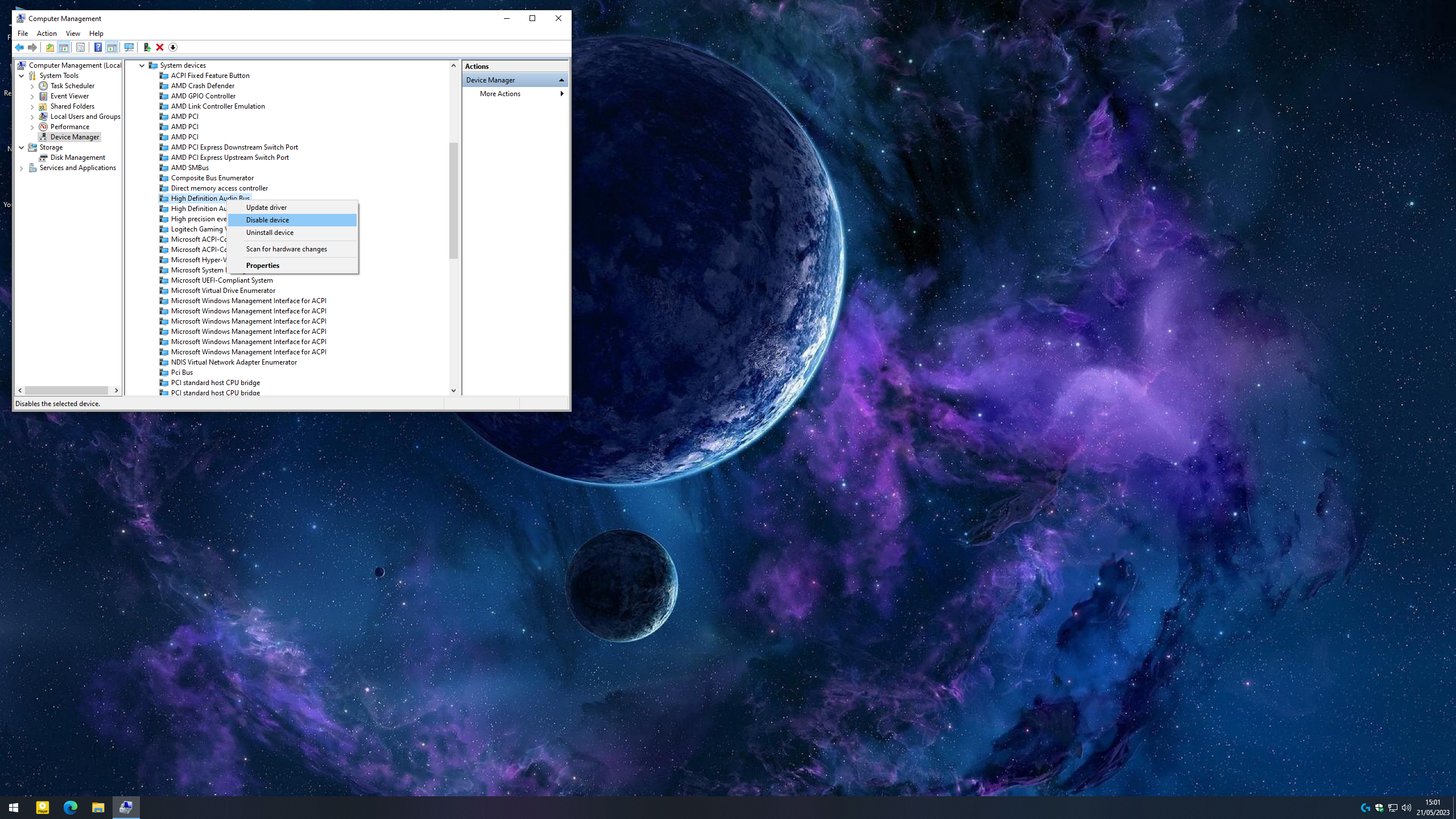

You can also disable the HDA bus and do it that way if you find it more convenient, I'm all out of general tips at this point, xD.





====



[Ferather]

EAPO upmixer updated (see here), downloaded flac test audio here (not perfect but gives you an idea of expected quality).
You should notice specific rear audio even though they are stereo files and don't have rear.

Also note DPC tests where done with optical in HT mode (6 channel), full config, not legacy method.

----

Added 'Win CAudio' to 'Settings and Utility': https://www.mediafire.com/file/4atyjj2310eivvo/Win_CAudio.7z
Disable all endpoints, apply the reg, restart, enable endpoints (as above), enjoy the audio.



[Ferather]

Currently I am on a break, but I will do an update around the 6.0.96XX.1 area, new Realtek files are not exactly urgent at this time (for me at least).

----

I am aware of two small blips with DTS APO4 when using custom mode:

• The bass boost option has attenuation and can sometimes act a bit odd when turned on, but not after.
• Switching between wide-front spatial modes can sometimes not refresh instantly, and act odd.

I will look into it at a later date, however custom can still be setup and used, so its not too big a deal.
No issues with Realtek (other than default analogue amp mode) or DTS Interactive.

----



Enjoy!



[DreaminquE]

Can I use DTS DCH with your drivers when I connect my speakers to the monitor for digital audio?



[Ferather]

Sort of, DTS APO4 natively only supports some form factors for stereo modes (Speakers, Headphones), HDMI and SPDIF are not supported (multichannel only).
You can use the 'DTS Settings' to program a GPU, but to get app stereo control you need the other package or switch devices then back.

Guide here



[DreaminquE]

Bir nevi, DTS APO4 doğal olarak yalnızca stereo modlar (Hoparlörler, Kulaklıklar) için bazı form faktörlerini destekler, HDMI ve SPDIF desteklenmez (yalnızca çok kanallı).
Bir GPU'yu programlamak için 'DTS Ayarları'nı kullanabilirsiniz, ancak uygulama stereo kontrolü elde etmek için diğer pakete ihtiyacınız var veya cihazları değiştirdikten sonra geri dönmelisiniz.

Burada rehber

I already have a stereo sound system. What driver is required for me?



[Ferather]

You mean you already have a driver you want to use? Then try this pack instead.



[DreaminquE]

Can you help with remote control for installation?



[Ferather]

I will PM you. All done and working. Reminder, if the audio does not change when you change modes or use other features (Ultra app), your device works a little differently (OEM or Laptop).
Stop all audio services using the 'Services' tool (start > search), then stop 'Windows Audio Endpoint Builder', which will stop all audio services with the current driver.

Download the files below (updated - signed), unpack and replace the files in | C:\Windows\System32\DTS\PC\APO4x | then restart the computer.

OEM - Laptop

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com



[Ferather]

I made some changes to the package installer, the changes are related to swapping from my other DTS Ultra pack. No need to re-install the driver.
Updating and fresh install are both supported, I prefer fresh install (uninstall device, tick delete, remove the rest via pnptuil).



[Ferather]

If you want full volume install Equalizer APO on SFX only (full guide in post 1 here), if you are using stereo and-or only 1 endpoint, disable the upmixer and secondary list.
You can add more devices as you go to each list, I isolate digital from analogue, so I use the top for Speakers-Headphones, bottom for SPDIF-HDMI.

The Realtek SFX has barely any features (other than upmix, which is now EAPO), so don't worry about disabling it.



----

I also suggest the CAudio fix to get best quality from E-APO, which uses restricted API.

====

By default DTS:X Ultra runs in Music mode, however by default in Realtek, features such as environment are disabled. To turn off DTS, simply press the power button.
To edit the preset.xml, you may need to run PowerShell or CMD as admin then type notepad, this will open notepad as admin, so you can edit.

In my opinion, the DTS modes are much better than the Realtek ones, plus you can edit them.



----

Note that off mode is not fully off, just no FX processing.

====

SFX: Upmixing, downmixing, device volume (all channels), channel volume (independent), crossover.
MFX: Almost anything (EQ, so on) except upmixing. Most common effect point.
EFX: Speaker protection, other, encoding (DTS, Dolby).

Application >> SFX>MFX >> EFX | Only ever one EFX | SFX, MFX (per app).
RAW >> EFX | Only ever one EFX | No SFX, MFX, (per app).



[Ferather]

Forgot to mention, plus I double checked yesterday with a re-install check. When using Interactive, the device will now setup as HT mode (6ch 24b 48k).
The legacy method was to set SPDIF to 2 channel through the system, and use a 6 channel bypass, now it sets to HT out of the box.

Realtek SFX will still add the legacy bypass code (redundant), but either way it will be 6ch 24b 48k.


If you are using E-APO on SFX, Realtek SFX will be disabled, although present, it will no longer add the old bypass code on device start.





----

Now that programmable 15 channel SPDIF transmitters exist, its 100% possible to add channel config to SPDIF, the same as HDMI.



[Ferather]

Passthrough is also working when set to 6 channels, I am using Potplayer myself (files here). I tested DirectSound first (legacy) and then WASAPI exclusive second.
DirectSound only supports Dolby Digital and DTS Audio via passthrough, WASAPI exclusive sends everything, but you need hardware support.

The receiver must support 192k via SPDIF, Realtek will output 192k, but for example Z906 only supports 96k on SPDIF, it also can't decode newer formats.
If only Realtek updated their SPDIF to 15 channel transmitters and receivers, and used the full 125mbps TOSlink module.




Additional SPDIF information can be found, here and here.

125 mbps = 27 x 24b-192k | 54 x 24b-96k | 108 x 24b-48k.

====

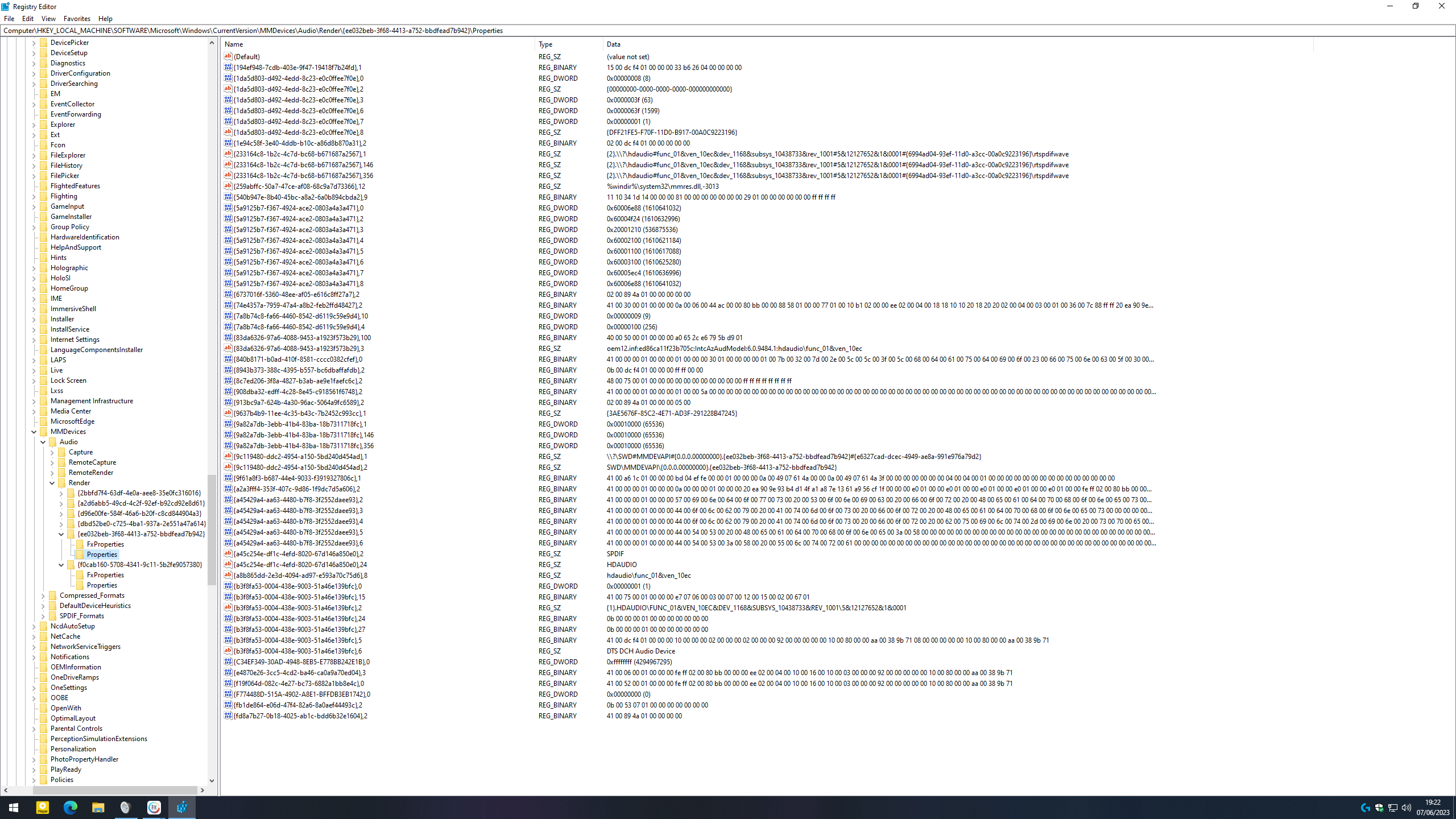

Here is the registry after EAPO is installed on SFX only, and the legacy data removed (Multichannel[Interactive].reg).



[Ferather]

WASAPI - exclusive, event driven seems to work best.



[Ferather]

If you are looking for DTS Interactive on USB/PCI devices (this pack is for HDA, HDAUDIO), see here (second to last post). For an easy to read version of [this] thread (Realtek HDA), see here.
Note that the DTS:X apps wont work with USB as it comes, and I don't have a Realtek USB to test with. Please use the right registry setup files.

All files are signed, and you don't need to disable anything to install-use the ultra pack, unless you modify the .inf file.



[Ferather]

Forgot to mention, you can use stereo mode without a supported form factor (Speakers, Headphones), however it will use the default mode (same as multichannel).
This only effects SPDIF-HDMI, which are not officially supported form factors (even though DTS would make more money, PCM is PCM).

To prove it, set SPDIF (or a setup GPU, HDMI) to stereo, open the app, minimise then re-show the app.
The first screen is based on form factor and will show 'Connect', ignore it.

If you do the same when SPDIF-HDMI is in multichannel, the first screen will display correctly first time, unless the default mode is APO4-Off.
Lets say you did set the default to APO4-Off, then the first screen will have form factor check, again minimise, re-show.

When in off mode, the app will attempt to show either the off screen (black background), or multichannel, else 'Connect'.

----

I also edited HDA Bluetooth Bypass to PCM + APO4, not sure how many devices use it though. Form factor should be from device: Speakers, Headphones.



[Ferather]

Package installer updated, you can re-download if you want, but you don't need to re-install (no driver changes).
The installer will now run in one admin cmd, and no longer spam elevate requests.

I am now on a break for a bit, if you have any questions or need help ask here or message me.

See here, if you install the driver, and change modes (stereo, 2 channels) with no effect (nothing happens).

----

Quick uninstall guide, I do this before updating to a newer version, but you can skip if you want.




Commands: pnputil -e | pnputil -d oem13.inf - (replace 13).



[ajf64]

i been thinking @Ferather maybe worth giving a try at using dobly atmos instead of dts:X the only reason i say that is atmos has a version for dobly digital plus that is the same bit rate as normal dobly digital could easly fit over spdif and should be able to be pre mixed and then sent out over a dobly connect signal they have really improved atmos over hdmi and there are prologic mixers for PC i know thier prologic upmixing is pretty good not as good as dts of course they never are but much lower bandwidth requirements idk my brains just been going



[Ferather]

Its possible, but the SPDIF receiver will need to support 'Dolby Digital Plus' as a format regardless of bitrate. As it is now Realtek SPDIF will do 192k x 2, with the [legacy] transmitters they put in.
This is just under 9.22 mbps, so in short it will already do any format that is equal to, or less than, 9.22 mbps, which is every format but the last two (lossless).

If Realtek updated their consumer specification to the current version (seen with ESS Sabre DAC's), it would do 15 channels (or more) in PCM, and ALL formats (including lossless ones).
Even with 9.22 mbps we can already support FLAC via SPDIF, even with DTS-Dolby processing beforehand, then finally FLAC and out from SPDIF.

Once OEMS (including ones that already use ESS Sabre DAC's) update the transmitters they are using, we can just do everything the same as HDMI, and we buy a DMAS (or similar).


Even HDMI gets updates, and new versions, try doing lossless with HDMI 1.0-1.2, people need to stop referencing SPDIF legacy as current, like comparing HDMI 2.1 to 1.0.
Professional high end discrete soundcards do come with SPDIF Optical (SPDIF RCA is redundant), but not usually HDMI (same for broadcast, mastering).

A DAW, which processes PCM, will be working with digital inputs, so, USB or SPDIF (or ADAT Lightpipe) are the top 2(3) options.



[Ferather]

HDMI also has a few other cons, such as the way it transmits data, which I believe is in frames of video-audio-video-audio, opposed to one stream of audio and one stream of video.
I have read that video timings (blank periods) is when audio data is sent, and that certain video specifications (high refresh, high resolution) means no audio.

There is also the problem of timings and delays, and I have had many messages about delays on HDMI but none with SPDIF direct.
I also believe some GPU's can overheat with some timings, which I think has something to do with the clock.

Audio Authority - HDMI In-Depth | HDMI Signals - What is TMDS?

If you are going to buy HDMI cables, get the Fibbr optical ones, immune to EFI and travel longer distances, lossless.

FIBBR Basic-Quantum 8K 48Gbps | FIBBR Reference Ultra 8K II 56Gbps | Welcome to the optical age

====



[ajf64]

hmm wierd i have yet to see any audio delays on hdmi on pc but atmos was janky at first where it would not always work in certain games but as of know it has come along way i still prefer spidif if only it was not so constrained for no reason its really kinda fustrateing



[Ferather]

It might depend on the receiver, but I've seen quite a few posts on HDMI delay with Atmos, other. And also posts on OEMS failing to get HDMI working properly on some brands-models.
It's indeed very stuipid that SPDIF gets updates, and nobody uses them, still use SPDIF but not the current standard. People still use analogue and that's much older.



[Ferather]

Edited-Updated FX Config.



[Ferather]

Post 1 of the easy read DTS DCH thread here, updated. Post 1 of this thread will be updated soon, as a kind moderator has to do it for me.
You can also use Driver Store Explorer, instead of pnptuil, however use pnptuil after, sometimes DSE can miss some.

First uninstall the main audio device using 'Device Manager', then all extensions-other can be removed, the device should be missing.
If you try to uninstall extensions-other, while the main device is installed, they can not be removed (normally).



[Ferather]

Post 1 updated by a kind moderator. I suggest you disable Windows driver auto-download and also the Windows store auto-download, then uninstall (then DSE + pnputil).

1: Disable Windows driver + Windows store auto downloads.
2: Remove the audio device via 'Device manager'.
3: Remove all residual extensions-other.
4: Install (double click) then restart.

5: Change the APO files if APO4 does not work (see post 2 here), restart.

Done!

----

Instructions for MSI_Utility.exe, right click run as admin, tick all boxes apply and restart.



Message Signaled Interrupts - Wikipedia
