Elpida Develops Industry's First 25 nm Process 4-Gigabit DDR3 SDRAM

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,518 (9.18/day)
Likes
17,526
Location
Hyderabad, India
System Name MRE-grade Potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x ZOTAC GeForce GTX 970
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Cooler Master CM690 1st Gen
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#1

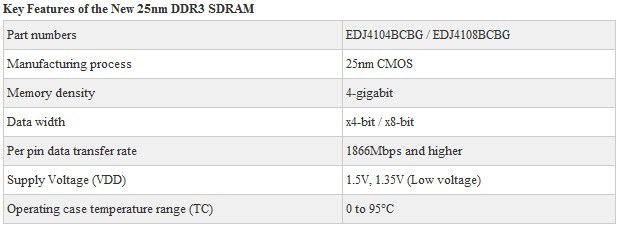

Elpida Memory, Inc., the Japan-based third largest Dynamic Random Access Memory (DRAM) maker in the world, today announced it had completed development of the industry's first 25-nanometer (nm) process 4-gigabit DDR3 SDRAM. The new chip is also the smallest 4-gigabit DRAM. The new cutting-edge smallest available 4-gigabit chip uses ultra fine-width 25nm process migration technology. Back in May, Elpida finished development of a 2-gigabit DDR3 SDRAM using the advanced 25nm process and began sample shipments in July.

By using ultra-fine process technology the 4-gigabit DDR3 SDRAM becomes a more energy efficient chip and achieves higher productivity. As a 4-gigabit product, its density is double that of Elpida's 2-gigabit DDR3 SDRAM based on the same process node. The newly developed 4-gigabit DRAM enhances productivity by about 45% compared with Elpida's 30nm 4-gigabit DDR3 SDRAM. Compared with this same 30nm DDR3, it reduces operating current by about 25-30% and standby current by about 30-50%. It has also realized the industry's highest speed data transfer rate.

DRAM is the indispensable working memory for supporting information processing in personal computers, mobile phones and many other kinds of electronic appliances. In recent years, there has been an explosive increase in demand for solutions to instantaneous processing of music, pictures, video and other high-density data. DRAMs used in those applications must be capable of not only faster speeds but also lower power consumption.

The new 25nm DDR3 SDRAM is expected to find applications in PCs and in servers used in data centers and other facilities that perform large-scale information processing tasks. Other applications are likely to include tablet PCs and UltraBook (an ultra-thin notebook PC).

Elpida, a leading company in the DRAM industry, is focused on design and development of high-density and low-power DRAMs. As a leading provider of memory solution company, Elpida is committed to provide the most advanced products.

Sample shipment and mass production of the new 25nm 4-gigabit DDR3 SDRAM is expected to start by the end of this year.



Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
46,211 (9.51/day)
Likes
13,701
Location
Australalalalalaia.
System Name Daddy Long Legs
Processor Ryzen R7 1700, 3.9GHz 1.375v
Motherboard MSI X370 Gaming PRO carbon
Cooling Fractal Celsius S24 (Silent fans, meh pump)
Memory 16GB 2133 generic @ 2800
Video Card(s) MSI GTX 1080 Gaming X (BIOS modded to Gaming Z - faster and solved black screen bugs!)
Storage 1TB Intel SSD Pro 6000p (60TB USB3 storage)
Display(s) Samsung 4K 40" HDTV (UA40KU6000WXXY) / 27" Qnix 2K 110Hz
Case Fractal Design R5. So much room, so quiet...
Audio Device(s) Pioneer VSX-519V + Yamaha YHT-270 / sennheiser HD595/518 + Corsair Void RGB
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G403 + KKmoon desk-sized mousepad
Keyboard Corsair K65 Rapidfire
Software Windows 10 pro x64 (all systems)
Benchmark Scores Laptops: i7-4510U + 840M 2GB (touchscreen) 275GB SSD + 16GB i7-2630QM + GT 540M + 8GB
#2
interesting that they went 25nm, right as samsung went 20nm

Joined
Jul 2, 2010
Messages
4,013 (1.45/day)
Likes
630
Location
UK
System Name PC
Processor AMD FX 8320E @4.3ghz
Motherboard Asrock 970 extreme3
Cooling Phanteks PH-TC12DX, 3 x NZXT FN 140mm, 1x NZXT FV V2 120mm
Memory 8GB Corsair Vengeance Blue 1600mhz
Video Card(s) ASUS R9 290 DCII-OC 4GB
Storage 128GB Kingston V200 SSD 1TB WD Blue, 750GB Maxtor
Display(s) LG 27MB85Z 27" 1440p
Case NZXT Source 340
Power Supply Thermaltake 675w
Mouse Logitech G500S
Keyboard Logitech G510S
Software Windows 8.1 64 bit
#4
Was thinking the same thing, won't the 20 nm be a preference?
depends, normally lower is better, but sometimes different architectures can completely eliminate the gap between manufacturing tech


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,518 (9.18/day)
Likes
17,526
Location
Hyderabad, India
System Name MRE-grade Potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 2x 8GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x ZOTAC GeForce GTX 970
Storage ADATA SU800 512GB + Intel SSD320 120GB + Patriot WildFire 120GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Cooler Master CM690 1st Gen
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
#5
interesting that they went 25nm, right as samsung went 20nm
That was 20 nm class, not 20 nm. 20 nm class is something in the range of 20~29, in reality, it's 25 nm.

Joined
Nov 23, 2010
Messages
268 (0.10/day)
Likes
14
#7
This sounds good. This company has come a long way. $$ Elpida stock price jump ahead $$ :toast:

This should guarantee Elpida a few new contracts with Apple seeing Apple and Samsung has "who has the biggest chipolata contest" issues.

Any idea where they manufacture, Mexico ? and far east ? Brazil ?
TSMC or in house or mixed ?

Sry I have not kept up with their history / evolution. :eek:

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#8
depends, normally lower is better, but sometimes different architectures can completely eliminate the gap between manufacturing tech
It also depends on how hard hard / easy they are to make, a smaller process is no good, if you can't keep up with the demand for the product because it's soo hard to make.

Joined
Aug 7, 2007
Messages
2,657 (0.70/day)
Likes
779
Processor Intel i5-2500k @ 3.8GHz
Motherboard ASRock Z68 Extreme4 Gen3
Cooling CM Hyper 212 EVO w/ AC MX-2
Memory 8GB DDR3 1866 Gskill Snipers 9-10-9-28
Video Card(s) MSI GTX 1060 Gaming X
Storage 240GB Corsair Force GT
Display(s) 23' Dell AW2310
Case Corsair 550D
Audio Device(s) Creative SB X-Fi Fatality Professional
Power Supply Seasonic SS-760XP2 Platinum
Software Windows 7 Pro 64-bit
#9
I love it. When these newer process nodes are used, we all win with more efficient chips + lower energy consumption...win win :cool:
