EVGA and GIGABYTE GeForce GTX 1660 Graphics Cards Pictured

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
37,700 (8.51/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) AMD Radeon RX 5700 XT
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Antec EarthWatts Pro Gold 750W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Here are some of the first pictures of EVGA's and GIGABYTE's upcoming GeForce GTX 1660 graphics cards reportedly slated for launch later this week. It should come as no surprise that these cards resemble the companies' GTX 1660 Ti offerings, since they're based on the same 12 nm "TU116" silicon, with fewer CUDA cores. The underlying PCBs could be slightly different as the GTX 1660 uses older generation 8 Gbps GDDR5 memory instead of 12 Gbps GDDR6. The "TU116" silicon is configured with 1,408 CUDA cores out of the 1,536 physically present; the memory amount is 6 GB, across a 192-bit wide memory bus. The GTX 1660 baseline price is reportedly USD $219, and the card replaces the GTX 1060 6 GB from NVIDIA's product stack.

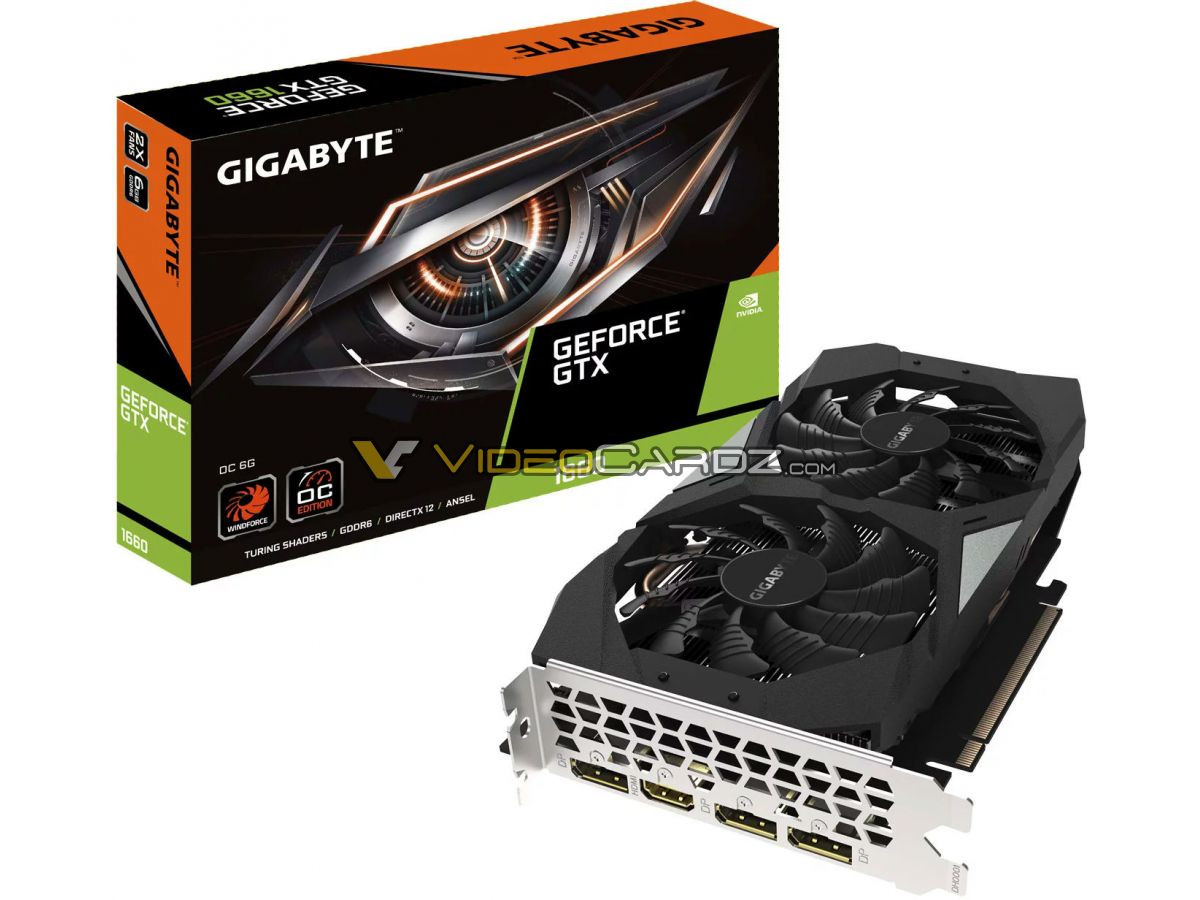

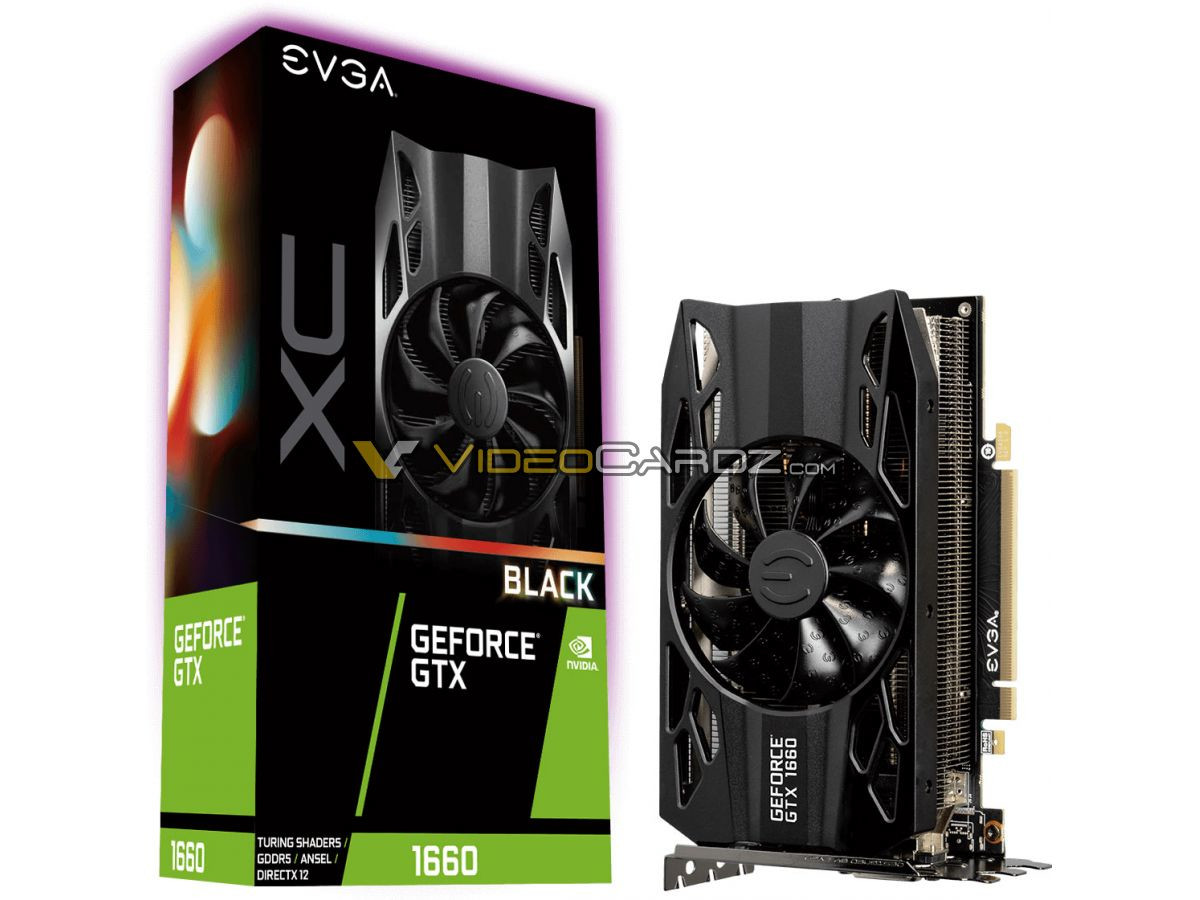

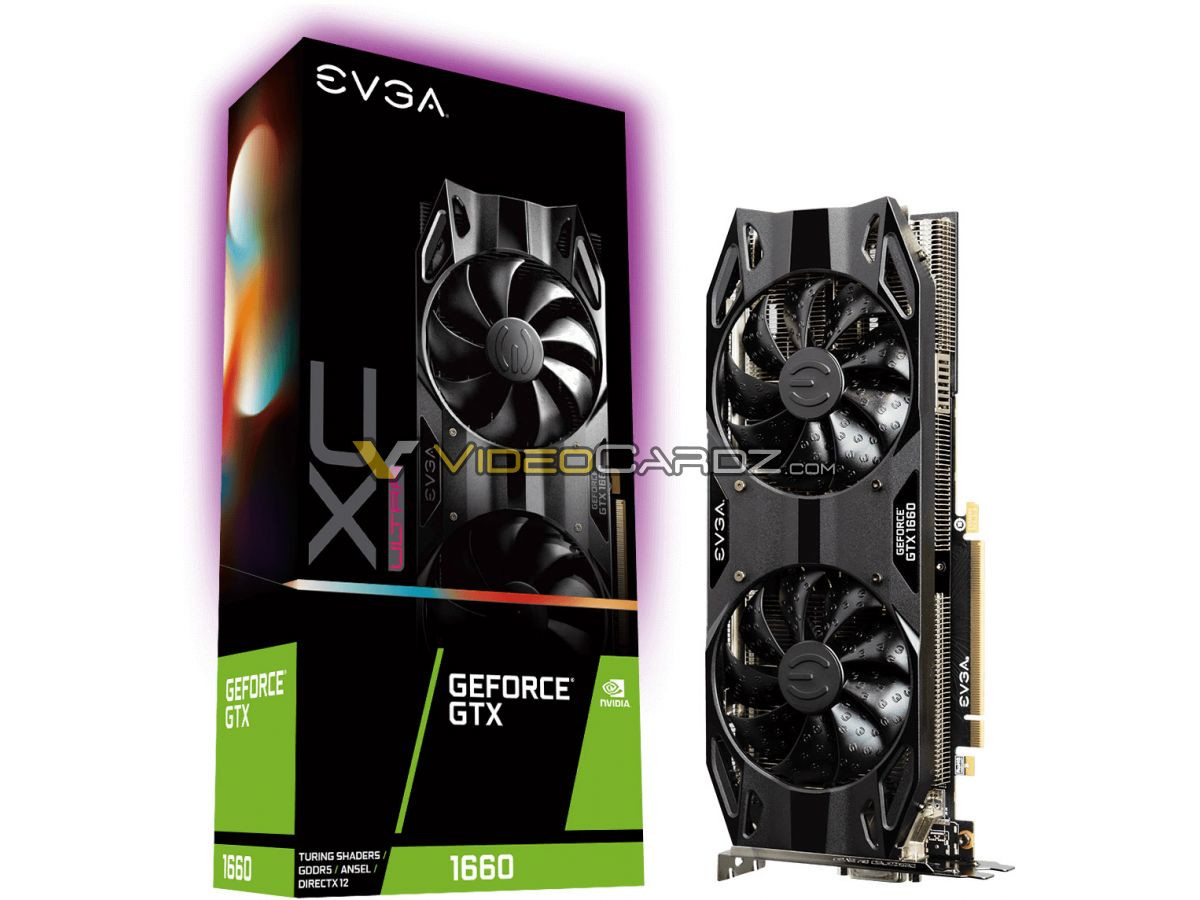

EVGA is bringing two designs to the market, a short-length triple-slot card with a single fan; and a more conventional longer card with 2-slot, dual-fan design. The baseline "Black" card could be offered in the shorter design; while the top-tier XC Ultra could be exclusive to the longer design. GIGABYTE, on the other hand, has two designs, a shorter-length dual-fan; and a longer-length triple-fan. Both models are dual-slot. The baseline SKU will be restricted to the shorter board design, while premium Gaming OC SKUs could come in the longer board design.



View at TechPowerUp Main Site

Joined
Jun 1, 2011
Messages
1,500 (0.48/day)
Location
US of A
System Name gaming
Processor Intel i7-9700k @ 4.9ghz
Motherboard Gigabyte Z370 AORUS Gaming 3
Cooling Noctua U12A
Memory 16GB Corsair Vengeance LPX 3000mhz
Video Card(s) Gigabyte GTX 1660 Ti OC 6G
Storage Crucial MX500, Crucial P1 NVMe, ScanDisk Ultra 3D
Display(s) Dell - SE2717HR 27" IPS LED FHD FreeSync Monitor
Case Phanteks P400A w/ Noctua fans
Audio Device(s) Klipsch pro-media 2.1 speakers
Power Supply Seasonioc Focus Plus 650w
Mouse Logitech G502
Keyboard Logitech G15 original
Software Win 10
Benchmark Scores i can finally play crysis
they look identical to the gtx1660ti version

Joined
Jul 10, 2015
Messages
170 (0.11/day)
Location
Sokovia
System Name Alienation from family
Processor i7 7700k
Motherboard Hero VIII
Cooling Macho revB
Memory 16gb Hyperx
Video Card(s) Asus 1080ti Strix OC
Storage 960evo 500gb
Display(s) AOC 4k
Case Define R2 XL
Power Supply Be f*ing Quiet 600W M Gold
Mouse NoName
Keyboard NoNameless HP
Software You have nothing on me
Benchmark Scores Personal record 100m sprint: 60m
On gigabyte box is also gddr6, wtf?
