EVGA Announces its H55/H57 Express Motherboard Lineup

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,502 (9.18/day)
Likes
17,520
Location
Hyderabad, India
#1
EVGA introduced its lineup of three motherboards based on the new Intel H55 Express and H57 Express chipsets. These motherboards feature LGA-1156 sockets to support all current LGA-1156 Core i3, Core i5, and Core i7 processors. With the Intel Flexible Display Interface support, the boards let you make use of the integrated GPUs on some dual-core Intel Core i3, Core i5, and Pentium processors. Models include EVGA H57 (123-CD-E637-KR), EVGA H55 (123-CD-E635-KR), and EVGA H55V (111-CD-E630-TR), with the H55V being a micro-ATX model.

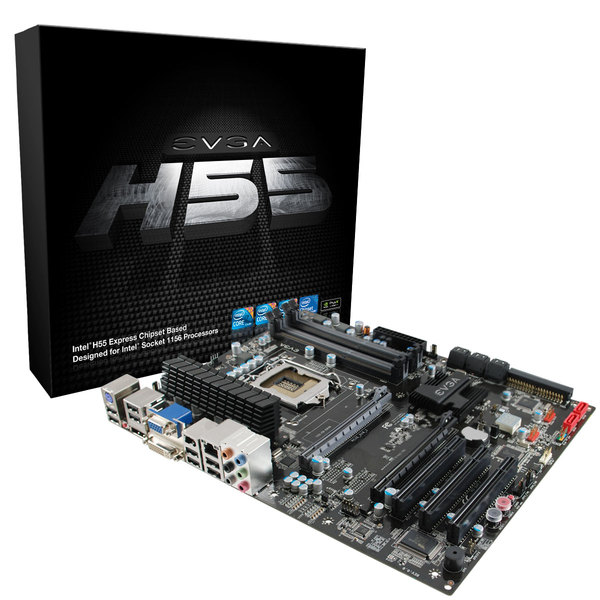

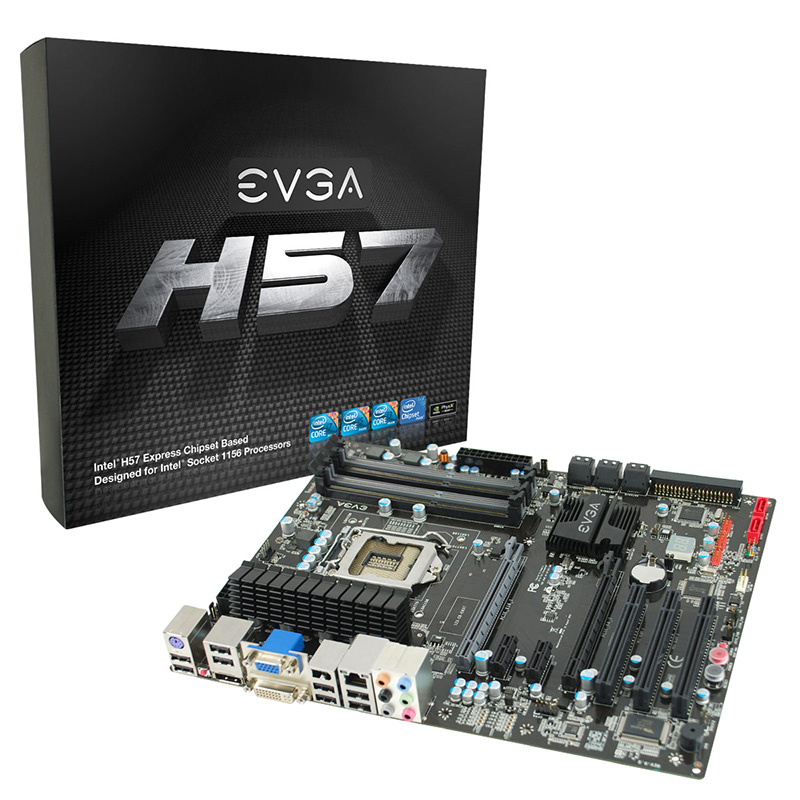

The EVGA H55 and EVGA H57 offer a little more than the chipset's feature-set, with Firewire, and additional storage controllers for IDE and two additional SATA 3 Gb/s ports. The two feature nearly identical board layouts with 5+1 phase CPU VRM, DVI and D-Sub for display connectivity, 8-channel audio, and a number of USB 2.0 ports. The EVGA H55 has one set of internal USB headers less, and does away with the PCI-Express x1 slots between the PCI-E 2.0 x16 and PCI-E x16 (x4) slots.



Lastly there's the EVGA H55V micro-ATX motherboard. This seems to be one of EVGA's most basic offerings to date, with only the bare essentials taken care of. Its features build entirely on what the H55 Express chipset offers, with one each expansion slot of PCI-E 2.0 x16, PCI-E x4, PCI-E x1, and PCI. It has basic 4+1 phase CPU VRM, and solid-state capacitors are confined to the VRM area. Display connectivity includes HDMI, DVI, and D-Sub. While the prices of the EVGA H57 isn't declared, the EVGA H55 is priced at US $169.99, while the EVGA H55V asks for $99.99.


Joined
Oct 6, 2007
Messages
371 (0.10/day)
Likes
35
#2
Can someone please explain to me the significance of this H55/57 chipset? I seem to have fallen behind. Is it just:

"Intel Flexible Display Interface support" and USB 3.0/Sata 6GB?

Joined
Sep 24, 2008
Messages
2,473 (0.73/day)
Likes
614
Location
Hillsboro, Oregon, USA
System Name Dire Wolf II
Processor Intel Core i7 7820HQ (2.9Ghz, up to 3.9Ghz)
Motherboard HP 8275
Memory 32GB DDR4 2400Mhz
Video Card(s) Sapphire R9 Fury Nitro OC 4GB (Thunderbolt3 eGPU), nVidia Quadro M1200 (GTX750Ti) 4GB GDDR5
Storage HP NVMe 256GB
Display(s) HP Z27q (5120x2880) + Dell P2715Q (3840x2160)
Case HP ZBook 15 G4
Audio Device(s) Musiland Monitor 02 US, Skullcandy SLYR
Power Supply 150W HP PSU (for Laptop) + Corsair RM550x (for eGPU)
Mouse Logitech G400
Keyboard Corsair K95 RGB
Software Windows 10 Enterprise 64-bit
#3
"Intel Flexible Display Interface support"
It is needed to allow display output from the IGP included on the same chip package on the Clarkdale CPUs.

Joined
Nov 11, 2004
Messages
1,993 (0.41/day)
Likes
970
Location
Formosa
System Name Overlord Mk MVI
Processor AMD Ryzen 7 1700 @ 3.85GHz
Motherboard Asus Prime X370-Pro
Cooling Corsair H110i
Memory 16GB Corsair Vengeance LPX 3200
Video Card(s) Galax GeForce GTX 1080 EXOC-SNPR
Storage 512GB Plextor M8PeG NVMe, 500GB Crucial MX200
Display(s) Asus PG27AQ
Case Corsair Carbide 400Q
Power Supply Corsair AX860i
Mouse Logitech G500s
Keyboard Roccat ISKU
Software Windows 10
Benchmark Scores https://valid.x86.fr/j1yypa
#4
Nope, all wrong...

Neither has USB 3.0 or SATA 6Gbit/s, but both have flexible display interface support.

The difference is that H57 supports two more PCIe lanes, RAID and has a few more USB ports

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#6
Great looking products.
