Feature Suggestion: Disable HDCP

Joined
Jun 8, 2021
Messages
45 (0.05/day)
Timecard found some improvements with disabling HDCP like this (scroll down and click Findings and Analysis):


I use the tool on a regular basis and the msi mode feature was already a time saver!
Would you consider adding this to the tweak section too?


W1zzard

Administrator
Staff member
Joined
May 14, 2004
Messages
26,870 (3.72/day)
Processor Ryzen 7 5700X
Memory 48 GB
Video Card(s) RTX 4080
Storage 2x HDD RAID 1, 3x M.2 NVMe
Display(s) 30" 2560x1600 + 19" 1280x1024
Software Windows 10 64-bit
note to self

Code:
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4d36e968-e325-11ce-bfc1-08002be10318}\0002]
"RMHdcpKeyglobZero"=dword:00000001

improvements
Which improvements?

Joined
Jun 8, 2021
Messages
45 (0.05/day)
Many users reported improved "responsiveness" and I measured this myself:
In depth measuring would require more testers and tests with xperf. Maybe something you can catalyse by adding it as an experimental feature.

Another users report:


This does not have to be universal:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4d36e968-e325-11ce-bfc1-08002be10318}\0002
For me it's
[...]\{4d36e968-e325-11ce-bfc1-08002be10318}\0000
for example

Last edited:

W1zzard

Administrator
Staff member
Joined
May 14, 2004
Messages
26,870 (3.72/day)
Processor Ryzen 7 5700X
Memory 48 GB
Video Card(s) RTX 4080
Storage 2x HDD RAID 1, 3x M.2 NVMe
Display(s) 30" 2560x1600 + 19" 1280x1024
Software Windows 10 64-bit
Does this build achieve what you need?


Attachments

  • NVCleanstall.exe
    3.4 MB · Views: 939
Joined
Jun 8, 2021
Messages
45 (0.05/day)
Yes, works for me! Did you account for possibly different regkeys for other users?


poppe

New Member
Joined
Sep 21, 2021
Messages
1 (0.00/day)
Maybe it's a known issue but this feature doesn't seem to work with the DCH drivers. At least NVCP still said my computer was HDCP-capable, now I'm on the standard driver and it works fine.


W1zzard

Administrator
Staff member
Joined
May 14, 2004
Messages
26,870 (3.72/day)
Processor Ryzen 7 5700X
Memory 48 GB
Video Card(s) RTX 4080
Storage 2x HDD RAID 1, 3x M.2 NVMe
Display(s) 30" 2560x1600 + 19" 1280x1024
Software Windows 10 64-bit
How interesting, I wasn't aware of that. Strange that there's a difference between DCH and non-DCH


usama sattar

New Member
Joined
Nov 17, 2021
Messages
1 (0.00/day)
For me, I installed the latest version of DCH driver using NVCleanstall-1.12.0 and HDCP has been disabled.
GPU: Gtx 960
OS: Windows 11 22000.318

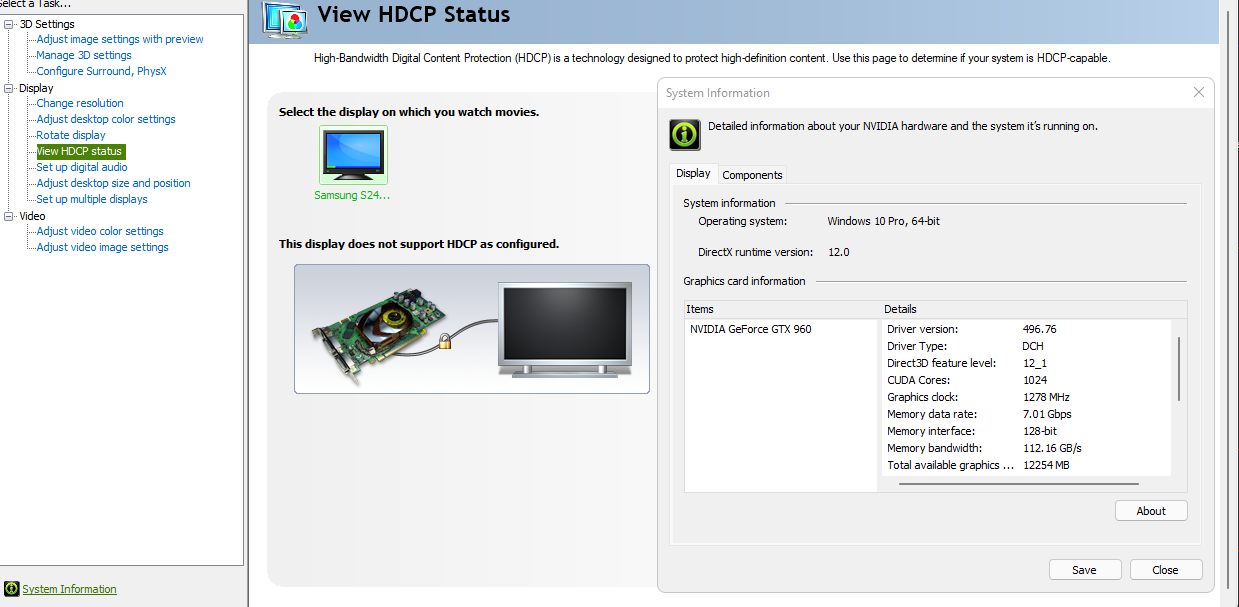

HDCP disable.png

Joined
Nov 18, 2010
Messages
7,030 (1.45/day)
Location
Rīga, Latvia
System Name HELLSTAR
Processor AMD RYZEN 9 5950X
Motherboard ASUS Strix X570-E
Cooling 2x 360 + 280 rads. 3x Gentle Typhoons, 3x Phanteks T30, 2x TT T140 . EK-Quantum Momentum Monoblock.
Memory 4x8GB G.SKILL Trident Z RGB F4-4133C19D-16GTZR 14-16-12-30-44
Video Card(s) Sapphire Pulse RX 7900XTX + under waterblock.
Storage Optane 900P[W11] + WD BLACK SN850X 4TB + 750 EVO 500GB + 1TB 980PRO[FEDORA]
Display(s) Philips PHL BDM3270 + Acer XV242Y
Case Lian Li O11 Dynamic EVO
Audio Device(s) Sound Blaster ZxR
Power Supply Fractal Design Newton R3 1000W
Mouse Razer Basilisk
Keyboard Razer BlackWidow V3 - Yellow Switch
Software FEDORA 39 / Windows 11 insider
Nice tip.

The thing that frustrates me more is that Geforce 7900 GS picture in settings... what's more frustrating, that I remember it still or the fact it control panel is a slow legacy mess.

Joined
Dec 12, 2012
Messages
695 (0.17/day)
Location
Poland
System Name THU
Processor Intel Core i5-13600KF
Motherboard ASUS PRIME Z790-P D4
Cooling SilentiumPC Fortis 3 v2 + Arctic Cooling MX-2
Memory Crucial Ballistix 2x16 GB DDR4-3600 CL16 (dual rank)
Video Card(s) MSI GeForce RTX 4070 Ventus 3X OC 12 GB GDDR6X (2610/21000 @ 0.91 V)
Storage Lexar NM790 2 TB + Corsair MP510 960 GB + PNY XLR8 CS3030 500 GB + Toshiba E300 3 TB
Display(s) LG OLED C8 55" + ASUS VP229Q
Case Fractal Design Define R6
Audio Device(s) Yamaha RX-V381 + Monitor Audio Bronze 6 + Bronze FX | FiiO E10K-TC + Sony MDR-7506
Power Supply Corsair RM650
Mouse Logitech M705 Marathon
Keyboard Corsair K55 RGB PRO
Software Windows 10 Home
Benchmark Scores Benchmarks in 2024?
Many users reported improved "responsiveness" and I measured this myself:

How is anyone getting these insanely low numbers? Never seen this kind of numbers on any PC I have had.

Right now current latency is jumping from 20 to 80, and I am always getting crazy DPC spikes from the NVIDIA driver (even above 2000).

Joined
Jun 8, 2021
Messages
45 (0.05/day)
Joined
Dec 12, 2012
Messages
695 (0.17/day)
Location
Poland
System Name THU
Processor Intel Core i5-13600KF
Motherboard ASUS PRIME Z790-P D4
Cooling SilentiumPC Fortis 3 v2 + Arctic Cooling MX-2
Memory Crucial Ballistix 2x16 GB DDR4-3600 CL16 (dual rank)
Video Card(s) MSI GeForce RTX 4070 Ventus 3X OC 12 GB GDDR6X (2610/21000 @ 0.91 V)
Storage Lexar NM790 2 TB + Corsair MP510 960 GB + PNY XLR8 CS3030 500 GB + Toshiba E300 3 TB
Display(s) LG OLED C8 55" + ASUS VP229Q
Case Fractal Design Define R6
Audio Device(s) Yamaha RX-V381 + Monitor Audio Bronze 6 + Bronze FX | FiiO E10K-TC + Sony MDR-7506
Power Supply Corsair RM650
Mouse Logitech M705 Marathon
Keyboard Corsair K55 RGB PRO
Software Windows 10 Home
Benchmark Scores Benchmarks in 2024?
Is your PC strictly for gaming?

I do use a lot of these tweaks, but there are many things that I cannot change or disable, because they are needed for various stuff.

When I decide to upgrade, I will probably build a second PC just for gaming, and convert the current one to an HTPC for everything else.

Joined
Jun 8, 2021
Messages
45 (0.05/day)
I multiboot differently configured versions of Windows for different purposes.
My 1709 install manages to be effective for gaming and productivity though.
Nvidia driver also plays a massive role, with 441.41 and 456.71 having lower latency than most recent driver versions.

Joined
Jul 13, 2016
Messages
2,708 (0.97/day)
Processor Ryzen 7800X3D
Motherboard ASRock X670E Taichi
Cooling Noctua NH-D15 Chromax
Memory 32GB DDR5 6000 CL30
Video Card(s) MSI RTX 4090 Trio
Storage Too much
Display(s) Acer Predator XB3 27" 240 Hz
Case Thermaltake Core X9
Audio Device(s) Topping DX5, DCA Aeon II
Power Supply Seasonic Prime Titanium 850w
Mouse G305
Keyboard Wooting HE60
VR HMD Valve Index
Software Win 10
Just a heads up for anyone that wants to use this tweak, SteamVR requires HDCP so VR will not work if you choose to disable it.

I found this out after the fact and had to do another install to get VR working again.


vander

New Member
Joined
Nov 5, 2023
Messages
1 (0.01/day)
I tried before I read your comment and I had no trouble with steamvr. I use the current beta, maybe thats why?
What didn't work for you, was there an error message? SteamVR is known for plenty of missleading error messages, especially in combination with vr..


samy223

New Member
Joined
Jan 2, 2024
Messages
1 (0.02/day)
I want to report that I'm using this feature to fix a refresh rate issue with a multimonitor setup and the windows graphics driver.
I have two 4k 60hz monitors connected via dp to a lenovo thinkpad usb-c dockingstation to my laptop with an rtx 2070 via usb-c with dp passthrough. In linux both external monitors run with 60hz without any problems. If i boot into windows, i only get 60hz on one monitor and 30hz on the other. If i disable hdcp i get both monitors running at 60hz also in windows. It seems that hdcp somehow becomes a bottleneck?
