flashing Vega 56 bios to 64

[Morgoth]

so im looking forward to flash my vega 56 to a 64 to get a bit more umph out of it until i probaly replace it end of the year with a brand new gpu
so im wondering witch bios sould i get?
my card is orginaly a Vega 56 pulse nano ( custom waterblock)
i see a list of bioses

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

witch one should i get? nitro+ or Liquid Cooling??

i also understood that grapics card with a switch have a multi bioses so incase i screw it up still have a backup to recover from



[eidairaman1]

so im looking forward to flash my vega 56 to a 64 to get a bit more umph out of it until i probaly replace it end of the year with a brand new gpu
so im wondering witch bios sould i get?
my card is orginaly a Vega 56 pulse nano ( custom waterblock)
i see a list of bioses

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

witch one should i get? nitro+ or Liquid Cooling??

i also understood that grapics card with a switch have a multi bioses so incase i screw it up still have a backup to recover from

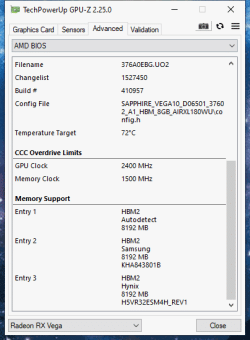

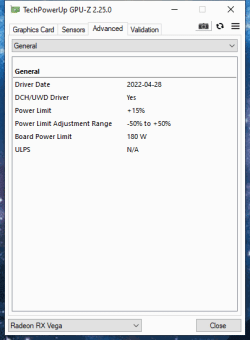

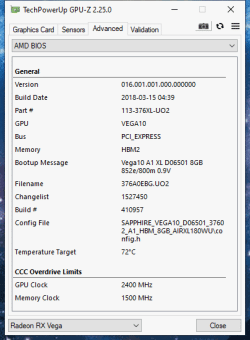

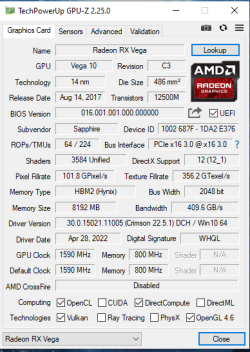

Hold up just a moment, I would like to see your sku sticker from the og heatsink and a gpu-z screenshot, then while in gpu-z click on advanced tab and select memory timings (if available) screenshot that. Also on the main gpu-z screen click on the black arrow next to the uefi checkbox and attempt to upload the bios through GPU-Z to the Vga Bios Collection/Database. You should get a warning with a link to the bios, post it here. I need to study all the details.

This is how I got RDNA 1 cards to crossflash correctly.



[Morgoth]

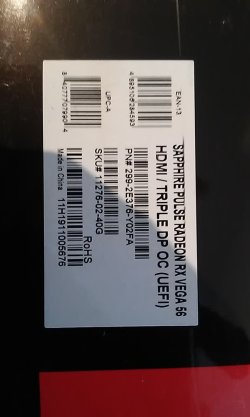

i hope the sku sticker on the box is ok to. or i have to dismantle the pc to get see the sticker on the back of my gpu
i hope this does it all



[eidairaman1]

i hope the sku sticker on the box is ok to. or i have to dismantle the pc to get see the sticker on the back of my gpu
i hope this does it all

I cant read the Rom file, within gpu-z you try to upload it from there th the vga collection and you should get a warning with a link to the file.

I cant read the Rom file, within gpu-z you try to upload it from there th the vga collection and you should get a warning with a link to the file.

Nvmd i saw the gpu p/n.

Anyways don't use those files above use this 1.

Sapphire RX Vega 64 VBIOS

8 GB HBM2, 1590 MHz GPU, 800 MHz Memory

www.techpowerup.com

Your card

PULSE RX VEGA56 8G HBM2

<p>Up to 1512 MHz, 8GB HBM2, Dual-X cooling</p>

www.sapphiretech.com

Just flash 1 side of the bios switch and verify it boots up.



[Morgoth]

did the upload thingy

Sapphire AMD RX Vega 56 VBIOS

8 GB HBM2, 1590 MHz GPU, 800 MHz Memory

www.techpowerup.com

i shecked the 64 bios it looks like it got the same clock speeds?? wil it even make a differance???



[eidairaman1]

did the upload thingy

Sapphire AMD RX Vega 56 VBIOS

8 GB HBM2, 1590 MHz GPU, 800 MHz Memory

www.techpowerup.com

i shecked the 64 bios it looks like it got the same clock speeds?? wil it even make a differance???

Vega 64 and 56 had different shader counts, so in this respect you will possibly unlock the additional shaders with the file above, you can use Sapphire Trixx or MSI Afterburner to push it further or more power tool on igors lab even.

I will try to find a nitro bios that is as close to your card as possible but the 64 file I found above is 99% guaranteed it will work.

Its all in the ram and board part number used

Try the file above on 1 side of the bios switch and remember it, keep the other side untouched
@Morgoth

Well the bad news is That I checked all Sapphire Vega 64 Nitro files and non of them contain Hynix Memory in them. So the File Above is your only bet.



[Morgoth]

i tried to flash it it says *Vbios not found*



[eidairaman1]

i tried to flash it it says *Vbios not found*

Which amdvbflash version are you using?

AmdvbflashWin or amdvbflash?



[Morgoth]

amdvbflash_win_3.31

amdvbflashWin.exe



[eidairaman1]

Did you install the driver from the zip folder and open the winflash version with administrator rights?

The file download above I provided change its name to svg64.rom



[Morgoth]

ok sure and yes



[eidairaman1]

Tried again?



[Morgoth]

still same error *Vbios not found*



[eidairaman1]

still same error *Vbios not found*

May have to try the command prompt

Follow this guide.

AMD/ATi Flash Command Line (CMD) Syntax Mini Guide (WINDOWS)

This is a Guide Thread Only, not an asking for help thread. If you need help, start a new thread, do not post in here as it will be reported and possibly deleted. This is a Mini Guide to using AMDVBFLASH/ATi Flash. DO NOT USE WINFLASH it has been discontinued and rearely ever worked Make...

www.techpowerup.com



[Morgoth]

i did and i get this

Invalid PC BIOS image

ERROR: 0FL01



[eidairaman1]

Strange



[eidairaman1]

i did and i get this

Invalid PC BIOS image

ERROR: 0FL01

Use the 2nd guide from the link above (ver 2.93)



[Morgoth]

wil give it a go



[eidairaman1]

Yeah make sure to use 2.93 tool for now



[Morgoth]

2.93 doest work at all gives me all kind of errors



[Mister300]

Dumb idea with the prices of a GPU today. Still a good backup card to keep, why risk bricking it? If you can find one for 50 dollars on ebay go ahead. I had a 390 X as my daily 2K driver, when it gave up the magic smoke I had zero options for a reasonably priced used card.



[eidairaman1]

Dumb idea with the prices of a GPU today. Still a good backup card to keep, why risk bricking it? If you can find one for 50 dollars on ebay go ahead. I had a 390 X as my daily 2K driver, when it gave up the magic smoke I had zero options for a reasonably priced used card.

I have helped many restore or crossflash GPUs even fake gpus restored from a 1050 to a 550ti/450GTS.

@impero and @Zach_01 have the same experience.

2.93 doest work at all gives me all kind of errors

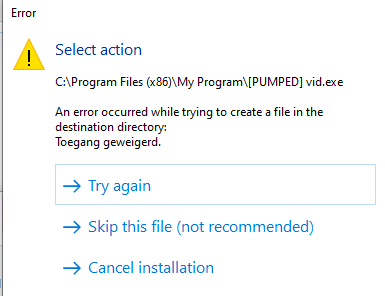

Screenshot the errors



[Imperator]

As @eidairaman1 said, we managed to help many forum members to flash a correct version of BIOS to video cards or to crossflash them.



[Morgoth]



[eidairaman1]

View attachment 256153View attachment 256154

And you get those errors when trying to run amdvbflash from the cmd prompt?

What does windows event viewer say about it?
