Looking to get this combo for a new 12900k build.

I can't seem to find any pics of finished looks with this combo even though pcpartpicker says they're compatible.

The TPU review of the case shows removing the front fans and installing a Fractal brand 360 AIO on included rails.

I think the front fans are the same size as the AIO, so it should mount up to the stock front plate, just not certain.

Thanks for your input!


Joined
Aug 14, 2013
Messages
1,179 (0.36/day)
System Name boomer--->zoomer not your typical millenial build
Processor i5-760 @ 3.8ghz + turbo ~goes wayyyyyyyyy fast cuz turboooooz~
Motherboard P55-GD80 ~best motherboard ever designed~
Cooling NH-D15 ~double stack thot twerk all day~
Memory 16GB Crucial Ballistix LP ~memory gone AWOL~
Video Card(s) MSI GTX 970 ~*~GOLDEN EDITION~*~ RAWRRRRRR
Storage 500GB Samsung 850 Evo (OS X, *nix), 128GB Samsung 840 Pro (W10 Pro), 1TB SpinPoint F3 ~best in class
Display(s) ASUS VW246H ~best 24" you've seen *FULL HD* *1O80PP* *SLAPS*~
Case FT02-W ~the W stands for white but it's brushed aluminum except for the disgusting ODD bays; *cries*
Audio Device(s) A LOT
Power Supply 850W EVGA SuperNova G2 ~hot fire like champagne~
Mouse CM Spawn ~cmcz R c00l seth mcfarlane darawss~
Keyboard CM QF Rapid - Browns ~fastrrr kees for fstr teens~
Software integrated into the chassis
Benchmark Scores 9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
The front fans are 2x180 while the radiator is 2x140 — you’d need a bracket to attach the radiator to them. You could mount the radiator at the bottom, but at that point you may as well go for a different case as those fans are meant for GPU cooling.

It might work at the front with the included brackets, but I haven’t seen it done personally. The included brackets would have to align with the 180s, and you’d need to buy longer screws to keep those fans.

Joined
Nov 15, 2020
Messages
361 (0.57/day)
System Name Glasshouse
Processor Ryzen 9 5900X (manual PBO)
Motherboard MSI x570 Tomahawk wifi
Cooling Noctua NH D15 Chromax Black/ Noctua 140mm fans x2 (top)/ Corsair 120mm fans x4/ Arctic P12 exhaust
Memory G Skill Neo 16GBx4 (3600MHz 16/16/16/36)
Video Card(s) XFX 6900XT Merc Black
Storage Corsair Force MP600 (1TB) & Sabrent Rocket 4 (2TB) & 2TB Crucial Sata & OneTouch Portable HDD (4TB)
Display(s) LG CX 48 inch 10bit 4K@120Hz and Samsung U28E590 10bit 4K@60Hz
Case Corsair Crystal 570X White
Audio Device(s) Built in LG monitor speakers
Power Supply Corsair RM850x
Mouse Microsoft IntelliMouse Pro
Keyboard Leopold High End Mechanical
Software Windows 11
Looking to get this combo for a new 12900k build.

I can't seem to find any pics of finished looks with this combo even though pcpartpicker says they're compatible.

The TPU review of the case shows removing the front fans and installing a Fractal brand 360 AIO on included rails.

I think the front fans are the same size as the AIO, so it should mount up to the stock front plate, just not certain.

Thanks for your input!

The Torrent is great for air cooling. Less so for water cooling.

Joined
Aug 14, 2013
Messages
1,179 (0.36/day)
System Name boomer--->zoomer not your typical millenial build
Processor i5-760 @ 3.8ghz + turbo ~goes wayyyyyyyyy fast cuz turboooooz~
Motherboard P55-GD80 ~best motherboard ever designed~
Cooling NH-D15 ~double stack thot twerk all day~
Memory 16GB Crucial Ballistix LP ~memory gone AWOL~
Video Card(s) MSI GTX 970 ~*~GOLDEN EDITION~*~ RAWRRRRRR
Storage 500GB Samsung 850 Evo (OS X, *nix), 128GB Samsung 840 Pro (W10 Pro), 1TB SpinPoint F3 ~best in class
Display(s) ASUS VW246H ~best 24" you've seen *FULL HD* *1O80PP* *SLAPS*~
Case FT02-W ~the W stands for white but it's brushed aluminum except for the disgusting ODD bays; *cries*
Audio Device(s) A LOT
Power Supply 850W EVGA SuperNova G2 ~hot fire like champagne~
Mouse CM Spawn ~cmcz R c00l seth mcfarlane darawss~
Keyboard CM QF Rapid - Browns ~fastrrr kees for fstr teens~
Software integrated into the chassis
Benchmark Scores 9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
People keep saying that but it’s definitely an option


I believe hardware labs makes 180mm radiators too but that may have been a limited run


Joined
Oct 11, 2006
Messages
1,035 (0.18/day)
System Name My Current Desktop
Processor i9 12900KF
Motherboard Asus ROG STRIX Z690-E GAMING WIFI
Cooling ARCTIC Liquid Freezer II 360
Memory G.Skill Trident Z5 RGB Series 32GB (2 x 16GB) DDR5 6400 F5-6400J3239G16GA2-TZ5RS
Video Card(s) RTX 3090 FE
Storage SAMSUNG 980 PRO SSD 1TB
Display(s) Dell S2716DGR 27" TN 1440p
Case Fractal Design Torrent White
Audio Device(s) Schiit Bifrost2
Power Supply Corsair HX850
Mouse Razer Basilisk
Keyboard Corsair K70 RGB LUX
Software Win 11 Pro
People keep saying that but it’s definitely an option


I believe hardware labs makes 180mm radiators too but that may have been a limited run

That vid looks awesome but I'm looking for a CLC. Maybe I'll do a custom loop down the line, but something that big warrants getting a GPU block too. Steve did not look happy disassembling the FE cards lol.

The blocks do look great though!


I think the bottom 3 fans are plenty for my 3090 FE for now.

I think a 360 should be good personally.


AsRock

TPU addict
Joined
Jun 23, 2007
Messages
17,738 (3.21/day)
Location
UK\USA
Processor 2500k \ AMD 3900X+NH-D15
Motherboard ASRock Z68 \ ASRock AM4 X570 Pro 4
Memory Samsung low profile 2x8GB \ Patriot 2x16GB PVS432G320C6K
Video Card(s) eVga GTX1060 SSC \ XFX R9 390X +Antec P12 fans
Storage 2xIntel 80Gb (SATA2) Crucial MX500 \ Samsung 860 1TB +Samsung Evo 250GB+500GB Sabrent 1TB Rocket
Display(s) Samsung 1080P \ LG 43UN700
Case HTPC400 \ Fractal Design Torrent.
Audio Device(s) Yamaha RX-V677 \ Yamaha CX-830+Yamaha MX-630 Infinity RS4000\Paradigm P Studio 20, Blue Yeti
Power Supply Seasonic Focus 650w \ Seasonic Prime TX-750
Mouse Steelseries Sensei wireless \ Steelseries Sensei wireless
Keyboard Logitech K120 \ ROCCAT MK Pro ( modded amber leds )
Benchmark Scores Meh benchmarks.
The front fans are 2x180 while the radiator is 2x140 — you’d need a bracket to attach the radiator to them. You could mount the radiator at the bottom, but at that point you may as well go for a different case as those fans are meant for GPU cooling.

It might work at the front with the included brackets, but I haven’t seen it done personally. The included brackets would have to align with the 180s, and you’d need to buy longer screws to keep those fans.

Brackets come with the case in a separate box ( and will ). Although if i were to add a rad i would defiantly look in to a 180 just to max the possibility's out.

Personally i think fans should be kept int he bottom just help to move the air around int he case some.

Joined
Aug 14, 2013
Messages
1,179 (0.36/day)
System Name boomer--->zoomer not your typical millenial build
Processor i5-760 @ 3.8ghz + turbo ~goes wayyyyyyyyy fast cuz turboooooz~
Motherboard P55-GD80 ~best motherboard ever designed~
Cooling NH-D15 ~double stack thot twerk all day~
Memory 16GB Crucial Ballistix LP ~memory gone AWOL~
Video Card(s) MSI GTX 970 ~*~GOLDEN EDITION~*~ RAWRRRRRR
Storage 500GB Samsung 850 Evo (OS X, *nix), 128GB Samsung 840 Pro (W10 Pro), 1TB SpinPoint F3 ~best in class
Display(s) ASUS VW246H ~best 24" you've seen *FULL HD* *1O80PP* *SLAPS*~
Case FT02-W ~the W stands for white but it's brushed aluminum except for the disgusting ODD bays; *cries*
Audio Device(s) A LOT
Power Supply 850W EVGA SuperNova G2 ~hot fire like champagne~
Mouse CM Spawn ~cmcz R c00l seth mcfarlane darawss~
Keyboard CM QF Rapid - Browns ~fastrrr kees for fstr teens~
Software integrated into the chassis
Benchmark Scores 9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999
Brackets come with the case in a separate box ( and will ).
Right, but they mount to the chassis so as to replace the 180s — can they be mounted to the 180s with long enough screws? @Darksaber
Personally i think fans should be kept int he bottom just help to move the air around int he case some.
I meant that the CLC could be mounted there, fans included, depending on hose length, but I’d hate to have that hot air blowing at my GPU.


AsRock

TPU addict
Joined
Jun 23, 2007
Messages
17,738 (3.21/day)
Location
UK\USA
Processor 2500k \ AMD 3900X+NH-D15
Motherboard ASRock Z68 \ ASRock AM4 X570 Pro 4
Memory Samsung low profile 2x8GB \ Patriot 2x16GB PVS432G320C6K
Video Card(s) eVga GTX1060 SSC \ XFX R9 390X +Antec P12 fans
Storage 2xIntel 80Gb (SATA2) Crucial MX500 \ Samsung 860 1TB +Samsung Evo 250GB+500GB Sabrent 1TB Rocket
Display(s) Samsung 1080P \ LG 43UN700
Case HTPC400 \ Fractal Design Torrent.
Audio Device(s) Yamaha RX-V677 \ Yamaha CX-830+Yamaha MX-630 Infinity RS4000\Paradigm P Studio 20, Blue Yeti
Power Supply Seasonic Focus 650w \ Seasonic Prime TX-750
Mouse Steelseries Sensei wireless \ Steelseries Sensei wireless
Keyboard Logitech K120 \ ROCCAT MK Pro ( modded amber leds )
Benchmark Scores Meh benchmarks.
Right, but they mount to the chassis so as to replace the 180s — can they be mounted to the 180s with long enough screws? @Darksaber

I meant that the CLC could be mounted there, fans included, depending on hose length, but I’d hate to have that hot air blowing at my GPU.
So keeping the 180mm fan were they are originally and attaching the rad to the 120mm brackets from inside, then attaching the 120mm brackets to the 180mm fans ?, if so then no.

No screw holes line up for them to screw in too or space as the brackets are a little to narrow by about 4-6mm to be able to make screw holes for it :), how ever i could see some washers solving that issue though.

You would have to get a little creative with it, and would have to be careful not to over tighten as the washer would only be 40-50% on the bracket.

Screw length would depend on thickness of rad,maybe nut bolt lock tight come to mind if the rad is really thick other wise should screw in fairly well but depends on the thickness of the washer too.

Sadly i do not have a rad to fully test it and we have no hardware stores close by any more.

Last edited:

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
54,401 (8.35/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800X (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate. Dual rad.
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3800 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.15V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1500Mhz 0.737v | 1600Mhz 0.75v | 1900Mhz 0.9v
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz +Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Benchmark Scores I don't quite know how i managed to get such a top tier PC, I am not rich.
Brackets come with the case in a separate box ( and will ). Although if i were to add a rad i would defiantly look in to a 180 just to max the possibility's out.

Personally i think fans should be kept int he bottom just help to move the air around int he case some.
I was about to say this - it'll come with adaptors


One of my PC's has 2x200mm front intakes and a 280mm rad (2x140mm) and somehow it works out great - the bracket design forces the air in just fine.

That vid looks awesome but I'm looking for a CLC. Maybe I'll do a custom loop down the line, but something that big warrants getting a GPU block too. Steve did not look happy disassembling the FE cards lol.

The blocks do look great though!


I think the bottom 3 fans are plenty for my 3090 FE for now.

I think a 360 should be good personally.

I run the RE version of these blocks if you have any questions, performance is great but they're not perfect

Joined
Oct 11, 2006
Messages
1,035 (0.18/day)
System Name My Current Desktop
Processor i9 12900KF
Motherboard Asus ROG STRIX Z690-E GAMING WIFI
Cooling ARCTIC Liquid Freezer II 360
Memory G.Skill Trident Z5 RGB Series 32GB (2 x 16GB) DDR5 6400 F5-6400J3239G16GA2-TZ5RS
Video Card(s) RTX 3090 FE
Storage SAMSUNG 980 PRO SSD 1TB
Display(s) Dell S2716DGR 27" TN 1440p
Case Fractal Design Torrent White
Audio Device(s) Schiit Bifrost2
Power Supply Corsair HX850
Mouse Razer Basilisk
Keyboard Corsair K70 RGB LUX
Software Win 11 Pro

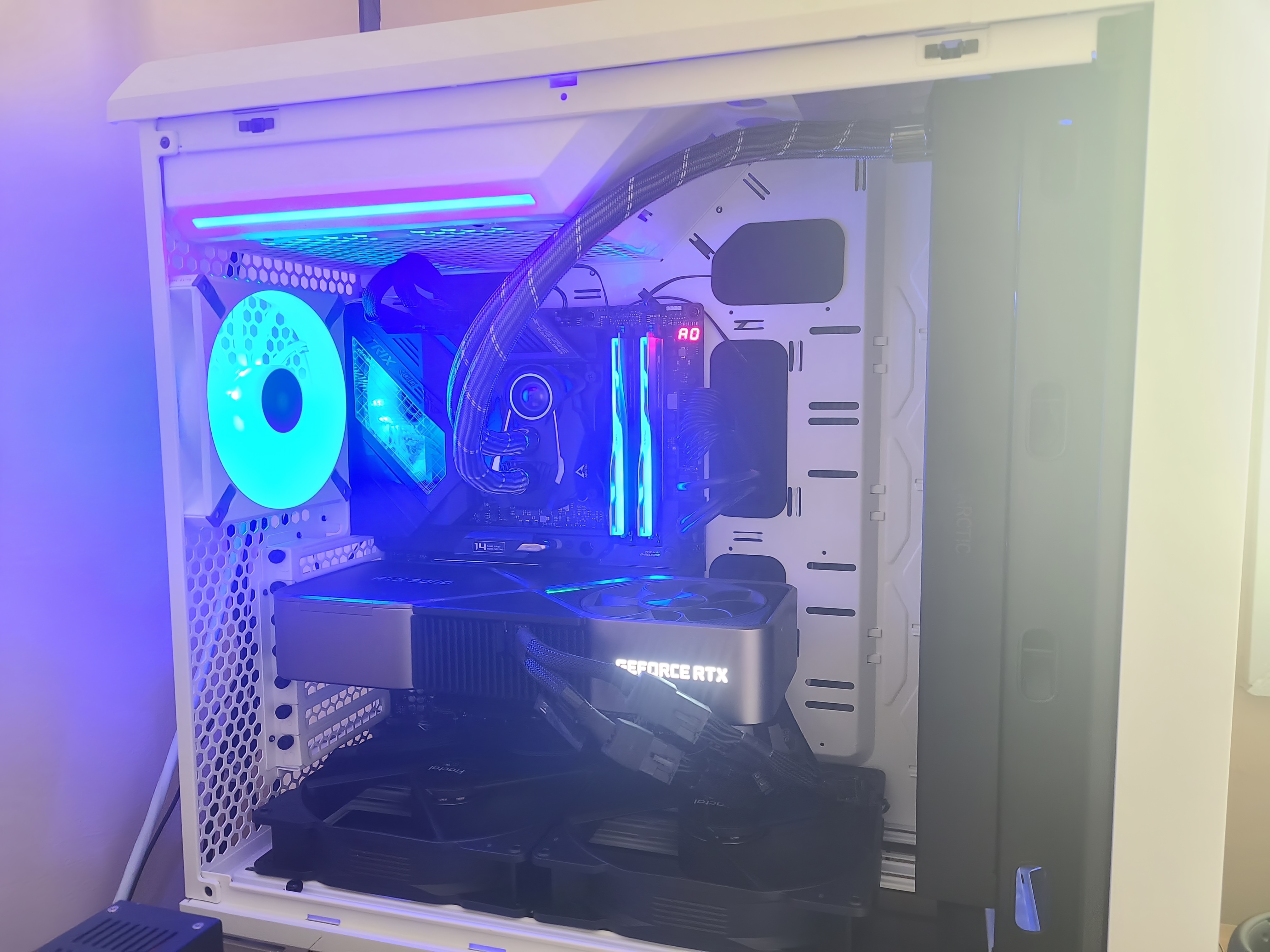

I ended up going with a 360 rad in from since it fits nicer in the case with less empty space above and below the rad. I put the original 2x180 from the front blowing up onto the video card on the bottom.

Now I just need to work on voltages, CPU doesn't hit 70c on normal loads, usually 40-50c on games that are not heavily CPU bound, but hits 100 quick with the prime95 torture test. ambient temps are 25c. GPU generally stays around 65c with modern games at 1440.

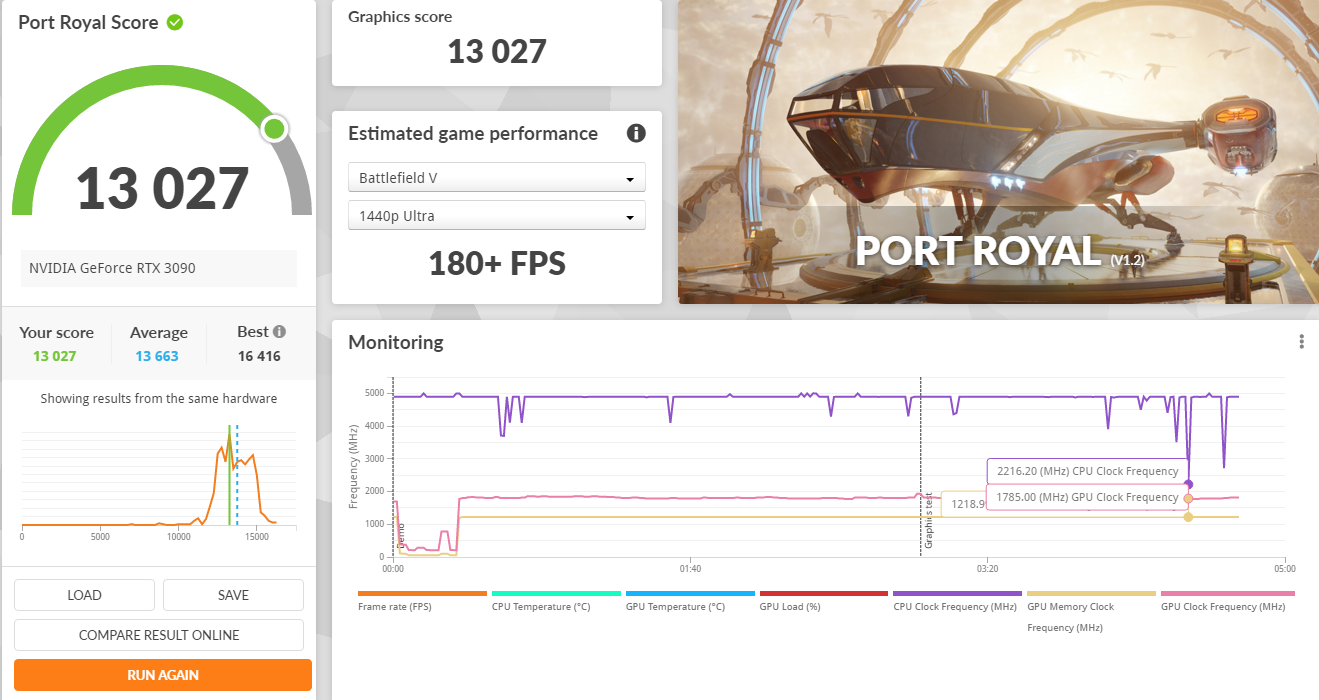

I also noticed the CPU frequency drops often with the port royal test which I assume is the speed step default?

Sorry for the crap photo, too much daylight.


Joined
Aug 14, 2013
Messages
1,179 (0.36/day)
System Name boomer--->zoomer not your typical millenial build
Processor i5-760 @ 3.8ghz + turbo ~goes wayyyyyyyyy fast cuz turboooooz~
Motherboard P55-GD80 ~best motherboard ever designed~
Cooling NH-D15 ~double stack thot twerk all day~
Memory 16GB Crucial Ballistix LP ~memory gone AWOL~
Video Card(s) MSI GTX 970 ~*~GOLDEN EDITION~*~ RAWRRRRRR
Storage 500GB Samsung 850 Evo (OS X, *nix), 128GB Samsung 840 Pro (W10 Pro), 1TB SpinPoint F3 ~best in class
Display(s) ASUS VW246H ~best 24" you've seen *FULL HD* *1O80PP* *SLAPS*~
Case FT02-W ~the W stands for white but it's brushed aluminum except for the disgusting ODD bays; *cries*
Audio Device(s) A LOT
Power Supply 850W EVGA SuperNova G2 ~hot fire like champagne~
Mouse CM Spawn ~cmcz R c00l seth mcfarlane darawss~
Keyboard CM QF Rapid - Browns ~fastrrr kees for fstr teens~
Software integrated into the chassis
Benchmark Scores 9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999

Hate to say it but this is a terrible case for a CLC

Joined
Oct 11, 2006
Messages
1,035 (0.18/day)
System Name My Current Desktop
Processor i9 12900KF
Motherboard Asus ROG STRIX Z690-E GAMING WIFI
Cooling ARCTIC Liquid Freezer II 360
Memory G.Skill Trident Z5 RGB Series 32GB (2 x 16GB) DDR5 6400 F5-6400J3239G16GA2-TZ5RS
Video Card(s) RTX 3090 FE
Storage SAMSUNG 980 PRO SSD 1TB
Display(s) Dell S2716DGR 27" TN 1440p
Case Fractal Design Torrent White
Audio Device(s) Schiit Bifrost2
Power Supply Corsair HX850
Mouse Razer Basilisk
Keyboard Corsair K70 RGB LUX
Software Win 11 Pro

Hate to say it but this is a terrible case for a CLC
I've seen this vid a remembered the part where the pump should not be above the rad but forgot bubbles will then float to the top... :banghead:

I'll flip it, there's plenty of hosing.

these are the CPU freq drops I mentioned.



Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
54,401 (8.35/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800X (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate. Dual rad.
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3800 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.15V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1500Mhz 0.737v | 1600Mhz 0.75v | 1900Mhz 0.9v
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz +Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Benchmark Scores I don't quite know how i managed to get such a top tier PC, I am not rich.
the CPU will drop normally since the boost is meant to be time limited. Heck it only takes milliseconds for something else to bottleneck, and the CPU will downclock.
It'll also drop if theres too much heat - the fact you saw 100C means either
1. the pump RPM is too low (set it to 100%, seperate to the fans)
2. the mount/TIM is bad
3. the BIOS settings are too aggressive

Joined
Oct 11, 2006
Messages
1,035 (0.18/day)
System Name My Current Desktop
Processor i9 12900KF
Motherboard Asus ROG STRIX Z690-E GAMING WIFI
Cooling ARCTIC Liquid Freezer II 360
Memory G.Skill Trident Z5 RGB Series 32GB (2 x 16GB) DDR5 6400 F5-6400J3239G16GA2-TZ5RS
Video Card(s) RTX 3090 FE
Storage SAMSUNG 980 PRO SSD 1TB
Display(s) Dell S2716DGR 27" TN 1440p
Case Fractal Design Torrent White
Audio Device(s) Schiit Bifrost2
Power Supply Corsair HX850
Mouse Razer Basilisk
Keyboard Corsair K70 RGB LUX
Software Win 11 Pro
the CPU will drop normally since the boost is meant to be time limited. Heck it only takes milliseconds for something else to bottleneck, and the CPU will downclock.
It'll also drop if theres too much heat - the fact you saw 100C means either
1. the pump RPM is too low (set it to 100%, seperate to the fans)
2. the mount/TIM is bad
3. the BIOS settings are too aggressive
I only saw 100 with prime95, nothing else even comes close.


peak cpu temp during this benchmark was 54c most was around 30-35.

Cinebench gets 1 core to 90 after 10 min.

Last edited:
Top
