GALAX GeForce RTX 3090 Hall Of Fame (HOF) Edition GPU Benched with Custom 1000 W vBIOS

AleksandarK

Staff member
Joined
Aug 19, 2017
Messages
1,396 (0.86/day)
GALAX, the maker of the popular premium Hall Of Fame (HOF) edition of graphics cards, has recently announced its GeForce RTX 3090 HOF Edition GPU. Designed for extreme overclocking purposes, the card is made with a 12 layer PCB, 26 phase VRM power delivery configuration, and three 8-pin power connectors. Today, we have managed to get the first comprehensive review of the card by a Chinese YouTube channel 二斤自制. However, this wasn't just regular testing being conducted on a card with factory settings. The channel has applied 1000 Watt vBIOS to the GPU and ran it all on the air cooler the GPU comes with.

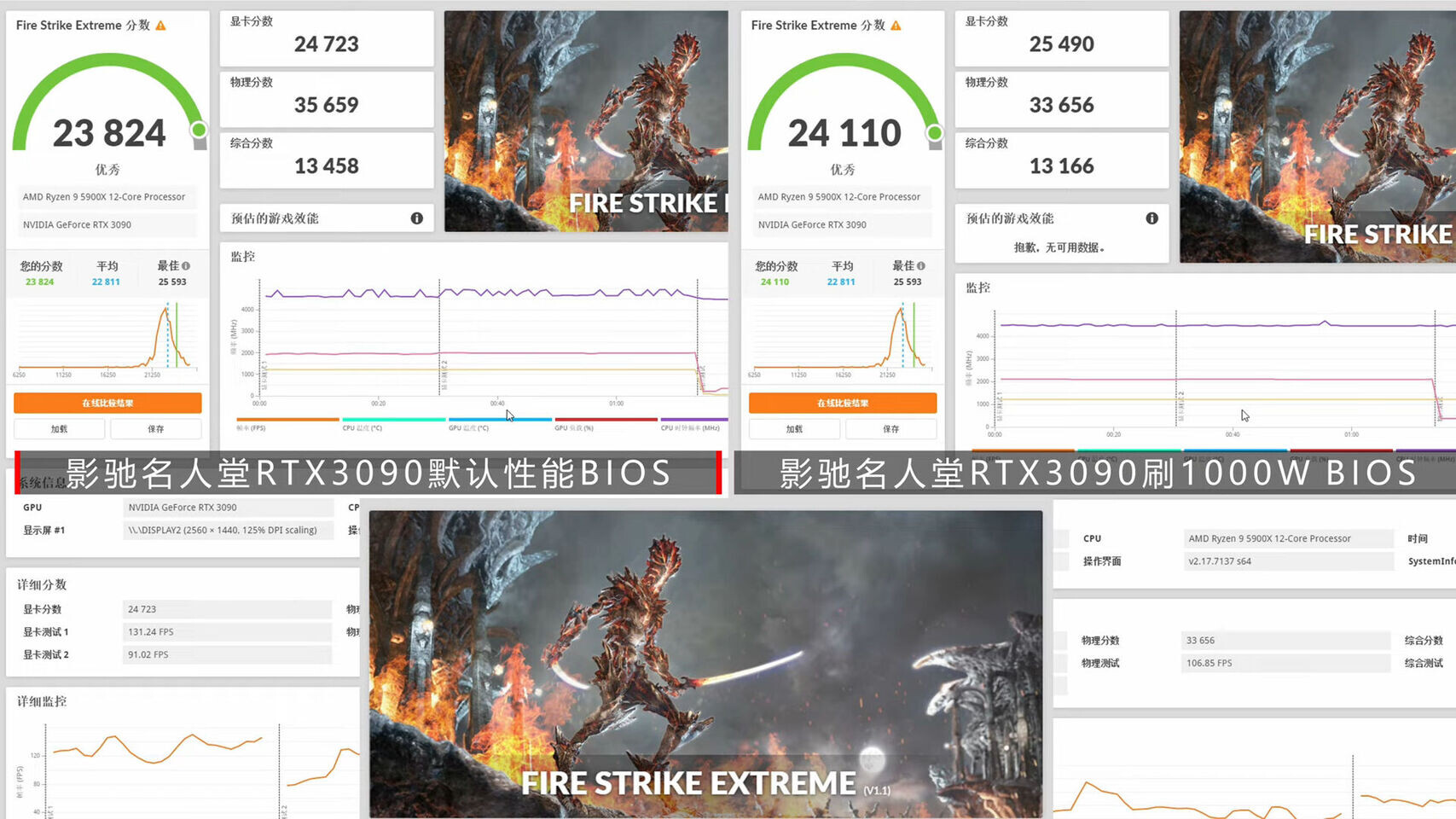

In the default 420 Watt setting, the card has been running with a GPU clock of 1845 MHz and a temperature of 69 degrees Celsius. However, when the 1000 Watt vBIOS was applied to the card, the GPU core has managed to ramp to 2000 MHz and consume as much as 630 W of power. If you were wondering if the stock cooler was able to handle it all, the answer is yes. The card has reached a toasty 96 C temperature. While GALAX doesn't offer BIOS like this, the ID of the BIOS corresponds to that of a custom XOC 1000 W BIOS for EVGA Kingpin GeForce RTX 3090 GPU, which you can find in our database. When it comes to performance, the gains were very minimal at only 2-3%. That must have been due to the insufficient cooling, and the card could have done much better on water or LN2. The Firestrike Ultra and Firestrike Extreme results are displayed below.


View at TechPowerUp Main Site

Joined
Dec 23, 2012
Messages
1,647 (0.50/day)
Location
Somewhere Over There!
System Name ArchRyze
Processor Ryzen R9 3900XT 4.5 Ghz @ 1.275V
Motherboard Asus ROG Crosshair Viii Hero Wifi
Cooling Lian Li 360 Galahad
Memory G.Skill Trident Z Neo 32gb OC @ 3733 mhz CL14-13-13-21 1T @ 1.43V
Video Card(s) Sapphire RX 6900 XT Nitro+
Storage Seagate 520 1TB + Samsung 970 Evo Plus 1TB + lots of HDD's
Display(s) Samsung Odyssey G7
Case Lian Li PC-O11D XL White
Audio Device(s) Onboard
Power Supply Super Flower Leadex SE Platinum 1000W
Mouse Xenics Titan GX Air Wireless
Keyboard Kemove Snowfox 61
Software Main: Arch Linux KDE ; Windows 10 Pro (for games as benchmark)
Benchmark Scores Have tried but can't beat the leaders :)
So... in other words, no point if increase is very minimal...

Joined
Nov 11, 2016
Messages
2,032 (1.07/day)
System Name The de-ploughminator
Processor I7 9900K @ 5.1Ghz
Motherboard Gigabyte Z370 Gaming 5
Cooling Custom Watercooling
Memory 4x8GB G.Skill Trident Neo 3600mhz 15-15-15-30
Video Card(s) RTX 3090 + Bitspower WB
Storage Plextor 512GB nvme SSD
Display(s) LG OLED CX48"
Case Lian Li 011D Dynamic
Audio Device(s) Creative AE-5
Power Supply Corsair HX850
Mouse Razor Viper Ultimate
Keyboard Corsair K75
Software Win10
Yeah I would rather that my 3090 remain in the 300 watts range for best efficiency.

Joined
Dec 29, 2010
Messages
2,530 (0.62/day)
Processor AMD 5900x
Motherboard Asus x570 Strix-E
Cooling Hardware Labs
Memory G.Skill 4000c17 2x16gb
Video Card(s) RTX 3090
Storage Sabrent
Display(s) Samsung G9
Case Phanteks 719
Audio Device(s) Fiio K5 Pro
Power Supply EVGA 1300 G2
Mouse Logitech G600
Keyboard Corsair K95
However, when the 1000 Watt vBIOS was applied to the card, the GPU core has managed to ramp to 2000 MHz and consume as much as 630 W of power. If you were wondering if the stock cooler was able to handle it all, the answer is yes. The card has reached a toasty 96 C temperature.
LMAO, 630W power draw, smh.


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
52,565 (8.31/day)
Location
Oystralia
System Name Rainbow Sparkles
Processor Ryzen R7 5800X (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate. Dual rad.
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3800 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.15V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Often underclocked to 1500Mhz 0.737v
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Gigabyte G32QC (4k80Hz, 1440p 165Hz) + Phillips 328m6fjrmb (4K 60Hz, 1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 |Razer Leviathan | Corsair Void pro RGB |Blue Yeti mic
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Benchmark Scores I don't quite know how i managed to get such a top tier PC, I am not rich.
And my Galax 3090 locked to 1800Mhz only uses 230W

These cards are NOT efficient when ramped up

Joined
Aug 27, 2011
Messages
880 (0.23/day)
Processor Intel core i9 10900k @5.5ghz
Motherboard Asus Maximus XII APEX
Cooling Custom loop 3*360 45mm thick+ 3 x mo-ra3 420 +Dual D5 pump and dual ddc pump
Memory 2x16gb Gskillz Trident Z 4600mhz cl16
Video Card(s) EVGA FTW3 ULTRA RTX 3090
Storage 1TB Samsung 860Evo,2*2tb Samsung 970Evo Plus, 1tb Intel 660p nvme
Display(s) LG Ultragear 27" IPS 1440P 144HZ
Case Dynamic XL
Audio Device(s) Creative Omni 5.1 usb sound card
Power Supply Corsair AX1600i
Mouse Model O-
Keyboard Hyper X Alloy Origin Core
Nowadays we probably see these babies in a mining rig instead of a gaming pc.

D

Deleted member 205776

Guest
Never liked their HoF cards. Especially in terms of aesthetics. LN2 cooling as a whole is just pointless showmanship to me. I'm more interested in what these cards can reach on their stock air coolers.

Also I got more efficiency out of my Ampere card when undervolting it rather than overvolting it.

Joined
Sep 26, 2017
Messages
551 (0.35/day)
Location
Here
Processor Intel i9 11900K
Motherboard Z590 MSI ACE
Cooling Corsair H80i v2
Memory Ballistix Elite 4000 32GB 18-19-19-39
Video Card(s) EVGA 3090 XC3 ULTRA HYBRID
Storage 2x Seagate Barracuda 120 SSD 1 TB, XPG SX8200 PRO 1 TB
Display(s) Acer Predator Z321QU
Case Fractal Design Meshify C
Power Supply Asus ROG Strix 1000W
These results are from running AIDA64 GPU stress test and GPU-Z stress at the same time with no overclock...HOF? more like David Hasselhoff.

EVGA 3090 XC3 ULTRA HYBRID

Last edited:
Joined
Dec 18, 2005
Messages
8,009 (1.36/day)
System Name money pit..
Processor Intel 9900K 4.8 at 1.152 core voltage minus 0.120 offset
Motherboard Asus rog Strix Z370-F Gaming
Cooling Dark Rock TF air cooler.. Stock vga air coolers with case side fans to help cooling..
Memory 32 gb corsair vengeance 3200
Video Card(s) Palit Gaming Pro OC 2080TI
Storage 150 nvme boot drive partition.. 1T Sandisk sata.. 1T Transend sata.. 1T 970 evo nvme m 2..
Display(s) 27" Asus PG279Q ROG Swift 165Hrz Nvidia G-Sync, IPS.. 2560x1440..
Case Gigabyte mid-tower.. cheap and nothing special..
Audio Device(s) onboard sounds with stereo amp..
Power Supply EVGA 850 watt..
Mouse Logitech G700s
Keyboard Logitech K270
Software Win 10 pro..
Benchmark Scores Firestike 29500.. timepsy 14000..
efficient dosnt come into it when 3dmark scores are the game.. i would have assumed most tpu enthusiasts knew this but it seems not..

trog

Joined
Apr 29, 2014
Messages
3,975 (1.40/day)
Location
Texas
System Name SnowFire / The Reinforcer / Portable?
Processor i7 10700K 5.1ghz (24/7) / 2x Xeon E52650v2 / AMD Ryzen 5 3600X
Motherboard Asus Strix Z490 / Dell Dual Socket (R720) / Asrock X570 ITX
Cooling RX 360mm + 140mm Custom Loop / Dell Stock / Noctua L9i (Yes L9i)
Memory Corsair RGB 16gb DDR4 3000 CL 16 / DDR3 128gb 16 x 8gb / Corsair RGB 3200 16gb
Video Card(s) GTX Titan XP (2025mhz) / Asus GTX 950 (No Power Connector) / GTX 970 (Temp)
Storage Samsung 970 1tb NVME and 2tb HDD x4 RAID 5 / 300gb x8 RAID 5 / 2x Samsung 850 Pro 512gb
Display(s) Acer XG270HU, Samsung G7 Odyssey (1440p 240hz) / HP Omen 1080p 240hz
Case Thermaltake Cube / Dell Poweredge R720 Rack Mount Case / Fractal Design Node 202
Audio Device(s) Realtec ALC1150 (On board)
Power Supply Rosewill Lightning 1300Watt / Dell Stock 750 / Brick / Fractal Design 450 Watt Bronze
Mouse Logitech G5
Keyboard Logitech G19S
Software Windows 10 Pro / Windows Server 2016 / Windows 10 Pro
That's funny, I would love to play with a bios like that. I wonder how long the card would last like that just gaming.


hat

Enthusiast
Joined
Nov 20, 2006
Messages
21,498 (3.87/day)
Location
Ohio
System Name Starlifter :: Dragonfly
Processor i7 2600k 4.4GHz :: i5 10400
Motherboard ASUS P8P67 Pro :: ASUS Prime H570-Plus
Cooling Cryorig M9 :: Stock
Memory 4x4GB DDR3 2133 :: 2x8GB DDR4 2400
Video Card(s) 2x PNY GTX1070 :: GT720
Storage Plextor M5s 128GB, 2x1TB Seagate RAID 0 :: Mushkin Enhanced 60GB SSD, 3x4TB Seagate HDD RAID5
Display(s) Acer P216HL HDMI :: None
Case Antec SOHO 1030B :: Old White Full Tower
Audio Device(s) Creative X-Fi Titanium Fatal1ty Pro - Bose Companion 2 Series III :: None
Power Supply FSP Hydro GE 550w :: EVGA Supernova 550
Software Windows 10 Pro - Plex Server on Dragonfly
Benchmark Scores >9000
And my Galax 3090 locked to 1800Mhz only uses 230W

These cards are NOT efficient when ramped up
Is anything ever efficient when ramped up?


Tatty_One

Senior Moder@tor
Staff member
Joined
Jan 18, 2006
Messages
24,520 (4.19/day)
Location
Worcestershire, UK
System Name The Grey
Processor Intel Comet Lake Core i5 10600K
Motherboard MSI MAG Z490 TOMAHAWK
Cooling Artic Cooling Liquid Freezer II 280mm AIO + 4 Phantek 140mm case fans
Memory 16GB Patriot Viper Steel DDR4 4133Mhz @ 17-17-17-32 2T 1.45v
Video Card(s) Gigabyte RTX 2060 SUPER Windforce OC 8GB
Storage WD Blue SN550 1TB M.2 NVME//SkHynix 120GB SSD//CrucialM4 64GB SSD
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) OnBoard Realtek ALC1200-VD1 @ 5.1 surround
Power Supply Seasonic Core Gold 650w Semi modular
Mouse Coolermaster Storm Octane wired
Keyboard Element Gaming Carbon Mk2 Tournament Mech
Software Win 10 Home x64
Has my math gone bad (TBH it was never that good), how does a card draw 630w from three 8 pin PCI-E cables and a 75w motherboard slot or am I missing something? I make that 525w max.

Joined
Feb 26, 2016
Messages
442 (0.20/day)
Location
Texas
System Name O-Clock
Processor Intel Core i9-9900K @ 5.1 GHz
Motherboard ASUS Maximus XI Hero (Wi=Fi AC)
Cooling Enermax Liqmax II 240 push/pull w/ ICD thermal compound
Memory Crucial Ballistix Sport LT 32GB (2x16GB) + SK Hynix ECC Unbuffered 32GB (2x16) @3200 MHz CL18
Video Card(s) Asus GTX 1650 Super TUF OC, PNY Quadro M4000
Storage Samsung 860 PRO 256GB 2.5" SSD, Samsung PM863a 2TB 2.5" SSD, Samsung 870 Evo 500GB 2.5" SSD
Display(s) Asus VG279QM, Dell P2314H
Case Corsair SPEC-02 (modded)
Audio Device(s) HyperX Cloud II
Power Supply EVGA 1200 P2
Mouse Logitech G403
Keyboard Logitech G910 Stickerbombed + Corsair K55
Software Windows 10 Pro 64 bit
Benchmark Scores https://hwbot.org/search/submissions/permalink?userId=92615&cpuId=5773
^needs AX1600i just for water cooling this motherf--ker^

Has my math gone bad (TBH it was never that good), how does a card draw 630w from three 8 pin PCI-E cables and a 75w motherboard slot or am I missing something? I make that 525w max.
If the cables are good enough, they can handle more power. It isn't exactly "safe" to do this on a regular basis, but for overclocking and stuff, it has been a thing to pull more power than the connectors can officially support for about a decade now in extreme overclocking. But no, your math isn't wrong, 525W should be the maximum sustained power consumption for 3x 8 pin + PCIe slot.

Joined
Apr 29, 2014
Messages
3,975 (1.40/day)
Location
Texas
System Name SnowFire / The Reinforcer / Portable?
Processor i7 10700K 5.1ghz (24/7) / 2x Xeon E52650v2 / AMD Ryzen 5 3600X
Motherboard Asus Strix Z490 / Dell Dual Socket (R720) / Asrock X570 ITX
Cooling RX 360mm + 140mm Custom Loop / Dell Stock / Noctua L9i (Yes L9i)
Memory Corsair RGB 16gb DDR4 3000 CL 16 / DDR3 128gb 16 x 8gb / Corsair RGB 3200 16gb
Video Card(s) GTX Titan XP (2025mhz) / Asus GTX 950 (No Power Connector) / GTX 970 (Temp)
Storage Samsung 970 1tb NVME and 2tb HDD x4 RAID 5 / 300gb x8 RAID 5 / 2x Samsung 850 Pro 512gb
Display(s) Acer XG270HU, Samsung G7 Odyssey (1440p 240hz) / HP Omen 1080p 240hz
Case Thermaltake Cube / Dell Poweredge R720 Rack Mount Case / Fractal Design Node 202
Audio Device(s) Realtec ALC1150 (On board)
Power Supply Rosewill Lightning 1300Watt / Dell Stock 750 / Brick / Fractal Design 450 Watt Bronze
Mouse Logitech G5
Keyboard Logitech G19S
Software Windows 10 Pro / Windows Server 2016 / Windows 10 Pro
Has my math gone bad (TBH it was never that good), how does a card draw 630w from three 8 pin PCI-E cables and a 75w motherboard slot or am I missing something? I make that 525w max.
Maybe its overvolting from the connectors LOL. I mean I have done that to a motherboard and damaged one before :p

Joined
Nov 5, 2014
Messages
712 (0.27/day)
Has my math gone bad (TBH it was never that good), how does a card draw 630w from three 8 pin PCI-E cables and a 75w motherboard slot or am I missing something? I make that 525w max.
You're thinking of what the connectors are rated for in the PCI-E specification, but the physical connectors are actually rated much higher in their design specification (what their designers/manufacturers say is safe) but the PCI-E spec errs on the side of caution. It's usual for GPU manufacturers to follow the PCI-E spec (IIRC they can't put the PCI-E logo on the box if they don't) but you do occasionally see AIBs release cards like this that can violate the PCI-E spec out of the box (AMD/Nvidia themselves have done it too but it's very rare, I think the last time was the reference RX480).

This is one of the reasons Nvidia "invented" their 12pin connector for the RTX3000 series, because by using a single 12pin micro connector from Molex they could ignore the PCI-E spec without breaking it. And because it wasn't part of the PCI-E spec they could claim it was rated for whatever wattage they felt like (as long as it didn't exceed Molexs own specs ofc). Had the 12pin connector been part of the PCI-E spec it would only have been rated for 100-150w.


Tatty_One

Senior Moder@tor
Staff member
Joined
Jan 18, 2006
Messages
24,520 (4.19/day)
Location
Worcestershire, UK
System Name The Grey
Processor Intel Comet Lake Core i5 10600K
Motherboard MSI MAG Z490 TOMAHAWK
Cooling Artic Cooling Liquid Freezer II 280mm AIO + 4 Phantek 140mm case fans
Memory 16GB Patriot Viper Steel DDR4 4133Mhz @ 17-17-17-32 2T 1.45v
Video Card(s) Gigabyte RTX 2060 SUPER Windforce OC 8GB
Storage WD Blue SN550 1TB M.2 NVME//SkHynix 120GB SSD//CrucialM4 64GB SSD
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) OnBoard Realtek ALC1200-VD1 @ 5.1 surround
Power Supply Seasonic Core Gold 650w Semi modular
Mouse Coolermaster Storm Octane wired
Keyboard Element Gaming Carbon Mk2 Tournament Mech
Software Win 10 Home x64
Yeah, I suppose thinking about it most single 8 pin cards tend to have a max TDP rating (on the box) of around 180 - 200w probably for a safety margin, my 2060 Super is rated at 200w but as many of W1z's recent reviews show, they commonly exceed the ratings, my card overclocks so well it throttles even at the slider max +14% TDP.

Joined
Jun 22, 2006
Messages
886 (0.16/day)
System Name Beaver's Build
Processor AMD Ryzen 9 5950X
Motherboard Asus ROG Crosshair VIII Hero (WI-FI) - X570
Cooling Corsair H115i RGB PLATINUM 97 CFM Liquid
Memory G.Skill Trident Z Neo 32 GB (2 x 16 GB) DDR4-3600 Memory - 16-19-19-39
Video Card(s) NVIDIA GeForce RTX 3090 Founders Edition
Storage Inland 1TB NVMe M.2 (Phison E12) / Samsung 950 Pro M.2 NVMe 512G / WD Black 6TB - 256M cache
Display(s) LG UltraGear 27GN950-B 27" 4K 144Hz IPS
Case Fractal Design Design Define R6 USB-C
Audio Device(s) Focusrite 2i4 USB Audio Interface
Power Supply SuperFlower LEADEX TITANIUM 1600W
Mouse Razer DeathAdder V2
Keyboard Razer Cynosa V2 (Membrane)
Software Microsoft Windows 10 Pro x64
Benchmark Scores 3dMark = https://www.3dmark.com/3dm/41362044? Cinebench R15 = 4038 Cinebench R20 = 9210
The real king is the GALAX Dual 3090 HOF Limited



this example has Dual GA100 chips, not GA102s

Last edited:

lesovers

New Member
Joined
Oct 6, 2019
Messages
20 (0.02/day)
Fire Strike Extreme and Fire Strike Ultra is not the best benchmarks for showing off the 3090 in overclocking. My stock reference 6900XT gives better results just by turning the power up;

25523 (27679 Graphics) - Fire Strike Extreme
13879 (13970 Graphics) - Fire Strike Ultra

Joined
Aug 2, 2012
Messages
963 (0.28/day)
Location
Netherlands
System Name TheDeeGee's PC
Processor Intel Core i7 11700
Motherboard ASRock Z590 Steel Legend
Cooling Noctua NH-D15
Memory Crucial Ballistix RGB 3200/C16 32GB
Video Card(s) MSI GTX 1070 AERO OC
Storage Crucial P5 1TB, Crucial BX500 1TB, Crucial BX500 2TB
Display(s) EIZO CX240
Case Fractal Design Define 7
Audio Device(s) Creative SoundBlaster ZxR
Power Supply Seasonic Fanless TX-700
Mouse Logitech G500s
Keyboard Logitech G710+
Software Windows 10 Pro 64-Bit
Benchmark Scores None, don't care. As long as my games runs smooth.
But they're using a riser cable... arn't those 3.0 spec?

Joined
Dec 30, 2010
Messages
1,393 (0.34/day)
LMAO, 630W power draw, smh.

As frequency scales up, so does power requirement. There's a line in between best possible efficiency or going beyond that in exchange for higer power consumption.

The thing is; the 3090 has so many little cores in there, a small increase can run into hundred of watts. AMD is right. The future of GPU's is'nt one big phat chip anymore, but multiple chips put together.

Joined
Apr 16, 2019
Messages
467 (0.46/day)
Hmmm, we saw multiple chips on one board before (up to 4 in fact) and it didn't end that well... Yes, I know the implementation that is in the works now is different, but there are still quite a few honest doubts to be had about how well this will turn out (and when).

Top
