Galaxy GeForce GTX 680 Hall of Fame Edition Taking Shape

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,484 (9.19/day)
Likes
17,515
Location
Hyderabad, India
#1

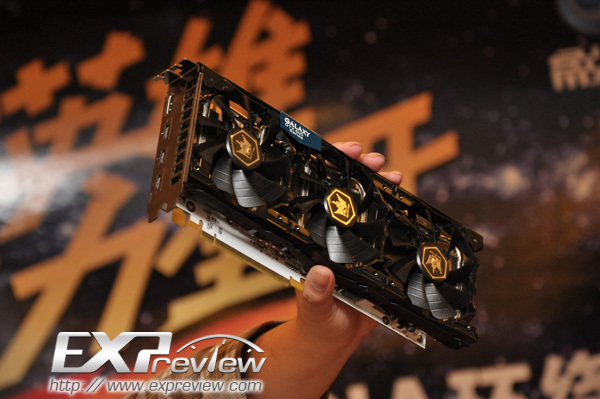

Apart from the GeForce GTX 680 4 GB, NVIDIA's major AIC partner Galaxy, is also working on the GTX 680 Hall of Fame (HOF) Edition. Galaxy uses the "HOF" marker to designate its highest-grade custom-design products, with the highest out of the box OC, and headroom. Galaxy unveiled an unfinished prototype of this card, along with a presentation of what it will look like, when finished, at a media event in China. The card will use the same exact cooling assembly as the one used on its GTX 580 Multi-Display graphics card. This cooler uses a complex set of aluminum fin heatsinks to which heat is conveyed by copper heat pipes, and which are ventilated by three 90 mm fans. The cooler shroud is illuminated by blue LEDs.

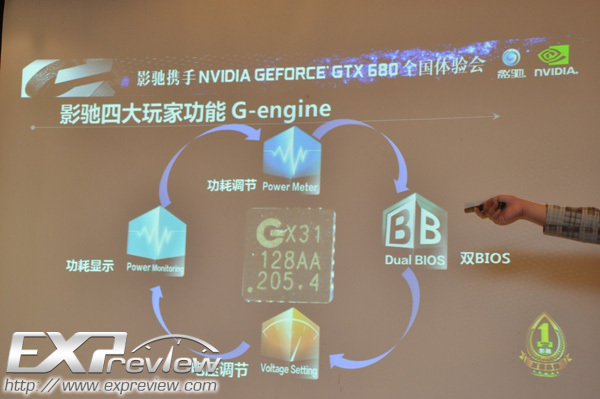

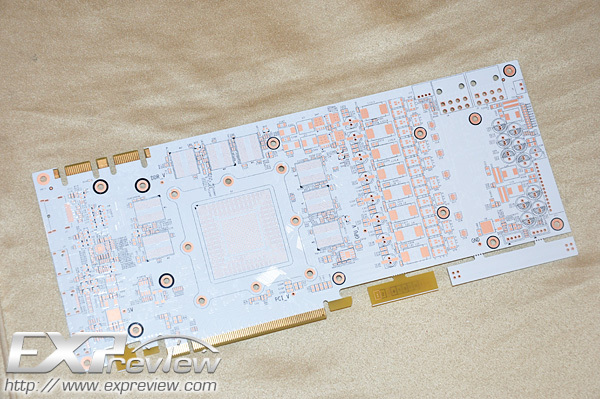

Under the cooler of GTX 680 HOF, is a milky-white PCB (Galaxy is known for white PCBs on high-end graphics cards). The card uses an 8+2+2 phase VRM, which reportedly makes use of International Rectifier DirectFETs, and high-grade chokes, although still an analog design. The VRM controller will be Galaxy's custom GX31 chip, with software voltage control, voltage monitoring, and power-draw monitoring. The card draws power from two 8-pin PCIe power connectors.

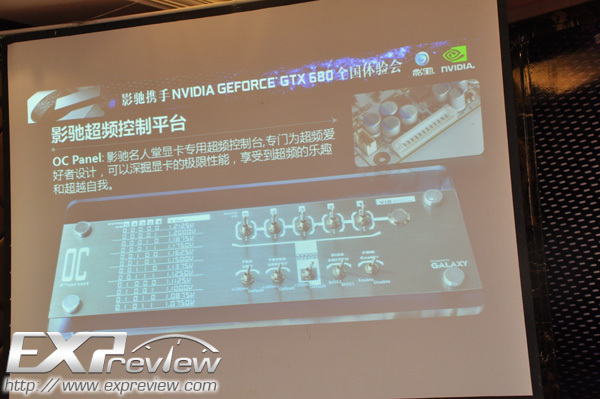

The card will also feature a dual-BIOS design to insure against bad BIOS updates. Apart from hard consolidated voltage measurement points, the card features a header for what's called "OC Panel", a physical tweaking gadget, similar to EVGA EVBot. Apart from this, there's a heavily updated Magic Panel software, with a boatload of settings. Galaxy did not give out its clock speeds information, but one can bet on the card having a massive OC headroom. Galaxy did not give out a launch time-frame.



Source: Expreview


HammerON

The Watchful Moderator
Staff member
Joined
Mar 2, 2009
Messages
7,458 (2.30/day)
Likes
4,776
Location
Up North
System Name Cruncher / Cruncher 2
Processor i7 6900K / E5 2683 v3
Motherboard X99A Gaming Pro Carbon / ASRock X99 Extreme 4/3.1
Cooling EK Supremacy EVO Elite 2011-3 / EK Supremacy
Memory G.Skill Trident Z 32GB 3200 / G.SKILL Trident Z 16GB 3200
Video Card(s) EVGA 980 Ti Classified / ATI 3650
Storage Samsung 960 Pro 512 GB + Mushkin Reactor 1 TB / OCZ Vertex 4 256 GB
Display(s) Dell UltraSharp U3011 30"
Case Corsair Obsidian 800D / TT Core V51
Audio Device(s) On-board
Power Supply Corsair AX1200 / EVGA 500W
Software Win 10 Pro/ Win 10
Benchmark Scores Always changing~
#3
Joined
Apr 4, 2008
Messages
4,659 (1.30/day)
Likes
1,009
System Name Obelisc
Processor i7 3770k @ 4.8 GHz
Motherboard Asus P8Z77-V
Cooling H110
Memory 16GB(4x4) @ 2400 MHz 9-11-11-31
Video Card(s) GTX 780 Ti
Storage 850 EVO 1TB, 2x 5TB Toshiba
Case T81
Audio Device(s) X-Fi Titanium HD
Power Supply EVGA 850 T2 80+ TITANIUM
Software Win10 64bit
#4
If this was 4 GBs and had a controller afterburner could use they might just have a sale, but naturally they stop short of perfection.

Joined
Jan 15, 2012
Messages
680 (0.31/day)
Likes
58
Location
Slovenia
System Name PC.
Processor i7 2600K 5.0Gh,i7 3770K 5.00Gh. EK, Liqed Coooleng
Motherboard P67A-UD7-B3 Gigabyte T.,ASUS,P8Z77-V PREMIUM,MAXIMUS V EXTRIME..
Cooling Liqed Cooleng ,EK Suprime LTX Nickel,EK for Motherboard,Aqua computer (WGA), Thermaltake .... 0i,
Memory G.SKILL F3-17600CL7-2GBPISG. 16GBSkill Sniper F3-17000CL94GBSR on 2400Hz 10-12-11-29 1
Video Card(s) GTX590 ,SLI ,POV TGT best 691Hz ,LiqedCoold,GTX480.....GTX1080MSI SeaHawkEK SLI
Storage OCZ-REVODRIVE 3-240GB,2xCrucialMX100.512.R-0,1x LMT-32L3m,3x 1TB-WD,1x;1x2TbSEAGATE1x2Tb Seagate
Display(s) DELL-U2412Mb,Samsung Synkmaster245B,HP ENVY 34c
Case Thermaltake, NZXT SWITCH 810SE
Audio Device(s) CREATIVE BLASTER X-Fi Titanium HD , AUNE T1MK2 TUBE USB
Power Supply ENERMAX Platimax 1500W,Thermaltake 1500W
Mouse VIPER V560,FUNC MS-3, Prestigio, R.A.T.E.7 and 5,LogitechG502,RAZER,Inperator.,dead...a.s.o.
Keyboard Trust ....LogotechG410
Software Windows7 64....
Benchmark Scores 3DMark Fire Strike 21.385 (37.234,11.828,7.176)
#5
:O Nice:):respect:

Last edited:
Joined
Jan 2, 2008
Messages
3,248 (0.89/day)
Likes
396
System Name Thakk
Processor i7 6700k @ 4.5Ghz
Motherboard Gigabyte G1 Z170N ITX
Cooling Deepcool Maelstrom 120k / H55
Memory 16GB Corsair LPX DDR4 2400
Video Card(s) GTX1080ti Founders Ed. AIO Cooled
Storage Corsair Force GT 120GB SSD / Intel 250GB SSD / Samsung Pro 512 SSD / 3TB Seagate SV32
Display(s) Acer Predator X34 100hz IPS Gsync / HTC Vive
Case Cougar QBX mini itx
Audio Device(s) Realtek ALC1150 > Creative Gigaworks T40 > AKG Q701
Power Supply Thermaltake 600w 140mm
Mouse Logitech G900
Keyboard Ducky Shine TKL MX Blue + Vortex PBT Doubleshots
Software Windows 10 64bit
Benchmark Scores http://www.3dmark.com/fs/12108888
#6
wouldve been better if cooler was also collored white

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#7
I wonder what the warranty duration will be.


erocker

Senior Moderator
Staff member
Joined
Jul 19, 2006
Messages
42,443 (10.11/day)
Likes
18,110
#8
I love the OC panel. :) I really want this card... But it would be stupid of me to buy it.
