gpu always clocks at 300mhz

Julian321

New Member
Joined
Nov 10, 2024
Messages
7 (0.26/day)
Hi everyone,

I have a problem with Palit RTX 2070 Super.
If want to play a game, the game starts to bucking.

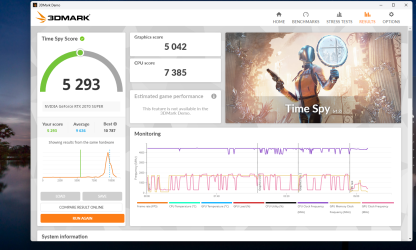

Then I run a Firestrike test and I can see that the gpu always clocks at 300mhz.

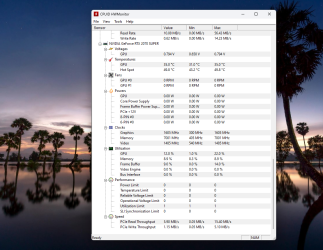

The HW Monitor shows that the gpu only used 0 Watt.
I have aready download a new driver.
I dont'n know what I should do.

Thank's for Help

My Hardware:
- Palit RTX 2070 Super
- B550 Elite V2 Mainboard
- Ryzen 5 5600g
- Thermaltake 630w power supply
- Corsair 32gb Ram 3200mhz


Attachments

  • Screenshot 2024-11-10 140924.png
    Screenshot 2024-11-10 140924.png
    595.7 KB · Views: 67
  • Screenshot 2024-11-10 142001.png
    Screenshot 2024-11-10 142001.png
    777.2 KB · Views: 66
Last edited:

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I see it was at 1605 from the value, get gpu z and click the arrow next to the uefi checkbox and run the load test on it.

Joined
Jan 7, 2022
Messages
133 (0.12/day)
Processor Intel i5 9400f
Motherboard MSI Z390 Gaming Plus
Cooling SilentiumPC Fera 3
Memory 2x 8GB Corsair Vengeance LPX 3200 16-18-18-36
Video Card(s) MSI GTX 1660 Super Ventus XS OC
Storage 500 GB Kingston A2000; 1 TB Kingston A2000; 1 TB HGST Travelstar
Display(s) AOC 24G2U
Case SilentiumPC Signum SG1
Audio Device(s) Creative Pebble Plus; Logitech G533
Power Supply beQuiet Systempower 9 500W
Mouse Logitech G403 Hero
Keyboard HyperX Alloy Origins (Red)
Software Windows 10 Pro
What are the temperatures (GPU and hot spot) during load. Hard to tell, but from the GPU-Z shot it looks pretty hot, might be thermal throttling. Also when you scroll down in GPU-Z there should be limit reasons. Those could be helpful too.

Joined
May 7, 2023
Messages
665 (1.15/day)
Processor Ryzen 5700x
Motherboard Gigabyte Auros Elite AX V2
Cooling Thermalright Peerless Assassin SE White
Memory TeamGroup T-Force Delta RGB 32GB 3600Mhz
Video Card(s) PowerColor Red Dragon Rx 6800
Storage Fanxiang S660 1TB, Fanxiang S500 Pro 1TB, BraveEagle 240GB SSD, 2TB Seagate HDD
Case Corsair 4000D White
Power Supply Corsair RM750x SHIFT
It's at 300mhz now with no/6% load though you can see the clocks were higher when you had more of a load on it though fluctuating up and down a lot, what's the hot spot temp when running the gpuz test, what is your case ventilation like? Is the gpu clean and free from dust? May benefit from a clean and repaste


Tatty_Two

Gone Fishing
Joined
Jan 18, 2006
Messages
25,941 (3.76/day)
Location
Worcestershire, UK
Processor Intel Core i9 11900KF @ -.080mV PL max @220w
Motherboard MSI MAG Z490 TOMAHAWK
Cooling DeepCool LS520SE Liquid + 3 Phanteks 140mm case fans
Memory 32GB (4 x 8GB SR) Patriot Viper Steel Bdie @ 3600Mhz CL14 1.45v Gear 1
Video Card(s) Asus Dual RTX 4070 OC + 8% PL
Storage WD Blue SN550 1TB M.2 NVME//Crucial MX500 500GB SSD (OS)
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) Onboard Realtek ALC1200/SPDIF to Sony AVR @ 5.1
Power Supply Seasonic CORE GM650w Gold Semi modular
Software Win 11 Home x64
Your graphics card appears to be only taking power from your PCI-E slot which I am guessing is why it is not boosting beyond it's base clock and dropping down to those low speeds under load if it is only getting a max of 75w , what is your specific PSU model and how old is it?

Joined
Nov 20, 2023
Messages
78 (0.20/day)
System Name Home workhorse-gaming
Processor Intel 13600KF @ 5400/4300
Motherboard Asus ROG Strix Z790A Gaming WiFi
Cooling Arctic Freezer 2 rev.7 360mm
Memory 2x16 Kingston Fury Renegade Silver RGB DDR6400@XMP settings - 32-39-39-80
Video Card(s) Palit GamePro 3080Ti with Alphacool Eiswolf 2 360 mm
Storage NVME, WD 550 Blue 1 TB (gen.3), Samsung 980 1 TB (gen.3), Kingston KC3000 2 TB (gen.4)
Display(s) Samsung Odyssey G5 LS27AG500NUXEN (IPS, flat), @120Hz, 10 bit color (165Hz@8 bit)
Case Corsair 5000D Airflow, 4xArctic Bionix P120
Audio Device(s) Creative Sound BlasterX AE5 Plus, Creative P580 boxes, Sennheiser HD569
Power Supply Seasonic Focus GX 850W Gold
Mouse Razer Basilisk V3 Chroma
Keyboard Asus TUF Gaming K3
VR HMD none
Software W11 pro
Benchmark Scores https://hwbot.org/xtu2/analyze/5404795?recalculate=true
Make the GPU-Z window bigger like this in order to see all of the sensors readings:


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Go on the graphics card tab and do the run, with hwinfo64 open

Your graphics card appears to be only taking power from your PCI-E slot which I am guessing is why it is not boosting beyond it's base clock and dropping down to those low speeds under load if it is only getting a max of 75w , what is your specific PSU model and how old is it?
Can that gpu even run on a 630w unit to begin with


Tatty_Two

Gone Fishing
Joined
Jan 18, 2006
Messages
25,941 (3.76/day)
Location
Worcestershire, UK
Processor Intel Core i9 11900KF @ -.080mV PL max @220w
Motherboard MSI MAG Z490 TOMAHAWK
Cooling DeepCool LS520SE Liquid + 3 Phanteks 140mm case fans
Memory 32GB (4 x 8GB SR) Patriot Viper Steel Bdie @ 3600Mhz CL14 1.45v Gear 1
Video Card(s) Asus Dual RTX 4070 OC + 8% PL
Storage WD Blue SN550 1TB M.2 NVME//Crucial MX500 500GB SSD (OS)
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) Onboard Realtek ALC1200/SPDIF to Sony AVR @ 5.1
Power Supply Seasonic CORE GM650w Gold Semi modular
Software Win 11 Home x64
Go on the graphics card tab and do the run, with hwinfo64 open


Can that gpu even run on a 630w unit to begin with
Well his card is upto 220w and taking into consideration his other specs then he should be OK depending on age and model of the PSU but I am getting the feeling it is a power supply issue looking at what he has provided to date.

Joined
May 7, 2023
Messages
665 (1.15/day)
Processor Ryzen 5700x
Motherboard Gigabyte Auros Elite AX V2
Cooling Thermalright Peerless Assassin SE White
Memory TeamGroup T-Force Delta RGB 32GB 3600Mhz
Video Card(s) PowerColor Red Dragon Rx 6800
Storage Fanxiang S660 1TB, Fanxiang S500 Pro 1TB, BraveEagle 240GB SSD, 2TB Seagate HDD
Case Corsair 4000D White
Power Supply Corsair RM750x SHIFT
Go on the graphics card tab and do the run, with hwinfo64 open


Can that gpu even run on a 630w unit to begin with
Well his card is upto 220w and taking into consideration his other specs then he should be OK depending on age and model of the PSU but I am getting the feeling it is a power supply issue looking at what he has provided to date.
My son's PC has similar spec, 2070S and Ryzen 5500 on a cheap EVGA 600w 80plus white PSU and is more than enough, he's been running that combo well over a year without issue, in theory OP's PC shouldn't use more than 400w at a push, though you could have a point about possible PSU/power issue as 630w is not a common wattage you will find on PSU's today and that PSU could be 10+ years old at this point by doing a quick google for TT 630w PSU lol

Joined
Nov 20, 2023
Messages
78 (0.20/day)
System Name Home workhorse-gaming
Processor Intel 13600KF @ 5400/4300
Motherboard Asus ROG Strix Z790A Gaming WiFi
Cooling Arctic Freezer 2 rev.7 360mm
Memory 2x16 Kingston Fury Renegade Silver RGB DDR6400@XMP settings - 32-39-39-80
Video Card(s) Palit GamePro 3080Ti with Alphacool Eiswolf 2 360 mm
Storage NVME, WD 550 Blue 1 TB (gen.3), Samsung 980 1 TB (gen.3), Kingston KC3000 2 TB (gen.4)
Display(s) Samsung Odyssey G5 LS27AG500NUXEN (IPS, flat), @120Hz, 10 bit color (165Hz@8 bit)
Case Corsair 5000D Airflow, 4xArctic Bionix P120
Audio Device(s) Creative Sound BlasterX AE5 Plus, Creative P580 boxes, Sennheiser HD569
Power Supply Seasonic Focus GX 850W Gold
Mouse Razer Basilisk V3 Chroma
Keyboard Asus TUF Gaming K3
VR HMD none
Software W11 pro
Benchmark Scores https://hwbot.org/xtu2/analyze/5404795?recalculate=true
My son's PC has similar spec, 2070S and Ryzen 5500 on a cheap EVGA 600w 80plus white PSU and is more than enough, he's been running that combo well over a year without issue, in theory OP's PC shouldn't use more than 400w at a push, though you could have a point about possible PSU/power issue as 630w is not a common wattage you will find on PSU's today and that PSU could be 10+ years old at this point by doing a quick google for TT 630w PSU lol
Most likely this one https://www.emag.ro/sursa-thermaltake-smart-se-630w-sps-630m/pd/EFK0NBBBM/

My money's on borked PSU and possibly even the graphics card because of that.

Joined
Nov 20, 2023
Messages
78 (0.20/day)
System Name Home workhorse-gaming
Processor Intel 13600KF @ 5400/4300
Motherboard Asus ROG Strix Z790A Gaming WiFi
Cooling Arctic Freezer 2 rev.7 360mm
Memory 2x16 Kingston Fury Renegade Silver RGB DDR6400@XMP settings - 32-39-39-80
Video Card(s) Palit GamePro 3080Ti with Alphacool Eiswolf 2 360 mm
Storage NVME, WD 550 Blue 1 TB (gen.3), Samsung 980 1 TB (gen.3), Kingston KC3000 2 TB (gen.4)
Display(s) Samsung Odyssey G5 LS27AG500NUXEN (IPS, flat), @120Hz, 10 bit color (165Hz@8 bit)
Case Corsair 5000D Airflow, 4xArctic Bionix P120
Audio Device(s) Creative Sound BlasterX AE5 Plus, Creative P580 boxes, Sennheiser HD569
Power Supply Seasonic Focus GX 850W Gold
Mouse Razer Basilisk V3 Chroma
Keyboard Asus TUF Gaming K3
VR HMD none
Software W11 pro
Benchmark Scores https://hwbot.org/xtu2/analyze/5404795?recalculate=true
every graphics card has some (huge) power spikes that may trigger your PSU, just saying. Get a reliable 800W+ PSU and check how's it going. Depending on where you live, it's easy or not... (I mean getting an 850+ PSU, testing, get it back in warranty because reasons...).


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Yes, I have the thremaltake smart se and I have a other gpu (RX6800 XT).
The other gpu is working with this power supply.
So I think the problem is the gpu.
Well since other is working but this 1 is not, it is possible there is a component that failed that keeps that gpu in a limp mode, probably just easier to replace it.

Joined
Aug 27, 2023
Messages
276 (0.59/day)
Your graphics card appears to be only taking power from your PCI-E slot which I am guessing is why it is not boosting beyond it's base clock and dropping down to those low speeds under load if it is only getting a max of 75w , what is your specific PSU model and how old is it?
HWiNFO shows PCIe also at 0W. Does seem IMO to be a power sense problem.

Joined
May 8, 2016
Messages
1,911 (0.61/day)
System Name BOX
Processor Core i7 6950X @ 4,26GHz (1,28V)
Motherboard X99 SOC Champion (BIOS F23c + bifurcation mod)
Cooling Thermalright Venomous-X + 2x Delta 38mm PWM (Push-Pull)
Memory Patriot Viper Steel 4000MHz CL16 4x8GB (@3240MHz CL12.12.12.24 CR2T @ 1,48V)
Video Card(s) Titan V (~1650MHz @ 0.77V, HBM2 1GHz, Forced P2 state [OFF])
Storage WD SN850X 2TB + Samsung EVO 2TB (SATA) + Seagate Exos X20 20TB (4Kn mode)
Display(s) LG 27GP950-B
Case Fractal Design Meshify 2 XL
Audio Device(s) Motu M4 (audio interface) + ATH-A900Z + Behringer C-1
Power Supply Seasonic X-760 (760W)
Mouse Logitech RX-250
Keyboard HP KB-9970
Software Windows 10 Pro x64
Can be just an issue with signals/shunt resistors, but may also mean a failed controller (since it can't figure out what is the power draw of both "GPU Chip" and "Board").
Which may suck for repair (as controller has internal settings, and those are set by GPU manufacturer) :(


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
6 yo card by arch, not economical to repair, go get a new unit


Julian321

New Member
Joined
Nov 10, 2024
Messages
7 (0.26/day)
Es kann sich lediglich um ein Problem mit Signalen/Shunt-Widerständen handeln, es kann aber auch ein Hinweis auf einen Controllerfehler sein (da der Controller nicht ermitteln kann, wie hoch die Leistungsaufnahme von „GPU-Chip“ und „Platine“ ist).
Das kann bei der Reparatur schwierig sein (da der Controller interne Einstellungen hat und diese vom GPU-Hersteller festgelegt werden):(
Yes, the Chip in the RtX 2070super ist a holtek chip. I had already bought it with the correct Firmware and soldered it but unfortunately it didn't get any better


Solaris17

Super Dainty Moderator
Staff member
Joined
Aug 16, 2005
Messages
27,018 (3.83/day)
Location
Alabama
System Name RogueOne
Processor Xeon W9-3495x
Motherboard ASUS w790E Sage SE
Cooling SilverStone XE360-4677
Memory 128gb Gskill Zeta R5 DDR5 RDIMMs
Video Card(s) MSI SUPRIM Liquid X 4090
Storage 1x 2TB WD SN850X | 2x 8TB GAMMIX S70
Display(s) 49" Philips Evnia OLED (49M2C8900)
Case Thermaltake Core P3 Pro Snow
Audio Device(s) Moondrop S8's on schitt Gunnr
Power Supply Seasonic Prime TX-1600
Mouse Razer Viper mini signature edition (mercury white)
Keyboard Monsgeek M3 Lavender, Moondrop Luna lights
VR HMD Quest 3
Software Windows 11 Pro Workstation
Benchmark Scores I dont have time for that.
Weren’t 300mhz locks generally fuse related? I know many in the old days replaced them or bridged them. 300mhz locks used to always be limp mode indicators. Maybe I’m too out of touch, but if it is no amount of firmware will fix it. Go find the fuse and jump it.

Edit: really racking my memory here but it also happened when thermistors were broken. Does anything read the temp of the sun? Maybe it reads the surface of Pluto?


Julian321

New Member
Joined
Nov 10, 2024
Messages
7 (0.26/day)
Unfortunately, I don't know exactly where to look, I'm honestly still a beginner.


Attachments

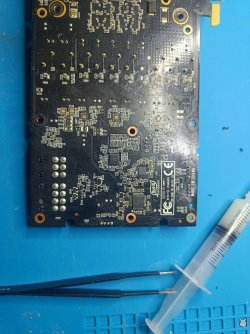

  • WhatsApp Bild 2024-11-11 um 20.56.20_2b202440.jpg
    WhatsApp Bild 2024-11-11 um 20.56.20_2b202440.jpg
    1.3 MB · Views: 24

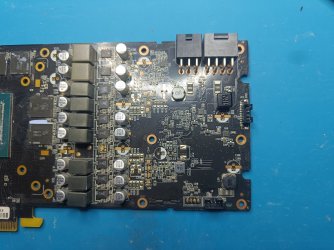

  • WhatsApp Bild 2024-11-11 um 20.56.20_dacb4192.jpg
    WhatsApp Bild 2024-11-11 um 20.56.20_dacb4192.jpg
    1.2 MB · Views: 25
Joined
May 7, 2023
Messages
665 (1.15/day)
Processor Ryzen 5700x
Motherboard Gigabyte Auros Elite AX V2
Cooling Thermalright Peerless Assassin SE White
Memory TeamGroup T-Force Delta RGB 32GB 3600Mhz
Video Card(s) PowerColor Red Dragon Rx 6800
Storage Fanxiang S660 1TB, Fanxiang S500 Pro 1TB, BraveEagle 240GB SSD, 2TB Seagate HDD
Case Corsair 4000D White
Power Supply Corsair RM750x SHIFT
Unfortunately, I don't know exactly where to look, I'm honestly still a beginner.
I believe these highlighted in red are the fuses, wait for someone else to confirm, unfortunately never bridged fuses myself in the past so I can't help you further, I know a few people on here are familiar with GPU repairs @Solaris17 can possibly elaborate further



Solaris17

Super Dainty Moderator
Staff member
Joined
Aug 16, 2005
Messages
27,018 (3.83/day)
Location
Alabama
System Name RogueOne
Processor Xeon W9-3495x
Motherboard ASUS w790E Sage SE
Cooling SilverStone XE360-4677
Memory 128gb Gskill Zeta R5 DDR5 RDIMMs
Video Card(s) MSI SUPRIM Liquid X 4090
Storage 1x 2TB WD SN850X | 2x 8TB GAMMIX S70
Display(s) 49" Philips Evnia OLED (49M2C8900)
Case Thermaltake Core P3 Pro Snow
Audio Device(s) Moondrop S8's on schitt Gunnr
Power Supply Seasonic Prime TX-1600
Mouse Razer Viper mini signature edition (mercury white)
Keyboard Monsgeek M3 Lavender, Moondrop Luna lights
VR HMD Quest 3
Software Windows 11 Pro Workstation
Benchmark Scores I dont have time for that.
I believe these highlighted in red are the fuses, wait for someone else to confirm, unfortunately never bridged fuses myself in the past so I can't help you further, I know a few people on here are familiar with GPU repairs @Solaris17 can possibly elaborate further

View attachment 371324

yeah those are them; though the exact location on the card in question, and which of the several that likely exist is the one thats bad? No idea. But if you have a multi meter you should be able to measure them.

Joined
Oct 22, 2020
Messages
40 (0.03/day)
I believe these highlighted in red are the fuses, wait for someone else to confirm, unfortunately never bridged fuses myself in the past so I can't help you further, I know a few people on here are familiar with GPU repairs @Solaris17 can possibly elaborate further

View attachment 371324
That are NOT fuses, those are 0.005Ohm shunt resistors used for current sencing. Unlike fuses that are fast burning on 20-30Amps current cuased by a short circuit - those are not designed to burn immediately, so while they are sometimes damaged during a short-circuit - that typically quite late when many other things already burned.

Visually there is no fuses in OPs GPU.
And while the OPs problem is related to current sencing - it seems that it is 0W on all of them, the problem is not directly relaed to those sencing resistors, something more common

For example the element marked in red near the Current-sencing IC U503 look strangely white -


White elements on GPU boards are very rare, so I think thats a damaged resistor - compare it with a black one on a similar board https://www.techpowerup.com/review/...0-super-gamerock-premium/images/back_full.jpg

It may be damaged-by-itself, especially if thats version without a backplate, or damaged du e to a shortcircuit inside current sencing IC.

Top
