GPU Memory Temprature is always high

Joined
Jan 13, 2019
Messages
87 (0.04/day)
Location
Pakistan
System Name Personal
Processor Rzyen 3 2200G
Motherboard Asus TUF Gaming A520m
Cooling AMD Stock Wraith Stealth
Memory ADATA XPG Spectrix D50 16GB 3600MHz
Video Card(s) XFX GTR RX 480 Black Edition 8GB
Storage Seagate 1TB, WD Blue 1TB, Samsung SSD Pro 128GB
Display(s) Dell U2412
Case Cooler Master Gladiator 600
Audio Device(s) Motorola RAZR Headset
Power Supply EVGA 500W Standard Power Supply
Mouse Bebk G13 Pro
Keyboard Razer Blackwidow Ultimate 2014
Hello, I have this gpu ASRock RX 5500 XT and memory temps are always around 80C in a Air Conditioned room (24C). Is this safe for my gpu or is it high?
If it's high can you give me suggestions, the gpu has never been opened and still using every paste stock.
The game I used it on is Horizon Zero Dawn.

Joined
Sep 3, 2019
Messages
3,488 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Hello, I have this gpu ASRock RX 5500 XT and memory temps are always around 80C in a Air Conditioned room (24C). Is this safe for my gpu or is it high?
If it's high can you give me suggestions, the gpu has never been opened and still using every paste stock.
The game I used it on is Horizon Zero Dawn.

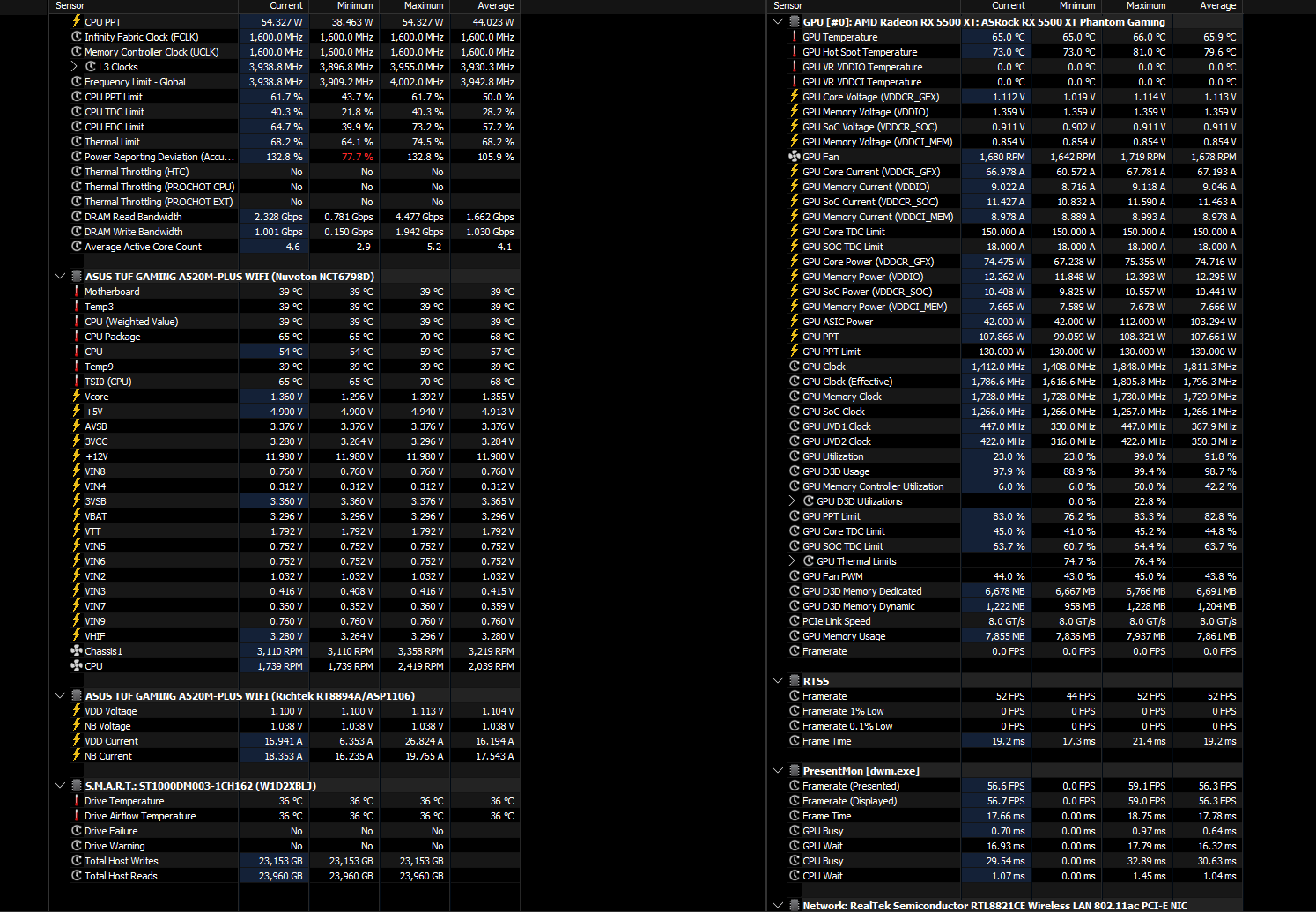

View attachment 363114
If the "always" means always when gaming then its normal. Typically even in more modern air cooled GPU cards, VRAM temp is around 75~85C when gaming.
VRAM chip heat is transferred to the card heatsink with thermal pads. Those tend to wear after a few years.
Also in order to have the right perspective, you have to know what was the temp of VRAM when the card was new and if it changed/increased overtime.

Joined
Jan 8, 2017
Messages
9,411 (3.29/day)
System Name Good enough
Processor AMD Ryzen R9 7900 - Alphacool Eisblock XPX Aurora Edge
Motherboard ASRock B650 Pro RS
Cooling 2x 360mm NexXxoS ST30 X-Flow, 1x 360mm NexXxoS ST30, 1x 240mm NexXxoS ST30
Memory 32GB - FURY Beast RGB 5600 Mhz
Video Card(s) Sapphire RX 7900 XT - Alphacool Eisblock Aurora
Storage 1x Kingston KC3000 1TB 1x Kingston A2000 1TB, 1x Samsung 850 EVO 250GB , 1x Samsung 860 EVO 500GB
Display(s) LG UltraGear 32GN650-B + 4K Samsung TV
Case Phanteks NV7
Power Supply GPS-750C
That's about what to expect, my reference 7900XT also had similar memory temps, it's fine.

Btw your screenshot shows 0C.

Joined
Jan 13, 2019
Messages
87 (0.04/day)
Location
Pakistan
System Name Personal
Processor Rzyen 3 2200G
Motherboard Asus TUF Gaming A520m
Cooling AMD Stock Wraith Stealth
Memory ADATA XPG Spectrix D50 16GB 3600MHz
Video Card(s) XFX GTR RX 480 Black Edition 8GB
Storage Seagate 1TB, WD Blue 1TB, Samsung SSD Pro 128GB
Display(s) Dell U2412
Case Cooler Master Gladiator 600
Audio Device(s) Motorola RAZR Headset
Power Supply EVGA 500W Standard Power Supply
Mouse Bebk G13 Pro
Keyboard Razer Blackwidow Ultimate 2014
That's about what to expect, my reference 7900XT also had similar memory temps, it's fine.

Btw your screenshot shows 0C.
I'm sorry but I thought It was memory temprature beside the gpu temprature. I think there is no temperature monitoring module on my card? If i ever wanted to check the temperature then how will i ever check it?
edit: the 1st row has GPU1 and GPU2 temps shown in MSI

Joined
Sep 3, 2019
Messages
3,488 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
I'm sorry but I thought It was memory temprature beside the gpu temprature. I think there is no temperature monitoring module on my card? If i ever wanted to check the temperature then how will i ever check it?
edit: the 1st row has GPU1 and GPU2 temps shown in MSI
Try HWiNFO64 sensors mode


Joined
Jan 13, 2019
Messages
87 (0.04/day)
Location
Pakistan
System Name Personal
Processor Rzyen 3 2200G
Motherboard Asus TUF Gaming A520m
Cooling AMD Stock Wraith Stealth
Memory ADATA XPG Spectrix D50 16GB 3600MHz
Video Card(s) XFX GTR RX 480 Black Edition 8GB
Storage Seagate 1TB, WD Blue 1TB, Samsung SSD Pro 128GB
Display(s) Dell U2412
Case Cooler Master Gladiator 600
Audio Device(s) Motorola RAZR Headset
Power Supply EVGA 500W Standard Power Supply
Mouse Bebk G13 Pro
Keyboard Razer Blackwidow Ultimate 2014
Joined
Sep 3, 2019
Messages
3,488 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Yes, it seems your card does not have VRAM temp sensor.
To my experience on small cards like yours VRAM temp should be somewhere between the two GPU temps you're getting, because the whole heatsink is small so temperature tends to even out everywhere.


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,620 (2.90/day)
Location
Jyväskylä, Finland
System Name 4K-gaming
Processor AMD Ryzen 7 5800X @ PBO +200 -20CO
Motherboard Asus ROG Crosshair VII Hero
Cooling Arctic Freezer 50, EKWB Vector TUF
Memory 32GB Kingston HyperX Fury DDR4-3466
Video Card(s) Asus GeForce RTX 3080 TUF OC 10GB
Storage A pack of SSDs totaling 3.2TB + 3TB HDDs
Display(s) 27" 4K120 IPS + 32" 4K60 IPS + 24" 1080p60
Case Corsair 4000D Airflow White
Audio Device(s) Asus TUF H3 Wireless / Corsair HS35
Power Supply EVGA Supernova G2 750W
Mouse Logitech MX518 + Asus ROG Strix Edge Nordic
Keyboard Roccat Vulcan 121 AIMO
VR HMD Oculus Rift CV1
Software Windows 11 Pro
Benchmark Scores It runs Crysis
GDDR6(X) likes to run hot anyway so nothing new here. My 3080's VRAM gets to low 60s with a fullcover waterblock, aircooled modern VRAM gets hotter.

Joined
Sep 3, 2019
Messages
3,488 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
GDDR6(X) likes to run hot anyway so nothing new here. My 3080's VRAM gets to low 60s with a fullcover waterblock, aircooled modern VRAM gets hotter.
According to AsRock this GPU comes with 14Gbps GDDR6

Joined
Feb 6, 2021
Messages
2,884 (2.10/day)
Location
Germany
Processor AMD Ryzen 7 7800X3D
Motherboard ASRock B650E Steel Legend Wifi
Cooling Arctic Liquid Freezer III 280
Memory 2x16GB Corsair Vengeance RGB 6000 CL30 (A-Die)
Video Card(s) RTX 4090 Gaming X Trio
Storage 1TB Samsung 990 PRO, 4TB Corsair MP600 PRO XT, 1TB WD SN850X, 4x4TB Crucial MX500
Display(s) Alienware AW2725DF, LG 27GR93U, LG 27GN950-B
Case Streacom BC1 V2 Black
Audio Device(s) Bose Companion Series 2 III, Sennheiser GSP600 and HD599 SE - Creative Soundblaster X4
Power Supply bequiet! Dark Power Pro 12 1500w Titanium
Mouse Razer Deathadder V3
Keyboard Razer Black Widow V3 TKL
VR HMD Oculus Rift S
Software ~2000 Video Games
this GPU does not seem to monitor VRAM Temps at all. And 80°C Hotspot or in this case a delta of less than 20°C is decent for any modern Radeon GPU.
