Gpu overheating

Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
Hi, i need help. When i turn on my laptop, gpu is imediately at 120c i cleaned all the dust and i changed thermal paste but its still same. Fan speed is 25% and gpu usage is less than 10%. I updated drivers downloaded older driver but nothing, is my gpu dead or is there a Way to fix it?

I have to add that laptop turns off after five minutes so i uninstall driver and then it wont turn off but gets really hot in gpu area

Joined
Jan 5, 2006
Messages
11,496 (2.06/day)
System Name Desktop / Laptop
Processor Intel i7 6700K @ 4.5GHz (1.270 V) / Intel i3 7100U
Motherboard Asus Z170 Pro Gaming / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut + 5 case fans / Fan
Memory 16GB DDR4 Corsair Vengeance LPX 3000MHz CL15 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 970 Evo 500GB + Samsung 850 Pro 512GB + Samsung 860 Evo 1TB x2 / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) SupremeFX Onboard / Realtek onboard + B&O speaker system
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 10 / Windows 10
i cleaned all the dust and i changed thermal paste but its still same.

Are you sure you tighten the screws good enough?
Seems to me the heatsink doesn't make good contact to the die.

102C? Maybe it died already...


Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
Are you sure you tighten the screws good enough?
Seems to me the heatsink doesn't make good contact to the die.

102C? Maybe it died already...
Yes i tightened it. In hw monitor it says 119c and it goes up to 130c. It is integrated gpu i dont know but if it is totaly dead it would not show anything on screen

Joined
Jan 5, 2006
Messages
11,496 (2.06/day)
System Name Desktop / Laptop
Processor Intel i7 6700K @ 4.5GHz (1.270 V) / Intel i3 7100U
Motherboard Asus Z170 Pro Gaming / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut + 5 case fans / Fan
Memory 16GB DDR4 Corsair Vengeance LPX 3000MHz CL15 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 970 Evo 500GB + Samsung 850 Pro 512GB + Samsung 860 Evo 1TB x2 / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) SupremeFX Onboard / Realtek onboard + B&O speaker system
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 10 / Windows 10
Yes i tightened it. In hw monitor it says 119c and it goes up to 130c. It is integrated gpu i dont know but if it is totaly dead it would not show anything on screen

What are the specs?
The laptop has probably a iGPU in the CPU.
130C? no dedicated GPU? Maybe faulty sensor or hw monitor is just wrong, if it really was that hot I think it would be fried already.

What does GPU-Z say, also post some screenshots.

Last edited:

Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
I have intel core 2 duo t9400 and amd ati mobility Radeon hd3430 it is quite old laptop but i need it. Cpu and gpu are separated on motherboard. I cant use gpu-Z because i cant use original gpu drivers, laptop shuts off when i enter program and without drivers gpu-Z doesn't recognize any gpu


droid-I

New Member
Joined
Jan 24, 2019
Messages
5 (0.01/day)
Location
60th parallel N.
I think you should try re-do the heatsink+fan mounting. Does the GPU and CPU share the same heatsink+fan?
As a temporary workaround could try if there is anything in advanced power setting to reduce the load/increase cooling effect.
Anything blocking cooler air intake?
Since you did clean the cooling, might have expected at least a few degrees lower temp, but seems it did not change?


Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
I was regularely using laptop and one day i turned it on and it just powers off.
Nothing is blocking air intake and yes gpu and cpu share one heat sink. I tried low power mode but nothing. I reseated heat sink several times but nothing. Before two monts i upgraded cpu, can that be an issue? I mean i used it many times after. I tried with old cpu but its same


Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
7,347 (2.84/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K55
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
Time to move on with something younger and prettier.


Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
Time to move on with something younger and prettier.
I am planning to buy a new one but right now im broke so i just wanna know is there a chance to fix it or is it dead.
Btw i am usint that laptop for over 9 years.

Joined
Sep 18, 2014
Messages
221 (0.09/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532
As a final resort, you can try adding copper shims to the CPU and GPU chips...i have successfully used the shims to save a 12 year old dell studio 15 laptop a year ago...copper shims can compensate for any gaps between the chip and the heatsink better than thermal paste..i applied thermal paste to both surfaces of the shims and mounted them as usual..



Here are two pics from gamers nexus showing shims mounted to a GPU





its worth a try...if you have any doubts, there are youtube videos showing how to mount copper shims..


droid-I

New Member
Joined
Jan 24, 2019
Messages
5 (0.01/day)
Location
60th parallel N.
Does this not have switchable graphics? (Hybrid GPU)

If the fan is at only 25% when it shuts down does not seem correct. A utility to the control fan perhaps might help. Other than that, since shutdowns began all of a sudden, could well be some component has failed.

There is also this, but not sure if that is any help since problem seem be with GPU :

Come to think of it might also try underclocking the GPU :

Since it is a laptop, chances are limited if any of the suggested programs in the above article may work, worth a try though.
The other thing is, need the correct GPU driver for utilities to work.

Last edited:

Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)

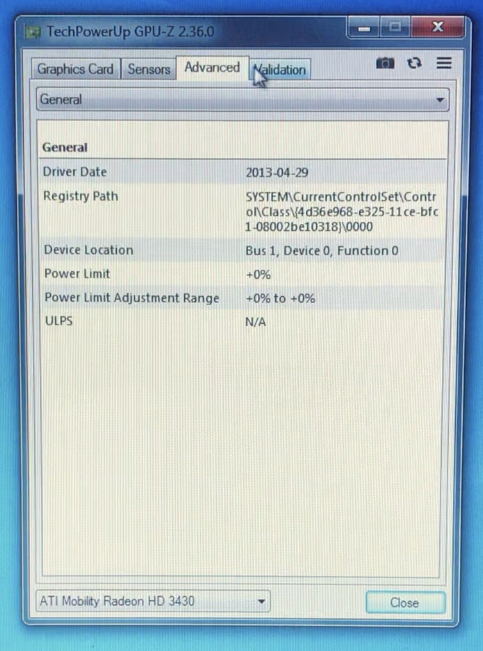

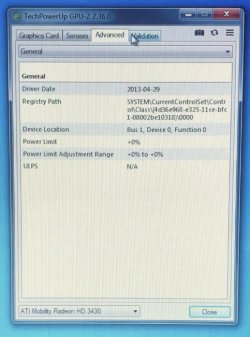

Hi again, i managged to enter gpu-Z and here are the photos


Attachments

  • 8D07788D-AB6E-43C9-9C39-40A26D0AEEE5.jpeg
    315.6 KB · Views: 25
  • A4DEDB61-58E9-4561-A1E4-49EE9F65E486.jpeg
    337.3 KB · Views: 26

droid-I

New Member
Joined
Jan 24, 2019
Messages
5 (0.01/day)
Location
60th parallel N.
Ok, so the driver seem to work and GPU-Z loads. But this not much help. Not aware what utility you use to read the temps, but you can try HWinfo.
https://www.hwinfo.com/download/
Skip the lansweeper, click the green download box instead.
Check the "sensors" section within hwinfo.


droid-I

New Member
Joined
Jan 24, 2019
Messages
5 (0.01/day)
Location
60th parallel N.
Load is 0%, GPU fan @ 100%, temp 126'C , does not look good. Fan actually spinning at full rpm? Other than that, something is broken.
What is the make and modelno of the laptop?

Last edited:

Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
cpu and gpu share one fan and it is spining like at 25% of speed

Joined
Sep 3, 2019
Messages
2,194 (3.68/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3667MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
The fan is driven by CPU temp usually. Is CPU temp ok?

Do you have the latest HWiNFO version? You can always ask at HWiNFO forums the software developers if your reading is true or false. They’re going to ask you for a debug file.


Srdjanx

New Member
Joined
Jan 26, 2021
Messages
10 (0.12/day)
I tried several softvares for temperature and it is always the same

Joined
Dec 16, 2012
Messages
283 (0.09/day)
Processor AMD Ryzen R7 5800x
Motherboard B550i Aorus Pro AX
Cooling ID-Cooling SE234
Memory 32Gb Patriot Viper 3600 RGB
Video Card(s) MSI RTX 3080 Ventus Trio OC
Storage Samsung 960 EVO
Display(s) Specterpro 34uw100
Case Cooler Master NR200P
Power Supply Cooler Master V750 Gold SFX
Software Windows 10 64bit
Maybe this will help the others... does it actually get hot? Do you feel warm air from the vents? Does the heatsink get hot?

Joined
May 2, 2017
Messages
3,831 (2.64/day)
Location
Norwegian, currently in Lund, Sweden
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case NZXT H200i
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
It gets hot in the gpu area but not hot like 130c.
If you touch the GPU cold plate or heatpipes connected to this, does it burn your fingers? If not, there are two possibilities:
- There is insufficient (given the temperatures reported: essentially zero) contact between the cold plate and the GPU, or
- The thermal readings are wrong, meaning that there is something broken in the GPU itself.

My money is on the latter, as >120C should cause an immediate system shutdown/crash. Even if the GPU is old enough to not have built-in thermal protection, that's hot enough to cause it to just crash or even break outright.
