Help: Force flash vBIOS with nvflash - win/DOS (Solved-ish)

Status
Not open for further replies.
Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
I don't normally end up in a situation where I appear to have exhausted all options, but here I am.

I've got a GTX Titan Z that's running some pre-production firmware and won't cooperate with any drivers, modified or not. I would like to get the card running with production firmware via flashing both ASICs vBIOS with the retail versions. This is where I hit a snag, board ID Mismatch. nvflash does not appear to allow force flashing like ATIWinFlash does, so this simple error stops the whole process in its tracks.

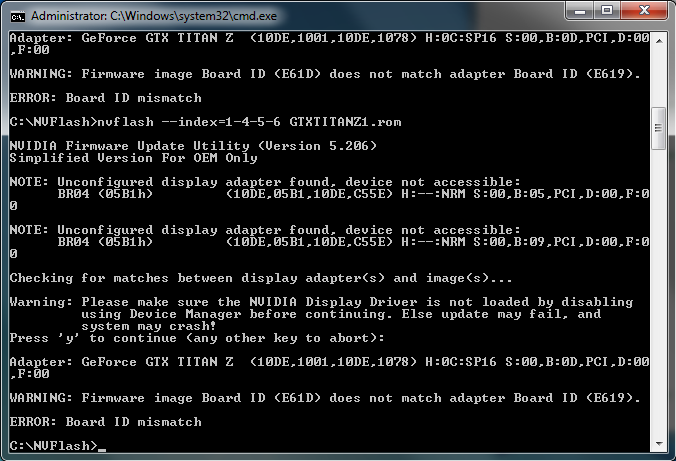

Quick breakdown of different commands tried just from google searching previous threads:

nvflash -i# -4 -5 -6 romname.rom (replace pound with number of device to be flashed)
nvflash -i# -f -6 romname.rom
nvflash -index=# -f -6 romname.rom
nvflash -index=# -4 -5 -6 romname.rom

I understand that those are basically the same commands spelled differently, but I was just covering all bases. I did disable write protect on all available devices as well to clear that up.

My question really is, can I get around this roadblock and force the firmware in any way? While the board ID is a mismatch the device ID is the same and should work perfectly fine in the event that the retail firmware is applied.

Any help is appreciated, and I'm hoping it's a simple issue I've overlooked.

Joined
Jan 5, 2006
Messages
10,932 (1.99/day)
System Name Desktop / Laptop
Processor Intel i7 6700K @ 4.5GHz (1.270 V) / Intel i3 7100U
Motherboard Asus Z170 Pro Gaming / HP 83A3 (U3E1)
Cooling Noctua NH-U12A 2 fans + Thermal Grizzly Kryonaut + 5 case fans / Fan
Memory 16GB DDR4 Corsair Vengeance LPX 3000MHz CL15 / 8GB DDR4 HyperX CL13
Video Card(s) MSI RTX 2070 Super Gaming X Trio / Intel HD620
Storage Samsung 970 Evo 500GB + Samsung 850 Pro 512GB + Samsung 860 Evo 1TB / Samsung 256GB M.2 SSD
Display(s) 23.8" Dell S2417DG 165Hz G-Sync 1440p + 21.5" LG 22MP67VQ IPS 60Hz 1080p / 14" 1080p IPS Glossy
Case Be quiet! Silent Base 600 - Window / HP Pavilion
Audio Device(s) SupremeFX Onboard / Realtek onboard + B&O speaker system
Power Supply Seasonic Focus Plus Gold 750W / Powerbrick
Mouse Logitech MX Anywhere 2 Laser wireless / Logitech M330 wireless
Keyboard RAPOO E9270P Black 5GHz wireless / HP backlit
Software Windows 10 / Windows 10
@Law-II might be able to chime in.
He knows a lot about flashing graphics cards.


Tatty_One

Senior Moder@tor
Staff member
Joined
Jan 18, 2006
Messages
23,447 (4.28/day)
Location
Worcestershire, UK
System Name The Grey
Processor Intel Comet Lake Core i5 10600K
Motherboard MSI MAG Z490 TOMAHAWK
Cooling Artic Cooling Liquid Freezer II 280mm AIO + 4 Phantek 140mm case fans
Memory 16GB Patriot Viper Steel DDR4 4133Mhz @ 17-17-17-34 2T@1.43v
Video Card(s) Gigabyte RTX 2060 SUPER Windforce OC 8GB
Storage WD Blue SN550 1TB M.2 NVME//SkHynix 120GB SSD//CrucialM4 64GB SSD
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) OnBoard Realtek ALC1200-VD1 @ 5.1 surround
Power Supply Seasonic Core Gold 650w Semi modular
Mouse Coolermaster Storm Octane wired
Keyboard Element Gaming Carbon Mk2 Tournament Mech
Software Win 10 Home x64
Straightforward nvflash -f bios.rom got me out of trouble a couple of times but that was a while back, not sure if it still plays.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
Straightforward nvflash -f bios.rom got me out of trouble a couple of times but that was a while back, not sure if it still plays.

Issue prevails, "Board ID mismatch"



Tatty_One

Senior Moder@tor
Staff member
Joined
Jan 18, 2006
Messages
23,447 (4.28/day)
Location
Worcestershire, UK
System Name The Grey
Processor Intel Comet Lake Core i5 10600K
Motherboard MSI MAG Z490 TOMAHAWK
Cooling Artic Cooling Liquid Freezer II 280mm AIO + 4 Phantek 140mm case fans
Memory 16GB Patriot Viper Steel DDR4 4133Mhz @ 17-17-17-34 2T@1.43v
Video Card(s) Gigabyte RTX 2060 SUPER Windforce OC 8GB
Storage WD Blue SN550 1TB M.2 NVME//SkHynix 120GB SSD//CrucialM4 64GB SSD
Display(s) AOC Q2781PQ 27 inch Ultra Slim 2560 x 1440 IPS
Case Phanteks Enthoo Pro M Windowed - Gunmetal
Audio Device(s) OnBoard Realtek ALC1200-VD1 @ 5.1 surround
Power Supply Seasonic Core Gold 650w Semi modular
Mouse Coolermaster Storm Octane wired
Keyboard Element Gaming Carbon Mk2 Tournament Mech
Software Win 10 Home x64
nvflash -f -5 -6 yourbios.rom
nvflash -4 -5 -6 yourbios.rom
The last one is a slight deviation from one you have already tried, these are confirmed to have worked in the past but again not sure if current, had to check an old USB drive where I keep any flashing files and details I have done in the past.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
nvflash -f -5 -6 yourbios.rom
nvflash -4 -5 -6 yourbios.rom
The last one is a slight deviation from one you have already tried, these are confirmed to have worked in the past but again not sure if current, had to check an old USB drive where I keep any flashing files and details I have done in the past.

Neither works. Board ID mismatch continues to win.

There has to be a workaround to the errors. ATIWinFlash has a command to ignore any and all errors and continue the flash regardless, and nvflash appears to have one as well but it just doesn't work.

Joined
May 4, 2012
Messages
980 (0.31/day)
Location
Ireland
System Name SilentIO
Processor AMD Ryzen 5 2600X
Motherboard Asus TUF B450M-Pro Gaming
Cooling Corsair H60
Memory 4x8GB Corsair Vengeance LP @3200 CL16
Video Card(s) MSI GTX 1070 Gaming
Storage 2x Samsung 840 EVO 120GB in Raid0, Samsung 960 PRO 1TB
Display(s) HP OMEN X 25f
Case Cooler Master Silencio 352
Audio Device(s) SoundBlaster e5 + Kingston HyperX Cloud II / Logitech Z333 + Blue Snowball
Power Supply Corsair RM650X
Mouse Logitech 403 Hero
Keyboard Logitech G Pro
Software Windows 10 Pro x64, Pop!_OS 20.10
Have you tried adding --protectoff parameter?

Joined
May 4, 2012
Messages
980 (0.31/day)
Location
Ireland
System Name SilentIO
Processor AMD Ryzen 5 2600X
Motherboard Asus TUF B450M-Pro Gaming
Cooling Corsair H60
Memory 4x8GB Corsair Vengeance LP @3200 CL16
Video Card(s) MSI GTX 1070 Gaming
Storage 2x Samsung 840 EVO 120GB in Raid0, Samsung 960 PRO 1TB
Display(s) HP OMEN X 25f
Case Cooler Master Silencio 352
Audio Device(s) SoundBlaster e5 + Kingston HyperX Cloud II / Logitech Z333 + Blue Snowball
Power Supply Corsair RM650X
Mouse Logitech 403 Hero
Keyboard Logitech G Pro
Software Windows 10 Pro x64, Pop!_OS 20.10
Sorry, i missed that part. And your graphics card is disabled in device manager, right?

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
Sorry, i missed that part. And your graphics card is disabled in device manager, right?

Yep, disabled and not even connected to a display. Using an AMD card as primary adapter.

Joined
May 4, 2012
Messages
980 (0.31/day)
Location
Ireland
System Name SilentIO
Processor AMD Ryzen 5 2600X
Motherboard Asus TUF B450M-Pro Gaming
Cooling Corsair H60
Memory 4x8GB Corsair Vengeance LP @3200 CL16
Video Card(s) MSI GTX 1070 Gaming
Storage 2x Samsung 840 EVO 120GB in Raid0, Samsung 960 PRO 1TB
Display(s) HP OMEN X 25f
Case Cooler Master Silencio 352
Audio Device(s) SoundBlaster e5 + Kingston HyperX Cloud II / Logitech Z333 + Blue Snowball
Power Supply Corsair RM650X
Mouse Logitech 403 Hero
Keyboard Logitech G Pro
Software Windows 10 Pro x64, Pop!_OS 20.10
I just noticed your Nvflash says it's "Simplified version for OEM only", have you tried other versions? For me v. 5.206.0.1 works every time. Also, I'd try leaving only Titan Z in PC and then flashing.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
I just noticed your Nvflash says it's "Simplified version for OEM only", have you tried other versions? For me v. 5.206.0.1 works every time.

Gave 5.206 a try and it has the same problem.



No dice. :(

Still saying simplified version as well. I don't know why.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
I'm starting to think I should try the DOS version in hopes that it has a bit more functionality, or can possibly navigate around this error. If that's not going to work, can I change the board ID by editing straps with nvflash? (Assuming I can get the straps off the vBIOS to edit with.)

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
DOS version flat out refuses to even read the rom.


Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
6,886 (2.77/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K57
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
How did you get your hands on a Titan Z?

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
Back into DOS with a different BIOS, run the commands and it just locks into a blinking cursor. No progress made toward the flash besides wiping the BIOS from the card.

Is there something I'm missing here? This seems like an awful lot of problems for something that is supposed to be straight forward.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
Finally got as far as getting nvflash in DOS to work, problem is that it too shows "Board ID mismatch"

Is there seriously no way around this bullshit error? Do I need to start soldering caps to bypass this shit or something?

Joined
Dec 25, 2012
Messages
1,517 (0.52/day)
Location
Spencerport NY
System Name Master
Processor Pair of Xeon X5675's @ 4.3
Motherboard SR-2 Classified
Memory 12 GB of Corsair Dominator GT's @ 2000 8-8-8-24
Video Card(s) EVGA GTX680
Power Supply EVGA Supernova 750
You can override all the checks/protection by using nvflash -j -4 -5 -6 bios.rom

Joined
Dec 25, 2012
Messages
1,517 (0.52/day)
Location
Spencerport NY
System Name Master
Processor Pair of Xeon X5675's @ 4.3
Motherboard SR-2 Classified
Memory 12 GB of Corsair Dominator GT's @ 2000 8-8-8-24
Video Card(s) EVGA GTX680
Power Supply EVGA Supernova 750
Interesting. It's always worked for me.

Joined
Oct 22, 2014
Messages
10,743 (4.71/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel i5-9600KF
Motherboard NZXT N7 Z370 Black
Cooling Cooler Master 240 RGB AIO / Stock
Memory Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4
Video Card(s) Asus Dual 1060 6GB
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
.... can I change the board ID by editing straps with nvflash? (Assuming I can get the straps off the vBIOS to edit with.)
Or edit the BIOS Rom to suit the board I.D.?
Thinking along the same lines, you need a BIOS editor to mod it.
Either change the adapter I.D.
or change the firmware I.D.

Joined
May 30, 2015
Messages
943 (0.46/day)
Location
Los Altos, CA
Or edit the BIOS Rom to suit the board I.D.?
Thinking along the same lines, you need a BIOS editor to mod it.

Working through them with a hex editor to see if I can make the appropriate change to the firmware without too much trouble.

Joined
Jun 29, 2009
Messages
1,474 (0.35/day)
Location
Heart of Europia what!
System Name ibuytheusedstuff
Processor 5960x
Motherboard x99 sabertooth
Cooling old socket775 cooler
Memory 32 Viper
Video Card(s) 1080ti on morpheus 1
Storage raptors+ssd
Display(s) acer 120hz
Case open bench
Audio Device(s) onb
Power Supply antec 1200 moar power
Mouse mx 518
Keyboard roccat arvo
Joined
May 9, 2011
Messages
1,946 (0.55/day)
Location
Mainland Britain
System Name H2o Box
Processor Intel(R) Xeon e5-2690 v2 Stock 3.0 GHz @ 3.530
Motherboard MSI X79A-G43 Plus (MS-7760) v3
Cooling CPU EK Block & Phobya G-Changer 360 V2.0 RAD H2o VGA "AlphaCool M18" Hybrid
Memory Gskill TridentX 16Gb 8-9-9-24 2T @ 1866Mhz [locked]
Video Card(s) Zotac GTX 1080ti AMP EXTREME
Storage HyperX Fury 120GB & Savage 480GB SSD, Seagate 250GB,250GB 7200rpm Kingston 64GB SSD
Display(s) Panasonic GT30 46'' 1080p 3D HDTV [Custom Resolution 4096*2304]
Case Corsair O-800D
Audio Device(s) Creative Sound Blaster X-Fi Titanium Fatal1ty Pro
Power Supply Be Quiet! [Dark Power Pro 11] 1200W CM replaced [7-4-2017]
Mouse Zelotes T-90
Keyboard Microsoft Digital Media 1.0A
Software Win 10 Pro 64Bit v 1903 / OS [build 18362.388]
HI

@Law-II might be able to chime in.
He knows a lot about flashing graphics cards.

Thanks for the heads-up with regard to the OP's Vbios write issue; however on this occasion I am unable to help out; due to a lack of knowledge on the Nvidia Vbios [only just recently started to play with these]

+1 Caring1; editing the Vbios image with HEX

Note: to OP good luck with this quest; will be keeping an eye on this thread

atb

Law-II

Status
Not open for further replies.
Top
