I'm a stupid . Bent CPU pins

Joined
Jan 22, 2020
Messages
372 (0.40/day)
Location
Turkey
System Name MSI-MEG
Processor AMD Ryzen 9 3900X
Motherboard MSI MEG X570S ACE MAX
Cooling AMD Wraith Prism + Arctic MX-4
Memory 32 GB
Video Card(s) MSI 1660
Storage 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 27" LG 144HZ 2K ULTRAGEAR
Case Asus Tuf GT 301
Audio Device(s) Altec Lansing
Power Supply Seasonic 650W 80+
Mouse HP OMEN REACTOR
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
Well I've decided to change my thermal paste with a better one so I tried to remove the heatsink carefully (in my opinion), by turning slightly right and left couple of times after which time I pull the heatsink completely. Then I immediately realized that my 3900x came with its cooler without turning off the cpu lock.

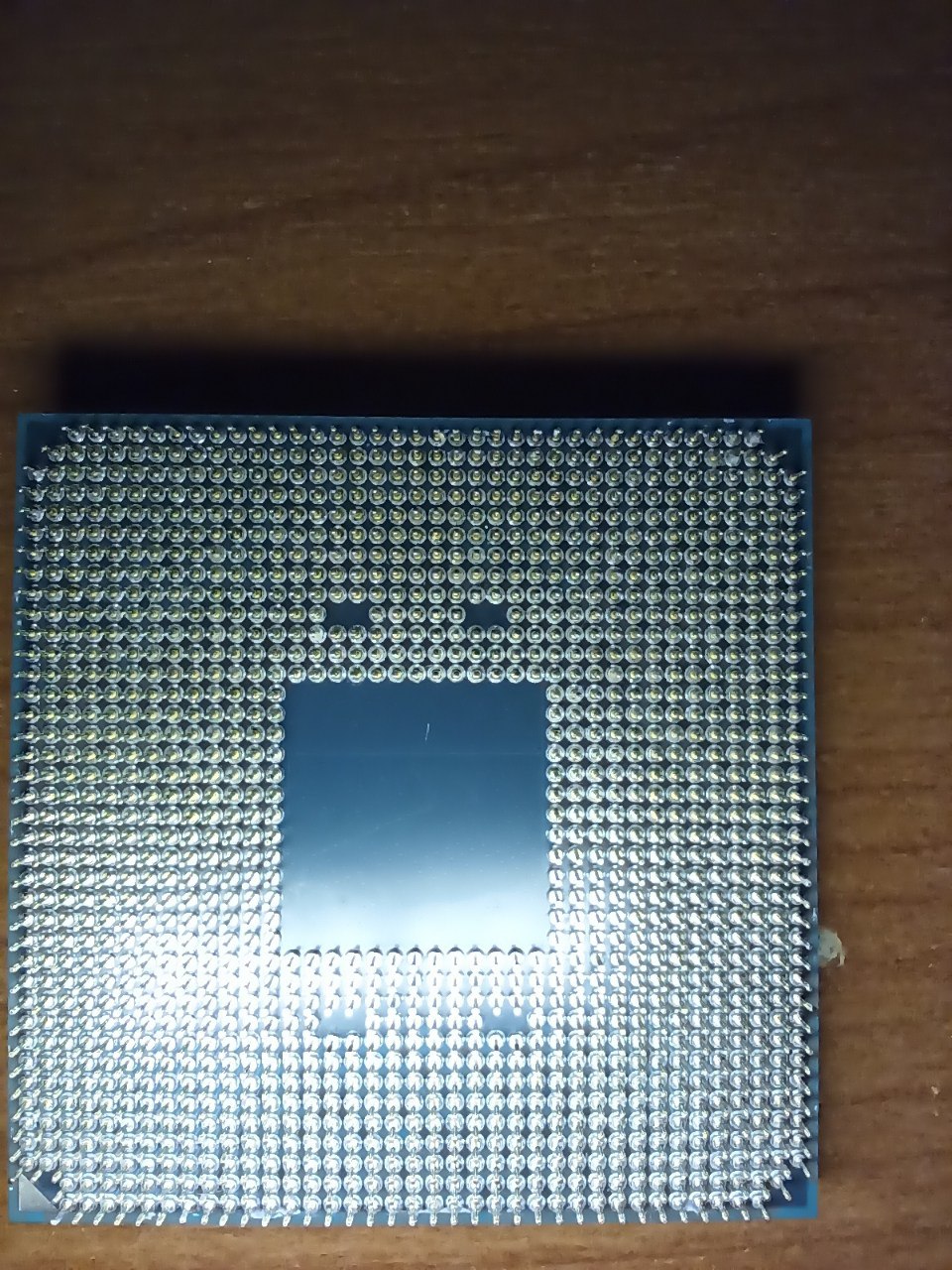

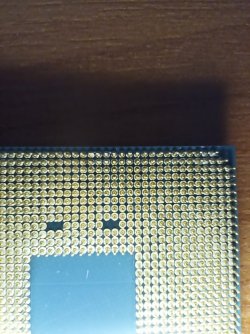

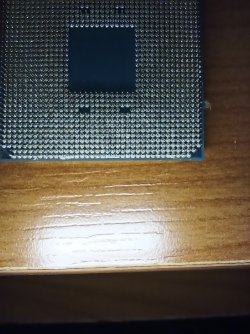

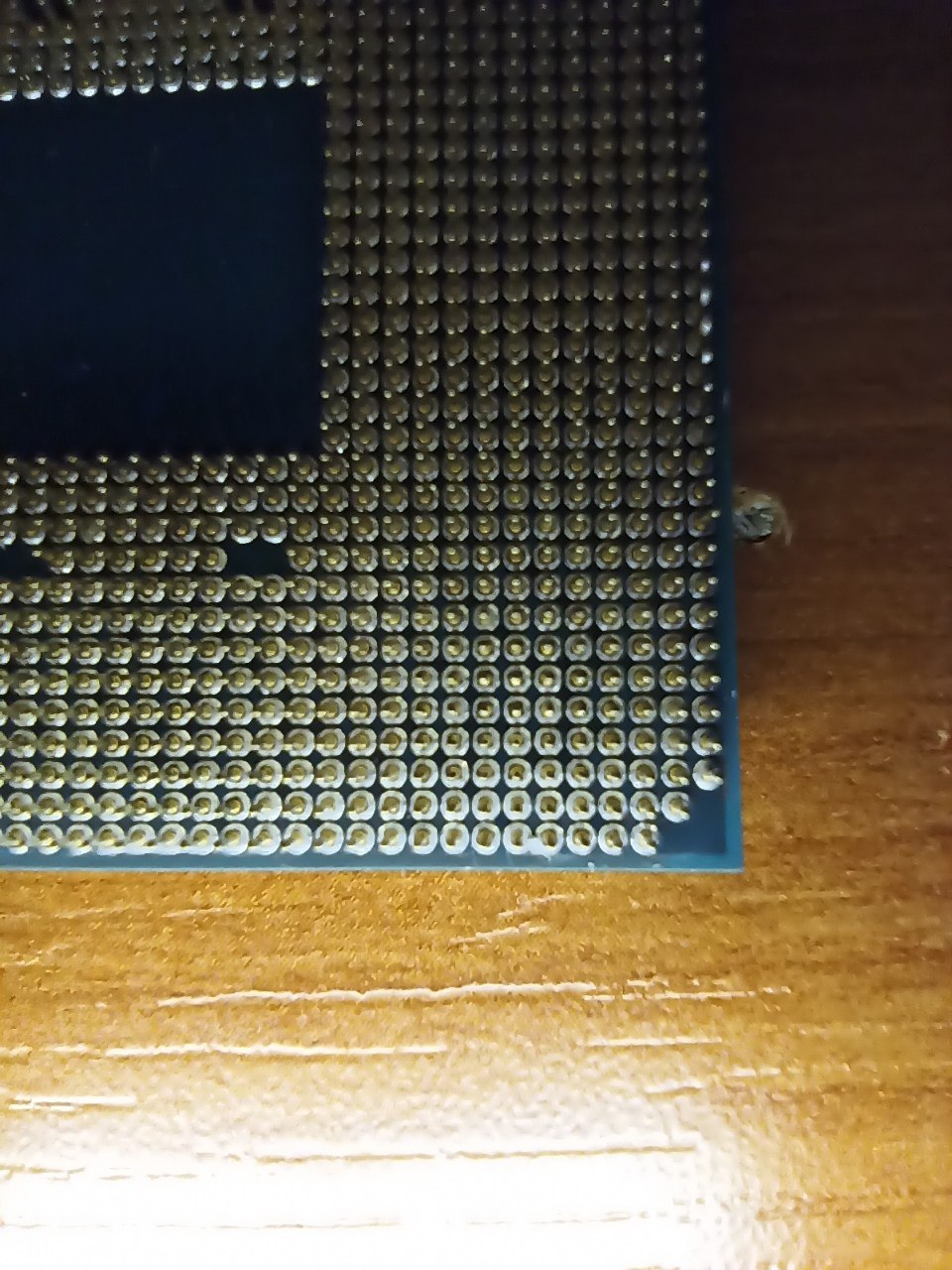

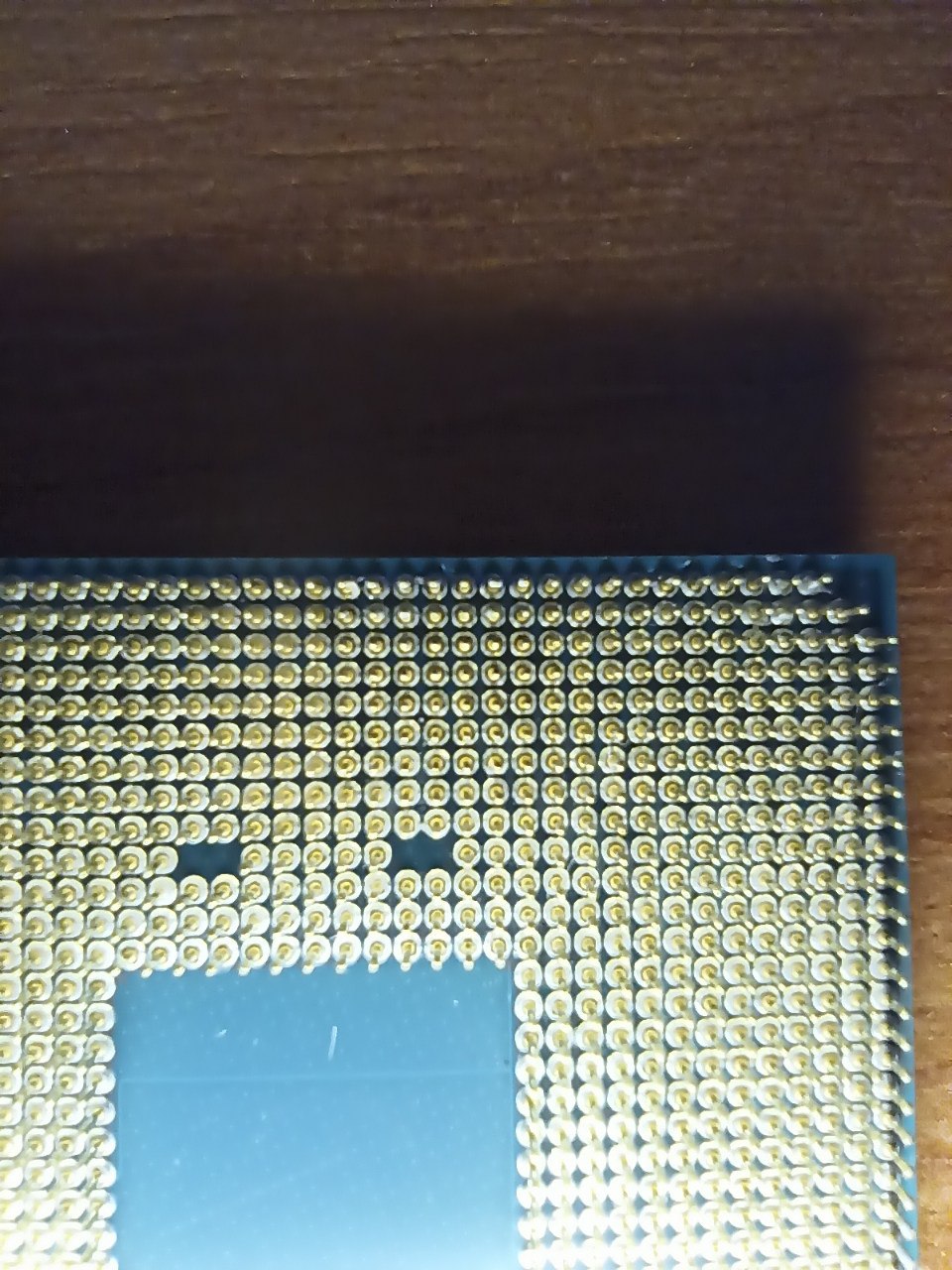

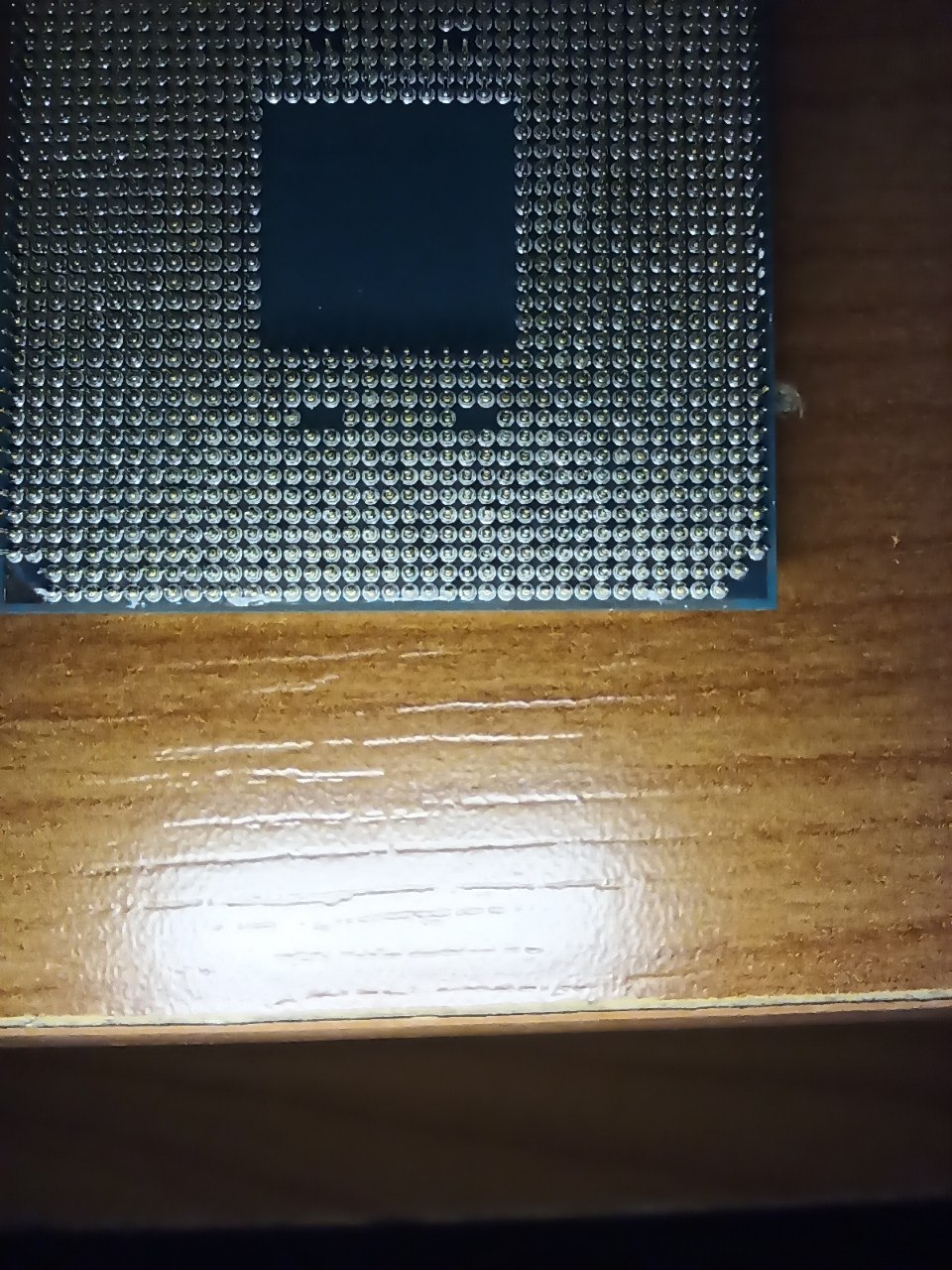

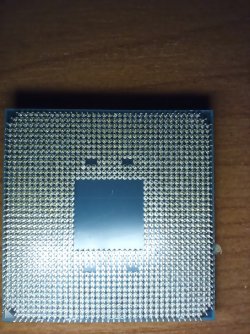

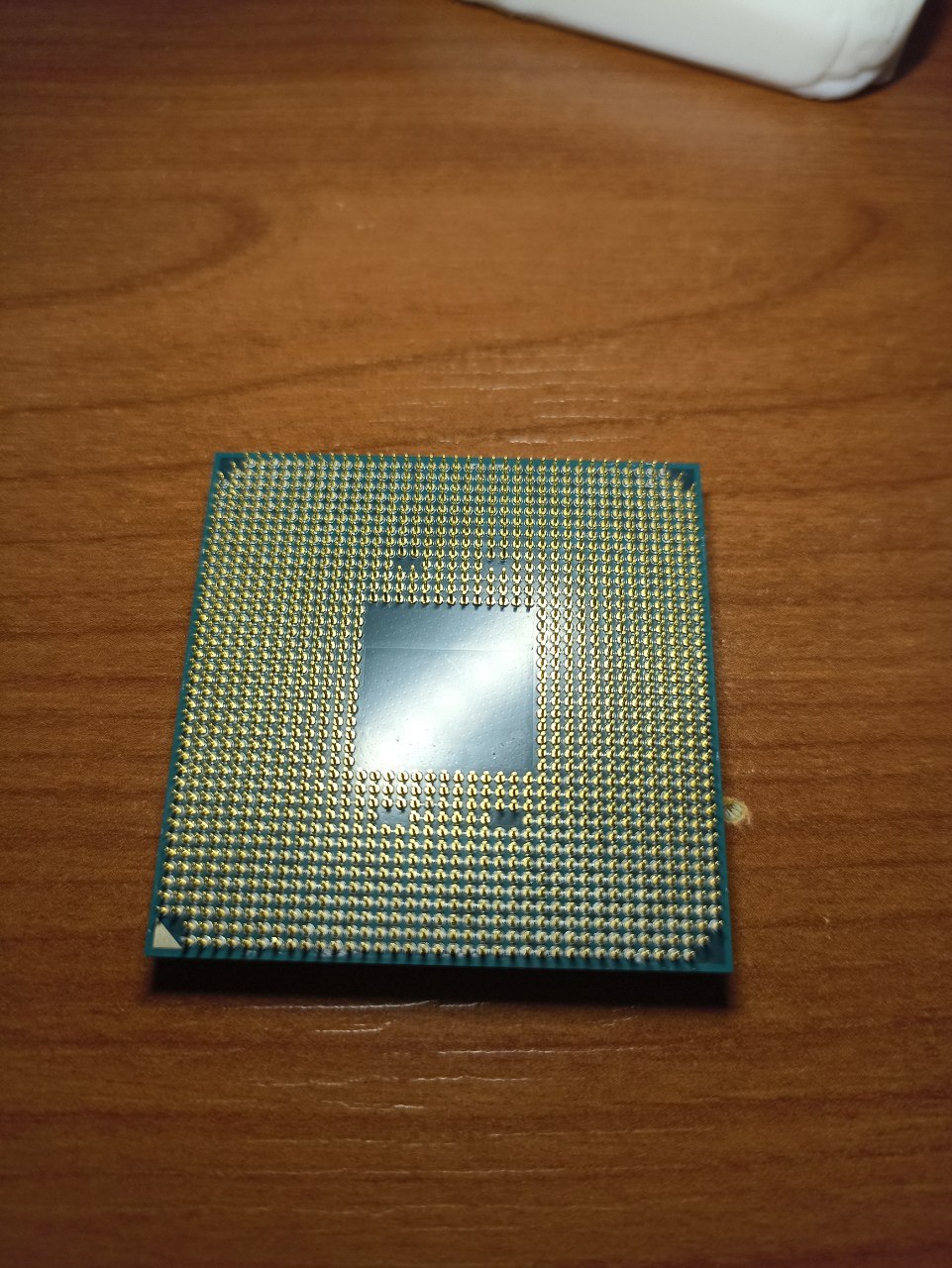

After fixing with a blade, here is what I see from bottom:

It is thankfully working now, but how can I trust it now? I really don't think AMD will ever RMA this but what do you suggest to me? Change the cpu?


Attachments

  • photo_2022-05-25_22-25-26.jpg
    232.1 KB · Views: 365
  • photo_2022-05-25_22-25-29.jpg
    272.1 KB · Views: 333
  • photo_2022-05-25_22-25-32.jpg
    305.6 KB · Views: 297
  • photo_2022-05-25_22-25-34.jpg
    278.4 KB · Views: 331
  • photo_2022-05-25_22-43-02.jpg
    245 KB · Views: 356
Last edited:

95Viper

Super Moderator
Staff member
Joined
Oct 12, 2008
Messages
11,096 (2.20/day)
You are not stupid... that has happened to a lot of people, even those who are *so-called professionals.
After a quick look at the pics, I don't see anything wrong with the pins.

Joined
Jul 25, 2006
Messages
9,865 (1.68/day)
Location
Nebraska, USA
System Name Brightworks Systems BWS-6 E-IV
Processor Intel Core i5-6600 @ 3.9GHz
Motherboard Gigabyte GA-Z170-HD3 Rev 1.0
Cooling Quality case, 2 x Fractal Design 140mm fans, stock CPU HSF
Memory 32GB (4 x 8GB) DDR4 3000 Corsair Vengeance
Video Card(s) EVGA GEForce GTX 1050Ti 4Gb GDDR5
Storage Samsung 850 Pro 256GB SSD, Samsung 860 Evo 500GB SSD
Display(s) Samsung S24E650BW LED x 2
Case Fractal Design Define R4
Power Supply EVGA Supernova 550W G2 Gold
Mouse Logitech M190
Keyboard Microsoft Wireless Comfort 5050
Software W10 Pro 64-bit
I think it would wrong to try and RMA it.

That said, maybe just my tired old eyes, but, like 95Viper, I don't see anything alarming in your pics. If none of the pins broke when bent or when straightening, AND if you took due care to prevent zapping the CPU with static while handling it, it should be fine.

I wonder why you tried to replace the TIM (thermal interface material) in the first place? Typically, there is no good reason to replace it, unless the cured bond was broken. And that does not happen except through abuse (computer was bounced around during shipping) or if the user twists the cooler.

By far, in the vast majority of cases, replacing the TIM only yields a few degrees improvement in cooling. And if the temps are so high the CPU "needs" those few degrees to prevent crossing thermal protection thresholds, there are other much more urgent cooling issues to deal with first - like case cooling or a failing fan or improper clocking. There is no need to replace TIM just because it is X number of years old, or even if dried out. The solids that are left behind are still there doing their job.

It is important the most efficient transfer of heat occurs with direct metal to metal contact of the mating surfaces. And to remember the purpose of TIM is to fill only the microscopic pits and valleys in those mating surfaces to push out any insulating air that may get trapped within. And the only reason TIM comes in a liquified form is so it can be squeezed out of the tube and spread around - as thin as possible.
how can I trust it now?
Only one way that I know of - try and see.

Oh, and making a stupid mistake does not mean someone is stupid. Now if you do again, that's another story! ;)

Joined
Feb 18, 2005
Messages
3,600 (0.56/day)
Location
Ikenai borderline!
I bent some pins on the second-hand 5800X I bought the other day, while cleaning it prior to installing it - one of the cotton buds I was using snagged on a couple of pins and I pulled without thinking. I cursed at my idiocy, then shrugged, bent the pins back and installed the CPU, which is powering the machine I'm typing this on. I don't expect I'll ever have any trouble with it, and likely neither will you. As long as the pin isn't broken right off, it's good (and if it's a ground pin you might still be good).

This, BTW, is why I prefer PGA over LGA. Bending pins on a PGA CPU is a non-event because you can easily bend them back; bending those bloody contacts in an LGA socket is generally a death sentence for a motherboard because it's well-nigh impossible for the average user to correct them. When you are a clumsy sod like me who knows you're going to fuck something up, the thought of LGA is a terrifying one.

Joined
Nov 24, 2018
Messages
1,659 (1.22/day)
Location
south wales uk
System Name 1. The Devils Dialysis VR rig 2. intel teliscope rig 3.MSI GP72MVR Leopard Pro .
Processor 1.3900x @stock 2. i7 7700k @5. 3. i7 7700hq
Motherboard 1.aorus x570 ultra 2. z270 Maximus IX Hero
Cooling 1.Hard tube loop, cpu and gpu 2. Hard loop cpu and gpu
Memory 1.hyperx preditor @3600 16gb 2.vengence 32gb @3000 3. 16gb hyperx @2400
Video Card(s) 1.Aorus Xtreme RTX2080 Waterforce 2. MSI 1080 8gb with EKWB 3. 1060 3gb.
Storage 1 M.2 500gb , 2 3tb HDs 2. 256gb ssd, 3tbHD 3. 256 m.2. 1tb ssd
Display(s) 1.LG 50" UHD , oculus rift S.2 MSI Optix MAG342C UWHD. SONY bravia 1080p, . 3.17" 120 hz display
Case 1. Thermaltake P5 2. Thermaltake P3
Audio Device(s) 1 Onboard 2 Onboard 3 Onboard
Power Supply 1.seasonic gx 850w 2. seasonic gx 750w
Mouse 1 ROG Gladius 2 Corsair m65 pro
Keyboard 1. ROG Strix Flare 2. Corsair F75 RBG 3. steelseries RBG
VR HMD rift and rift S and Quest 2.
Software 1. win10 pro 2. win10 pro 3, win10 home
Benchmark Scores 1.7821 cb20 ,cb15 3442 1c 204 cpu-z 1c 539 12c 8847 2. 1106 cb 3.cb 970
wish i had a quid every time ive bent a pin id be a rich cat :) . but it dont help i havnt any thumbs.

Joined
Nov 24, 2018
Messages
1,659 (1.22/day)
Location
south wales uk
System Name 1. The Devils Dialysis VR rig 2. intel teliscope rig 3.MSI GP72MVR Leopard Pro .
Processor 1.3900x @stock 2. i7 7700k @5. 3. i7 7700hq
Motherboard 1.aorus x570 ultra 2. z270 Maximus IX Hero
Cooling 1.Hard tube loop, cpu and gpu 2. Hard loop cpu and gpu
Memory 1.hyperx preditor @3600 16gb 2.vengence 32gb @3000 3. 16gb hyperx @2400
Video Card(s) 1.Aorus Xtreme RTX2080 Waterforce 2. MSI 1080 8gb with EKWB 3. 1060 3gb.
Storage 1 M.2 500gb , 2 3tb HDs 2. 256gb ssd, 3tbHD 3. 256 m.2. 1tb ssd
Display(s) 1.LG 50" UHD , oculus rift S.2 MSI Optix MAG342C UWHD. SONY bravia 1080p, . 3.17" 120 hz display
Case 1. Thermaltake P5 2. Thermaltake P3
Audio Device(s) 1 Onboard 2 Onboard 3 Onboard
Power Supply 1.seasonic gx 850w 2. seasonic gx 750w
Mouse 1 ROG Gladius 2 Corsair m65 pro
Keyboard 1. ROG Strix Flare 2. Corsair F75 RBG 3. steelseries RBG
VR HMD rift and rift S and Quest 2.
Software 1. win10 pro 2. win10 pro 3, win10 home
Benchmark Scores 1.7821 cb20 ,cb15 3442 1c 204 cpu-z 1c 539 12c 8847 2. 1106 cb 3.cb 970
words to text :).

Joined
Jul 21, 2008
Messages
4,864 (0.95/day)
System Name [Daily Driver -- Home Server]
Processor [Ryzen 5 5600X -- Intel i7-3770K]
Motherboard [Asus TUF GAMING X570-PLUS -- ASUS P8H61-I R2.0]
Memory [64GB G.Skill Ripjaws (16GBx4) -- 8GB G.Skill Ripjaws (4GBx2)]
Video Card(s) [PNY RTX 3070Ti XLR8 -- IGP]
Storage [2x 1TB WD SN850 NVMe , 2TB Samsung 860 QVO SSD -- Crucial BX500 2TB]
Display(s) [2x 27" HP X27q at 1440p -- SSH]
Case [Fractal Meshify-C -- Lian Li Mini-ITX]
Audio Device(s) [Steelseries Arctis Pro]
Power Supply [CORSAIR RM 650 -- EVGA 550 B5]
Mouse [Logitech G Pro -- SSH]
Keyboard [Logitech G810 -- SSH]
Software [Windows 11 64-Bit -- Ubuntu]
As long as they're all there after being straightened out you should be fine.

I do hate that AMD uses PGA instead of LGA on Ryzen


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,308 (6.76/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Well I've decided to change my thermal paste with a better one so I tried to remove the heatsink carefully (in my opinion), by turning slightly right and left couple of times after which time I pull the heatsink completely. Then I immediately realized that my 3900x came with its cooler without turning off the cpu lock.

After fixing with a blade, here is what I see from bottom:

It is thankfully working now, but how can I trust it now? I really don't think AMD will ever RMA this but what do you suggest to me? Change the cpu?
Use a mechanical pencil to straighten pins, been doing this Since Skt 423.

Just use it.

Joined
Jan 14, 2019
Messages
2,852 (2.19/day)
Location
Midlands, UK
System Name Nebulon-B Mk. 3
Processor Intel Core i7-11700 @ ASUS Optimized (200 W)
Motherboard ASUS TUF B560M-Plus (WiFi)
Cooling be quiet! Silent Loop 2 280 mm
Memory 2x 16 GB Kinston Fury Beast RGB 3200 MHz
Video Card(s) ASUS TUF Radeon RX 6500 XT @ 2975/2400
Storage 1 TB Crucial P5, 1 TB Crucial P5 Plus
Display(s) Samsung C24F390, 7" Waveshare touchscreen
Case Corsair Crystal 280X black
Audio Device(s) Genius SP-HF160, AKG Y50
Power Supply Seasonic Prime GX-750
Mouse Cherry MW 8 Advanced
Keyboard MagicForce 68
Software Windows 10 Pro
Benchmark Scores Cinebench R23 multi core: 14,000, single core: 1,500. Superposition 1080p Extreme: 2,935.
I bent some pins on the second-hand 5800X I bought the other day, while cleaning it prior to installing it - one of the cotton buds I was using snagged on a couple of pins and I pulled without thinking. I cursed at my idiocy, then shrugged, bent the pins back and installed the CPU, which is powering the machine I'm typing this on. I don't expect I'll ever have any trouble with it, and likely neither will you. As long as the pin isn't broken right off, it's good (and if it's a ground pin you might still be good).

This, BTW, is why I prefer PGA over LGA. Bending pins on a PGA CPU is a non-event because you can easily bend them back; bending those bloody contacts in an LGA socket is generally a death sentence for a motherboard because it's well-nigh impossible for the average user to correct them. When you are a clumsy sod like me who knows you're going to fuck something up, the thought of LGA is a terrifying one.
I still prefer LGA because the retention bracket does a much better job at keeping the CPU in the socket than the weird magic on PGA. There's a minimal chance you're gonna bend your LGA legs if you're careful enough, while bent PGA pins are quite common.

As for OP @mclaren85 Don't worry about it. As long as it's working, it's fine. :)


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,308 (6.76/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I still prefer LGA because the retention bracket does a much better job at keeping the CPU in the socket than the weird magic on PGA. There's a minimal chance you're gonna bend your LGA legs if you're careful enough, while bent PGA pins are quite common.

As for OP @mclaren85 Don't worry about it. As long as it's working, it's fine. :)
Issue is most don't turn the rig on, let it run 30 minutes, turn it off and then immediately remove the hsf. I didn't figure this out until after the 2nd skt 478 cpu I tried removing years ago.

Haven't had an issue since.

Joined
Aug 20, 2007
Messages
18,100 (3.31/day)
System Name Pioneer
Processor Ryzen R9 5950X
Motherboard EVGA X570 FTW Wifi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.Skill Ripjaws V 64GB (4 x 16GB DR Samsung C-Die) @ DDR4-3200
Video Card(s) EVGA GeForce RTX 3090 Ti FTW3
Storage 2x Crucial P5 Plus 2TB PCIe 4.0 NVMe SSDs
Display(s) 55" LG 55" B9 OLED 4K Display
Case Thermaltake Core X31
Audio Device(s) TOSLINK->Schiit Modi MB->Asgard 2 DAC Amp->AKG Pro K712 Headphones or HDMI->B9 OLED
Power Supply Corsair RM850x Gold 850W (2021 Version)
Mouse Razer Deathadder v2
Keyboard WASD CODE v3 Keyboard with MX Cherry Green Switches
Software Windows 11 Enterprise (yes, it's legit)
Issue is most don't turn the rig on, let it run 30 minutes, turn it off and then immediately remove the hsf. I didn't figure this out until after the 2nd skt 478 cpu I tried removing years ago.

Haven't had an issue since.
Smart trick. I'll store that one away for my next maintenance window.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,308 (6.76/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Smart trick. I'll store that one away for my next maintenance window.
With twisting motion ofc to break the bond

Joined
Aug 20, 2007
Messages
18,100 (3.31/day)
System Name Pioneer
Processor Ryzen R9 5950X
Motherboard EVGA X570 FTW Wifi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.Skill Ripjaws V 64GB (4 x 16GB DR Samsung C-Die) @ DDR4-3200
Video Card(s) EVGA GeForce RTX 3090 Ti FTW3
Storage 2x Crucial P5 Plus 2TB PCIe 4.0 NVMe SSDs
Display(s) 55" LG 55" B9 OLED 4K Display
Case Thermaltake Core X31
Audio Device(s) TOSLINK->Schiit Modi MB->Asgard 2 DAC Amp->AKG Pro K712 Headphones or HDMI->B9 OLED
Power Supply Corsair RM850x Gold 850W (2021 Version)
Mouse Razer Deathadder v2
Keyboard WASD CODE v3 Keyboard with MX Cherry Green Switches
Software Windows 11 Enterprise (yes, it's legit)
With twisting motion ofc to break the bond
Always. That one I already knew (as does anyone who has played very long with PGA boards, I'd hope)

Joined
Oct 2, 2020
Messages
247 (0.36/day)
I bent some pins on the second-hand 5800X I bought the other day, while cleaning it prior to installing it - one of the cotton buds I was using snagged on a couple of pins and I pulled without thinking. I cursed at my idiocy, then shrugged, bent the pins back and installed the CPU, which is powering the machine I'm typing this on. I don't expect I'll ever have any trouble with it, and likely neither will you. As long as the pin isn't broken right off, it's good (and if it's a ground pin you might still be good).

This, BTW, is why I prefer PGA over LGA. Bending pins on a PGA CPU is a non-event because you can easily bend them back; bending those bloody contacts in an LGA socket is generally a death sentence for a motherboard because it's well-nigh impossible for the average user to correct them. When you are a clumsy sod like me who knows you're going to fuck something up, the thought of LGA is a terrifying one.
well, I haven't EVER bent any LGA moob socket, but have several times bent poor AMD cpus:p:D
so I don't know why all this mess about LGA about unless you DROP the cpu right onto socket. well, I've even dropped once, but, as I said, without any bending. But, taking AMD coolers off the cpus ALWAYS sticks TIM onto cpus.:rolleyes:

Use a mechanical pencil to straighten pins, been doing this Since Skt 423.

Just use it.
well, I always use needle. yeah, I'm that stupid non-physics guy who don't believe in static. if I don't wear synthetic dress, that's me who receive static charge frome someone or something:) just before touching some electronic components I touch (sometimes) radiator or steel parts of the furniture lol

I think it would wrong to try and RMA it.

That said, maybe just my tired old eyes, but, like 95Viper, I don't see anything alarming in your pics. If none of the pins broke when bent or when straightening, AND if you took due care to prevent zapping the CPU with static while handling it, it should be fine.

I wonder why you tried to replace the TIM (thermal interface material) in the first place? Typically, there is no good reason to replace it, unless the cured bond was broken. And that does not happen except through abuse (computer was bounced around during shipping) or if the user twists the cooler.

By far, in the vast majority of cases, replacing the TIM only yields a few degrees improvement in cooling. And if the temps are so high the CPU "needs" those few degrees to prevent crossing thermal protection thresholds, there are other much more urgent cooling issues to deal with first - like case cooling or a failing fan or improper clocking. There is no need to replace TIM just because it is X number of years old, or even if dried out. The solids that are left behind are still there doing their job.

It is important the most efficient transfer of heat occurs with direct metal to metal contact of the mating surfaces. And to remember the purpose of TIM is to fill only the microscopic pits and valleys in those mating surfaces to push out any insulating air that may get trapped within. And the only reason TIM comes in a liquified form is so it can be squeezed out of the tube and spread around - as thin as possible.

Only one way that I know of - try and see.

Oh, and making a stupid mistake does not mean someone is stupid. Now if you do again, that's another story! ;)
it's a good rule to change the TIM. I always try to replace it when I'm looking to improve temps especially on hot stuff like performance laptops, gpus or cpus. I don't care about 2 core cpus or non-performance gpus at all tho :D

Last edited:
Joined
Dec 12, 2020
Messages
782 (1.29/day)
I thought TIM did tend to dry out and become less effective over time? Or is that only on high power GPU's?

Joined
Aug 20, 2007
Messages
18,100 (3.31/day)
System Name Pioneer
Processor Ryzen R9 5950X
Motherboard EVGA X570 FTW Wifi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.Skill Ripjaws V 64GB (4 x 16GB DR Samsung C-Die) @ DDR4-3200
Video Card(s) EVGA GeForce RTX 3090 Ti FTW3
Storage 2x Crucial P5 Plus 2TB PCIe 4.0 NVMe SSDs
Display(s) 55" LG 55" B9 OLED 4K Display
Case Thermaltake Core X31
Audio Device(s) TOSLINK->Schiit Modi MB->Asgard 2 DAC Amp->AKG Pro K712 Headphones or HDMI->B9 OLED
Power Supply Corsair RM850x Gold 850W (2021 Version)
Mouse Razer Deathadder v2
Keyboard WASD CODE v3 Keyboard with MX Cherry Green Switches
Software Windows 11 Enterprise (yes, it's legit)
I thought TIM did tend to dry out and become less effective over time? Or is that only on high power GPU's?
I mean, sort of. It does dry out some but should still perform acceptably if the cured bond is not broken. It's a bigtime "diminishing returns" kind of thing.

You'll get more temp improvements from dusting and keeping a clean case really (which I need to do, btw)...

Joined
Feb 23, 2019
Messages
4,176 (3.30/day)
Location
Poland
Processor Ryzen 7 5800X
Motherboard Gigabyte X570 Aorus Elite
Cooling BeQuiet Dark Rock 4
Memory 2x16 GB Crucial Ballistix 3600 CL16 Rev E
Video Card(s) RTX3080 Ti FE
Storage SX8200 Pro 1 TB, Plextor M6Pro 256 GB, WD Blue 2TB
Display(s) Acer XB273GP
Case SilverStone Primera PM01 RGB
Audio Device(s) SoundBlaster G6 | Fidelio X2 | Sennheiser 6XX
Power Supply SeaSonic Focus Plus Gold 750W
Mouse SteelSeries Rival 300
Keyboard MK Typist (Kailh Box White)
Look on the bright side, at least it's not LGA. With that you'd most likely be f'd.

Joined
Jun 27, 2019
Messages
1,006 (0.88/day)
Location
Mid EU
System Name I don't name my systems.
Processor i3-12100F @stock power limit
Motherboard ASUS PRIME B660-PLUS D4
Cooling ID-Cooling SE 224 XT ARGB V3 'CPU' / 3x Raijintek Auras 12 + 3x Cooler Master MF120L black case fans
Memory 2x8GB G.SKILL Ripjaws V DDR4 3200MHz
Video Card(s) EVGA GTX 1070 FTW ACX 3.0 @1974MHz Core/975mV Undervolt
Storage 3 TB Toshiba P300, 1 TB WD Blue, 1 TB Kingston A2000 NVMe, 256 GB Adata Spectrix s40g NVMe
Display(s) 29" 2560x1080 75 Hz / LG 29WK600-W
Case In Win 101c Black
Audio Device(s) Onboard + Hama uRage SoundZ 700
Power Supply Seasonic CORE GM 500W 80+ Gold
Mouse Canyon Puncher GM-20
Keyboard SPC Gear GK630K Tournament 'Kailh Brown'
Software Windows 10 Pro
Stupid no, shet happens but as long as it still works then its lesson learned at least.
Its thanks to such topics like this that now I'm really careful when handling AMD CPUs or dealing with Intel mobo sockets like my life depends on it. :laugh:

So far I'm yet to bend pins on any CPU/socket but I did almost bent a RGB connector pin on my current mobo. 'I actually use those in my current build'

If it makes you feel better, I did accidentally break a 1 TB NVMe SSD like 1 year ago and I had to buy a new one, that one stung for sure and made me feel stupid. 'cost me a month worth of saved up money..:shadedshu:'


Easy Rhino

Linux Advocate
Staff member
Joined
Nov 13, 2006
Messages
15,057 (2.62/day)
Location
Mid-Atlantic
System Name Desktop
Processor i5 7500 Kaby Lake
Motherboard AsRock MicroATX Z170M Extreme4
Cooling Stock
Memory 2x 16 Gb Gskill Ripjaws 2400
Video Card(s) AMD Radeon 5700
Storage Samsung 970 EVO 1 TB m.2 NVMe + Samsung 860 EVO 2 TB SATA3 SSD
Display(s) LG 34GK950F-B 34" 21:9 Ultragear WQHD Nano IPS Curved Gaming Monitor with Radeon FreeSync 2
Case Corsair Carbide 400C
Audio Device(s) On Board
Power Supply Seasonic SSR-650GD Flagship Prime Series 650W Gold
Mouse Logitech G900 Chaos Spectrum
Keyboard Logitech G915 Wireless Clicky
Software The Matrix
I've done the same exact thing not that long ago. It is a PITA to remove the CPU from the heatsink with all that paste acting as a glue. Thankfully I very carefully bent the pins back in place and have not touched it since :laugh:

Joined
Nov 7, 2017
Messages
743 (0.43/day)
Location
Ft. Washington, MD
System Name Main
Processor R7 5800x
Motherboard MSI x570S Unify x max
Cooling D5, two Arctic F14 + three F12 for intake, four P14 (Rad) + two F14 (case) as exhaust
Memory 2x8 GB Corsair Vengeance LPX CL14
Video Card(s) GB 2080S WaterForce WB
Storage five pcie gen 4 x4 m.2
Display(s) Sony 50X90J
Case Tt Level 20 HT
Audio Device(s) Asus Xonar AE, modded Sennheiser HD 558, Klipsch 2.1 THX
Power Supply Corsair RMx 750w
Mouse Logitech G903
Keyboard GSKILL Ripjaws
VR HMD NA
Software win 10 x64
Benchmark Scores TimeSpy score Fire Strike Ultra SuperPosition CB20
While its helpful to run the rig for a few min to warm up everything,
there are enough times where its not helpful (LM) or possible (not running/partially taken apart),
i havent had any trouble when twisting the block (without any lifting force) until its off the HS.

Joined
May 27, 2008
Messages
3,623 (0.70/day)
System Name Ultra 64
Processor NEC VR4300 (MIPS R4300i)
Motherboard proprietary design
Cooling Fanless aircooled
Memory 4.5MB 250 MHz RDRAM
Video Card(s) 62.5 MHz Reality Coprocessor
Storage 32 - 512 Mbit ROM Cartridge
Display(s) 720x576
Case Clear Blue Funtastic
Audio Device(s) 16-bit CD quality
Power Supply proprietary design
Mouse N64 mouse for use with N64DD
Keyboard N64 keyboard for use with N64DD
While its helpful to run the rig for a few min to warm up everything,
there are enough times where its not helpful (LM) or possible (not running/partially taken apart),
i havent had any trouble when twisting the block (without any lifting force) until its off the HS.
Never considered pre warming, that’s a good idea I’ll remember.

Got an OG Xbox I need to do this too, I’ll try it on that as they can be a realPITA to remove the heat sink.


Tigger

I'm the only one
Supporter
Joined
Mar 20, 2006
Messages
15,652 (2.61/day)
System Name Hot 'n' sweaty ADL crapster
Processor Intel I7 12700K 1.25vcore
Motherboard Asus Rog Strix Z690-A Gaming WiFi D4
Cooling EK 360 PE/EK 360 XE/AQ Ultitube 150 D5/Heatkiller IV/Byski full cover GPU block
Memory Teamgroup T-Force Dark Pro 2x16gb 4000 16-16-16-38 DR B 1.45v
Video Card(s) ASUS GTX1080TI Gaming 11GB Byski full cover water block +200 +575
Storage Silicon Power Gen3x4 256gb M.2, 2 x WD SN850 Gen4x4 1TB M.2, SanDisk PLUS 2TB sata ssd
Display(s) Dell S2721DGFA 27" 1440P 165hz LG Nano IPS 1ms G Sync
Case Lian Li o11 Dynamic XL Rog
Audio Device(s) Cambridge DacMagic 100/kenwood KA-3020SE/Cambridge Min12 speakers/yamaha Sub
Power Supply Corsair RM750x 80+ Gold
Mouse Razer Viper
Keyboard Ducky One 2 Mini Cherry MX brown
Software Win 11 Pro x64
Benchmark Scores do they matter https://i.postimg.cc/Z5qyDfJC/20220421-021955.jpg
I once used a big spanner to twist the CPU off the HSF it was stuck on, with no risk of damaging the pins.

Joined
Jul 25, 2006
Messages
9,865 (1.68/day)
Location
Nebraska, USA
System Name Brightworks Systems BWS-6 E-IV
Processor Intel Core i5-6600 @ 3.9GHz
Motherboard Gigabyte GA-Z170-HD3 Rev 1.0
Cooling Quality case, 2 x Fractal Design 140mm fans, stock CPU HSF
Memory 32GB (4 x 8GB) DDR4 3000 Corsair Vengeance
Video Card(s) EVGA GEForce GTX 1050Ti 4Gb GDDR5
Storage Samsung 850 Pro 256GB SSD, Samsung 860 Evo 500GB SSD
Display(s) Samsung S24E650BW LED x 2
Case Fractal Design Define R4
Power Supply EVGA Supernova 550W G2 Gold
Mouse Logitech M190
Keyboard Microsoft Wireless Comfort 5050
Software W10 Pro 64-bit
Issue is most don't turn the rig on, let it run 30 minutes, turn it off and then immediately remove the hsf.
Excellent advice but I note it doesn't even have to be 30 minutes. Since a CPU can go from cold to over-heated in just a few clock cycles (and there are billions of clock cycles per second), just a few minutes is all that is needed to get it up to "normal" operating temps.

Regardless your valuable tip/point is the same - the cooler is much easier to remove when you can easily break the cured bond when the old TIM is warm. And if the motherboard will not boot or cannot be powered up for some reason, a couple minutes with a hair dryer/heat gun (on low) carefully pointed at the heatsink will sufficiently warm it up.

And NEVER pull the cooler straight up off the processor. Always use a little "twist and pull" motion.

I thought TIM did tend to dry out and become less effective over time?
True but the importance of this is WAY WAY overblown. What is important to understand is if your processor actually "needs" those 5° to keep from crossing over thermal protection thresholds, you have more urgent cooling needs to deal with first.

TIM can dry out and it will lose a few (~5° is typical) degrees of efficiency over time. But that's no big deal.

As noted above in post #4 above, it is only in liquid form to make it easier to squeeze out of the tube and spread around. It is the solids that are left behind that are doing the heat transfer/air blocking work, not the liquid component of the TIM. Again if your processor actually "needs" those 5°, you have more urgent cooling needs to deal with first. See The Heatsink Guide - old but still applicable and valid).

The only time dried TIM really matters is if it dries out in the tube. Then you may end up with grainy chunks of TIM that would prevent a proper, smooth, thin layer during application.

TIM will easily last 10, 15 years or longer AS LONG AS that cured bond is not broken. Consider this, there is not a single TIM maker, motherboard or computer maker, CPU or GPU maker, or cooler maker who recommends or even suggests replacing the TIM after X number of years.

Or is that only on high power GPU's?
Nope. It does not matter the component - whether CPU, GPU, memory, VRM, or whatever heat sensitive component you are trying to keep adequately cooled; AS LONG AS the cured bond is not broken, there is no need to replace the TIM (and risk damage from mishandling :() just because it has dried or because X number of years have passed.

Top
