Importance of 4k speeds

  • Thread starter Deleted member 194470
  • Start date
D

Deleted member 194470

Guest
Hello,

I have a wd sn750 black and I noticed the 4k speeds(in anvil ss) are slower than a mx500. It is a few mb/s a second slower but I would expect the wd black to be much faster. What is the importance of 4k speed? This is the typical type of read/write by the ssd? I notice despite that the wd black should be way faster than the mx500(read/write speeds 5-6 times faster) it is not that much faster. Windows 10 starts up 2 seconds faster and games load moderately faster.

Last edited by a moderator:
Joined
Sep 3, 2019
Messages
1,669 (3.65/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F22
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory CorsairVengeanceLPX DDR4 2x8GB 3466MHz CL16-18-18-36 1T, B-die A0 PCB, @3800 CL16-18-18-36 1T(1.46V)
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019) / SATA-III: 850Pro 1TB SSD (2017), 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W
Power Supply Corsair HX750i
Mouse Logitech MX Master
Keyboard Logitech G15 v2
Software Windows 10 Home 64bit (v2004)
You have to be more specific about it.
Give the exact drive models and names and your system as well.
And maybe some screenshots of benchmarks (of both drives).

D

Deleted member 194470

Guest
It's wd black sn750 vs Cruicial mx 500. I did put the model numbers in there. I have windows 7 and windows 10, ryzen 2600 x, geforce 1660 super, ddr 4 3200 16 gb. Here are the pictures, I labeled them.

I just wanted to understand 4k more. Also I am surprised the sn750 is not way faster, maybe this is partly because applications/games don't make use of ssd.


Attachments

Joined
Sep 27, 2019
Messages
287 (0.66/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 3600x
Motherboard MSI MEG x570 ACE
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS
Memory Patriot Viper 16gb ddr4400
Video Card(s) Asus GTX 1070 HB SLI
Storage 9.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, G602, M705
Keyboard Corsair K68 RGB + K70 RGB, MK700
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
ssd is faster than hdd, m2 is faster than ssd, if thats what you mean? everything you store on an ssd or m2 drive will load much faster than an hdd, including your os, but your os load time is dependent on a few things like whether or not you made changes in bios, your ram and cpu speed and timings, but everything looks good as far as speed goes.

you have a gen3 drive, gen4 drives are faster but u need a gen4 socket


my m2 gen3 samsung drives to compare


D

Deleted member 194470

Guest
Yeah I have gen 3 but that's all I need for this drive but the max read/write does not even come close to gen 4 limits right? So your drive is about as fast. Although your random is in iops and not mb/s so its hard to tell the comparison on here. Although I can run the benchmark with iops. I know you can change settings for os boot, but without changing the settings its only 2 seconds faster, and the drive is supposed to be 7 times faster than the mx500.

I know m.2 is faster than sata, but my point is that I expected the ssd drive to be way faster than the mx500(500 mb/s) and there difference is not that great.


Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
6,692 (2.74/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K57
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
Using ONE test software helps.

Joined
Nov 11, 2004
Messages
7,144 (1.22/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
You seem to have mixed up Anvil and As SSD for one, but that's a minor issue...

As for the significance of 4K speeds, well, it relates to how well a drive handles small files.
Based on my older WD Black, it seem like your drive is on the slow side, have you tried trimming it? As in, running a TRIM command?
What motherboard do you have? Is the SSD connected directly to the CPU or going via the chipset?
Also keep in mind that SSD benchmark figures tend to go down as the drives fill up and the smaller the drive, the worse the performance due to how an SSD works in terms of NAND flash channels. Obviously this doesn't have as much of an impact on the random 4K performance as it has on other metrics.
Obviously this is using an older version of CDM, but the 4K scores shouldn't be that different.
I threw in a couple of other drives I have for comparison. As you can see, the 4K read is quite similar across the board, although my SATA drive is the slowest one.


WD Black X570.png

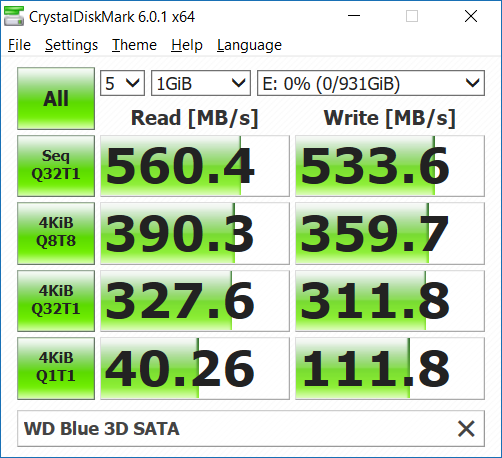

WD Blue 3D SATA.png


Last edited:
  • Like
Reactions: Rei
Joined
Jan 8, 2017
Messages
6,146 (4.32/day)
System Name Good enough
Processor AMD Ryzen R7 1700X - 4.0 Ghz / 1.350V
Motherboard ASRock B450M Pro4
Cooling Deepcool Gammaxx L240 V2
Memory 16GB - Corsair Vengeance LPX - 3333 Mhz CL16
Video Card(s) OEM Dell GTX 1080 with Kraken G12 + Water 3.0 Performer C
Storage 1x Samsung 850 EVO 250GB , 1x Samsung 860 EVO 500GB
Display(s) 4K Samsung TV
Case Deepcool Matrexx 70
Power Supply GPS-750C
I notice despite that the wd black should be way faster than the mx500(read/write speeds 5-6 times faster) it is not that much faster. Windows 10 starts up 2 seconds faster and games load moderately faster.
That's to be expected, NVMe drives despite being much faster offer no real speed improvements in typical use. Load times for programs are impacted by latency more than actual throughput but a SATA SSD has more or less the same latency an NVMe drive has.

  • Like
Reactions: Rei
Joined
Sep 3, 2019
Messages
1,669 (3.65/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F22
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory CorsairVengeanceLPX DDR4 2x8GB 3466MHz CL16-18-18-36 1T, B-die A0 PCB, @3800 CL16-18-18-36 1T(1.46V)
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019) / SATA-III: 850Pro 1TB SSD (2017), 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W
Power Supply Corsair HX750i
Mouse Logitech MX Master
Keyboard Logitech G15 v2
Software Windows 10 Home 64bit (v2004)
Joined
Nov 11, 2004
Messages
7,144 (1.22/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
And since this just went up, this is what to expect from the upcoming PCIe 4.0 SSD controllers.

  • Like
Reactions: Rei
Joined
Sep 3, 2019
Messages
1,669 (3.65/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F22
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory CorsairVengeanceLPX DDR4 2x8GB 3466MHz CL16-18-18-36 1T, B-die A0 PCB, @3800 CL16-18-18-36 1T(1.46V)
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019) / SATA-III: 850Pro 1TB SSD (2017), 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W
Power Supply Corsair HX750i
Mouse Logitech MX Master
Keyboard Logitech G15 v2
Software Windows 10 Home 64bit (v2004)
Yes very impressive numbers.
Although other that transferring large amounts data doesn’t really help on every day tasks. Os boot and app installs excluded.

D

Deleted member 194470

Guest
Oh so its latency that effects load times. I wish I knew that, I got the ssd for free with a gift card but I am not super impressed. I also looking at dashboard that shows live read/write speeds most games do not use more than 100 mb read. I don't know if this has to do with the game or hard drive. Since one game which shows the fastest difference in load times resident evil 3 will go up to 300 mb/s

I have trim turned on and 10 percent overprovision. I am not sure if ssd is connected to the cpu. Its a gigabyte b450 aorus elite motherboard. It was annoying to install the ssd there is only m.2 slot fast enough and i had to use a special stud.

So if I wanted a noticably faster ssd or one that loaded games faster I would want one with lower latency and better 4k? What effects latency? Is it the controller?

Joined
Sep 3, 2019
Messages
1,669 (3.65/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F22
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory CorsairVengeanceLPX DDR4 2x8GB 3466MHz CL16-18-18-36 1T, B-die A0 PCB, @3800 CL16-18-18-36 1T(1.46V)
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019) / SATA-III: 850Pro 1TB SSD (2017), 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W
Power Supply Corsair HX750i
Mouse Logitech MX Master
Keyboard Logitech G15 v2
Software Windows 10 Home 64bit (v2004)
Game loading is not effected much by SSD speed. Even the slowest SATA SSD against fastest NVMe SSD don’t make a whole lot difference.
Game loading is not designed to benefit from very fast SSDs. It’s more of a CPU bound issue and the system in general.


D

Deleted member 194470

Guest
That's a good video, i was trying to find an article that posted various game loading times like that. Some ssd tests show game loading but usually just for one game. If cpu matters then where are cpu based tests for that. It doesn't seem like the cpu imo, it doesn't seem to make a great difference. I don't know, I would like to see benchmarks on that. Game loading is generally not that big of a deal, I just expected a bigger improvement and I guess my observation was right there is not much of a difference between sata and nvme.

The main games that should be tested are fallout 4 and gta v lol. Gta v initial loading takes forever and fallout 4 constantly loads. I do wonder how much of this is a software issue, if game companies tailored their games for ssd wouldn't that make it faster? Maybe ps5/xbox one x will change that and it will effect how games are made for pc.
