Intel "Alder Lake-S" Comes in a 6+0 Core Die Variant

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
42,089 (8.14/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Intel's 12th Gen Core "Alder Lake-S" silicon apparently comes in two variants based on core count. The first one is a larger variant with 8 P cores and 8 E cores, while the second variant is a visibly smaller die with only 6 P cores, no E cores. This was revealed by an MSI Insider video presentation where pictures of LGA1700 packages with the two die types were shown off.

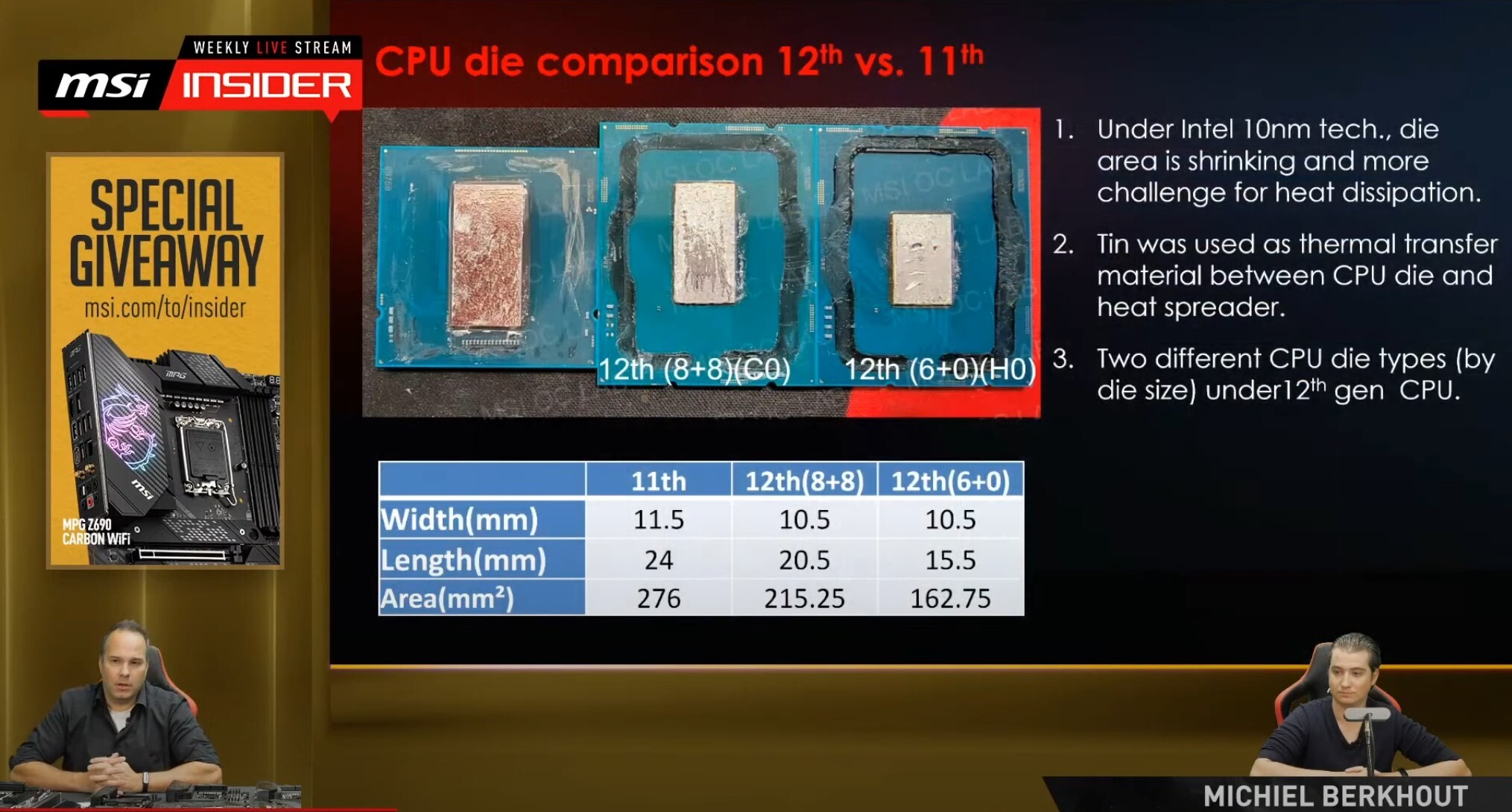

MSI also confirmed die-sizes and dimensions of the two. The larger C0 die measures 10.5 mm x 20.5 mm, working out to 215.25 mm² area. The smaller H0 die measures 10.5 mm x 15.5 mm, and a die area of 162.75 mm². The H0 silicon completely lacks "Gracemont" E-core clusters, and physically features six "Golden Cove" P cores. It's possible that given the 3 MB L3 slice size on the larger C0 silicon, the smaller H0 silicon physically features 18 MB of shared L3 cache.



Apparently the 12th Gen Core i5 series will have two classes of SKUs. One based on the C0 silicon, with 6+4 (P+E) configuration, and the other based on the H0 silicon, with 6+0 core configuration. The already launched Core i5-12600K/KF are 6+4 core, and it's expected that the i5-12600 (non-K) will have the same core-count, too. The lower Core i5 SKUs, such as the i5-12400 and i5-12400F, could be 6+0 core. Intel probably adopted this segmentation within the Core i5 lineup to ensure that the $170-$190 SKUs, such as the i5-12400/F don't cannibalize sales of the i5-12600/K/KF/F. The company had been carrying out similar segmentation within the Core i3 series in the past few generations, where the i3-xx100 and i3-xx300 series SKUs are differentiated with L3 cache sizes.



We recently spotted an i5-12400 engineering sample that confirms this core-configuration. The decision to create a smaller die for desktop could be purely economics-driven. The lower end of the Core i5 series, the Core i3 series, Pentium, and Celeron, sell in high volumes, and it makes sense for Intel to use physically smaller dies to maximize wafer utilization on its latest Intel 7 node (10 nm Enhanced SuperFin). It's also possible that the 12th Gen Core i3 series will be carved out from this silicon, by disabling two of the six P cores.

View at TechPowerUp Main Site


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
3,612 (1.53/day)
Location
Western Canada
Lemme guess......12400[F] + B660 board is going to be the most popular config this gen, because enthusiasts seem to collectively hate E-cores? Intel probably gonna gimp the boost clocks hard compared to 12600K though.

That's a great way to reap the benefits of Golden Cove without being forced to bet everything on Microsoft and Thread Director doing their jobs properly. I can't help but wonder if you can just disable E-cores altogether on all of these chips though, especially for benching and whatnot.

Joined
Dec 17, 2011
Messages
198 (0.05/day)
Processor i7 9750H @ -100 millivolt offset
Video Card(s) GTX 1660 Ti @ 1.5 GHz / no undervolt
The larger C0 die measures 10.5 mm x 20.5 mm, working out to 215.25 mm² area. The smaller H0 die measures 10.5 mm x 15.5 mm, and a die area of 162.75 mm². The H0 silicon completely lacks "Gracemont" E-core clusters, and physically features six "Golden Cove" P cores. It's possible that given the 3 MB L3 slice size on the larger C0 silicon, the smaller H0 silicon physically features 18 MB of shared L3 cache.

The H0 is quite a bit bigger than I expected it to be. I wonder if they'll launch a notebook SKU which uses the H0 die. It's very unlikely, but it'll be interesting if they do.

Now I am more interested then ever in a Gracemont only Atom SKU with Xe graphics for budget laptops.

Joined
Nov 11, 2004
Messages
9,624 (1.54/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
Joined
Nov 11, 2004
Messages
9,624 (1.54/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
Boy are the Gracemont cores freaking tiny. Should make for a nice, smol 8 core i3 chip for budget laptops
Nah, it'll be a Pentium or Celeron, as Intel won't dilute the Core branding that much.
Also, size is very relative when it comes to these things.

Joined
Apr 16, 2019
Messages
467 (0.48/day)
Lemme guess......12400[F] + B660 board is going to be the most popular config this gen, because enthusiasts seem to collectively hate E-cores? Intel probably gonna gimp the boost clocks hard compared to 12600K though.

That's a great way to reap the benefits of Golden Cove without being forced to bet everything on Microsoft and Thread Director doing their jobs properly. I can't help but wonder if you can just disable E-cores altogether on all of these chips though, especially for benching and whatnot.
That and the fact that it will likely provide the best bang for buck in the midrange, just like the last two 400(f) chips, because ever since the 3600 price hike and subsequent lack of 5600 AMD is unwilling or unable (or both) to provide in the price class that used to be their bread & butter (and has also historically included legends such as 2500k).

Joined
Jan 3, 2021
Messages
399 (1.19/day)
Location
Slovenia
Processor i5-6600K
Motherboard Asus Z170A
Cooling some cheap Cooler Master
Memory 16GB DDR4-2400
Video Card(s) IGP
Storage Samsung 850 EVO 250GB
Display(s) 2x Oldell 24" 1920x1200
Case Bitfenix Nova white windowless
Audio Device(s) E-mu 1212m PCI
Power Supply Seasonic G-360
Mouse Logitech Marble trackball, never had a mouse
Keyboard Key Tronic KT2000, no Win key because 1994
Software Oldwin
One thing is clear now, four E cores do not take up the same space as one P core but approximately 1/3 more. So it's more like three E cores in the same space as one P core.

Joined
Apr 11, 2021
Messages
58 (0.24/day)
That's a great way to reap the benefits of Golden Cove without being forced to bet everything on Microsoft and Thread Director doing their jobs properly. I can't help but wonder if you can just disable E-cores altogether on all of these chips though, especially for benching and whatnot.
Earlier this year it was said to be possible for both E and P cores, either from the command line or from the BIOS:

Joined
Jan 3, 2021
Messages
399 (1.19/day)
Location
Slovenia
Processor i5-6600K
Motherboard Asus Z170A
Cooling some cheap Cooler Master
Memory 16GB DDR4-2400
Video Card(s) IGP
Storage Samsung 850 EVO 250GB
Display(s) 2x Oldell 24" 1920x1200
Case Bitfenix Nova white windowless
Audio Device(s) E-mu 1212m PCI
Power Supply Seasonic G-360
Mouse Logitech Marble trackball, never had a mouse
Keyboard Key Tronic KT2000, no Win key because 1994
Software Oldwin
Earlier this year it was said to be possible for both E and P cores, either from the command line or from the BIOS:
I don't think that disabling either set of cores is the best way to go ... Windows has power plans, after all, and MS could make one that strongly prefers P cores and another that strongly prefer E cores but don't outright disable anything.


Aquinus

Resident Wat-man
Joined
Jan 28, 2012
Messages
12,434 (3.45/day)
Location
Concord, NH
System Name Apollo
Processor Intel Core i9 9880H
Memory 64GB DDR4-2667
Video Card(s) AMD Radeon Pro 5600M, 8GB HBM2
Storage 1TB Apple NVMe, 4TB External
Display(s) Laptop @ 3072x1920 + 2x LG 5k Ultrafine TB3 displays
Case MacBook Pro (16", 2019)
Audio Device(s) AirPods Pro, Sennheiser HD 380s w/ FIIO Alpen 2, or Logitech 2.1 Speakers
Power Supply 96w Power Adapter
Mouse Logitech MX Master 3
Keyboard Full Size Wireless Apple Magic Keyboard
Software MacOS 10.15.7
My curiosity is making me wonder what a 4P+16E chip would be capable of if the gracemont cores really are that small. How many P cores do you really need? Multithreaded applications that scale well shouldn't need a bunch of really fast cores.

Joined
Jan 27, 2015
Messages
1,111 (0.44/day)
System Name Legion
Processor i9-10850K
Motherboard Asus Prime Z490M Plus
Cooling Arctic Liquid Freezer 2 240mm AIO
Memory G.Skill Ripjaws V 32GB (2 x 16GB) DDR4-3200 F4-3200C16D-32GVK
Video Card(s) EVGA GeForce RTX 2060 KO Ultra
Storage Team Group MP33 Pro 2TB M.2 2280 PCIe NVMe 3.0 x4 + WD Blue 1TB SATA SSD
Display(s) Acer K272HUL 1440p / 34" MSI MAG341CQ 3440x1440
Case Lian Li 205M
Power Supply PowerSpec 650W 80+ Bronze Semi-Modular PS 650BSM
Mouse Logitech MX Anywhere 25
Keyboard Logitech MX Keys
Software Lots
Seems like Raptor Lake, which is basically an Alder Lake refresh for 2022, is supposed to have an 8+16 version.

Honestly I think the importance of single thread is for some reason being deprecated, perhaps wrongly. Moar cores is fun and all but, to this day when I look at my CPU usage during something that I think runs a little slow, 99% of the time it is just using 1-4 threads and one of the cores is at 100%. I never really see all cores get busy unless I'm compressing / uncompressing something really big.

This is the one thing I noticed with the 10850K vs 10400 as far as more cores, is that patches and updates from Steam get installed faster and with less noticeable impact. Outside of that most things are limited to 1-4 threads.

Joined
Sep 14, 2020
Messages
220 (0.49/day)
Location
Greece
I’m not sure about 12600 non-K, it might also feature 6+0 cores, I’ll try to find this info again. IIRC about Comet Lake, 10600K is the same silicon with the bigger CPUs, but 10600 and below are built on smaller dies.

IDK why people still think Windows 10 have no use for E cores.
Nov 4th can't come sooner and put these assumptions to rest.
Yes one of the 12600K benchmarks was performed on W10.

Joined
Jan 1, 2021
Messages
743 (2.20/day)
System Name BirthdayBuild
Processor i5-4690K @ 4.3GHz
Motherboard Asus Z97-A Motherboard
Cooling Deepcool Gammaxx 400v2 Tower CPU Cooler
Memory 32GB: 2x8GB G.Skill Ares 1600MHz 9-9-9-24, 2x8GB Kingston HX318C10F/8 1866MHz 10-11-10-30
Video Card(s) NVIDIA RTX 3060Ti Founder's Edition
Storage 500GB 970 Evo Plus NVMe, 120GB 750 Evo, 2x500GB HDDs
Display(s) Dell S2240L Full HD IPS Monitor
Case Corsair Carbide Series 500R White
Audio Device(s) Levi's Bluetooth Headphones
Power Supply Seasonic X-650 Gold PSU (SS-650KM3)
Mouse Logitech Wired Mouse
Keyboard Dell KB213 Wired Keyboard
Software Windows 7 x64
IDK why people still think Windows 10 have no use for E cores.
Nov 4th can't come sooner and put these assumptions to rest.
Apparently you need Win11 for Alder Lake, so Win10 won't even be supported.

Joined
Jun 19, 2010
Messages
324 (0.08/day)
Location
North-Rhine-Westphalia
Processor Ryzen 2700 (0.819 VSoC)
Motherboard B450
Cooling Thermalright ARO
Memory 2x 8GB DDR4-3000 CL16 XMP
Video Card(s) GTX 1650 boost:1859 vram:2500
Storage 1TB PCIe4.0 NVMe Samsung PM9A1
Display(s) 4K UHD 40" HDR TV
Case Sharkoon AM5 Window red
Audio Device(s) Headset
Power Supply beQuiet PurePower10 400W
Software Win10
For me a desktop 4P+8E would be sweetspot, even for gaming where older games often use only upto 2-3 threads and newer titles are basically bound by 2-3 heavy threads + some parellel threads.

Joined
Mar 17, 2017
Messages
2 (0.00/day)
Location
Europe
Processor Ryzen 7 3700X
Motherboard X370 chipset
Cooling AIO liquid CPU cooler (3200 RPM pump, 2*120mm fans)
Memory 32 GiB
Video Card(s) RX 5500XT
Storage Adata XPG SX8200 Pro, Samsung SSD 850 Pro, WD Red Plus
Display(s) Samsung (4K, FreeSync)
Case Corsair SPEC-03 Orange LED
Audio Device(s) Sound Blaster Audigy Fx
Power Supply Corsair RM850, APC 950VA (french sockets)
Mouse Hama MW-900
Keyboard Hybrid switches (membrane-mechanical), LED
Could you please use proper terminology instead of "... don't cannibalize sales of ..." in your articles? Thanks.

Joined
Mar 21, 2016
Messages
1,228 (0.59/day)
Wonder if you'll able to disable half the P cores and E cores in the bios apparently you decouple their clock rates and overclock either so it could be interesting and from a efficiency standpoint just run 3 P cores with 6 E cores on the 12600K might not be bad in practice and with the 12900K similar might be done. I would think running 3P cores on the 12600K could allow for better sustained turbo boost performance and possibly overclocking the turbo a bit higher across 3 cores instead.

Joined
Dec 5, 2020
Messages
74 (0.20/day)
One thing is clear now, four E cores do not take up the same space as one P core but approximately 1/3 more. So it's more like three E cores in the same space as one P core.
Huh? If you look at the die four E-cores are about the same size as 1 P-core, or even smaller.


sillyconjunkie

New Member
Joined
Oct 13, 2021
Messages
26 (0.48/day)
Shopped. Hybrid (big, bigger) is the go forward plan for Intel across this product line. Initial ADL units are Intel designed/TSMC 7nm FAB, not Intel 10ESF (Intel 7). Later units will be updated Intel 7nm FAB. No more marketing spin names.

Yields are fine.

Joined
Feb 20, 2019
Messages
3,331 (3.27/day)
System Name Bragging Rights
Processor Atom Z3735F 1.33GHz
Motherboard It has no markings but it's green
Cooling No, it's a 2.2W processor
Memory 2GB DDR3L-1333
Video Card(s) Gen7 Intel HD (4EU @ 311MHz)
Storage 32GB eMMC and 128GB Sandisk Extreme U3
Display(s) 10" IPS 1280x800 60Hz
Case Veddha T2
Audio Device(s) Apparently, yes
Power Supply Samsung 18W 5V fast-charger
Mouse MX Anywhere 2
Keyboard Logitech MX Keys (not Cherry MX at all)
VR HMD Samsung Oddyssey, not that I'd plug it into this though....
Software W10 21H1, barely
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
Lemme guess......12400[F] + B660 board is going to be the most popular config this gen, because enthusiasts seem to collectively hate E-cores?
I'm interested in the mobile variants - 2 P-cores and 8 E-cores with a relatively big iGPU but hopefully a relatively small TDP.

I guess Intel are playing it safe this generation with the desktop silicon but I'd like to see a willingness to drop a few more P-cores to trade 4:1 for E-cores. I think most consumer stuff is either lightly-threaded or is an encode/render/transcode/compile task that will just take as many cores as it can possibly get.

For the same die-area as 8 P-cores and 8 E-cores, we could have had 4 P-cores and 24 E-cores. If an application demands more than 4C/8T of max-boost, max-IPC P-core performance then it'll probably react well to being given 24 more cores.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
3,612 (1.53/day)
Location
Western Canada
I'm interested in the mobile variants - 2 P-cores and 8 E-cores with a relatively big iGPU but hopefully a relatively small TDP.

I guess Intel are playing it safe this generation with the desktop silicon but I'd like to see a willingness to drop a few more P-cores to trade 4:1 for E-cores. I think most consumer stuff is either lightly-threaded or is an encode/render/transcode/compile task that will just take as many cores as it can possibly get.

For the same die-area as 8 P-cores and 8 E-cores, we could have had 4 P-cores and 24 E-cores. If an application demands more than 4C/8T of max-boost, max-IPC P-core performance then it'll probably react well to being given 24 more cores.

Part of me kinda agrees, but I also don't want to see what 2 P-cores + E-core gang looks like in demanding games like MW2019 (probably Vanguard and MW2022 since same engine). Upon every reinstall/major update(?)/drivers change, it runs balls to the wall AVX on all cores possible (dual Ryzen will only fill 1CCD, but still ridiculous heat). Everything is a stuttery mess until it's finished after a few minutes. Should it be better optimized? Definitely, but you know it's not going to happen. BF1 and BFV (esp) are also aggressive on AVX past 2 cores, so BF2042 is surely going to continue that.

Ngl kinda frustrated the E-cores play the same role on desktop (ie. relied on for 90% of work until something "deserving" of P-core). Since 8th gen there's a huge discrepancy on Intel on MT perf between PL2 and PL1. The E-cores' should help bridge that perf gap - but they should be only a performance reserve, instead of this insane E-cores-all-the-time BS. It's the opposite of AMD - on the slightest twitch or click of the mouse Zen 3 will aggressively turbo for a responsive experience. And Intel also did the same, up until it suddenly decided we should pay P-core money for E-core usage :confused:

Even 14nm Intel had idle power better than chiplet Ryzen (not APU), so chasing idle/low load power on desktop is a solution searching for a problem - it's the free MT perf that Intel's looking for with the E-cores. Mobile power obviously it's always important, but frankly, for a 12400F-class desktop chip, it's irrelevant. So, 6+0 is great.
