Intel Announces New SATA Solid-State Drive for the Data Center

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,502 (9.18/day)
Likes
17,520
Location
Hyderabad, India
#1

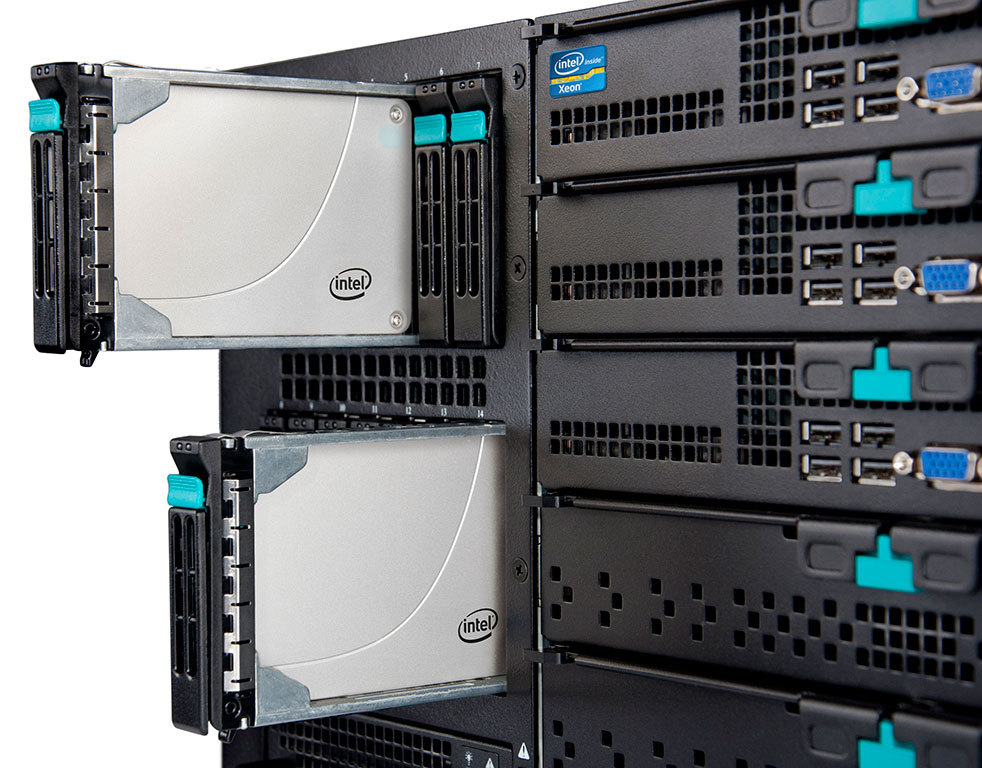

Intel Corporation announced today its latest solid-state drive (SSD), the Intel Solid-State Drive 710 Series, a purpose-built Multi-Level Cell (MLC) data center SSD and replacement for the Intel X25-E Extreme SSD. While the Intel X25-E was based on more expensive but highly reliable Single-Level Cell (SLC) NAND flash memory, the Intel SSD 710 uses compute-quality Intel 25-nanomenter (nm) MLC NAND flash memory with Intel High Endurance Technology (HET) to deliver the endurance and performance necessary for data center, financial services, embedded, Internet portal, search engine and other demanding storage and server applications, but at a greater value.

"The Intel SSD 710 Series gives enterprise data center and embedded users extreme endurance and performance, enabled by Intel's High Endurance Technology based on Intel 25nm MLC NAND technology," said Rob Crooke, Intel vice president and general manager of the Intel Non-Volatile Memory Solutions Group. "Intel SSDs are widely deployed in the data center due to their performance, reliability and value. Our latest SSD product family offers more than 30 times the write endurance of our current MLC SSDs, plus improved performance and new features, such as power-loss data protection and surplus arrays of NAND for enhanced reliability."



The Intel SSD 710 delivers nearly the same endurance as SLC-based NAND SSDs, yet utilizes the higher capacity and more cost-effective MLC NAND. It achieves write endurance out-of-the-box of up to 1.1 Petabytes (PB) and comes in 100-Gigabyte (GB), 200GB and 300GB capacities. Targeted for I/O-starved applications, the Intel SSD 710 achieves a 4K random write performance of up to 2,700 input/output operations per second (IOPS) and 4K random read performance of up to 38,500 IOPS across the full span of the drive, making this a suitable replacement to an SLC SSD or multiple enterprise-grade hard disk drives (HDD). In addition to performance, the Intel SSD 710 can replace many power-consuming HDDs with a single SSD to help reduce data center energy costs.

<object width="640" height="390"><param name="movie" value="http://www.youtube.com/v/BAGKCA3JXf8&hl=en_US&feature=player_embedded&version=3"></param><param name="allowFullScreen" value="true"></param><param name="allowScriptAccess" value="always"></param><embed src="http://www.youtube.com/v/BAGKCA3JXf8&hl=en_US&feature=player_embedded&version=3" type="application/x-shockwave-flash" allowfullscreen="true" allowScriptAccess="always" width="640" height="390"></embed></object>

"Cisco and Intel teams have worked closely, looking at the requirements for servers in the data center – IT organizations today more often run out of memory, and need memory density as well as capacity and performance," said David Lawler, vice president of product management for Cisco. "The Cisco UCS B230 M2 server offers the highest density memory capacity, and is one of the highest-density two-socket, half-width form factors powered by the Intel Xeon E7-2800. Cisco will offer the Intel SSD 710 Series to further increase the performance and storage capacity in the UCS B230 with two local drives offering 100GB each in September and up to 300GB each in the fall."

The Intel SSD 710 also includes increased reliability and security features. These include enhanced power-loss data protection to reduce potential data loss during a power failure; added data security with surplus NAND flash memory to provide system protection should a NAND die fail; Advanced Encryption Standard (AES) with 128-bit pre-configured encryption technology to protect the data from an external threat or internal system issues and Temperature Monitoring and Logging containing an internal temperature sensor that can be monitored using two self-monitoring analysis and report technology (SMART) attributes to prevent downtime.

Positioned for high write usage models, the drive can also be over-provisioned by the user to achieve up to 80 percent greater write endurance, creating an outstanding storage value. Intel HET combines NAND silicon enhancements and unique SSD NAND management techniques to extend the write endurance of MLC-based SSDs. Intel HET comprises Intel-developed firmware, controller and high-cycling NAND for optimized endurance and performance for the heavy loads of data crunching and writing experienced in 24/7 data centers or scientific, financial or other high-intensity usage models. Firmware enhancements from Intel include optimized error avoidance techniques, write amplification reduction algorithms and system-level error management beyond the normal industry Error Correction Code (ECC) standards.

Providing a better dollar-per-GB value than its previous-generation Intel X25-E SSD, the Intel SSD 710 Series is priced at $649 for the 100GB version, $1,289 for the 200GB, and $1,929 for 300GB, all based on 1,000-unit quantities. It is backed by a 3-year limited warranty.

Joined
Oct 28, 2010
Messages
66 (0.02/day)
Likes
9
#2
I would like to see the first manufacturer that will manage to build a fully functional SSD. All current ones are actually broken by default and the manufacturers sell them at less then the original capacity. For example, the 100,200,300 specified in the article are actually 128, 256 and 384 GB, with some of the cells broken and some reserved for the case more break during use.

Joined
Mar 28, 2007
Messages
2,482 (0.63/day)
Likes
340
Location
Your house.
System Name Jupiter-2
Processor Intel i3-6100
Motherboard H170I-PLUS D3
Cooling Stock
Memory 8GB Mushkin DDR3L-1600
Video Card(s) EVGA GTX 1050ti
Storage 512GB Corsair SSD
Display(s) BENQ 24in
Case Lian Li PC-Q01B Mini ITX
Audio Device(s) Onboard
Power Supply Corsair 450W
Mouse Logitech Trackball
Keyboard Custom bamboo job
Software Win 10 Pro
Benchmark Scores Finished Super PI on legendary mode in only 13 hours.
#3
I would like to see the first manufacturer that will manage to build a fully functional SSD. All current ones are actually broken by default and the manufacturers sell them at less then the original capacity. For example, the 100,200,300 specified in the article are actually 128, 256 and 384 GB, with some of the cells broken and some reserved for the case more break during use.
I don't think that they're sold "broken" -- I think you hit on it when you said that the cells are "reserved." They're all reserved, for use as existing ones wear out.

Joined
Jul 10, 2010
Messages
1,022 (0.37/day)
Likes
226
Location
USA, Arizona
System Name SolarwindMobile
Processor AMD FX-9800P RADEON R7, 12 COMPUTE CORES 4C+8G
Motherboard Acer Wasp_BR
Cooling It's Copper.
Memory 2 x 8GB SK Hynix/HMA41GS6AFR8N-TF
Video Card(s) ATI/AMD Radeon R7 Series (Bristol Ridge FP4) [ACER]
Storage TOSHIBA MQ01ABD100 1TB + KINGSTON RBU-SNS8152S3128GG2 128 GB
Display(s) ViewSonic XG2401 SERIES
Case Acer Aspire E5-553G
Audio Device(s) Realtek ALC255
Power Supply PANASONIC AS16A5K
Mouse SteelSeries Rival
Keyboard Ducky Channel Shine 3
Software Windows 10 Home 64-bit (Version 1607, Build 14393.969)
#4
I don't think that they're sold "broken" -- I think you hit on it when you said that the cells are "reserved." They're all reserved, for use as existing ones wear out.
I am currently on a SSD system and the 2nd post makes me

:banghead:

SSDs regardless of SLC and MLC last longer than most human lifetimes

If anything breaks it's the controller not the nands

Joined
Oct 28, 2010
Messages
66 (0.02/day)
Likes
9
#5
Perhaps one of you has an idea on the following issue: someone has a Corsair Force SSD 120GB and it seems to be dead. After multiple attempts I only managed to detect the actual controller when connecting it via USB rack but that's that...no drive in diskmng, nothing.
Now RMA is not a problem but the guy wants to recover the data on it. Is there any chance it can be recovered ?

Joined
Nov 23, 2010
Messages
268 (0.10/day)
Likes
14
#6
I am currently on a SSD system and the 2nd post makes me

:banghead:

SSDs regardless of SLC and MLC last longer than most human lifetimes

If anything breaks it's the controller not the nands
Keep in mind what 2nd post refers too is back before fire was invented when people could not count so they used bits / bytes, imperial instead of metric measurements LOL :p .

@ seronx , "SLC/MLC" True and don't forget the humans at Intel that would 8mb bug the firmware for the 100gb/200gb/300gb Intel SSD's. Then the 100years or human lifetime means what ? "ZERO" .

The theoretical durability is cute but users / server admins needs something that lasts and only time will tell if Intel should stick with what they are best cpu's and let everyone else specialize in what they are best = Samsung memory "storage" , NVidia + ATI graphics, Samsung iPhone3/4/5 / Samsung Ipad and Apple with their CrApple's.

The next hackers / data wars would be over "firmware viruses" for a lack of a better word where hackers "Amazon / PSN cloud / network" and then poison the firmware of routers / ssd's / bios "efi" specifically as this is the easiest way to destroy data.

It is easy to recover data if still there and the controller is bust but if it is firmware f-d and then the actual data itself as well in a 2 stage attack then what, Amazon today nothing tmrw, iCloud today, nothing tmrw.
Idiot at bank makes typo today, you billionaire today, you penniless outcast tmrw and have you tried to get something like this fixes / corrected in the USA ?? :banghead:

So having Intel nand that last 100 years = cool, but can you eat it in 3 days from now if all your data is lost ? can you swap it / trade it for meat or water or fuel for your emp'd vehicle when that happens ???
NO. So 100 year nand is useless with a 10 day SSD controller or a 5 day firmware if it lasts that long.

Once Intel shows it is not OCZ and serious about SSD's and their firmware + data security and make a effort about the data and keeping it safe or being able to recover after worst case scenario then server admins would get serious about this 7** Intel SSD's.

You would think Intel would brag about (max. min. transfers) = worst case 20+gb will transfer constantly at ?? 100MB/s ? 300MB/s ? guaranteed min. transfer rate. :rockout:

Joined
Nov 13, 2009
Messages
5,614 (1.88/day)
Likes
1,678
Location
San Diego, CA
System Name White Boy
Processor Core i7 3770k @4.6 Ghz
Motherboard ASUS P8Z77-I Deluxe
Cooling CORSAIR H100
Memory CORSAIR Vengeance 16GB @ 2177
Video Card(s) EVGA GTX 680 CLASSIEFIED @ 1250 Core
Storage 2 Samsung 830 256 GB (Raid 0) 1 Hitachi 4 TB
Display(s) 1 Dell 30U11 30"
Case BIT FENIX Prodigy
Audio Device(s) none
Power Supply SeaSonic X750 Gold 750W Modular
Software Windows Pro 7 64 bit || Ubuntu 64 Bit
Benchmark Scores 2017 Unigine Heaven :: P37239 3D Mark Vantage
#7
I am currently on a SSD system and the 2nd post makes me

:banghead:

SSDs regardless of SLC and MLC last longer than most human lifetimes

If anything breaks it's the controller not the nands
Exactly, if you are having SSD issues it's the controler, not the memory chips.
