Is it possible to repair the motherboard?

Joined
Feb 27, 2021
Messages
39 (0.50/day)
Hello,
after the end of the warranty of my PC, when I turned it on, something flashed inside. I opened it and found that a small part on the motherboard has burned out.

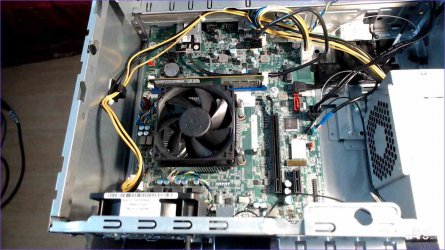

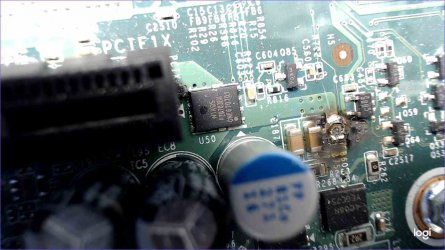

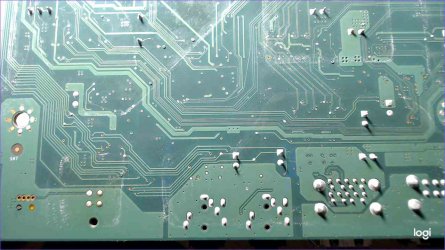

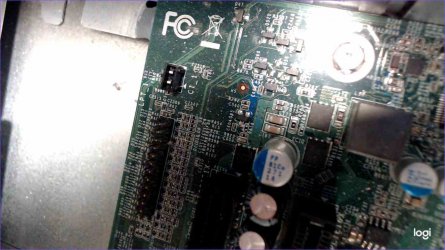

I have just the same second PC, so I can attach the photos of damaged and undamaged area.

Would it be possible to repair? Lenovo motherboards are pretty expensive...


Attachments

  • otvety 1.jpg
    otvety 1.jpg
    63.6 KB · Views: 107
  • 2021-04-29_20-11-15.jpg
    65.1 KB · Views: 100
  • 2021-05-04_03-22-13.jpg
    75.3 KB · Views: 104
  • otvety 2.jpg
    otvety 2.jpg
    80.6 KB · Views: 103
Last edited:

HammerON

The Watchful Moderator
Staff member
Joined
Mar 2, 2009
Messages
8,170 (1.83/day)
Location
Up North
System Name Cruncher #1 / Cruncher #2
Processor 3900X / 3900X
Motherboard ASUS ROG Crosshair VIII Hero / ASUS ROG Strix B550-F
Cooling EK Quantum Momentum Monoblock / Optimus Water Block
Memory G. Skill Trident Z Neo 32 GB 3600 / G.Skill Trident Z 32 GB 3200
Video Card(s) EVGA RTX 3080 FTW3 Ultra / XFX 6700 XT
Storage Samsung 960 Pro 512 GB + Mushkin Reactor 1 TB / OCZ Vertex4 238 GB
Display(s) Dell 32" Curved Gaming Monitor (S3220DGF)
Case TT Core V51 / TT Suppressor F31
Audio Device(s) On-board
Power Supply Corsair AX1200 / EVGA 650
Mouse Roccat Kone Pure
Keyboard Corsair K70
Software Win 10 Pro
Benchmark Scores Always changing~
@Vlad62 this is an English forum. Please do your best to translate and edit your title and original post to English.

Thanks!


FireFox

The Power Of Intel
Joined
Feb 19, 2014
Messages
6,812 (2.58/day)
Location
Germany
System Name BlackWidow
Processor Intel i7 10700K
Motherboard Asus ROG Maximus XII Hero
Cooling Custom Loop
Memory 32GB G.SKILL Trident Z RGB 3600Hz
Video Card(s) EVGA GEFORCE RTX 3080 XC3 Ultra
Storage Samsung 970 EVO PLUS 500GB - WD Blue SN550 1TB - 2 X WD Blue 1TB - 3 X WD Black 1TB
Display(s) Asus ROG PG278QR 2560x1440 144Hz (Overclocked 165Hz )/ Samsung
Case Corsair Obsidian 1000D
Audio Device(s) I prefer Gaming-Headset
Power Supply Enermax MaxTytan 1250W 80+ Titanium
Mouse Logitech G502 spectrum
Keyboard Virtuis Advanced Gaming Keyboard
Software Windows 10 Enterprise
Benchmark Scores My PC runs FiFA
Hello,
after the end of the warranty of my PC, when I turned it on, something flashed inside. I opened it and found that a small part on the motherboard has burned out.
I have just the same second PC, so I can attach the photos of damaged and undamaged area.

Would it be possible to repair? Lenovo motherboards are pretty expensive...
Willkommen im Forum.
Dies ist ein englisches Forum, trotzdem wir können dir helfen aber du solltest deine fragen auf englisch übersetzen

Last edited:
Joined
May 15, 2020
Messages
505 (1.38/day)
Hello,
after the end of the warranty of my PC, when I turned it on, something flashed inside. I opened it and found that a small part on the motherboard has burned out.
I have just the same second PC, so I can attach the photos of damaged and undamaged area.

Would it be possible to repair? Lenovo motherboards are pretty expensive...
What spec is the motherboard? LGA???
Or PC model number, etc.

Joined
May 15, 2020
Messages
505 (1.38/day)
Lenovo 01lm348
And CPU is Ryzen 5 2400g
I can see them here on eBay UK and you're right, they're not cheap. £118 here used.
Can't say for sure that your mobo is fixable as there might be multipe problems that caused the burnout in the first place.
You have to ask yourself can you get a replacement fuse for the blown one?, and are you confident you can solder?

You know you can probably get a good used B450 board for half the price of the Lenovo board.

Joined
Mar 26, 2010
Messages
9,117 (2.24/day)
Location
Jakarta, Indonesia
System Name micropage7
Processor Intel Xeon X3470
Motherboard Gigabyte Technology Co. Ltd. P55A-UD3R (Socket 1156)
Cooling Enermax ETS-T40F
Memory Samsung 8.00GB Dual-Channel DDR3
Video Card(s) NVIDIA Quadro FX 1800
Storage V-GEN03AS18EU120GB, Seagate 2 x 1TB and Seagate 4TB
Display(s) Samsung 21 inch LCD Wide Screen
Case Icute Super 18
Audio Device(s) Auzentech X-Fi Forte
Power Supply Silverstone 600 Watt
Mouse Logitech G502
Keyboard Sades Excalibur + Taihao keycaps
Software Win 7 64-bit
Benchmark Scores Classified
Today pcb is multi layer, so if it's bad it's gone

Joined
Feb 27, 2021
Messages
39 (0.50/day)
I can see them here on eBay UK and you're right, they're not cheap. £118 here used.
Can't say for sure that your mobo is fixable as there might be multipe problems that caused the burnout in the first place.
You have to ask yourself can you get a replacement fuse for the blown one?, and are you confident you can solder?

You know you can probably get a good used B450 board for half the price of the Lenovo board.
Thanks, but are they compatible? Fits B450 in the Lenovo case?

Today pcb is multi layer, so if it's bad it's gone
Yes, I was already replied on one forum, that it seems to be a SDM component broken, but if the layers are damaged, it is hard to repair...

Joined
May 15, 2020
Messages
505 (1.38/day)
Thanks, but are they compatible? Fits B450 in the Lenovo case?
I have no idea of the boards dimensions because they aren't advertised.
What model is the PC? That'll give me an idea of what can fit and what can't.

Joined
Feb 27, 2021
Messages
39 (0.50/day)
I have no idea of the boards dimensions because they aren't advertised.
What model is the PC? That'll give me an idea of what can fit and what can't.

Lenovo Ideacentre 510A-15ARR

And I will need also probably to replace the PSU, because they have a weird 10-pin connector instead of 24-pin on Lenovo MB.

Joined
May 15, 2020
Messages
505 (1.38/day)
Joined
May 15, 2020
Messages
505 (1.38/day)
Yes, that is why I would like to know if it is possible to repair...
It's hard to tell because there might be multipe component failure that caused the fuse to blow in the first place.
A PC repair shop that can at least diagnose the problems is the only way of knowing. Sorry.

Joined
Feb 27, 2021
Messages
39 (0.50/day)
It's hard to tell because there might be multipe component failure that caused the fuse to blow in the first place.
A PC repair shop that can at least diagnose the problems is the only way of knowing. Sorry.
So, you think this was a fuse to burn out? I was told a SDM component (have no idea what is it)? Is it hard to replace the fuse for a specialist? How much can it costs?

Joined
May 15, 2020
Messages
505 (1.38/day)
So, you think this was a fuse to burn out? I was told a SDM component (have no idea what is it)? Is it hard to replace the fuse for a specialist? How much can it costs?
Looks that way. But without a motherboard schematic It's difficult to say what the component does.
You're better off visiting someone or a shop who can help you. I have no idea how much the repair would cost.


AsRock

TPU addict
Joined
Jun 23, 2007
Messages
17,101 (3.37/day)
Location
UK\US
Processor 2500k \ AMD 3900X+NH-D15
Motherboard ASRock Z68 \ ASRock AM4 X570 Pro 4
Memory Samsung low profile 2x8GB \ Patriot 2x16GB PVS432G320C6K
Video Card(s) eVga GTX1060 SSC \ XFX R9 390X
Storage 2xIntel 80Gb (SATA2) Crucial MX500 \ Samsung 860 1TB +Samsung Evo 250GB+500GB Sabrent 1TB Rocket
Display(s) Samsung 1080P \ LG 43UN700
Case HTPC400 \ Thermaltake Armor case ( VE2000BWS ), With Zalman fan controller ( wattage usage ).
Audio Device(s) Yamaha RX-A820 \ Yamaha CX-830+Yamaha MX-630 Infinity RS4000\Paradigm P Studio 20, Blue Yeti
Power Supply PC&Power 750w \ Seasonic 750w MKII
Mouse Steelseries Sensei wireless \ Steelseries Sensei wireless
Keyboard Logitech K120 \ ROCCAT MK Pro ( modded amber leds )
Benchmark Scores Meh benchmarks.
It's hard to tell because there might be multipe component failure that caused the fuse to blow in the first place.
A PC repair shop that can at least diagnose the problems is the only way of knowing. Sorry.

Well looks like 2 have exploded, that dam solder melted so bad it joined with the next one. Looks like a few layers have been effected too, and maybe that part across from them might be too.

Maybe clean it up some see if it looks any better, but looks like 3 layers effected, no way to know if that's taken other traces out with it but it don't look good.

Out of warranty ?.

New case new mobo, although with a new mobo you will have to buy windows again.

Joined
Feb 27, 2021
Messages
39 (0.50/day)
Looks that way. But without a motherboard schematic It's difficult to say what the component does.
You're better off visiting someone or a shop who can help you. I have no idea how much the repair would cost.
Thanks. Do you think, that a schematic is available for a specialist? I wouldn't be surprised, if no,, it is natural for Lenovo...

Well looks like 2 have exploded, that dam solder melted so bad it joined with the next one. Looks like a few layers have been effected too, and maybe that part across from them might be too.

Maybe clean it up some see if it looks any better, but looks like 3 layers effected, no way to know if that's taken other traces out with it but it don't look good.

Out of warranty ?.

New case new mobo, although with a new mobo you will have to buy windows again.
Good, I will clean it and make a new photo...

Joined
May 15, 2020
Messages
505 (1.38/day)
Thanks. Do you think, that a schematic is available for a specialist? I wouldn't be surprised, if no,, it is natural for Lenovo...


Good, I will clean it and make a new photo...
I doubt that Vlad. Many maufacturers will keep these schematics locked away. A good repair shop and someone who can diagnose the fault is the best way to go.
But I am surprised the board had ended up this way as it's not that old.

Well looks like 2 have exploded, that dam solder melted so bad it joined with the next one. Looks like a few layers have been effected too, and maybe that part across from them might be too.

Maybe clean it up some see if it looks any better, but looks like 3 layers effected, no way to know if that's taken other traces out with it but it don't look good.

Out of warranty ?.

New case new mobo, although with a new mobo you will have to buy windows again.
Hell knows what's gone wrong. That's why I suggested Vlad seek help help from a person who knows what they are looking at.

Joined
Feb 27, 2021
Messages
39 (0.50/day)
I doubt that Vlad. Many maufacturers will keep these schematics locked away. A good repair shop and someone who can diagnose the fault is the best way to go.
But I am surprised the board had ended up this way as it's not that old.


Hell knows what's gone wrong. That's why I suggested Vlad seek help help from a person who knows what they are looking at.
Well, I probably need to tell more. The PC did not start up, so I disconnected a front panel with the on/off button, pressed the button (it didn't work) and than touched the cables NEAR the button. Exactly after that all happened. I was shocked, if it is a graphic card, but it was a motherboard. I don't know - what is worse...

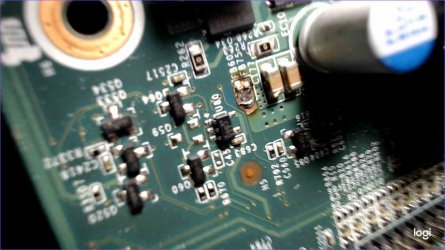

Here is a new, more clean photo.


Attachments

  • 2021-05-05_00-04-14.jpg
    55.8 KB · Views: 36
Joined
May 15, 2020
Messages
505 (1.38/day)
Well, I probably need to tell more. The PC did not to start up, so I disconnected a front panel with the on/off button, pressed the button (it didn't work) and than touched the cables NEAR the button. Exactly after that all happened. I was shocked that it is a graphic card, but it was a motherboard.
Here is a new, more clean photo.
Ouch. I had a feeling you may have tinkered but didn't want to speculate.
It may be repairable but please don't take my word for it.


AsRock

TPU addict
Joined
Jun 23, 2007
Messages
17,101 (3.37/day)
Location
UK\US
Processor 2500k \ AMD 3900X+NH-D15
Motherboard ASRock Z68 \ ASRock AM4 X570 Pro 4
Memory Samsung low profile 2x8GB \ Patriot 2x16GB PVS432G320C6K
Video Card(s) eVga GTX1060 SSC \ XFX R9 390X
Storage 2xIntel 80Gb (SATA2) Crucial MX500 \ Samsung 860 1TB +Samsung Evo 250GB+500GB Sabrent 1TB Rocket
Display(s) Samsung 1080P \ LG 43UN700
Case HTPC400 \ Thermaltake Armor case ( VE2000BWS ), With Zalman fan controller ( wattage usage ).
Audio Device(s) Yamaha RX-A820 \ Yamaha CX-830+Yamaha MX-630 Infinity RS4000\Paradigm P Studio 20, Blue Yeti
Power Supply PC&Power 750w \ Seasonic 750w MKII
Mouse Steelseries Sensei wireless \ Steelseries Sensei wireless
Keyboard Logitech K120 \ ROCCAT MK Pro ( modded amber leds )
Benchmark Scores Meh benchmarks.
be safer just getting a cheap case and replacement board, unless you can get a repair shop to look at it for free.

Risk would be frying some thing else in the PC too, Aint worth it

Joined
Feb 27, 2021
Messages
39 (0.50/day)
Ouch. I had a feeling you may have tinkered but didn't want to speculate.
It may be repairable but please don't take my word for it.
Thanks, I also have a feeling that the MB is not dead completely, and of course I will not take your word... :)

be safer just getting a cheap case and replacement board, unless you can get a repair shop to look at it for free.

Risk would be frying some thing else in the PC too, Aint worth it
We have a small town, but I will try to find a shop with a free look, thanks...

Joined
Feb 27, 2021
Messages
39 (0.50/day)
Good luck Vlad. Please come back and let us know if you can get the board repaired.
Yes, I will. By the way, as I know, it comes maximum 12 Volts from PSU on the motherboard - how could it happen, that it is like 220 volts fuse to burn out?
