Lian-Li Introduces New HTPC Form Factor Cases

malware

New Member
Joined
Nov 7, 2004
Messages
5,422 (1.12/day)
Likes
954
Location
Bulgaria
Processor Intel Core 2 Quad Q6600 G0 VID: 1.2125
Motherboard GIGABYTE GA-P35-DS3P rev.2.0
Cooling Thermalright Ultra-120 eXtreme + Noctua NF-S12 Fan
Memory 4x1 GB PQI DDR2 PC2-6400
Video Card(s) Colorful iGame Radeon HD 4890 1 GB GDDR5
Storage 2x 500 GB Seagate Barracuda 7200.11 32 MB RAID0
Display(s) BenQ G2400W 24-inch WideScreen LCD
Case Cooler Master COSMOS RC-1000 (sold), Cooler Master HAF-932 (delivered)
Audio Device(s) Creative X-Fi XtremeMusic + Logitech Z-5500 Digital THX
Power Supply Chieftec CFT-1000G-DF 1kW
Software Laptop: Lenovo 3000 N200 C2DT2310/3GB/120GB/GF7300/15.4"/Razer
#1
Lian-Li Industrial Co. Ltd has launched the PC-C33 & PC-C34F HTPC chassis. Both have slender profile form factors to blend in with audio and DVD equipment but stand out because of their unique offerings like the 2.4G wireless remote sensor, innovative HDD access and options as well as supremely quiet cooling capabilities.

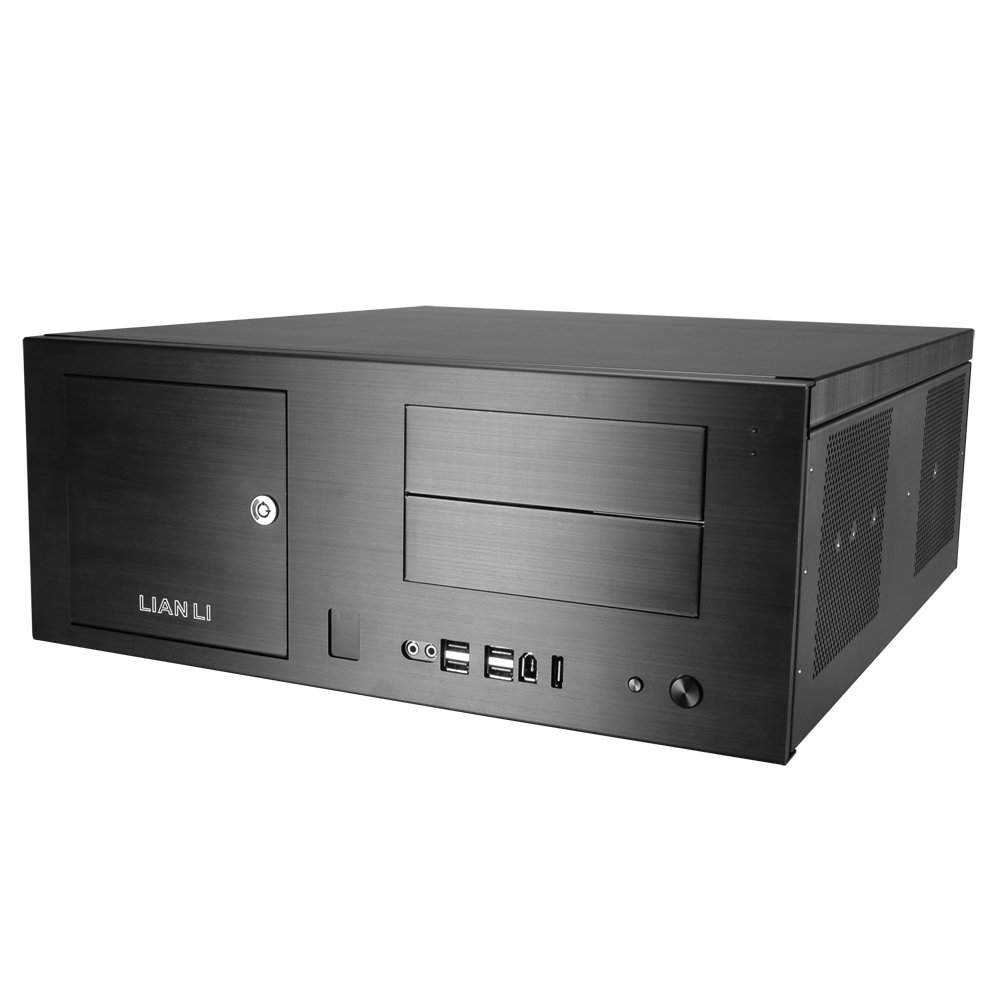

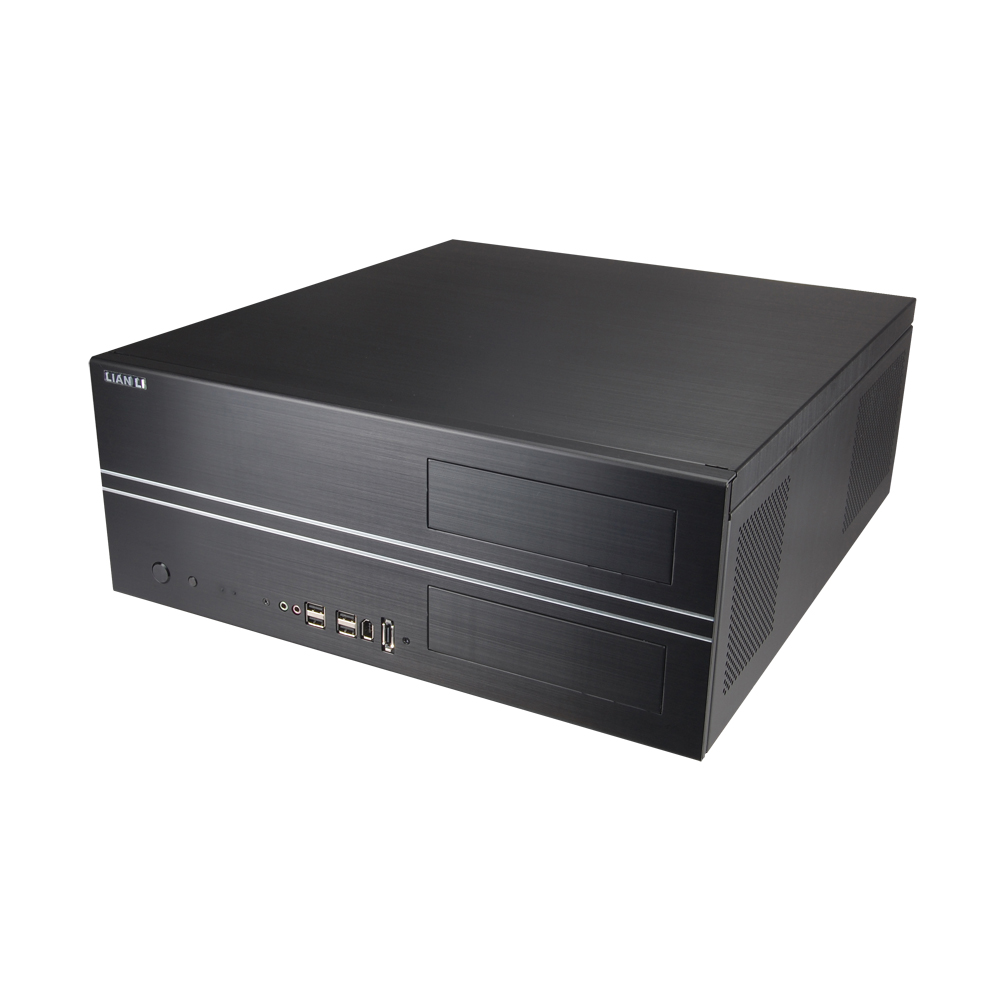

The PC-C33 stands at 425 x 168 x 460 mm (W, H, D), while the slightly larger PC-C34F stands at 432 mm x 168 mm x427 mm (W,H,D). These classic chassis have the traditional Lian Li brushed black anodized aluminum appearance, with the PC-C34F having a front mounted lockable HDD cage with a hot swap HDD capability with support for up to 4x 3.5”HDD’s. While both have space for 4x 3.5”HDD’s. In addition, there are two ODD bays and support for seven expansion slots.


Unique Profile HTPC Chassis
The PC-C33 and PC-34F will both support a micro-ATX and ATX form factor. Both cases are hand-made with Lian Li’s traditional care and attention to detail. The diamond cut lines to create the elegant profile seen on both chassis’ front panels give the HTPC chassis a sense of style. The solid structure is all aluminum, offering significant cooling functions over standard steel cases, while adding a sleek and superior aspect of elegance. In addition the front mounted I/O ports, include 4x USB 2.0, 1x Firewire 1394, 1x E-SATA, as well as HD+AC97 Audio options.In addition, the acrylic window for the 2.4G wireless remote sensor enhances your HTPC experience.

Smooth Airflow and Silent

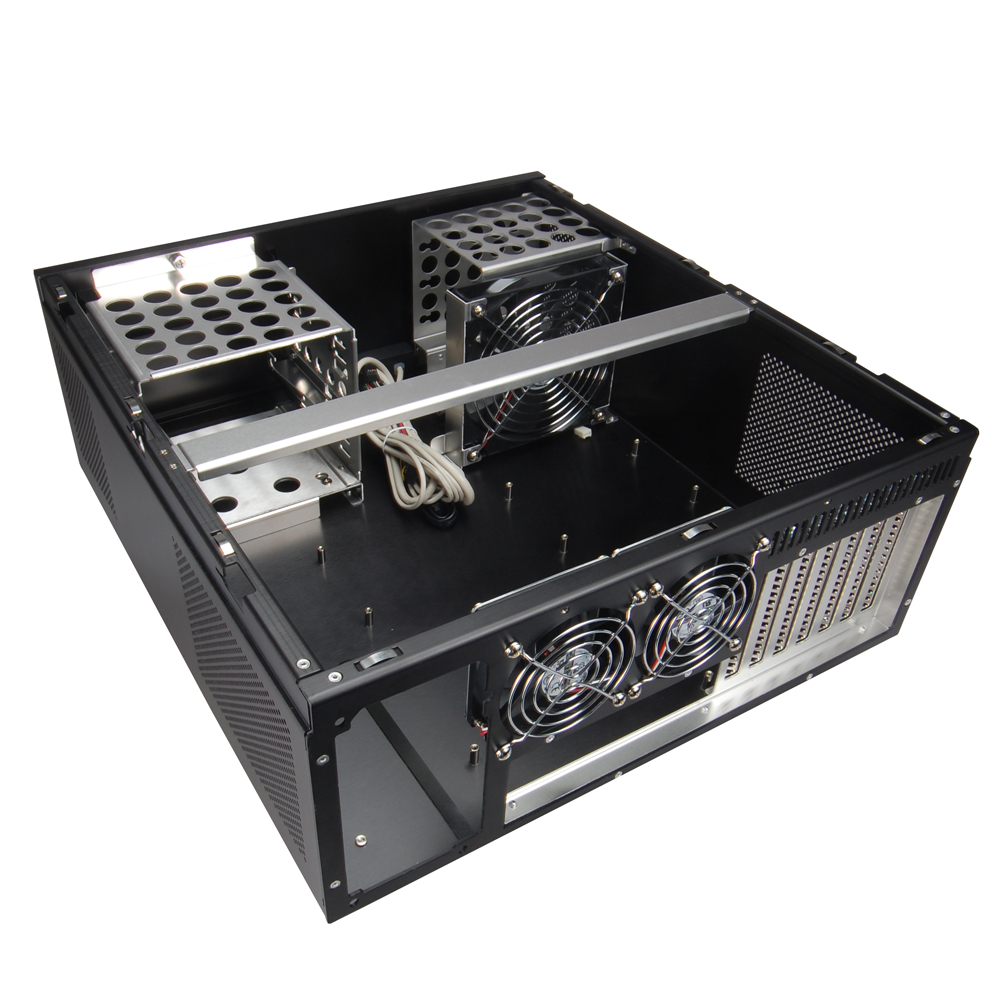

Lian Li attention to detail is evident throughout with special anti-vibration spring clips to prevent the panels from rattling, while special rubber grommets support the HDD’s mounted in their bays. The PC-C33 has 2x80mm exhaust ball-bearing fan@1200RPM, with one 140mm ball-bearing fans @1200RPM drawing air into the chassis from the vent holes on the side of the case. The PC-C34F has a 140mm Fan@900RPM intake on the left hand side of the case , and a 80mm fan@1500RPM exhaust.The copious open vents around the case improve airflow and assist the aluminum chassis in cooling down the warmest components inside.

Quality and Craftsmanship
Like all Lian Li products, these HTPC Multimedia Chassis have the finely honed finish to prevent sharp edges, while the structure has been hand-crafted to create the extra attention to detail prevalent in Lian Li chassis. The minimalist design allows the case to fit in with any décor. The special rubber padded metal stands are superior quality reduce vibration. The internals are modular, so components can be pre-fitted and then installed in stages, allowing an organized and structural design for your DIY HTPC Home Theatre system. Tool-less thumb screws keep the case top panel attached, while a structural support bar adds strength to the case design. Everything is designed to comply with Intel Standards for maximum compatibility. The essence of Lian-Li products is the craftsmanship of the engineering. Intrinsic to the workmanship and quality is the customization which includes a whole host of optional extras that can be purchased to add more features to an already feature rich product.

Source: Lian-Li

Joined
Aug 10, 2007
Messages
4,065 (1.06/day)
Likes
1,130
Location
Geneva, FL, USA
Processor Intel i5-6600
Motherboard ASRock H170M-ITX
Cooling Cooler Master Geminii S524
Memory G.Skill DDR4-2133 16GB (8GB x 2)
Video Card(s) Gigabyte R9-380X 4GB
Storage Samsung 950 EVO 250GB (mSATA)
Display(s) LG 29UM69G-B 2560x1080 IPS
Case Lian Li PC-Q25
Audio Device(s) Realtek ALC892
Power Supply Seasonic SS-460FL2
Mouse Logitech G700s
Keyboard Logitech G110
Software Windows 10 Pro
#2
I like 'em.

Crossfire a couple passive cards in the C33 thanks to the 140mm. If it's the same one in my A17, might not have to replace it as it already moves a decent amount of air (while keeping quiet).


WarEagleAU

Bird of Prey
Joined
Jul 9, 2006
Messages
10,809 (2.56/day)
Likes
529
Location
Gurley, AL
System Name Boddha Getta Boddha Getta Bah!
Processor AMD FX 6100 @ 4.432Ghz @1.382
Motherboard ASUS M5A99X EVO AMD 990X AMD SB950
Cooling Custom Water. EK 240MM Kit, Supreme HSF - Runs 35C
Memory 2 x 4GB Corsair Vengeance White LP @ 1.35V
Video Card(s) XFX Radeon HD 6870 980/1100
Storage WD Caviar Black 1.0TB, WD Caviar Green 1.0TB, WD 160GB
Display(s) Asus VH222/S 22: (21.5" Viewable) 1920x1080p HDMI LCD Monitor
Case NZXT White Switch 810
Audio Device(s) Onboard Realtek 5.1
Power Supply NZXT Hale 90 Gold Cert 750W Modular PSU
Software Windows 8.1 Profession 64 Bit
#3
The design looks better than that of the new chieftech H03 HTPC case. I like the better airflow and vents a swell. Id think the price might be a bit cheaper than what weve been seeing too.

Joined
Apr 7, 2008
Messages
632 (0.18/day)
Likes
64
Location
Australia
System Name _Speedforce_ (Successor to Strike-X, 4LI3NBR33D-H, Core-iH7 & Nemesis-H)
Processor Intel Core i9 7900X (Lapped) @ 4.9Ghz With XSPC Raystorm (Lapped)
Motherboard Asus Prime X299 Deluxe (XSPC Watercooled) - Custom Heatsinks
Cooling XSPC Custom Water Cooling + Custom Air Cooling (From Delta 120's TFB1212GHE to Spal 30101504&5)
Memory 8x 8Gb Corsair Dominator Platinum 3400MHz @ 3667Mhz (CMU32GX4M4C3466C16)
Video Card(s) 3x Asus GTX1080 Ti (Lapped) With Customised EK Waterblock (Lapped) + Custom heatsinks (Lapped)
Storage 5x Samsung 960 Pro 1Tb M.2 2280 (Hyper M.2 x16 Card), 1x Samsung 850 Pro 1Tb, 6x Samsung EVO 850 4Tb
Display(s) 6x Asus ROG Swift PG27AQ
Case Aerocool Strike X (Modified)
Audio Device(s) Creative Sound BlasterX AE-5 & Aurvana XFi Headphones
Power Supply 2x Corsair AX1500i With Custom Sheilding, Custom Switching Unit. Braided Cables.
Mouse Razer Copperhead + R.A.T 9
Keyboard Ideazon Zboard + Optimus Maximus. Logitech G13.
Software w10 Pro x64.
Benchmark Scores pppft, gotta see it to believe it. . .
#4
Whats with the safety deposit box look on one of the pics ? Maybe thats where you can slap in an optional screen. You wouldnt want a HTPC without the LCD, its something you will always regret infront of a 55" . . . Well atleast i would.

Lian Li make quality products, but i dont think i would opt for the PC-C34F and have to seek a touchscreen display for it when i can just get the Thermaltake DH202 VJ80051N2Z complete. ooOOoo it does German.


Wile E

Power User
Joined
Oct 1, 2006
Messages
24,318 (5.89/day)
Likes
3,682
System Name The ClusterF**k
Processor 980X @ 4Ghz
Motherboard Gigabyte GA-EX58-UD5 BIOS F12
Cooling MCR-320, DDC-1 pump w/Bitspower res top (1/2" fittings), Koolance CPU-360
Memory 3x2GB Mushkin Redlines 1600Mhz 6-8-6-24 1T
Video Card(s) Evga GTX 580
Storage Corsair Neutron GTX 240GB, 2xSeagate 320GB RAID0; 2xSeagate 3TB; 2xSamsung 2TB; Samsung 1.5TB
Display(s) HP LP2475w 24" 1920x1200 IPS
Case Technofront Bench Station
Audio Device(s) Auzentech X-Fi Forte into Onkyo SR606 and Polk TSi200's + RM6750
Power Supply ENERMAX Galaxy EVO EGX1250EWT 1250W
Software Win7 Ultimate N x64, OSX 10.8.4
#5
Whats with the safety deposit box look on one of the pics ? Maybe thats where you can slap in an optional screen. You wouldnt want a HTPC without the LCD, its something you will always regret infront of a 55" . . . Well atleast i would.

Lian Li make quality products, but i dont think i would opt for the PC-C34F and have to seek a touchscreen display for it when i can just get the Thermaltake DH202 VJ80051N2Z complete. ooOOoo it does German.
It's a door for the hot-swap hard drive bays.


HaZe303

New Member
Joined
Feb 12, 2006
Messages
305 (0.07/day)
Likes
3
Location
Sweden (08-Stockholm)
System Name Desktop PC & HTPC
Processor Intel Core i7 920@4.0ghz & Intel Q9450@3.6ghz
Motherboard Asus P6T Deluxe V2 & Asus P5Q-E
Cooling CPU: TRUE w/Noctua P12 Fan & TR Ultima-90I
Memory Corsair XMS 1900mhz & OCZ Reaper 8gb@900mhz
Video Card(s) Gigabyte GTX460OC1GB SLIx2 @840/1680/2000mhz & ATI HD5870@1000/1300mhz + XFX 9800GT PhysX
Storage 3xSamsung TB1 F1@raid0, 2xOCZ SSD@Raid0, and several others..
Display(s) FS LSL 3260W 26" LCD@1920x1200 & LG 37" HDTV@1360x768
Case Silverstone TJ09B (WINDOW DIY) & Silverstone LC17
Audio Device(s) Realtek HD 5.1 DolbySurround & X-FI Titanium Fatal1ty Pro
Power Supply ThermalTake ToughPower 1200W & Corsair TX650W
Software Windows 7 Ultimate x64 RT7Lite x64 & x86.
#7
Really nice, I want something better than my old Silverstone LC17, one of these would be perfect for me to swap for...

Joined
Nov 2, 2008
Messages
767 (0.23/day)
Likes
414
Processor Intel Core i3-4370
Motherboard Gigabyte GA-H97-D3H
Cooling Zalman CNPS9500 AT
Memory 16GB Crucial Ballistix Sport DDR3-1600
Video Card(s) Gigabyte GV-N75TOC-2GI GeForce GTX 750 Ti WindForce
Storage Crucial MX100 256GB SSD
Display(s) Dell S2316M LCD
Case Fractal Design Define R4 Black Pearl
Audio Device(s) Realtek ALC1150
Power Supply Corsair CX600M
Mouse Logitech M500
Keyboard Lenovo KB1021 USB
Software Windows 10 Professional x64
#8
"Unique Profile HTPC Chassis"? They're mid-tower cases lying on their side, with the drive bays turned 90 degrees to be horizontal -- nothing unique about that. The fringe benefit is they have good expansion and good cooling from all that extra space.

Manufacturer's suggested retail price: PC-C33, $160 USD; PC-C34F, $255 USD. Nothing unique about their prices, either (typical Lian Li overpricing).
