MSI Big Bang MPower Motherboard Series Detailed

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#1
Late last week, we came across teaser pictures of a certain new Big Bang series motherboard. Our source didn't reveal its name, but mentioned that we were close in guessing its name to be "ZPower", which we admitted we could go wrong with. It turns out that the new line is named "MPower", and includes not just a new socket LGA1155 motherboard, the Z77 MPower, but also a new LGA2011 one, the X79 MPower. The two are beefed-up versions of the Z77A-GD65 and X79A-GD65 (8D), respectively, with stronger CPU VRM, relaxed warranties that are overclocker-friendly, and a new black+yellow color-scheme, which is consistent with that of its Lightning series graphics cards (such as the R7970 Lightning).

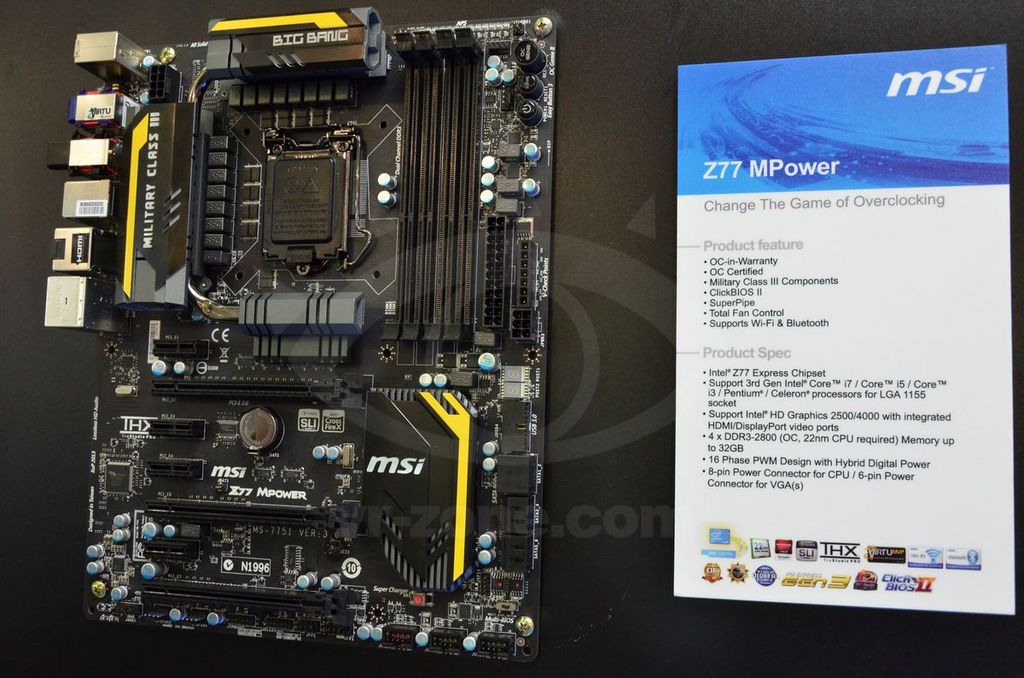

The Z77 MPower packs a 16-phase CPU VRM, which is stronger than that of the Z77A-GD80. The board draws power from a 6-pin PCIe power connector, apart from the usual 24-pin ATX and 8-pin EPS, which adds electric stability to deal with high-power graphics cards. The VRM is backed by several diagnostic LEDs, and voltage measurement points. The expansion slot arrangement is carried over from the Z77A-GD65, with three PCI-Express 3.0 x16 (x8/x4/x4-capable), and four PCI-Express 2.0 x1. Its connectivity is augmented with 802.11 b/g/n WLAN and Bluetooth. Apart from these, the Z77 MPower is largely identical to the Z77A-GD65.

Next up is the X79 MPower, MSI's latest socket LGA2011 motherboard. The X79 MPower packs a 9+2 phase CPU VRM, which draws power from two 8-pin EPS connectors. In terms of OC-friendly features and options it is largely similar to the Z77 MPower. Barring two additional SATA 6 Gb/s ports, 802.11 b/g/n, and Bluetooth, the X79 MPower is largely identical to the X79A-GD65 (8D). From these, one can deduce that the Z77 MPower will be priced somewhere between the Z77A-GD65 and Z77A-GD80 (which will be priced high due to its expensive Thunderbolt controller), while the X79 MPower will be priced between the X79A-GD65 (8D) and Big Bang XPower II (which is costlier due to a heavier package).

Source: VR-Zone Chinese

Joined
Oct 26, 2011
Messages
3,121 (1.37/day)
Likes
892
Processor Ci7 5960X
Motherboard RVE
Cooling Triple Aquacomputer AMS 840 with D5
Memory Some random DDR4
Video Card(s) GTX 1080 Ti
Storage 960 EVO
Display(s) Dell U3011 2560x1600 + Dell 2408WFP 1200x1920 (Portrait)
Case Dimastech Bench EasyXL
Audio Device(s) Essence STX
Power Supply AX 1500i
Software Win10
#2
This is what I want to see from MSI!!
This motherboard is beautiful, you hear me Neliz? AWESOME :) :toast:

Joined
Apr 8, 2012
Messages
166 (0.08/day)
Likes
68
Location
Canada
System Name custom
Processor intel 3930K @ 4.5ghz
Motherboard Asus Rampage iv BE
Cooling zalman CNPS12X
Memory 16G Kingston HYPERX 1866mhz
Video Card(s) GTX 690 EVGA
Storage SSD OCZ 240GO REVODRIVE3 X2
Display(s) BENQ XL2420T
Case Corsair 900D
Audio Device(s) Asus Xonar Essence STX
Power Supply corsair ax1200i
Software windows 7
#3
This is what I want to see from MSI!!
This motherboard is beautiful, you hear me Neliz? AWESOME :) :toast:
I agree with u, cute mobo
:love:

Joined
Oct 7, 2007
Messages
15,007 (3.99/day)
Likes
2,940
Location
In a library somewhere on this earth
System Name Haru
Processor i7 3770k @ 4.5ghz
Motherboard Biostar Tz77xme4
Cooling Koolance C370si loop
Memory 8gb G. Skill Trident X 2400mhz at 10-11-11-28
Video Card(s) XFX Double D 7950 / Zotac 620 for physx
Storage Samsung 830 128gb (os)Muskin Chronos 120gb, Pyro 120gb
Display(s) Viewsonic VX2450WM-LED 24" & Hanns G 28"
Case Cooler Master Cosmos II
Audio Device(s) Auzentech X-fi Forte 7.1 Opamp modded
Power Supply Silverstone Strider Plus 1000w pp05 cables
Software Win7 Pro64
Benchmark Scores i5 750 4.62ghz pi runs // Evga FTW p55
#4
Nice board, but the 24pin connector should of been closer to the edge of the board.. now you gotta work on slack with it so the 6pin and mobo Volt leads can be accessable to the end user needing it..

Joined
Jun 27, 2011
Messages
5,629 (2.35/day)
Likes
2,986
Processor Intel I7 4790k (stock)
Motherboard ASRock H97M-ITX/ac LGA 1150 Intel H97
Cooling Prolimatech megahalem
Memory Crucial 2x4gb 1600mhz
Video Card(s) EVGA 1060 3gb
Storage OWC Mercury SSD 240 GB
Display(s) Asus 144hz
Case Raijintek Metis
Power Supply Corsair SF600 600w psu
Software Windows 10 64 Bit
#5
I'll take one...
So military class 3... I have military class 2... Is there any difference? I just can't imagine them moving up the scale of quality component by a lot to signify a change to 3.

Joined
Jan 20, 2012
Messages
73 (0.03/day)
Likes
24
#6
The MPower boards (will BMW complain?) are close to the color scheme I'm looking for: Similar to my Foxconn A7DA-S 3.0 with Alternating Black and Yellow slots. If MSI was to make a small revision of these boards with that scheme, I'd buy one in a heartbeat.

Sure I could go for a Black/Red/White, Blue/Black/White, or Black/Orange board, but I have fallen in love with my board's colors.

Joined
Aug 13, 2010
Messages
3,192 (1.17/day)
Likes
1,638
System Name kom pu tor
Processor Core i7 8700K 5Ghz
Motherboard Gigabyte Z370 Ultra Gaming
Cooling Custom 240MM WC loop
Memory G.Skill RipJawsZ 2666Mhz 16GB
Video Card(s) Palit GTX 1080 Jetstream
Storage A salad of SSDs
Case Corsair Air 540
Power Supply Antec Egde 750W
Mouse Logitec G400
Keyboard Cougar 600K
#7
Looks like a juicy board i'd like to get my hands on


popswala

New Member
Joined
May 29, 2009
Messages
2,257 (0.71/day)
Likes
934
Location
Conway, AR
System Name Deep Space // Black Mystery
Processor AMD Phen II X4 945 oc'd 3.4GHz // I7 870 oc'd 4.0GHz
Motherboard Gigabyte 990FXA-UD7 AM3+ // MSI P55-GD80
Cooling Corsair H50 w/ x2 gelid wing blue 120mm // Tt Frio OCK
Memory G. Skill Snipers DDR3 1600 2x4GB // G.Skill Tridents DDR3 2000 2x2GB
Video Card(s) eVGA GTX 275 // eVGA GTX 460 SC 768mb oc'd (830/1620/2000
Storage Seagate 1TBx2 7200.12 /1.5TB/500GB/750GB // Mushkin Collistro 60GB
Display(s) LG 23" 2353v-pf 1920x1080p // None
Case Tt Chazer MK-1 // NZXT Phantom black modded
Audio Device(s) Logitech G51 5.1 // None
Power Supply Cooler Master Silent Pro Hybrid 850w // Corsair HX1000W
Software Win 7 Ult X64 // Win 7 Ult X64
Benchmark Scores Crunching & Folding 24/7 Help Save Lives!!!
#8
That black/yellow theme is sexy. I want one really bad. Why not wire the pcie 3.0 16/16/16? Then we can take full force to anything we through at it. Is this not a gaming line but just focused towards oc'ing?

Joined
Jun 19, 2009
Messages
14 (0.00/day)
Likes
3
System Name Desktop PC
Processor Intel Core i7 2700K
Motherboard Asus P8P67 WS Revolution
Cooling Noctua NH-D14 with 2x NF-P14 FLX
Memory Kingston HyperX Genesis 1600 MHz 16 GB
Video Card(s) PowerColor Radeon HD4850 512 MB GDDR3 @ Stock Settings
Storage Crucial M4 C400 128 GB
Display(s) Dell U2311H + Samsung T220
Case Fractal Design Define XL
Audio Device(s) Asus Xonar Essence STX
Power Supply Corsair HX520
Software Windows 7 x64 Professionnal
#9
Finally some competition to my P8P67 WS Revolution / P8Z77 WS ! =)

Joined
Oct 6, 2004
Messages
395 (0.08/day)
Likes
251
Location
New Taipei City, Taiwan
#11
I'll take one...
So military class 3... I have military class 2... Is there any difference? I just can't imagine them moving up the scale of quality component by a lot to signify a change to 3.
Hey James,

Actually no, the tests are the same, but it involves the components we test. For Military Class III, we test the DrMOS II & CopperMOS parts as well. So in the end, we're slowly but surely expanding the components in the testing and certification process.
DrMOS II's difference versus the previous DrMOS implementation is the inclusion of Temperature sensor and Over Thermal Protection. (http://mc3.msi.com)

That black/yellow theme is sexy. I want one really bad. Why not wire the pcie 3.0 16/16/16? Then we can take full force to anything we through at it. Is this not a gaming line but just focused towards oc'ing?
I hope I can explain this simply.. the MPower is a product aimed at a much better price than current "OC" boards. By not having Thunderbolt or a PLX chip on there we can ensure the price is really good (and I hope it's really, really good once I get the confirmation.) My first bet would be around or below €200.

If you want full 16/16/16/16 we have our board for that, but most of the benching is done on single CPU single GPU setups and that is where the Z77 MPower will shine (X79 MPower for Dual/Triple x16 setups of course.) Even though MSI currently has the highest score in 3DMark 11 Performance single GPU with Ivy Bridge (link: Z77A-GD65 + R7970 Lightning) I believe that a better score can (and probably will) be set with a X79 + 7970 Lightning setup.

Btw, yeah, that's faster than a 1957 MHz 680 on X79 :p

Gaming wise, I don't think you'll find much lacking as this board is also focused at 24/7 CPU OC support and with current gen graphics I think Gen3 x8/x8 or single x16 is enough for everything that is coming out this year as we have 680/690's out and probably soon a dual 7970.

Last edited:

cadaveca

My name is Dave
Staff member
Joined
Apr 10, 2006
Messages
16,581 (3.85/day)
Likes
10,951
Location
Parkland County, Alberta
#12
Gaming wise, I don't think you'll find much lacking as this board is also focused at 24/7 CPU OC support and with current gen graphics I think Gen3 x8/x8 or single x16 is enough for everything that is coming out this year as we have 680/690's out and probably soon a dual 7970.
Great, I'll take all three. :p

Someone needs to show how to build 24-oc rigs, anyway, rather than just benching. ;)

Joined
Jun 27, 2011
Messages
5,629 (2.35/day)
Likes
2,986
Processor Intel I7 4790k (stock)
Motherboard ASRock H97M-ITX/ac LGA 1150 Intel H97
Cooling Prolimatech megahalem
Memory Crucial 2x4gb 1600mhz
Video Card(s) EVGA 1060 3gb
Storage OWC Mercury SSD 240 GB
Display(s) Asus 144hz
Case Raijintek Metis
Power Supply Corsair SF600 600w psu
Software Windows 10 64 Bit
#14
Hey James,

Actually no, the tests are the same, but it involves the components we test. For Military Class III, we test the DrMOS II & CopperMOS parts as well. So in the end, we're slowly but surely expanding the components in the testing and certification process.
DrMOS II's difference versus the previous DrMOS implementation is the inclusion of Temperature sensor and Over Thermal Protection. (http://mc3.msi.com)
So each subsequent military class number is more components that fall under military testing specification and what not, not better and better components?

Joined
Oct 6, 2004
Messages
395 (0.08/day)
Likes
251
Location
New Taipei City, Taiwan
#15
So each subsequent military class number is more components that fall under military testing specification and what not, not better and better components?
That's the difference between MC3 and MC2, before that we switched to more efficient and powerful chokes with the transition from Military Class to Military Class II.

Actually, on graphics there IS a change of components, but it's not like we have set a standard definition like "version 4 needs xxx, version 5 needs xxx" we change when necessary.
