MSI GT70 SuperRAID Solution Pictured, Tested

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,321 (9.23/day)
Likes
17,423
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1
MSI released pictures and performance numbers of its in-house SuperRAID storage design that's implemented in its GT70 gaming notebook. The GT70 has two drive bays, one of which holds a 500 GB WD Scorpio Black hard drive, and the other, the SuperRAID module. The hard drive is tasked with just storage and a system recovery partition, while the SuperRAID module is where the action is.

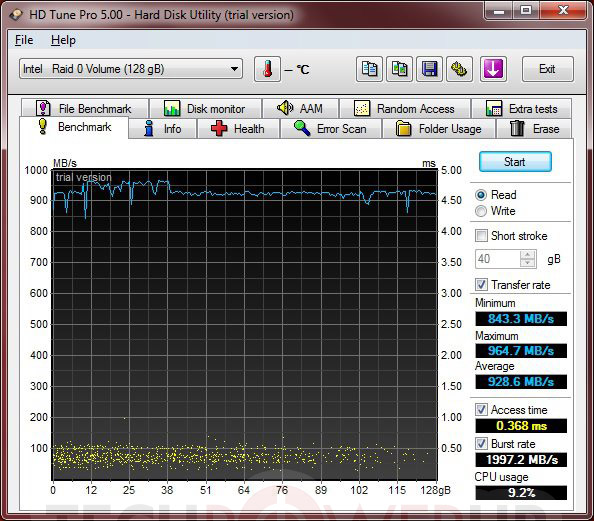

Simply put, the SuperRAID module is a PCB with a RAID controller, and two mSATA 6 Gb/s slots. Each of these slots holds a SanDisk U100 64 GB mSATA SSD. Each of these SSDs come with rated sequential transfer rates as high as 440 MB/s (reads) with 220 MB/s (writes), but striped in RAID 0, the volume churns out tested transfer rates as high as 964 MB/s (max. read), 928 MB/s (avg. read), and 843 MB/s (min. read), when tested by HDTune Pro 5.00. The SuperRAID module is bootable, and holds the operating system and programs. MSI claims with transfer speeds well over 900 MB/s, it has the fastest storage solution among gaming notebooks.
