MSI P55 Motherboard Pictured

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,496 (9.18/day)
Likes
17,519
Location
Hyderabad, India
#1

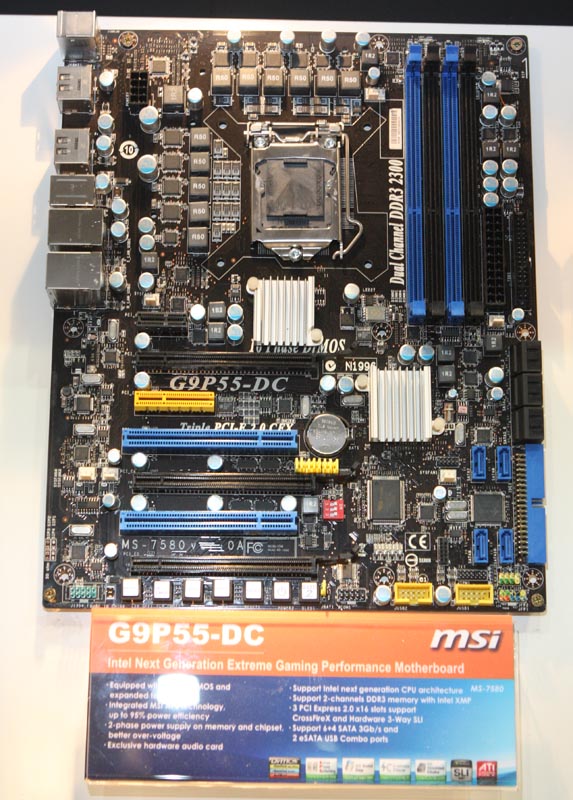

MSI will be one of the first motherboard manufacturers to design one based on Intel's upcoming P55 chipset, supporting Intel's upcoming Core i5 series processors, using the LGA-1156 socket design. Boy, is this one interesting board. Pictured by Hardware-Aktuell, the MSI G9P55-DC picture shows perhaps the first picture of a fully-assembled LGA-1156 socket, with its complete retention mechanism in place.

The CPU is fuelled by two independent 6-phase power circuits. Four DDR3 DIMM slots support dual-channel memory. Storage comes in the form of six SATA II ports routed to the P55 chip, with four (blue) SATA II ports and an IDE connector courtesy of an additional controller. The board features two PCI slots, a PCI-E x1 slot to hold a "hardware" sound card (part of the package), an open-ended PCI-E x4 slot and three PCI-E 2.0 x16 slots. In case you're wondering how the 16 PCI-E lanes the CPU ends up sparing for graphics ends up into a 3-Way SLI supportive solution, take a look at what would trick you for a southbridge. That, infact is the NVIDIA BR-03 chip. It can provide two PCI-E x16 links, or PCI-E x16, x8, x8 connections to the three slots, much like in the nForce 780a SLI solutions for the AMD platform. Let the puny chipset heatsinks not fool you either. This board is pre-production and its release-grade version will feature an MSI-made cooling solution that cools the chipset and the rather crowded VRM area. We will learn more about this board as CeBIT progresses.



Source: Hardware-Aktuell


h3llb3nd4

New Member
Joined
Feb 15, 2009
Messages
3,323 (1.02/day)
Likes
299
Location
Durban, South Africa
System Name My mobo is Laughing at me
Processor E7400
Motherboard P5KPL-E Bios flashed to 0601 (Piece of poo!!)
Cooling Thermalright Ultra 120a
Memory GENERIC 2 GB DDR2 800
Video Card(s) NONE!! Beat that!!
Storage 500GB SAMSUNG SATAII, 250GB SAMSUNG SATAII and o'l crappy 4gb maxtor
Display(s) ACER X223W Q
Case AEROCOOL ZERODEGREE (planning to mod)
Audio Device(s) REALTEK ONBOARD
Power Supply GIGABYTE 460W
Software Win 7 x86 build 7022
Benchmark Scores Super Pi 1m 17.000 :(
#3
No likey


DrPepper

The Doctor is in the house
Joined
Jan 16, 2008
Messages
7,482 (2.04/day)
Likes
799
Location
Scotland (It rains alot)
System Name Rusky
Processor Intel Core i7 D0 3.8Ghz
Motherboard Asus P6T
Cooling Thermaltake Dark Knight
Memory 12GB Patriot Viper's 1866mhz 9-9-9-24
Video Card(s) GTX470 1280MB
Storage OCZ Summit 60GB + Samsung 1TB + Samsung 2TB
Display(s) Sharp Aquos L32X20E 1920 x 1080
Case Silverstone Raven RV01
Power Supply Corsair 650 Watt
Software Windows 7 x64
Benchmark Scores 3DMark06 - 18064 http://img.techpowerup.org/090720/Capture002.jpg
#4
This board looks nuts.

The cmos battery is right under a pci-e slot and if you need to take it out for any reason you'd need to take a gpu out and I had to do that with my last board more than I thought.

As fits says the buttons are in the wrong place and would 1366 coolers work on this ?


Fitseries3

Eleet Hardware Junkie
Joined
Oct 6, 2007
Messages
15,508 (4.12/day)
Likes
2,977
Location
Republic of Texas
#5
p55 uses a 76mm hole spacing last i heard.

maybe they changed since then... i dont see why they couldnt use the 72mm that 775 uses or the 80mm that 1366 uses. having 5 different hole spacings is kinda retarded.


DrPepper

The Doctor is in the house
Joined
Jan 16, 2008
Messages
7,482 (2.04/day)
Likes
799
Location
Scotland (It rains alot)
System Name Rusky
Processor Intel Core i7 D0 3.8Ghz
Motherboard Asus P6T
Cooling Thermaltake Dark Knight
Memory 12GB Patriot Viper's 1866mhz 9-9-9-24
Video Card(s) GTX470 1280MB
Storage OCZ Summit 60GB + Samsung 1TB + Samsung 2TB
Display(s) Sharp Aquos L32X20E 1920 x 1080
Case Silverstone Raven RV01
Power Supply Corsair 650 Watt
Software Windows 7 x64
Benchmark Scores 3DMark06 - 18064 http://img.techpowerup.org/090720/Capture002.jpg
#6
p55 uses a 76mm hole spacing last i heard.

maybe they changed since then... i dont see why they couldnt use the 72mm that 775 uses or the 80mm that 1366 uses. having 5 different hole spacings is kinda retarded.
Oh dear lawd.

Joined
Jun 10, 2005
Messages
1,769 (0.38/day)
Likes
96
Location
Singapore
Processor Intel Core i7 2600k 3.40Ghz @ 4.50Ghz
Motherboard Gigabyte P67 UD7 B3
Cooling Antec Kuhler H2O 920
Memory G.Skill RipjawsX DDR3 4GB X2 1600Mhz (Model F3-12800CL7Q-8GBXM)
Video Card(s) Powercolor R9 290 (Stock)
Storage Samsung 840 Pro 256GB / Western Digital Black Cavier 2TB X2
Display(s) Dell U2715H 2560X1440
Case NZXT Phantom
Audio Device(s) Creative Sound Blaster Recon3D Fatal1ty Professional
Power Supply Cooler Master Silent Pro Gold 1000W
Mouse Logitech G510
Keyboard Tesoro Excalibur Spectrum
Software Microsoft Windows 10 Professional
#7
It seems that P55 is the intel killer to me. i7 core isn't REALLY that expensive. I mean look at the change in sockets. It's like X58 = i7. Now you can't go i5 if you had an X58 chipset. That's so monopolizing. And removal of Triple channel, that's so fucking retarded. :shadedshu

Joined
May 17, 2008
Messages
405 (0.11/day)
Likes
47
Location
Bulgaria
System Name HAF
Processor i5 3570k @ 4.2GHz
Motherboard AsRock Z77 EXTREME 4
Cooling XIGMATEK HDT-SD964
Memory 2 x 4GB Corsair Vengance 1600MHz
Video Card(s) EVGA GTX670 FTW
Storage Seagate 250GB
Display(s) LG 24' + Samsung 22'
Case HAF 922
Power Supply CoolerMaster GX750W
Software Windows 7 x64
#8
No more LGA775? :wtf:

Joined
Feb 27, 2009
Messages
56 (0.02/day)
Likes
1
#9
I think i5 is supposed to replace c2d. There isn't a point though unless they make cheap p55 mobo's.

Joined
May 17, 2008
Messages
405 (0.11/day)
Likes
47
Location
Bulgaria
System Name HAF
Processor i5 3570k @ 4.2GHz
Motherboard AsRock Z77 EXTREME 4
Cooling XIGMATEK HDT-SD964
Memory 2 x 4GB Corsair Vengance 1600MHz
Video Card(s) EVGA GTX670 FTW
Storage Seagate 250GB
Display(s) LG 24' + Samsung 22'
Case HAF 922
Power Supply CoolerMaster GX750W
Software Windows 7 x64
#10
so core i5 will support only ddr3?


DrPepper

The Doctor is in the house
Joined
Jan 16, 2008
Messages
7,482 (2.04/day)
Likes
799
Location
Scotland (It rains alot)
System Name Rusky
Processor Intel Core i7 D0 3.8Ghz
Motherboard Asus P6T
Cooling Thermaltake Dark Knight
Memory 12GB Patriot Viper's 1866mhz 9-9-9-24
Video Card(s) GTX470 1280MB
Storage OCZ Summit 60GB + Samsung 1TB + Samsung 2TB
Display(s) Sharp Aquos L32X20E 1920 x 1080
Case Silverstone Raven RV01
Power Supply Corsair 650 Watt
Software Windows 7 x64
Benchmark Scores 3DMark06 - 18064 http://img.techpowerup.org/090720/Capture002.jpg
Joined
Apr 28, 2007
Messages
1,187 (0.30/day)
Likes
100
Location
Redmond, WA
System Name NORMANDY
Processor Intel Core i7 4930K @ 4.5GHz
Motherboard ASUS P9X79 WS
Cooling Corsair H75
Memory 16GB G.SKILL (2x F3-2400C11D-8GXM) @ 2333 Quad CH
Video Card(s) ASUS GTX 1080 STRIX
Storage Intel 750 Series 400GB PCIe + 6TB WD Black
Display(s) LG 34UC87M-B 34" Ultrawide - 3440x1440 + Dell 2407WFP
Case CM Stacker 832 + 10x120mm CM TLF-S12-EB
Audio Device(s) Onboard
Power Supply Seasonic X-760 Gold
Mouse Logitech G403 Wirelesss Mass Effect Andromeda Edition / Plugable USB-PM3360
Keyboard Too many to list: Mostly all custom mechanical builds.
Software Windows 10 Pro Insider Preview
Benchmark Scores https://www.3dmark.com/3dm/24264112
#12
p55 uses a 76mm hole spacing last i heard.

maybe they changed since then... i dont see why they couldnt use the 72mm that 775 uses or the 80mm that 1366 uses. having 5 different hole spacings is kinda retarded.
Yea its quite annoying.


ShadowFold

New Member
Joined
Dec 23, 2007
Messages
16,919 (4.59/day)
Likes
1,622
Location
Omaha, NE
System Name The ShadowFold Draconis (Ordering soon)
Processor AMD Phenom II X6 1055T 2.8ghz
Motherboard ASUS M4A87TD EVO AM3 AMD 870
Cooling Stock
Memory Kingston ValueRAM 4GB DDR3-1333
Video Card(s) XFX ATi Radeon HD 5850 1gb
Storage Western Digital 640gb
Display(s) Acer 21.5" 5ms Full HD 1920x1080P
Case Antec Nine-Hundred
Audio Device(s) Onboard + Creative "Fatal1ty" Headset
Power Supply Antec Earthwatts 650w
Software Windows 7 Home Premium 64bit
Benchmark Scores -❶-❸-❸-❼-
#13
What's wrong with 1366? I really hope having two different sockets for each market doesn't become a trend. At least with 775 you could go from a E5200 to a Q9650 on the same motherboard. This leaves i5 users with no upgrade path...

Joined
Jun 10, 2005
Messages
1,769 (0.38/day)
Likes
96
Location
Singapore
Processor Intel Core i7 2600k 3.40Ghz @ 4.50Ghz
Motherboard Gigabyte P67 UD7 B3
Cooling Antec Kuhler H2O 920
Memory G.Skill RipjawsX DDR3 4GB X2 1600Mhz (Model F3-12800CL7Q-8GBXM)
Video Card(s) Powercolor R9 290 (Stock)
Storage Samsung 840 Pro 256GB / Western Digital Black Cavier 2TB X2
Display(s) Dell U2715H 2560X1440
Case NZXT Phantom
Audio Device(s) Creative Sound Blaster Recon3D Fatal1ty Professional
Power Supply Cooler Master Silent Pro Gold 1000W
Mouse Logitech G510
Keyboard Tesoro Excalibur Spectrum
Software Microsoft Windows 10 Professional
#14
What's wrong with 1366? I really hope having two different sockets for each market doesn't become a trend. At least with 775 you could go from a E5200 to a Q9650 on the same motherboard. This leaves i5 users with no upgrade path...
That's what i meant how retarded they are. They're going for those BUDGET On motherboard to be on processor as well. It's gonna ruin everything and their sad market, espically with the recession now.BOOOOO
