Need help with Dell 7520 SE

FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
I was researching software to flash both BIOSes of my Dell 7520 SE which has AMD ATI Radeon HD 7730M integrated with Intel Graphics HD 4000. The motherboard had never come across such robust and complex hardware as this notebook and although it is still alive, the 7730M seems to have corrupted the BIOS or was mistakenly changed by the previous owner,

with no history of what really happened and I am faced with problems in the hardware preventing me from running its maximum performance and even continuing to update the system. I have been trying for several days to understand how it works and some means of repair by software or commands, seen and even in Linux it does not recognize it as a graphics accelerator but rather ASIC R600 being R576 in the INF section I believe it has been modified for other more profitable purposes than games, without knowing I am looking to undo it simply to move forward with updating its OS, I realize now that I may have a portable miner and wanting to go back to the graphics, but the reason for writing to you here is that in all this searching I found something that might help in something which is the original download of the Insydeflash BIOS AMD Developer Center on the website of one of its partners Insyde Software which seems to work for both in my search now remains to find the said original BIOS of the 7730M because even without some parameters in GPU-Z it seems to work for a certain purpose still unknown to me. And I will also take a look at the links that I found indicated here and I hope that I can also resolve your doubts and uncertainties you are on the right track do not be afraid just be prudent in reading everything well! Thank you for sharing your experience helped a lot!


Attachments

  • iFDPacker User Guide Rev0.2.pdf
    226.3 KB · Views: 55
Last edited:
Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
I could be wrong but Insyde is used for motherboard bios and not the graphics card bios.

Do you see an error with device manager for the 7730M? If the device is installed without an error code like 43 you can assume GPU-Z is unable to detect the card properly.


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
I could be wrong but Insyde is used for motherboard bios and not the graphics card bios.

Do you see an error with device manager for the 7730M? If the device is installed without an error code like 43 you can assume GPU-Z is unable to detect the card properly.
That's right, Insyde is the one who manages the BIOSes of several motherboard manufacturers, but it also has a partnership with AMD, which makes you mistaken, not wrong. If you click on the link, you will verify this correctly



Error 43 is present, can you guide me on what to do to resolve it? Thank you for your attention to my search, sir! Yes.

Last edited by a moderator:
Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
That's right, Insyde is the one who manages the BIOSes of several motherboard manufacturers, but it also has a partnership with AMD, which makes you mistaken, not wrong. If you click on the link, you will verify this correctly


View attachment 364453
Error 43 is present, can you guide me on what to do to resolve it? Thank you for your attention to my search, sir! Yes.
Can you dump the bios with GPU-Z and share it with us?

Joined
Nov 19, 2005
Messages
767 (0.11/day)
Location
GA, USA
System Name Gamer
Processor Ryzen 7 5800X3D
Motherboard Gigabyte X570 Aorus Elite WIFI
Cooling Apogee XL, MCR360, MCP655, Micro-rez
Memory 2x16GB G.Skill DDR4-3600 CL16
Video Card(s) Red Dragon RX 6800 XT
Storage WD SN850 1TB & SN750 1TB
Display(s) LG 32GK650F-B 32" 1440p 144Hz
Case Rocketfish (Lian Li) e-ATX
Audio Device(s) Harman Kardon HK695 2.1
Power Supply Seasonic Focus GM-750
Mouse HP Gaming wired
Keyboard Logitech G110 wired
VR HMD HP WMR 1440^2
Software Win10 Pro 64bit

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I was researching software to flash both BIOSes of my Dell 7520 SE which has AMD ATI Radeon HD 7730M integrated with Intel Graphics HD 4000. The motherboard had never come across such robust and complex hardware as this notebook and although it is still alive, the 7730M seems to have corrupted the BIOS or was mistakenly changed by the previous owner,

with no history of what really happened and I am faced with problems in the hardware preventing me from running its maximum performance and even continuing to update the system. I have been trying for several days to understand how it works and some means of repair by software or commands, seen and even in Linux it does not recognize it as a graphics accelerator but rather ASIC R600 being R576 in the INF section I believe it has been modified for other more profitable purposes than games, without knowing I am looking to undo it simply to move forward with updating its OS, I realize now that I may have a portable miner and wanting to go back to the graphics, but the reason for writing to you here is that in all this searching I found something that might help in something which is the original download of the Insydeflash BIOS AMD Developer Center on the website of one of its partners Insyde Software which seems to work for both in my search now remains to find the said original BIOS of the 7730M because even without some parameters in GPU-Z it seems to work for a certain purpose still unknown to me. And I will also take a look at the links that I found indicated here and I hope that I can also resolve your doubts and uncertainties you are on the right track do not be afraid just be prudent in reading everything well! Thank you for sharing your experience helped a lot!
Please get hwinfo64 and lets see what motherboard is in this thing please

Low quality post by eidairaman1

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Guess he bailed


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
Last edited by a moderator:

FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
Please get hwinfo64 and lets see what motherboard is in this thing please
Oh yes, it helped in MB and this is: DELL 0DNMM8. But what a well done little program brother, I enjoyed reading everything up until EC, I also got an update on the website which I believe had some effect on this.

Last edited:
Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
I'm not saying that it doesn't work for me, HWiNfO read it, but not even AMD flashwin reads it:

View attachment 366294
It is soldered on the motherboard and not an MXM card:

Try to downgrade/upgrade the motherboard bios since that will likely contain a part for the vga. If that doesnt work, it is broken.


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
It is soldered on the motherboard and not an MXM card:

Try to downgrade/upgrade the motherboard bios since that will likely contain a part for the vga. If that doesnt work, it is broken.
But how can it be broken if it is detected by Windows and HWiNFO? even error 43 disappears when deactivating and activating it again in the device manager, it runs games and everything else, what I think is that either they forced it to work as an ASIC and stopped reading it or it really is some protection that was activated at some point, everything I see Seeing it leads me to believe that the problem is software, not hardware!

Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
But how can it be broken if it is detected by Windows and HWiNFO? even error 43 disappears when deactivating and activating it again in the device manager, it runs games and everything else, what I think is that either they forced it to work as an ASIC and stopped reading it or it really is some protection that was activated at some point, everything I see Seeing it leads me to believe that the problem is software, not hardware!
Software reading is no guarantee it is correct. Also error 43 often points to a hardware failure.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,369 (6.65/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
But how can it be broken if it is detected by Windows and HWiNFO? even error 43 disappears when deactivating and activating it again in the device manager, it runs games and everything else, what I think is that either they forced it to work as an ASIC and stopped reading it or it really is some protection that was activated at some point, everything I see Seeing it leads me to believe that the problem is software, not hardware!
Put Win 7 on it

Joined
Oct 7, 2024
Messages
3 (0.05/day)
Location
United States
System Name bigboi
Processor AMD Ryzen 9 5950X
Motherboard ASUS TUF B550M-PLUS
Cooling Thermalright AXP120-X67
Memory 48GB DDR4-3600, half-Corsair/half-PNY
Video Card(s) MSI GeForce RTX 2060 12GB
Storage Samsung 990 1TB, Samsung 980 1TB, Seagate 2TB
Display(s) ViewSonic A75f
Case HP Pavilion 540n Sleeper!
Audio Device(s) Sennheiser 599 SE
Power Supply XPG Core Reactor II 650W
Mouse Razer Viper Mini
Keyboard Razer BlackWidow Chroma
Software Winders 11
Hello,

Have you installed the original Dell drivers for the unit? I've found with the Inspiron 7520 SE in particular (tested across 3 or 4 different units) that they don't take very kindly to the Windows Update inbox drivers, and commonly have BSODs. This may be causing your Code 43's here. If it doesn't work with the Dell drivers though I'd consider it a faulty GPU. But please give those a shot first. I hope that this helps!


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
Software reading is no guarantee it is correct. Also error 43 often points to a hardware failure.
I understand, even so I believe it is a problem related to the motherboard's BIOS which is not allowing reading for some reason or configuration, as there is no battery it is preventing the update naturally, I am looking for forced ways since I got the .fd file from BIOS or almost buying another card, but there is no guarantee that it will work or solve it, the strangest thing is that the atiflash says that it is not a VBIOS on the adapter but a SIF which makes me think that it was changed in some way, I tested some versions of GPU-Z that still did some more reading than the current version but without success in extracting the BIOS, I have it in text extracted by CPU-z, is there any use? Grateful!

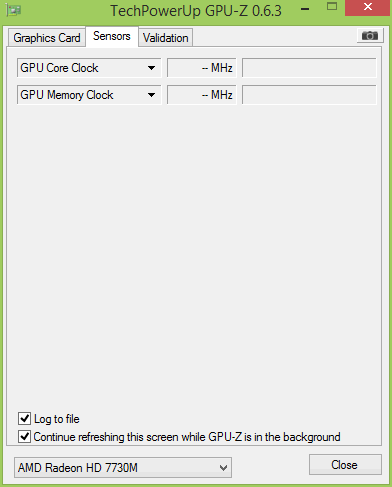

sps063info.gifsps063sensor.gifsps078info.gifsps078sensor.gifsps260info.gifsps260sensor.gif
Put Win 7 on it
The original system on it is Windows 8, Win7 was the first one I installed and it doesn't allow updating the BIOS with the manufacturer's file, which only works on Wim8 and doesn't work on Win10! Can you be more specific in your help?


Attachments

  • bios7520A11.txt
    288.2 KB · Views: 28
  • vbios7520.txt
    144.2 KB · Views: 20
Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black

FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
Hello,

Have you installed the original Dell drivers for the unit? I've found with the Inspiron 7520 SE in particular (tested across 3 or 4 different units) that they don't take very kindly to the Windows Update inbox drivers, and commonly have BSODs. This may be causing your Code 43's here. If it doesn't work with the Dell drivers though I'd consider it a faulty GPU. But please give those a shot first. I hope that this helps!
I understand, I first installed the original ones, then I updated them to the ones from the update, but even with the originals, 43 was there or 28 if I'm not mistaken, there was a moment when the code was different, I remember, but, your contribution is quite valid! I will do a new formatting soon, with more attention to this!
Thank you for participating!

Joined
Oct 7, 2024
Messages
3 (0.05/day)
Location
United States
System Name bigboi
Processor AMD Ryzen 9 5950X
Motherboard ASUS TUF B550M-PLUS
Cooling Thermalright AXP120-X67
Memory 48GB DDR4-3600, half-Corsair/half-PNY
Video Card(s) MSI GeForce RTX 2060 12GB
Storage Samsung 990 1TB, Samsung 980 1TB, Seagate 2TB
Display(s) ViewSonic A75f
Case HP Pavilion 540n Sleeper!
Audio Device(s) Sennheiser 599 SE
Power Supply XPG Core Reactor II 650W
Mouse Razer Viper Mini
Keyboard Razer BlackWidow Chroma
Software Winders 11
I understand, I first installed the original ones, then I updated them to the ones from the update, but even with the originals, 43 was there or 28 if I'm not mistaken, there was a moment when the code was different, I remember, but, your contribution is quite valid! I will do a new formatting soon, with more attention to this!
Thank you for participating!
Got it. I'd say if you do a format of the hard drive, install original Dell display drivers for both the Intel & AMD cards, and still have issues, I'd strongly suspect the GPU is failing. A BIOS flash certainly is a good idea before we diagnose the board as failed though, so I'd try the above BIOS force flashing instructions that VuurVOS provided, and outside of that, I'd just figure the thing's probably bust unfortunately.

EDIT: Concerning the error shown - double-check that you got a good download of the file. A corrupted download will cause that.


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
Got it. I'd say if you do a format of the hard drive, install original Dell display drivers for both the Intel & AMD cards, and still have issues, I'd strongly suspect the GPU is failing. A BIOS flash certainly is a good idea before we diagnose the board as failed though, so I'd try the above BIOS force flashing instructions that VuurVOS provided, and outside of that, I'd just figure the thing's probably bust unfortunately.

EDIT: Concerning the error shown - double-check that you got a good download of the file. A corrupted download will cause that.
That's right, even without being able to flash the BIOS, I can't declare that it's the faulty board, the problem is a block in the fw, I don't believe I'll be able to solve this because what's causing this is well hidden, possibly in the UEFI, but I don't have it. How do I know if it really is without changing all my work material and whatever it is, it came with the media, the worst part is that my knowledge is little about many things and a large part of it is due to observation and testing, but I will continue to look for an alternative way because The OS manufacturer or administrator has no interest in it working, I will probably be forced to compile everything from the BIOS to the OS in open source to solve this. I don't even know where to start nowadays.

Joined
Mar 20, 2008
Messages
1,825 (0.30/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
That's right, even without being able to flash the BIOS, I can't declare that it's the faulty board, the problem is a block in the fw, I don't believe I'll be able to solve this because what's causing this is well hidden, possibly in the UEFI, but I don't have it. How do I know if it really is without changing all my work material and whatever it is, it came with the media, the worst part is that my knowledge is little about many things and a large part of it is due to observation and testing, but I will continue to look for an alternative way because The OS manufacturer or administrator has no interest in it working, I will probably be forced to compile everything from the BIOS to the OS in open source to solve this. I don't even know where to start nowadays.
Did you try to force a flash from a fresh Windows installation with the bios file located in c:\ instead of c:\windows\system32?


FilhoSenhor

New Member
Joined
Sep 21, 2024
Messages
29 (0.38/day)
Location
Brasil
https://winraid.level1techs.com/t/tool-h20eze-insyde-easy-bios-editor/33332/7
I found this information from Insyde's .fd editor but still studying everything! If anyone understands the subject well and wants to help, I would be grateful, I want to get to the root of the problem and clear up any doubts.

Did you try to force a flash from a fresh Windows installation with the bios file located in c:\ instead of c:\windows\system32?
Extract extracts it without the forceit command, but it does not install even with /nopause /forceit and /forcetype, Also note that even the installer doesn't read the BIOS very strangely, which reinforces my theory that there is some lock preventing it.



Last edited:
