New Microcode for Bloomfield and Gulftown

Joined
Oct 26, 2005
Messages
647 (0.13/day)
Likes
524
#1
HP released a BIOS update for their Z400 Workstation (X58) with a new microcode addressing Meltdown and Spectre (HP Security Bulletin).

Attached below is the new microcode (extracted from HP BIOS) for CPUIDs 106A5 and 206C2 (i7-965, i7-940, i7-920, i7-970, i7-980, i7-990 and Xeons E/L/X/W).

You'll need to inject it somehow (BIOS modding, VMware Microcode Driver).


I tried it on Xeon W3680 and ASUS P6T (modified BIOS with MMTool), works fine, InSpectre reports the system is fully patched.


Attachments

Last edited:
Joined
Jun 8, 2011
Messages
2,952 (1.06/day)
Likes
3,959
Location
Bridgwater, Somerset
System Name Not so complete or overkill
Processor 5960X @ 4.20Ghz @ 1.06v - For Crunching!!
Motherboard MSI X99 Titanium Gaming
Cooling Custom loop with old bits and pieces that I need to replace
Memory G Skill TridentX 3466 non RGB..
Video Card(s) 2 x EVGA GTX 1080 Ti SC Black Edition
Storage Sandisk 120Gb SSD, 2 x 2Tb Sammy 3.5" drives - Need more drives!!
Display(s) 3 x 23" LG IPS panels (can't remember model!!)
Case 10mm thick MDF on plastic risers.. It's kinda a case??
Audio Device(s) Onboard
Power Supply EVGA T2 1200w
Mouse Corsair thingy
Keyboard Corsair thingy
Software Windows 10
Benchmark Scores It's not to bad.. More importantly, it works!!
#2
I did wonder what my Linux box was doing with the CPU update :) I've not noticed anything bad from doing it, but I'll keep an eye :) Thanks for the post! :)


Makrea

New Member
Joined
May 1, 2018
Messages
2 (0.01/day)
Likes
1
#5
That was a substantial performance decrease.
Wasn't expecting that would be so much.

Joined
May 15, 2014
Messages
58 (0.03/day)
Likes
21
#8
The latest variant patch will make performance even worse for older CPUs. Although WSM-SNB-IVB have PCID for switching w/o TLB flush, Windows will only use PCID if the CPU also supports INVPCID introduced with HSW. Edit: Add IBRS and IBPB microcode updates for Spectre & you're looking @ SKL+. I haven't even updated microcode for the memory sinkhole issue on some old W3680 boxes due to performance drop. :D

Last edited:

hat

Enthusiast
Joined
Nov 20, 2006
Messages
20,075 (4.52/day)
Likes
4,211
Location
Ohio
System Name Starlifter :: Dragonfly
Processor i7 2600k :: Athlon II x4 630
Motherboard ASUS P8P67 Pro :: GIgabyte GA-770T-USB3
Cooling Corsair H70 :: Thermaltake Big Typhoon
Memory 2x4GB DDR3 1866 :: 2x1GB DDR3 1333
Video Card(s) 2x PNY GTX1070 :: none
Storage Plextor M5s 128GB, WDC Black 500GB :: Mushkin Enhanced 60GB SSD, WD RE3 1TB
Display(s) Acer P216HL HDMI :: None
Case Antec SOHO 1030B :: Old White Full Tower
Audio Device(s) Onboard - iLive IT153B Soundbar (optical) :: None
Power Supply EVGA 500w 80 Plus :: Wounded Corsair CX600
Software Windows 10 Pro - Plex Server on Dragonfly
Benchmark Scores >9000
#10
Plugging the security holes with molasses... wonder why it seems to work better on newer hardware?

Joined
Jan 3, 2015
Messages
1,088 (0.74/day)
Likes
1,247
System Name Suffering from random access memory loss.
Processor Intel Core i7 980X @ 4.42 GHz (when becnching op to 4.77 GHz)
Motherboard ASUS P6X58D Premium
Cooling Noctua NH-D14 CPU cooler with 3 x noctua nf-f12 industrialppc-3000 pwm 120 MM fans
Memory 12 GB DDR3 CORSAIR 1600 MHz TIMMINGS 9-9-9-24
Video Card(s) EVGA GeForce GTX 1080 Ti SC2 GAMING
Storage 2 x Samsung 950 PRO 256 GB M.2 NVME SSD, Crucial MX300 2 TB SSD, WD RED 4 TB + WD AV-GP 2 TB HDD.
Display(s) 24" SAMSUNG
Case ANTEC TWELVE HUNDRED
Audio Device(s) ONBOARD realtek sound card.
Power Supply THERMALTAKE TOUGHPOWER 1500 WATT
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard LOGITECH G19s
Software WINDOWS 10 PRO 64 BITS
Benchmark Scores https://www.3dmark.com/fs/13514527 https://www.3dmark.com/spy/2333033
#11
Yeah its all good, but as far i have read about. The patch will also reduse performance with up 10 % on old cpu's. So i will pas. Dont wanna spoil the great performance i have on my system now.

Besides the Spectra/meltdown has been there for what like 10 years and it has not been problem. So i dont see a problem either in the future. I take the risk with out patch bios.

Yeah, the latest patch is trash... the system won't POST when overclocked.
No post when oc after patch. Now i deffently wount touch that patch. Sound like it do more harm than good.

This Spectre-fixed microcode dropped my 3DMark score by 200 points, AIDA64 FPU VP8 benchmark by 50%, and raised CPU temperature by 5c during stress test.
Yeah just another prove of my concern. Performance drop and cpu runs hotter to.

Nope nope nope. Im not gonna infest my system with this trash.

Last edited:
Joined
May 15, 2014
Messages
58 (0.03/day)
Likes
21
#14
From my testing, only BCLK overclocking is effected. I emailed Intel about this.
Useful to know in case I feel like updating my Z400 boxes. I'd hate to lose OC stability on top of microcode performance penalty. Different mb/BIOS may behave differently, of course.


Gtodoroff

New Member
Joined
Dec 12, 2018
Messages
2 (0.05/day)
Likes
0
#16
HP released a BIOS update for their Z400 Workstation (X58) with a new microcode addressing Meltdown and Spectre (HP Security Bulletin).

Attached below is the new microcode (extracted from HP BIOS) for CPUIDs 106A5 and 206C2 (i7-965, i7-940, i7-920, i7-970, i7-980, i7-990 and Xeons E/L/X/W).

You'll need to inject it somehow (BIOS modding, VMware Microcode Driver).

View attachment 99746
View attachment 99752

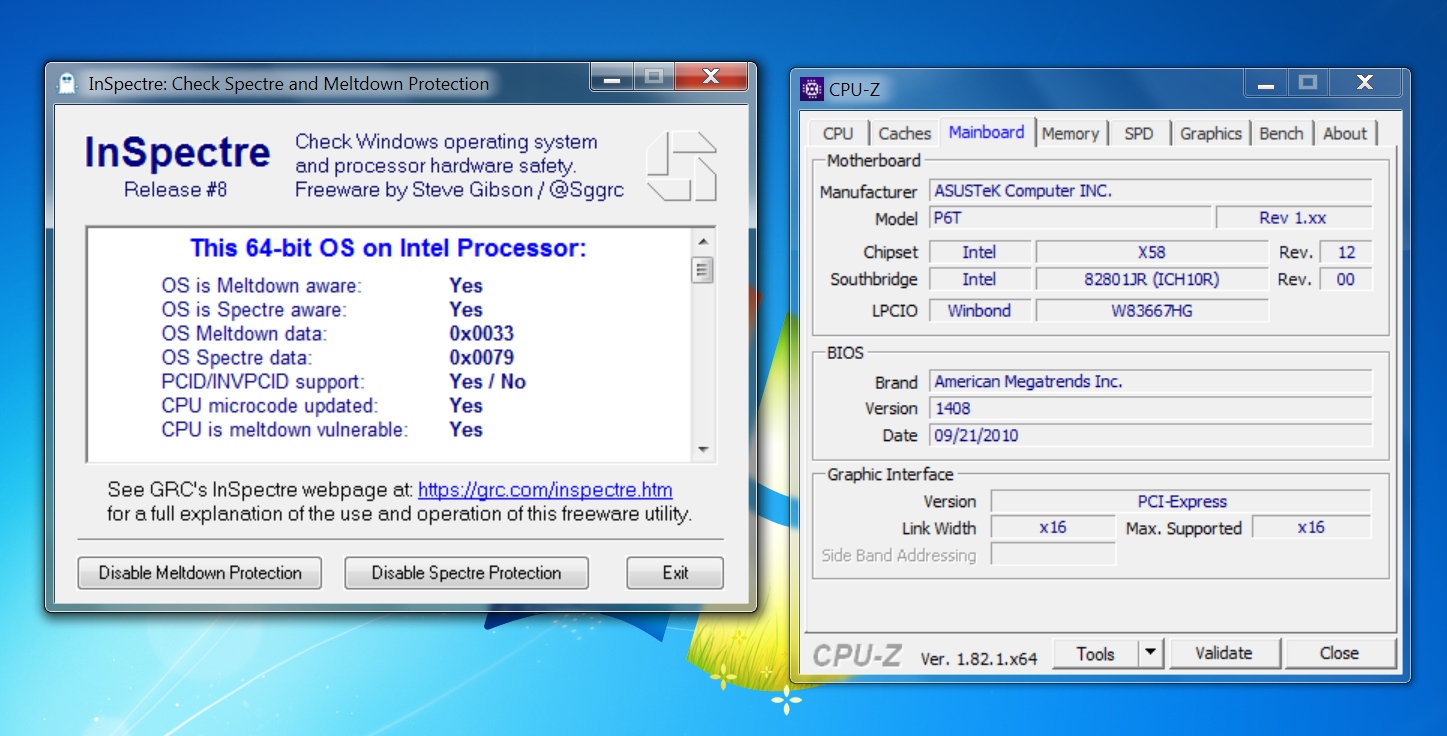

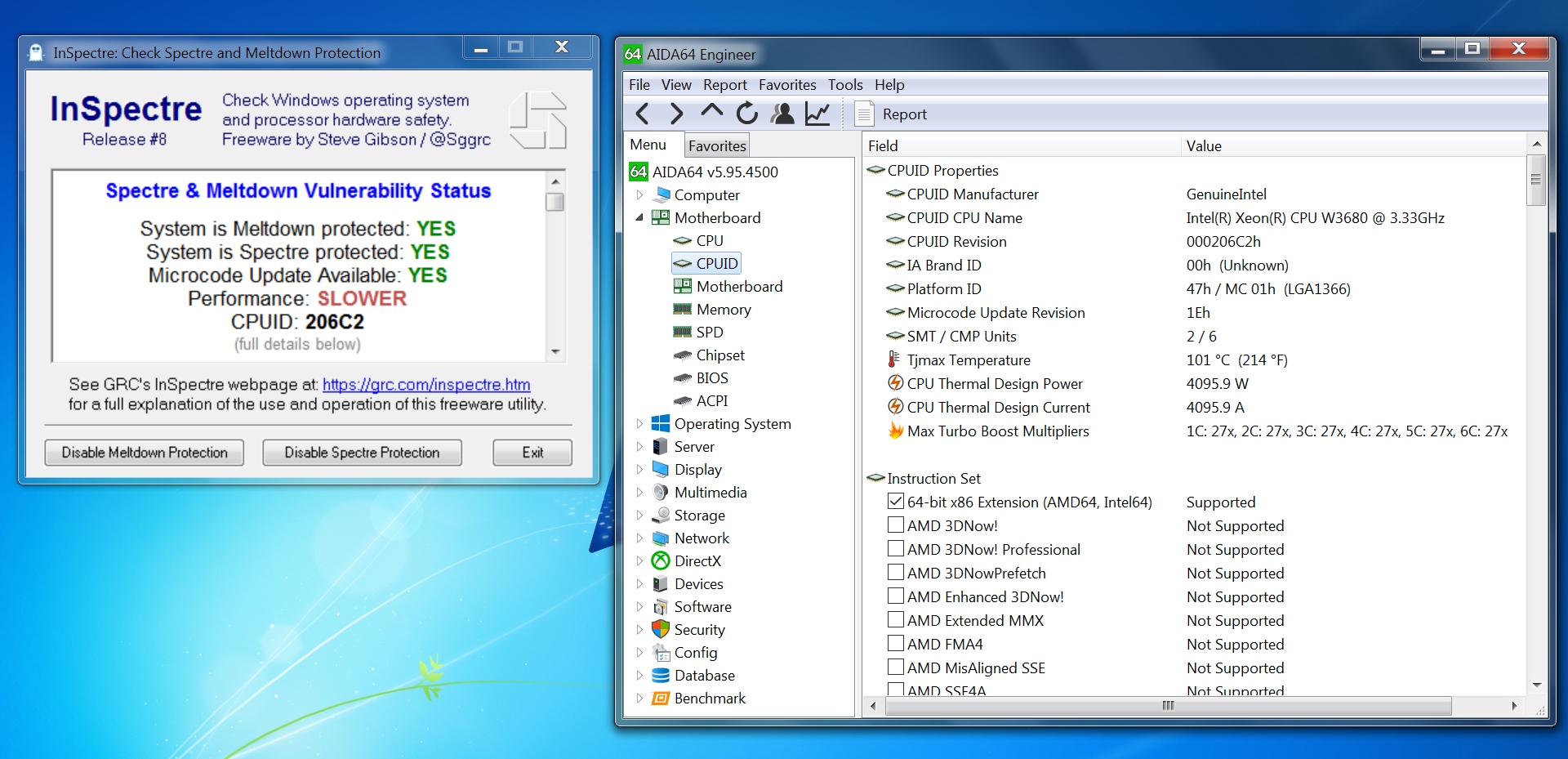

I tried it on Xeon W3680 and ASUS P6T (modified BIOS with MMTool), works fine, InSpectre reports the system is fully patched.
I have same Setup asus p6t and X5680 and can't install win 10... it says "your pc run in to a problem.."
