Next-Gen Intel "Alpine Ridge" Thunderbolt Controller Detailed

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
37,763 (8.50/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse Razer Abyssus
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro

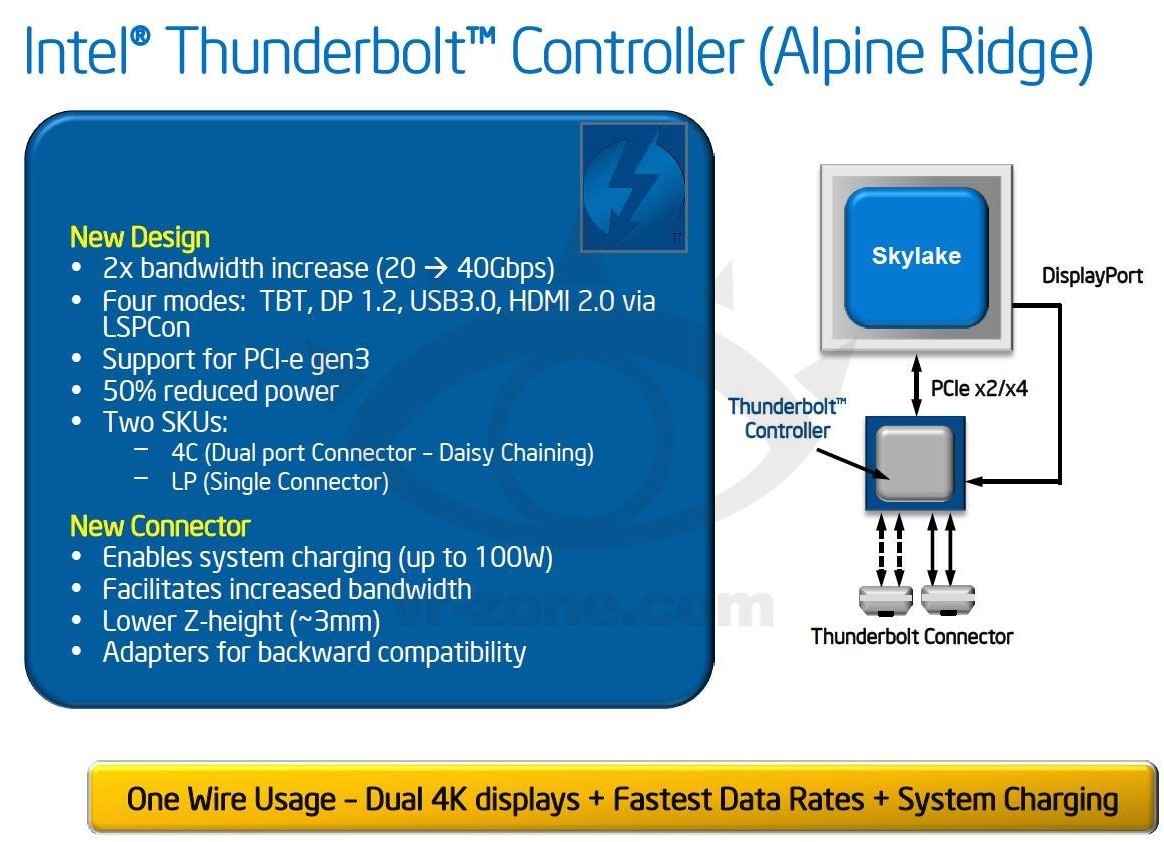

Intel's upcoming Thunderbolt host controller, codenamed "Alpine Ridge," could allow you to play God with several uncompressed Ultra HD video streams during production, if its leaked specifications hold up. The controller leverages PCI-Express gen 3.0 to double bandwidth of the interface. It will launch around the same time as Intel's next-generation Core "Skylake" processors (some time in 2015), and in a typical implementation, will be wired to the CPU's root-complex, and not that of the PCH. With PCIe 3.0 x4 or PCIe 3.0 x2 links at its disposal, the controller can push data at a staggering 40 Gbps. The link can also ferry DisplayPort, HDMI 2.0, and USB 3.0 data through its link layer. That bandwidth should enable you to plug in up to two Ultra HD displays, apart from your storage array.

The Thunderbolt connector itself will undergo a change with the arrival of Alpine Ridge. It will be slimmer (shorter) than the current connector, at 3 mm (good for Ultrabooks), and there will be adapters for backwards compatibility with older-generation Thunderbolt devices. The connector will be designed to supply up to 100W of power, so Ultrabooks based on it will do away with round DC jacks, and charge up much like tablets and smartphones do. That amount of power should also enable single-cable HDD docks and RAID boxes. There will be two main variants of Alpine Ridge, one that supports two ports over daisy-chaining, and one that supports just a single port.
