Noctua Introduces NH-L9i Low-profile CPU Coolers for LGA1700 and NA-FD1 Fan Duct

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
42,084 (8.14/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Noctua today introduced new, LGA1700-specific revisions of its award-winning NH-L9i and NH-L9i chromax.black low-profile CPU coolers. The new NH-L9i-17xx and NH-L9i-17xx chromax.black are ideal for building ultra-compact HTPCs and Small Form Factor (SFF) systems using Intel's brand new 12th generation Core processors such as the Core i9-12900K, Core i7-12700K or Core i5-12600K. The new, optional NA-FD1 fan duct makes it possible to further improve the performance of the coolers by bridging the gap between the fan and perforated case panels in order to enable the coolers to draw in fresh air from the outside.

"We're very happy with the performance of the NH-L9i-17xx coolers on Intel's new LGA1700 CPUs", says Roland Mossig (Noctua CEO). "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz. These are excellent results for such small coolers, making them fantastic options for highly compact Intel Z690 builds that pack a lot of processing power!"



The NH-L9i-17xx and the all-black NH-L9i-17xx chromax.black are the latest, LGA1700-specific revisions of Noctua's award-winning NH-L9i low-profile CPU cooler. At a height of only 37 mm, the NH-L9i is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed Mini-ITX motherboards. The custom-designed SecuFirm 2 mounting system for the new LGA1700 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92 mm fan that supports fully automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped off with Noctua's renowned NT-H1 thermal compound, the NH-L9i-17xx combines everything users have come to expect from Noctua's larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Intel's new 12th generation Core CPUs.

"For Small Form Factor builds, we now highly recommend the optional NA-FD1 fan duct kit, both to customers choosing the new NH-L9i-17xx models and to users of the existing NH-L9i and NH-L9a heatsinks", explains Roland Mossig (Noctua CEO). "It's a simple yet highly effective way of boosting the performance of these coolers in compact cases. Tech-savvy enthusiasts have been creating similar ducts with their 3D printers for quite some time, but not everyone has the capabilities to do this, so we thought it would be great to offer an affordable, flexible duct kit that doesn't require any special equipment or skills to set up."

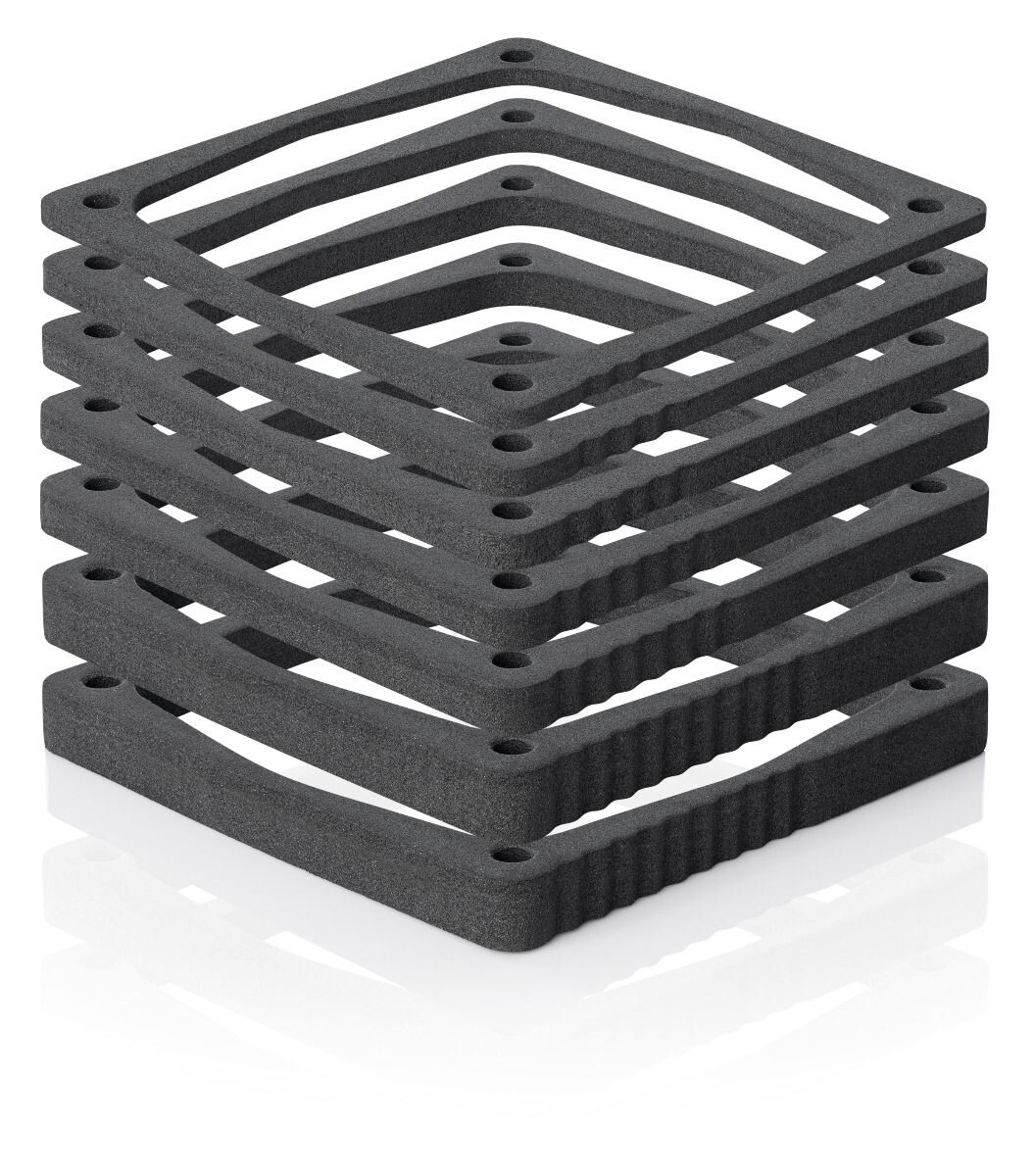

The new NA-FD1 fan duct kit makes it possible to significantly improve the performance of Noctua NH-L9i and NH-L9a series CPU coolers in Small Form Factor (SFF) environments where there is a gap of 5 mm or more (up to 45 mm) between the cooler and a perforated top or side panel. Bridging this gap, the duct prevents the cooler from taking in hot air from the interior and enables it to draw in fresh air from the outside through the perforated panel, which can, depending on the setup, improve CPU temperatures by as much as 5°C or more. As the duct is assembled from EVA foam spacers of different thickness, it is fully modular and can be adjusted in 1 mm increments from 5 mm to 45 mm height in order to fit various different cases and configurations. In short, the NA-FD1 is a simple yet smart, flexible, and cost-effective way of boosting the efficiency of NH-L9a and NH-L9i series coolers

The manufacturer's suggested retail prices are as follows:
  • NH-L9i-17xx: EUR/USD 44.90
  • NH-L9i-17xx chromax.black: EUR/USD 54.90
  • NA-FD1: EUR/USD 12.90
For more information, visit the product pages of the NH-L9i, NH-L9i chromax.black, and NA-FD1.

View at TechPowerUp Main Site

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
lol, how can this thing can possible cool a 300 watts cpu. This can only be a joke.

Joined
Jun 6, 2021
Messages
54 (0.30/day)
System Name Red Devil
Processor AMD 5950x - Vermeer - B0
Motherboard Gigabyte X570 AORUS MASTER
Cooling NZXT Kraken Z73 360mm; 14 x Corsair QL 120mm RGB Case Fans
Memory G.SKill Trident Z Neo 32GB Kit DDR4-3600 CL14 (F4-3600C14Q-32GTZNB)
Video Card(s) PowerColor's Red Devil Radeon RX 6900 XT (Navi 21 XTX)
Storage 2 x Western Digital SN850 1GB; 1 x Samsung SSD 870EVO 2TB
Display(s) 3 x Asus VG27AQL1A; 1 x Sony A1E OLED 4K
Case Corsair Obsidian 1000D
Audio Device(s) Motherboard Integrated Sound Card
Power Supply AX1500i Digital ATX - 1500w - 80 Plus Titanium
Mouse Logitech G502; Trust Rexx Ergonomic Vertical Mouse - 22991
Keyboard Microsoft Ergo 4000
Software Windows 10
lol, how can this thing can possible cool a 300 watts cpu. This can only be a joke.
This should work. What isn't pictured is the air duct supplying cool air from outside the case. I personally think these are not good for clear panel cases, but for a small form factor like a Dell computer case, it will do the trick. Dell has been using these ugly air ducts for decades and they appear to work well.

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
Maybe you should first read the article before commenting.

I read and I dont believe that thing can cool a 300 watts cpu. The can say anything they want about testing and the bs, I still dont believe it. Not even my 240mm aio can cool a ryzen 150 watts well.

Joined
Apr 12, 2013
Messages
4,490 (1.42/day)
It won't at peak AVX loads, Once past 150W this thing cannot keep up!

Joined
Sep 15, 2015
Messages
740 (0.33/day)
Location
Latvija
System Name Fujitsu Siemens, HP Workstation
Processor Athlon x2 5000+ 3.1GHz, i5 2400
Motherboard Asus
Memory 4GB Samsung
Video Card(s) rx 460 4gb
Storage 750 Evo 250 +2tb
Display(s) Asus 1680x1050 4K HDR
Audio Device(s) Pioneer
Power Supply 430W
Mouse Acme
Keyboard Trust
With 2000 rpm


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
3,069 (2.62/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Strix B550-F Gaming
Cooling Thermalright Frost Commander 2x iPPC 3000
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN750 1TB+500GB, 2x Intel 545s 256, WD1TB Black, 1TB Toshiba
Display(s) 22" Sammy, 55" Hisense
Case Fractal Design Meshify C
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Zalman ZM-MFC2, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G15
Software Yes
Benchmark Scores Yes
Probably for the quad core that’s coming..

Even with their duct 300w is not in the cards..

Joined
Dec 5, 2020
Messages
74 (0.20/day)
I read and I dont believe that thing can cool a 300 watts cpu. The can say anything they want about testing and the bs, I still dont believe it. Not even my 240mm aio can cool a ryzen 150 watts well.
"We're very happy with the performance of the NH-L9i-17xx coolers on Intel's new LGA1700 CPUs", says Roland Mossig (Noctua CEO). "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz. These are excellent results for such small coolers, making them fantastic options for highly compact Intel Z690 builds that pack a lot of processing power!"
Clearly you did not. Why lie?

Not even my 240mm aio can cool a ryzen 150 watts well.
The fact that you say this, tells me everything I need to know about your knowledge of cooling. 150W on CPU A does not require the same cooling as 150W on CPU B. How do people not know this? There's a ton of factors, outside of which cooler you use, that influence how easy it is to get heat away from your cores. Why do you think this cooler can handle 160W on a 12900k but only 125W on a 12600K? The answer to this question is one of these factors.

Joined
Aug 12, 2020
Messages
381 (0.80/day)
lol, how can this thing can possible cool a 300 watts cpu. This can only be a joke.
Where did you see 300W claim?

> "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz. These are excellent results for such small coolers, making them fantastic options for highly compact Intel Z690 builds that pack a lot of processing power!"

EDIT: Ninja'd

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
Where did you see 300W claim?

> "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz. These are excellent results for such small coolers, making them fantastic options for highly compact Intel Z690 builds that pack a lot of processing power!"

Check the tests on even a 12600, it hits 300 watts very easily, probably they used few cores instead of all cores, meaning it's a fake test, people dont stay checking the cpu temp everytime they do something, so want to be safe than sorry? then cpu hits 300 watts real, then buy a 400 watts real cooler minimum and pray everything will work good, 300 watts is threadripper territory. I remember that i had to make a custom watercooling setup with a 480mm monster on my i7 920 at 4.2, it used to hit 350 watts real.

Joined
Aug 12, 2020
Messages
381 (0.80/day)
Check the tests on even a 12600, it hits 300 watts very easily, probably they used few cores instead of all cores, meaning it's a fake test, people dont stay checking the cpu temp everytime they do something, so want to be safe than sorry? then cpu hits 300 watts real, then buy a 400 watts real cooler minimum and pray everything will work good, 300 watts is threadripper territory.
So it's fake just because they didn't hit the same numbers as in other test (which you assume a priori was not fake)?

Lol okay.


Broken Processor

New Member
Joined
Aug 26, 2021
Messages
25 (0.25/day)
Looks like a good option for compact case cooling but wouldn't put a 12900k in I don't like leaving performance on the table 160w cooling for such a small form factor is impressive and I'd prefer to use it with a 12600k should be quite the little beast.

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
So it's fake just because they didn't hit the same numbers as in other test (which you assume a priori was not fake)?

Lol okay.

No, is fake in a sense is marketing bs, any sane person that read alder lake review will see this is bs because it will hit 300 watts easily.

Also they say this is for a 160w cpu right then they say alder lake is 125w, if you see that way then, an average joe will see it and say yeah it will work okay but in the end it was all a lie, intel 125w is 300w plus watts real. Yeah 125w singlethread real yeah hehe

Joined
Aug 12, 2020
Messages
381 (0.80/day)
Also by "easily" I assume you mean "when OC'd AND put to a stress test".


Clearly you can see that OC'd to 4.9 GHz multi-threaded was well below 300W until stress tested.

Or would that make TPU review fake too according to your logic?

Joined
Dec 5, 2020
Messages
74 (0.20/day)
Check the tests on even a 12600, it hits 300 watts very easily, probably they used few cores instead of all cores, meaning it's a fake test, people dont stay checking the cpu temp everytime they do something, so want to be safe than sorry? then cpu hits 300 watts real, then buy a 400 watts real cooler minimum and pray everything will work good, 300 watts is threadripper territory. I remember that i had to make a custom watercooling setup with a 480mm monster on my i7 920 at 4.2, it used to hit 350 watts real.
Why do you keep lying? You realize we're on the internet and people can easily fact check what you say, right? At stock settings the 12600k is locked to 150W max and it's 241W for the 12900k.


See? No where near 300W. In CB the entire system drew less than 200W for the 12600K.

Besides these tests are not fake because a CPU can draw as much as you want it to. If you want your 12900k to draw 160W then it will draw 160W but this will result in lower clock speeds of 4.2GHZ all core, like they said.

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
Why do you keep lying? At stock settings the 12600k is locked to 150W max and it's 241W for the 12900k.


See? No where near 300W. In CB the entire system drew less than 200W for the 12600K.

Besides these tests are not fake because a CPU can draw as much as you want it to. If you want your 12900k to draw 160W then it will draw 160W but this will result in lower clock speeds of 4.2GHZ all core, like they said.

224 watts default clocks, 320w overclocked, anyway pretty close to 300 watts, still a 160w cooler will not work on a 224w cpu and by the way this is not a 160w cooler, my aio 240mm is a 150 watts cpu cooler.


Joined
May 2, 2017
Messages
5,457 (3.26/day)
Location
Norway, currently in Lund, Sweden
System Name Hotbox
Processor AMD Ryzen 7 5800X
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling Aquanaut + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UV@950mV/2050MHz/180W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G602
Keyboard Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
I read and I dont believe that thing can cool a 300 watts cpu. The can say anything they want about testing and the bs, I still dont believe it. Not even my 240mm aio can cool a ryzen 150 watts well.
But they don't claim to. They even specifically mention the power draws they've been able to cool on these chips, and none of them are near 300W. They never claim full performance at stock settings. The press release says "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz."

Joined
Apr 12, 2013
Messages
4,490 (1.42/day)
224 watts default clocks, 320w overclocked, anyway pretty close to 300 watts, still a 160w cooler will not work on a 224w cpu.
That's total system power, while 12900k should be able to exceed that, especially OCed, even an unlocked i5 or i7 is unlikely to get close to 300W unless you're pumping insane voltage to it. Coming back to Noctua ~ don't use this for anything above an i5 especially if you plan to OC them! As always ~ your mileage will vary :toast:

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
But they don't claim to. They even specifically mention the power draws they've been able to cool on these chips, and none of them are near 300W. They never claim full performance at stock settings. The press release says "We have managed to dissipate up to around 160 W on the Core i9-12900K, pushing it to over 4.2 GHz, and up to 125 W on the Core i5-12600K running at 4.3 GHz."

Marketing bs, they will release it saying it is for a 12900 hehe, sheeps will buy and then cry few days after that hehe

That's total system power, while 12900k should be able to exceed that, especially OCed, even an unlocked i5 or i7 is unlikely to get close to 300W unless you're pumping insane voltage to it. Coming back to Noctua ~ don't use this for anything above an i5 especially if you plan to OC them! As always ~ your mileage will vary :toast:

Yes total power, cpu alone does 95% of that or more, there is no gpu on it, only the cpu.

Joined
May 2, 2017
Messages
5,457 (3.26/day)
Location
Norway, currently in Lund, Sweden
System Name Hotbox
Processor AMD Ryzen 7 5800X
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling Aquanaut + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UV@950mV/2050MHz/180W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G602
Keyboard Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
Marketing bs, they will release it saying it is for a 12900 hehe, sheeps will buy and then cry few days after that hehe
You're clearly not familiar with Noctua's cooler ratings. Their website has detailed compatibility charts (that even differentiate between base and boost handling) for each cooler they make. There is 0% chance they will advertise that this can handle a stock 12900k.

Not many commenting on it here, but that foam duct kit is a brilliant addition. Should be really helpful for this cooler in many relevant situations. Good on Noctua for making it, and making it relatively cheap and flexible.

Joined
May 8, 2018
Messages
1,208 (0.93/day)
Location
London, UK
You're clearly not familiar with Noctua's cooler ratings. Their website has detailed compatibility charts (that even differentiate between base and boost handling) for each cooler they make. There is 0% chance they will advertise that this can handle a stock 12900k.

I have been buying noctua products since 2011, very familiar with their products and this is by far the most biased press release to date, well there was another one in the past but leave that aside for now. I love their products, this however is a marketing bs. Low profile cpu coolers are made specifically for 65 watts and lower, not for a 300 watts cpu ehhe, you see a misdirection when they cite a 12900k in their tests, 12900k is not a low end cpu.

Joined
May 2, 2017
Messages
5,457 (3.26/day)
Location
Norway, currently in Lund, Sweden
System Name Hotbox
Processor AMD Ryzen 7 5800X
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling Aquanaut + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UV@950mV/2050MHz/180W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G602
Keyboard Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
I have been buying noctua products since 2011, very familiar with their products and this is by far the most biased press release to date, well there was another one in the past but leave that aside for now. I love their products, this however is a marketing bs. Low profile is made for 65 watts and lower, not for a 300 watts cpu ehhe
A: it's a press release. It's marketing. What do you expect?
B: they never claim that it can handle a 300W CPU, they claim to have cooled 160W (and likely in a rather ideal scenario), and 125W on the other chip, indicating that YMMV.
C: if you're familiar with Noctua then it's rather odd to be making claims that go directly against their established practices for rating their products.

I've also seen plenty of SFF builds cooling well above 65W with an L9a or L9i. Depends on your case and airflow though.
