Noctua Presents NH-L9 Series Low Profile CPU Coolers

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,484 (9.19/day)
Likes
17,513
Location
Hyderabad, India
#1

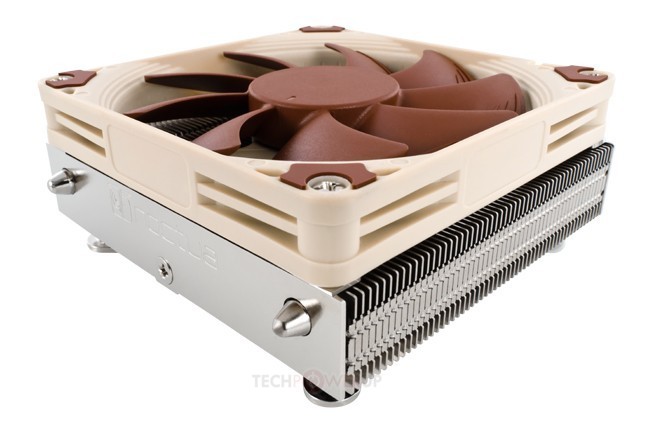

Noctua today presented its new NH-L9i and NH-L9a low profile CPU coolers for Intel and AMD. At a super-low profile of only 37mm, the NH-L9 coolers are ideal for extremely slim cases and with footprints tailored to the respective socket keep-out zones, they provide full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. Topped off with the new NF-A9x14 PWM premium fan, the NH-L9 coolers fuse everything users have come to expect from Noctua's larger coolers into a super-compact package for slim HTPC systems.

"The response on our first low profile cooler, the NH-L12, has been overwhelming", says Mag. Roland Mossig, Noctua CEO. "However, users asked for even smaller, lower height models that also provide better compatibility for extra slim, ITX based HTPCs. We're thrilled that we can now meet this demand with the new NH-L9 coolers."



The NH-L9i and NH-L9a are premium quality quiet CPU coolers for Intel LGA115x (NH-L9i) and AMD FMx (NH-L9a) based HTPCs and Small Form Factor systems. Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 coolers stand a mere 37mm tall, which makes them ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.

The heatsinks have a 95x95mm (NH-L9i) and 92x114mm (NH-L9a) footprint that complies exactly to the Intel LGA115x and AMD FMx socket keep-out zones. This means that the coolers are fully compatible with tall memory modules and PCIe cards on mini-ITX mainboards.



The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures.

Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9 coolers to stay remarkably quiet. The included Low-Noise Adaptor (L.N.A.) allows to reduce the maximum fan speed from 2500 to 1800rpm and makes it possible to create near-silent setups.

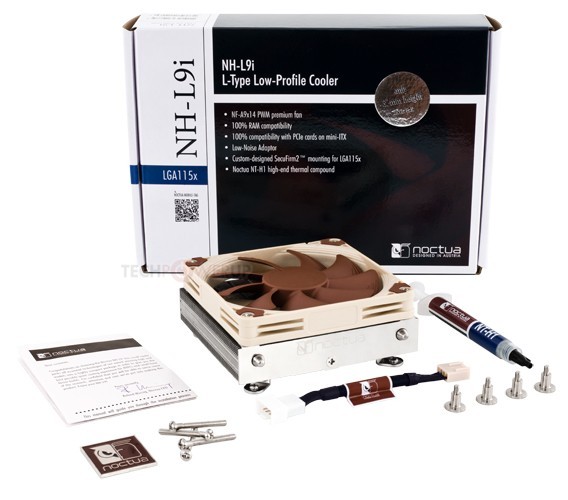

The NH-L9 coolers bundle custom-designed SecuFirm2 mounting systems for AMD FM1/FM2/AM3+ (NH-L9a) and Intel LGA1150/1155/1156 (NH-L9i) that offer extended compatibility with mini-ITX boards and make installation easier than ever, all while maintaining the trusted SecuFirm2 quality.

The premium quality bundle is completed by Noctua's much-acclaimed NT-H1 thermal compound, a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.


Price and availability
The NH-L9i and NH-L9a will be available immediately at a recommended retail price of EUR 39.90 / USD 47.90.

For more information, visit the product pages of Noctua NH-L9i and NH-L9a CPU coolers.

Last edited by a moderator:
Joined
May 14, 2012
Messages
883 (0.43/day)
Likes
75
Processor AMD Ryzen 5 1600X
Motherboard AsRock X370 Taichi
Cooling Corsair H60 Liquid Cooling
Memory 16 GB CORSAIR Vengeance LPX 3000 Mhz (Running at 2933)
Video Card(s) Gigabyte G1 GTX 1070
Storage 240 GB Kingston SSD, 7 TB's of HDD
Display(s) Dell 16:10 20" Monitor
Case Phanteks Enthos Pro M
Audio Device(s) Integrated
Power Supply Corsair 750 P2
Mouse Mionix Naos 8200
Keyboard G Skill Ripjaws RGB Mechanical Keyboard
Software Windows 10 Pro
#2
That is pretty big. Actually this may fit in my silverstone milo case

Joined
Feb 26, 2008
Messages
4,870 (1.35/day)
Likes
681
Location
Joplin, Mo
System Name Ultrabeast GX2
Processor Intel Core 2 Duo E8500 @ 4.0GHZ 24/7
Motherboard Gigabit P35-DS3L
Cooling Rosewill RX24, Dual Slot Vid, Fan control
Memory 2x1gb 1066mhz@850MHZ DDR2
Video Card(s) 9800GX2 @ 690/1040
Storage 750/250/250/200 all WD 7200
Display(s) 24" DCLCD 2ms 1200p
Case Apevia
Audio Device(s) 7.1 Digital on-board, 5.1 digital hooked up
Power Supply 700W RAIDMAXXX SLI
Software winXP Pro
Benchmark Scores 17749 3DM06
#3
Most boards are built with the fact that the coolers are a certain distance away from the motherboard rather than right on top of it. That could be a serious problem for some.

Joined
Oct 20, 2012
Messages
246 (0.13/day)
Likes
18
Location
Where ever the wind blows
System Name Lenovo Z480
Processor Core i7 - 3612QM ~ 2.1GHz
Memory 8GB DDR3/L (mixed) 1600mhz
Video Card(s) Nvidia GeForce GT 640m (2GB GDDR3 ver, stock clocks)
Storage 500Gb
#4
I hope this works better than Thermaltake's Slim X3

Joined
Nov 2, 2008
Messages
767 (0.23/day)
Likes
414
Processor Intel Core i3-4370
Motherboard Gigabyte GA-H97-D3H
Cooling Zalman CNPS9500 AT
Memory 16GB Crucial Ballistix Sport DDR3-1600
Video Card(s) Gigabyte GV-N75TOC-2GI GeForce GTX 750 Ti WindForce
Storage Crucial MX100 256GB SSD
Display(s) Dell S2316M LCD
Case Fractal Design Define R4 Black Pearl
Audio Device(s) Realtek ALC1150
Power Supply Corsair CX600M
Mouse Logitech M500
Keyboard Lenovo KB1021 USB
Software Windows 10 Professional x64
#5
Noctua NH-L9 series, a.k.a. "the pancake".


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,484 (9.19/day)
Likes
17,513
Location
Hyderabad, India
#6
Most boards are built with the fact that the coolers are a certain distance away from the motherboard rather than right on top of it. That could be a serious problem for some.
To me it looks like these coolers maintain the same distance from the motherboard PCB as Intel reference cooler. There are no tall component inside the "square" of the Intel socket, or the "rectangle" of AMD sockets, so these coolers should be OK.

Joined
Mar 2, 2011
Messages
776 (0.31/day)
Likes
844
Location
Omaha, NE
System Name "The Gift"
Processor Intel Core i5 2500k
Motherboard ASUS Maximus iV Gene-Z/Gen 3
Cooling Cryorig M9i
Memory G. Skill 8GB(2x4GB) Ripjaws "X" Series - DDR3 1600
Video Card(s) HIS HD 7950 IceQ Turbo 3GB
Storage WD Velociraptor Enterprise Edition - 300GB
Display(s) HP e232
Case Fractal Design - Arc Mini
Power Supply Corsair TX650W
Mouse Logitech T400 Zone Touch Mouse
Keyboard HP KBRF57711 Wireless Keyboard
Software Ubuntu 16.04.3 LTS/Windows 7 Professional - 64 bit(GOG/Steam Only)
#7
Sold! I like it...:). Although, if they price it outrageously...the Xigmatek Praeton with a replacement Scythe 100x12mm fan is perfect for most uses and it will fit on all mini-itx motherboards with a pci-e slot and be dead silent.

My Praeton/Scythe set ups usually run about 900 to 950 RPM's and from viewing the video...easily fit inside the same footprint.

Best,

LC

Joined
Oct 17, 2011
Messages
589 (0.26/day)
Likes
131
Location
Oregon
System Name 2017 Dell XPS 15
Processor 7th Generation Intel® Core™ i7-7700HQ Quad Core Processor
Motherboard Laptop ;)
Cooling two fans
Memory 8GB DDR4-2400MHz
Video Card(s) NVIDIA® GeForce® GTX 1050 with 4GB GDDR5
Storage 256GB PCIe Solid State Drive
Display(s) 15.6" FHD (1920 x 1080) InfinityEdge
Case Laptop ;)
Audio Device(s) Razer Kraken 7.1 Chroma
Power Supply Laptop ;)
Mouse Razer DeathAdder
Keyboard Laptop ;)
Software Win10Pro
#8
will it keep a 3770k cool @ 4.5Ghz?

Joined
Nov 2, 2008
Messages
767 (0.23/day)
Likes
414
Processor Intel Core i3-4370
Motherboard Gigabyte GA-H97-D3H
Cooling Zalman CNPS9500 AT
Memory 16GB Crucial Ballistix Sport DDR3-1600
Video Card(s) Gigabyte GV-N75TOC-2GI GeForce GTX 750 Ti WindForce
Storage Crucial MX100 256GB SSD
Display(s) Dell S2316M LCD
Case Fractal Design Define R4 Black Pearl
Audio Device(s) Realtek ALC1150
Power Supply Corsair CX600M
Mouse Logitech M500
Keyboard Lenovo KB1021 USB
Software Windows 10 Professional x64
#9
will it keep a 3770k cool @ 4.5Ghz?
I take it that you didn't click on the link for the NH-L9i:

Caution: The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9i is recommended for your CPU.

Joined
Oct 17, 2011
Messages
589 (0.26/day)
Likes
131
Location
Oregon
System Name 2017 Dell XPS 15
Processor 7th Generation Intel® Core™ i7-7700HQ Quad Core Processor
Motherboard Laptop ;)
Cooling two fans
Memory 8GB DDR4-2400MHz
Video Card(s) NVIDIA® GeForce® GTX 1050 with 4GB GDDR5
Storage 256GB PCIe Solid State Drive
Display(s) 15.6" FHD (1920 x 1080) InfinityEdge
Case Laptop ;)
Audio Device(s) Razer Kraken 7.1 Chroma
Power Supply Laptop ;)
Mouse Razer DeathAdder
Keyboard Laptop ;)
Software Win10Pro
#10
I take it that you didn't click on the link for the NH-L9i:

Caution: The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9i is recommended for your CPU.
ya I was more kidding than anything...lol

"But will it keep it cool enough to play Crysis?"

Joined
May 13, 2008
Messages
538 (0.15/day)
Likes
146
System Name HTPC whhaaaat?
Processor 2600k @ 4500mhz
Motherboard Asus Maximus IV gene-z gen3
Cooling Noctua NH-C14
Memory Gskill Ripjaw 2x4gb
Video Card(s) EVGA 1080 FTW @ 2037/11016
Storage 2x512GB MX100/1x Agility 3 128gb ssds, Seagate 3TB HDD
Display(s) Vizio P 65'' 4k tv
Case Lian Li pc-c50b
Audio Device(s) Denon 3311
Power Supply Corsair 620HX
#11
I lolled at 'aka the pancake'.

I am really digging all these low-profile coolers they are putting out. While the others are starting to provide alternatives for 3u-4u size chassis (5.1 to 7 inches tall), they are steadily leading the charge into the smaller height (similar to server rack unit size 1u and 2u...less than ~90 and ~45mm or 1.75 and 3.5 inches tall).

Will it cool an ivy overclocked in any fashion? It might! Only one way to find out...request a test from noctua and TPU.

Getting closer, this race to practical smaller and smaller form-factor.
