PCIE slot power (Very Successful Experiment Overclocking Maxwell Quadro)

Joined
Sep 27, 2019
Messages
1,042 (0.95/day)
Location
Canada
System Name New compy
Processor AMD Ryzen 5600x
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill F4-4000C18D-32GVK
Video Card(s) EVGA GeForce RTX 2080 FTW3 Ultra Gaming
Storage 15.5tb
Display(s) Alienware AW2518H 24" 240hz, LG 43" 4k HDR TV 43UM6910PUA
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, Razer Orochi V2
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/83f50d
sorry man but maxwell left kepler in the dust ocing. the 780 and 780ti i had got 300-350mhz whereas both 980tis got 400-450mhz. its no contest. not to mention kepler was a pita to unlock the voltage, because if you didn't unlock voltage control - you would get nowhere ocing.
Both my 750ti and 760 I had no luck but this was way back before I knew about such things, the 750ti was maxwell but the 760 was kepler. I know the ram took little to oc but never got anywhere on the gpu but as you mention it might have been that I didn't give it enough juice. The 750ti was pci slot powered.

Last edited:
Joined
Jan 27, 2015
Messages
1,065 (0.38/day)
System Name loon v4.0
Processor i7-11700K
Motherboard asus Z590TUF+wifi
Cooling Custom Loop
Memory ballistix 3600 cl16
Video Card(s) eVga 3060 xc
Storage WD sn570 1tb(nvme) SanDisk ultra 2tb(sata)
Display(s) cheap 1080&4K 60hz
Case Roswell Stryker
Power Supply eVGA supernova 750 G6
Mouse eats cheese
Keyboard warrior!
Benchmark Scores https://www.3dmark.com/spy/21765182 https://www.3dmark.com/pr/1114767
Both my 750ti and 760 I had no luck but this was way back before I knew about such things, the 750ti was maxwell but the 760 was kepler. I know the ram took little to oc but never got anywhere on the gpu but as you mention it might have been that I didn't give it enough juice. The 750ti was pci slot powered.
voltage is a thing but honestly you're probably more relevant talking your smaller chip than i am throwing my big chips around. :oops:

Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Had one of my buddies not linked me to the version of nvflash that bypasses certifications, this would not have been possible. I may go back and try getting more clocks out of a GTX 750 next week. I was never successful at modding that card's firmware with the regular flash.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,418 (6.72/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Had one of my buddies not linked me to the version of nvflash that bypasses certifications, this would not have been possible. I may go back and try getting more clocks out of a GTX 750 next week. I was never successful at modding that card's firmware with the regular flash.
Well youve reached the boards max power on the pcie slot.

Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Well youve reached the boards max power on the pcie slot.
I did not include the Furmark data, but it was more interesting. I think the Nvidia driver does something to hold that back from melting cards. I actually had the highest PCIE draw from graphics test #2 in Fire Strike, with peaks above 120W. That's when I decided I would not be trying to wring out any extra MHz by increasing voltage. The voltage I used, which I copied from the ASUS GTX 950 firmware is actually slightly lower than the stock Quadro voltage. I hope you all found this little experiment as fun as I did.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,418 (6.72/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I did not include the Furmark data, but it was more interesting. I think the Nvidia driver does something to hold that back from melting cards. I actually had the highest PCIE draw from graphics test #2 in Fire Strike, with peaks above 120W. That's when I decided I would not be trying to wring out any extra MHz by increasing voltage. The voltage I used, which I copied from the ASUS GTX 950 firmware is actually slightly lower than the stock Quadro voltage. I hope you all found this little experiment as fun as I did.
Cards since the Launch of the ATi Radeon HD 5000 series and nvidia fermi 2.0 (nv was late to the game-gtx 580) have hardware protection to throttle furmark/kombustor to prevent damage to the gpus.




Last edited:
Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
This is how the project looks now that it's under water. AMD Wraith Stealth fan for a little air flow on front, and a P120 blowing on the back. Lots of 100-120W power spikes according to GPU-Z but the slot is cool and so is the PCB so I don't think they will weld together or catch fire anytime soon. I may boost my R5 1600AF clock a bit since it seems to be bottlenecking the card at 95% utilization due to single thread, It's at stock but will do 4.2GHz without much effort.


Attachments

  • IMG_20220203_153541043.jpg
    1.5 MB · Views: 47
  • IMG_20220203_154531402.jpg
    1.3 MB · Views: 45
  • PPD, temp, power M2000.jpg
    PPD, temp, power M2000.jpg
    521.6 KB · Views: 43

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,418 (6.72/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Good deal, the steel legend you have effortlessly supports a Ryzen 7 5800

Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Good deal, the steel legend you have effortlessly supports a Ryzen 7 5800
That test bench is like 3rd in line for hand-me-downs :)

The totem pole is like
1) Wife's 4k gaming pc: has 5800x and waiting for Zen3D.
2) My main bench: has 2700x and waiting for wife's 5800x.
3) Folding bench #1: has 1600AF waiting for 2700x.
4) Folding bench #2: has 3200G waiting for 1600AF.

If Zen3D is a wash or unobtainable, then I'm considering 5700G for my main bench since it's all PCIE 3.0 anyway.

Edit:

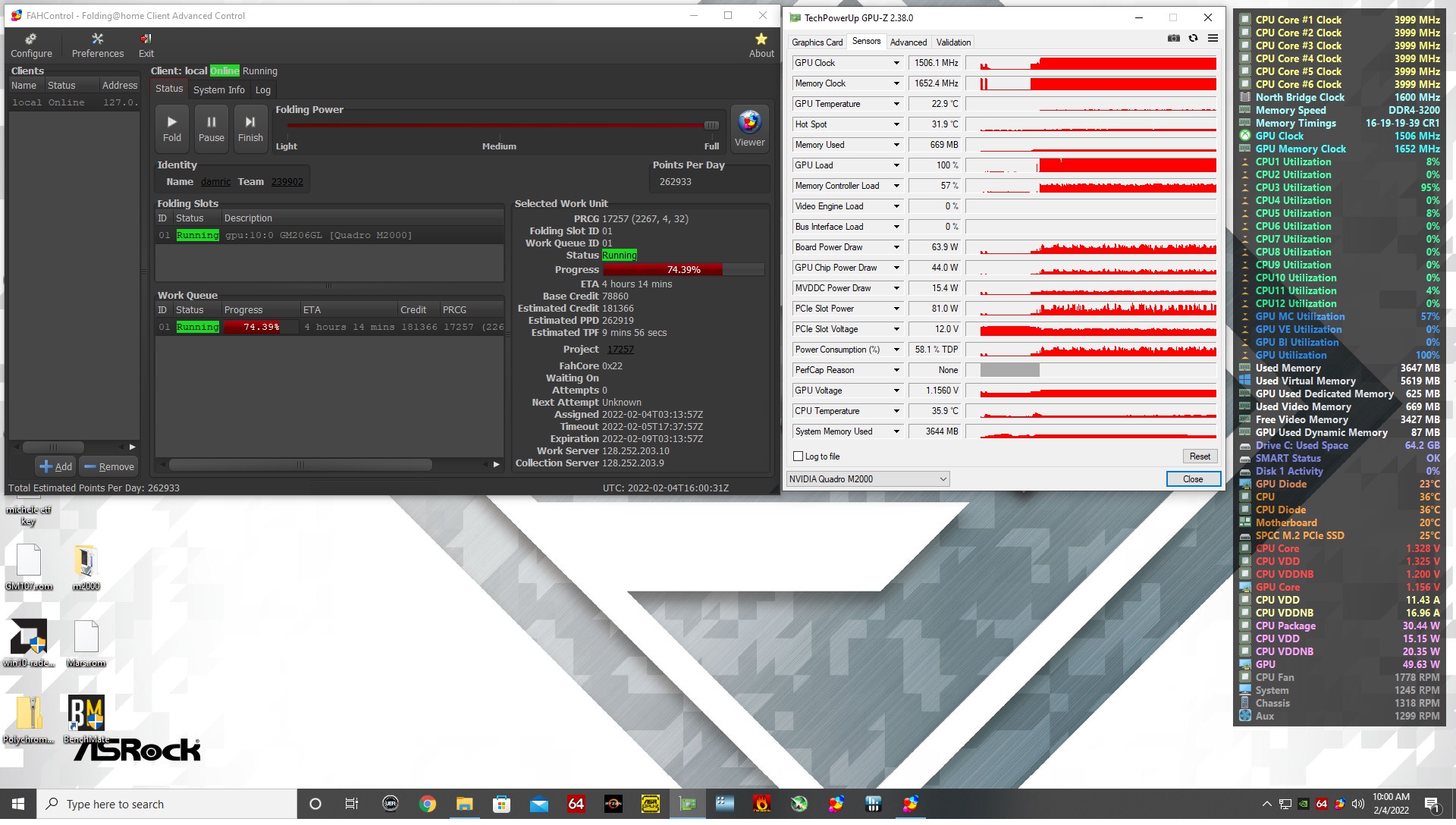

I only had to raise CPU core frequency to 4GHz and OC the RAM/IF to get 100% utilization on the M2000 while folding. 5% more usage means a lot when folding 24/7.


Attachments

  • 100% utilization.jpg
    100% utilization.jpg
    549.9 KB · Views: 23
Last edited:
Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
I did it again. This time with a Quadro M4000. This card was even more interesting than the M2000. The M4000 is a similar GPU as the GTX 970, but with 8GB VRAM and some seriously low clocks, 773MHz with not even a boost feature. The PCB is very sparse, but better built than the M2000. The cooler is also a little bit better, with a couple small heat pipes. The card also has a 6-pin connector. After testing it at stock with 3D and computational workloads, I don't even see why they built a better PCB, cooler, and added a power connector because the thing never made it over 70W and 50C. The stock voltage was very low, set at like 0.95v.

I went about cracking the overclocking locks the same as I did on the M2000, with the Maxwell II editor and NVFLASH with Bypass.

1500MHz core was easy, but I did have to tweak the voltages a bit in the editor. There's probably more left in the tank, as I didn't even try for faster.

My main concern was if I was going to run this card faster than GTX 970, wouldn't I exceed the power capacity of the slot and 6-pin. But nope, the highest I saw was 120ish watts during some 3Dmarks, and about 110w steady while folding. Ok so I figured why not see if I could boost the VRAM from 1500/MHz. First try 1750MHz, no problem. Doing that added about 10-15 more watts, so I called it a day at 1500/1775. I stress tested the overclocks with the stock cooler at 100% fan speed and it peaked about 60C. Today I put it under water because it's going to now be folding 24/7.

Tomorrow I'll post some pictures and benches I ran. Pretty fun time and only cost me about $140 on ebay.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,418 (6.72/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I did it again. This time with a Quadro M4000. This card was even more interesting than the M2000. The M4000 is a similar GPU as the GTX 970, but with 8GB VRAM and some seriously low clocks, 773MHz with not even a boost feature. The PCB is very sparse, but better built than the M2000. The cooler is also a little bit better, with a couple small heat pipes. The card also has a 6-pin connector. After testing it at stock with 3D and computational workloads, I don't even see why they built a better PCB, cooler, and added a power connector because the thing never made it over 70W and 50C. The stock voltage was very low, set at like 0.95v.

I went about cracking the overclocking locks the same as I did on the M2000, with the Maxwell II editor and NVFLASH with Bypass.

1500MHz core was easy, but I did have to tweak the voltages a bit in the editor. There's probably more left in the tank, as I didn't even try for faster.

My main concern was if I was going to run this card faster than GTX 970, wouldn't I exceed the power capacity of the slot and 6-pin. But nope, the highest I saw was 120ish watts during some 3Dmarks, and about 110w steady while folding. Ok so I figured why not see if I could boost the VRAM from 1500/MHz. First try 1750MHz, no problem. Doing that added about 10-15 more watts, so I called it a day at 1500/1775. I stress tested the overclocks with the stock cooler at 100% fan speed and it peaked about 60C. Today I put it under water because it's going to now be folding 24/7.

Tomorrow I'll post some pictures and benches I ran. Pretty fun time and only cost me about $140 on ebay.
Lmao that board will outlive the og 970 with 3.5G ram.

Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Lmao that board will outlive the og 970 with 3.5G ram.
The question then, is would the 8GB Quadro variant have 7GB of normal VRAM speed and 1GB of the slower VRAM?


qubit

Overclocked quantum bit
Joined
Dec 6, 2007
Messages
17,497 (3.23/day)
Location
Quantum Well UK
System Name Quantumville™
Processor Intel Core i7-2700K @ 4GHz
Motherboard Asus P8Z68-V PRO/GEN3
Cooling Noctua NH-D14
Memory 16GB (2 x 8GB Corsair Vengeance Black DDR3 PC3-12800 C9 1600MHz)
Video Card(s) MSI RTX 2080 SUPER Gaming X Trio
Storage Samsung 850 Pro 256GB | WD Black 4TB | WD Blue 6TB
Display(s) BenQ XL2720Z (144Hz, 3D Vision 2, 1080p) | Asus MG28UQ (4K, 60Hz, FreeSync compatible)
Case Cooler Master HAF 922
Audio Device(s) Creative Sound Blaster X-Fi Fatal1ty PCIe
Power Supply Corsair AX1600i
Mouse Microsoft Intellimouse Pro - Black Shadow
Keyboard Yes
Software Windows 10 Pro 64-bit
If you want the holy grail of PCIe specs, including power draw tolerances, then look no further than the official website where these things are defined:



eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
37,418 (6.72/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
The question then, is would the 8GB Quadro variant have 7GB of normal VRAM speed and 1GB of the slower VRAM?
That's a good point. I'd look at each ram chip to see if they are exactly the same.

Joined
Feb 17, 2010
Messages
1,005 (0.22/day)
System Name Test Bench #1
Processor Ryzen 5 5500
Motherboard X470 Taichi
Cooling Water, lot's of water
Memory 4x8GB Micron E
Video Card(s) Card of the day...
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Rosewill NEON K90
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Thanks for the link qubit. It's kind of a moot point now for exceeding the 75W PCI Slot power limit. The M2000 been folding that way 24/7 for 6 months now. I actually bumped the voltage, clock speed, and VRAM a bit higher so now that card is folding at 1557/1753.

It's too late to look at the ICs on the M4000 as I already put some heat sinks on there but they were all Hynix.

Here's a few pics I took of the M4000 before and after. Don't you just love how the factory threw on that 6-pin connector? It works though. Easily picked up the gold hardware cups. M4000 is now added to the 24/7 folding farm.


Attachments

  • IMG_20220624_180217440.jpg
    452.8 KB · Views: 15
  • IMG_20220701_153130721.jpg
    302.8 KB · Views: 13
  • IMG_20220701_153139644.jpg
    318.9 KB · Views: 17
  • FireStrike-1.jpg
    1.6 MB · Views: 14

qubit

Overclocked quantum bit
Joined
Dec 6, 2007
Messages
17,497 (3.23/day)
Location
Quantum Well UK
System Name Quantumville™
Processor Intel Core i7-2700K @ 4GHz
Motherboard Asus P8Z68-V PRO/GEN3
Cooling Noctua NH-D14
Memory 16GB (2 x 8GB Corsair Vengeance Black DDR3 PC3-12800 C9 1600MHz)
Video Card(s) MSI RTX 2080 SUPER Gaming X Trio
Storage Samsung 850 Pro 256GB | WD Black 4TB | WD Blue 6TB
Display(s) BenQ XL2720Z (144Hz, 3D Vision 2, 1080p) | Asus MG28UQ (4K, 60Hz, FreeSync compatible)
Case Cooler Master HAF 922
Audio Device(s) Creative Sound Blaster X-Fi Fatal1ty PCIe
Power Supply Corsair AX1600i
Mouse Microsoft Intellimouse Pro - Black Shadow
Keyboard Yes
Software Windows 10 Pro 64-bit
Thanks for the link qubit. It's kind of a moot point now for exceeding the 75W PCI Slot power limit.
Sure, no problem. My intention is just to give people the official reference for when trying to understand the baseline specs of power delivery on the PCIe slot. It's amazing that you can pull so much power from it 24/7 without a problem. Cheaper mobos would likely burn up.

Top
