Been busy the last 4 months with a little project for the LDLC Modding Trophy 2015
I was asked by In Win to choose any case and mod it.
Easy choice for me!



When I saw the D-Frame the first time I already had plans for it.



I had to post in their blog first until finished but now I will also show all details here in the coming few weeks.
If you've already seen it somewhere please don't share here yet :)

Have fun!




Specs:
In Win D-Frame Mini black
Intel i7 4790K
ASRock Z97 E-ITX/ac
Inno3D iChill GTX 980 Ti X3 Air Boss Ultra 6GB
G.Skill Ripjaws X 2 x 8GB 1600Mhz
Samsung SSD 850 PRO 512GB
Be Quiet ! Straight Power 10 600W CM
LiHeat 25cm Pci-e Extender
EK Blocks - Rad - Pump
Bitspower Fittings
CoolForce Cableclips & LED strips
Mayhems Aurora 2 Blue




Last edited:
Joined
Aug 1, 2009
Messages
866 (0.28/day)
Likes
429
Location
Baguio City, Philippines
System Name hmmm...
Processor Intel Core i7-4790K // AMD Athlon II X4 630
Motherboard Asus Maximus VII Gene // MSI 785GM-E65
Cooling Noctua NH-D15S // Noctua NH-U12S
Memory 4x8gb DDR3 2400mhz G.Skill Sniper // 2x2gb DDR3 1333mhz GSkill Value RAM
Video Card(s) Zotac GTX 980 Ti // Palit GTS 250
Storage Samsung 850 EVO 500gb + 3x2tb WD20EZRX // 1tb Seagate 7200.12
Display(s) LG IPS234V // AOC 2217V
Case Corsair Graphite 760T // Lian-Li PC-7 Plus
Audio Device(s) Onboard // Onboard
Power Supply Corsair AX650 // Cougar CM 550
Mouse Corsair Vengeance M65 // Logitech MK120
Keyboard Corsair Vengeance K70 // Logitech MK120
Software Windows 10 Professional x64 // Windows 7 Professional x64
#2
subbed for another awesome build. :toast:

Joined
Apr 12, 2013
Messages
722 (0.42/day)
Likes
565
Location
Northern Europe
System Name PC
Processor FX 8350 @ 4.4
Motherboard M5A99FX PRO R2.0
Cooling Arctic Freezer Pro 7 rev 2
Memory 2 x 4GB G.Skill 1600 @1866
Video Card(s) Sapphire 7950 Boost
Storage WD Black 1TB
Display(s) Samsung S22B350
Case Cooler Master 430 Elite
Audio Device(s) Microlab M200
Power Supply Seasonic 620w
Software Win 10 Pro x64
#3
Respect!

Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#4
Lets kick-off with a huge update!

First the case.




Asked for black rubbers from the start .. no red please.




Nice day in the sun.






Huge card!




And the mobo, mem and cpu




Playing around with pipes and possibilities






The first planning.




Quite some time went into figuring out something to stay within the budget.
But also a loop so you can always see it flowing and a construction to maintain stability.




Off to the attic



Always a bit scary at the start




But have to admit .. also afterwards this time :)



Sharp edges be gone.




And more pipes.




Top side done!






How strong it is even without any glue used.




Finishing the edges.








Inside the frame I used flexible tubing, used glue on the tube fittings for extra stability.
(Quite a struggle)












Intently engaged :)




And giving it a rest.


Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#5
Subbed :respect::respect::respect:always great to watch your work:toast:

Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#6
Thanks Frogger!

Lets see what I have left between my plexi stack :)




I wanted to replace the original tinted glass with blue plexi


















Removing all stickers with specs and serials

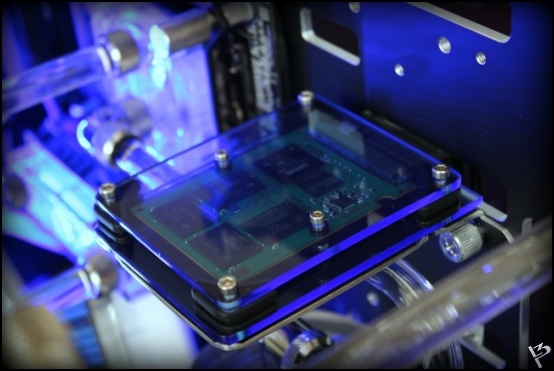

Lets change something about the ssd




With plex and old fan mounts


















An extra support/cover for the PSU








More about it later




Extra hole for the fan wires on the radiator




And removing some of the original PSU bracket for the new cover/support.



And finish the edges






Till next update!




Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#7
And another big update!




First the liquidcooling parts.










Ready to mount ... but decided to polish them first.



5 minutes for all blocks with P600




And another 5 minutes with P2000/3000 I still had from previous projects.




And the last 5 minutes with polishing paste.




Clean it up.




And mount it.










And a small modification on the old heatsink.










Mounting the pump.












Coverplate for the PSU




Still not sure about GPU placement.




I do know I'm going to work with an extender.






Hmm..




Different idea!




Lots of drilling and tapping.














For more reinforcement






And for who's interested:



Till next time!




Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#8

CAPSLOCKSTUCK

Spaced Out Lunar Tick
Joined
Feb 26, 2013
Messages
8,265 (4.71/day)
Likes
17,436
Location
llaregguB...WALES
System Name Wendys Nightmare / Winebox/ Matchbox
Processor Xeon X5670 @4.4ghz / G540 stock/ Q 8300
Motherboard Rampage ii Extreme / Giga GA H61m/ Intel P35
Cooling modded H100 pump and 12omm rad / stock/ stock
Memory 16gb Hyper FurryX triple / 4gb ddr3 / 4gb ddr2
Video Card(s) Gigabyte Windforce Gtx 970 1485/1800
Storage Kingston V300 120gb /YES/YES/YES
Display(s) 24 HannsG / tv/ 19 "/ 24"
Case Custom treadplate /yes/ wooden winebox/ matchsticks
Audio Device(s) ASUS Supreme xfi 7.1 / ob 7.1 / o/b/ob
Power Supply Corsair 550w / XFX 550// shuttle/ shuttle
Mouse Dead.....all dead.
Keyboard IBM kb7993
Software Win 10
Benchmark Scores http://hwbot.org/user/capslockstuck/
#9
:eek:



I enjoyed your vids on f/b too....excellent, cant wait for the next one.

Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#10
Thanks guys! :toast:

Small update this time.
A case like this deserves a nice power cable :)




Got some wires at work.




And sleeved them.




Make nice connections






Braiding them.








And connect the last one.




Done!








Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#11
This time a lot of cutting, sleeving and shrinking.
I wanted to shorten all cables and sleeve them without heatshrink.














Also using some of the same prototype cableclips I had left from my last project L3pipe.








Cables for GPU are done.




Up next the Semi-modular PSU .. ffs










Also nice to keep the wires in place :)




Sanded the PSU cover.




And tested the PSU








Cables in place






Playing around with lighting.




And changing all the cables for the fans, pump and lighting.










Also decided to use clips on the back and mount them to the mainboard tray.




Blue LED vandal resist power button on the back.




And rigid LED strips for the GPU back and GPU block.






All cables in place.






Next time .. the loop!


Joined
Oct 24, 2004
Messages
813 (0.17/day)
Likes
463
System Name $computer$
Processor Core i7 4790K @ 4.4Ghz
Motherboard MSI Z97 Gaming 5
Cooling Alpenföhne Broken 120 + 2 huge coolermaster chassis fans
Memory 2x8GB DDR3 2133Mhz Crucial Ballistix
Video Card(s) Geforce GTX 1080
Storage 2x60gb Kingston SSDnow 320 / 1x120gb Crucial SSD C300 / 1 WD caviar black 1tb
Display(s) 40" Samsung UE40ES5500
Case Cooler Master HAF932
Audio Device(s) onboard realtek audio
Power Supply Corsair AX1200
Mouse Microsoft intellimouse optical
Keyboard Logitech K270
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/vmb641
#12
very nice mod, state of art !

Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#13
Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#14
Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#15

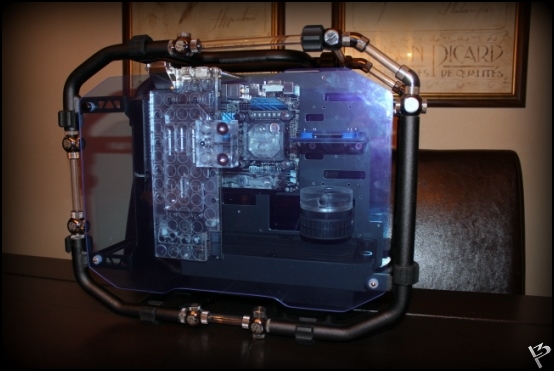

Finally .. the loop!




On this build it's 50/50 with bends and fittings.






Argh that space!




But the first connections are there.






And the last ones.












Also decided to change the SSD again, want the original HDD holder to be smaller.












Done




And polishing all acrylic sides.






Next time filling the loop.


Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#16
Filling time!




First with clear liquid to see if everything goes according to plan.










All fine.




So I can replace with Aurora






The extra pipe takes care of extra stability for the construction, I could almost lift the case on it.






Also used black glue to hide the white leds and brown pcb




All air from the loop






Also black glue at the back




Stresstest!




Next time ... final pics :)




And a filling video.


Last edited:
Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#17
Congrats on your finish!! :toast::respect::respect:

Joined
Oct 22, 2010
Messages
398 (0.15/day)
Likes
889
Location
Netherlands
System Name L3p D3sk
Processor Intel Core i7 5960x @ 4.5 Ghz
Motherboard ASUS X99 Deluxe
Cooling H2o
Memory Corsair Vengeance LPX 16GB 2666Mhz
Video Card(s) Asus GTX980 SLI
Storage Intel 750 Pci-e 400GB (OS) Corsair Neutron XT 480GB (Games) Corsair Neutron GTX & Force GT
Display(s) LG 34UM95-P - 2 x Dell UltraSharp 1703FP
Case Aluminium plate 2000x1000x3
Audio Device(s) Sennheiser PC161
Power Supply Corsair HX1000i
Mouse Corsair Sabre Optical
Keyboard Corsair K70 RGB
Software Windows 8.1
Benchmark Scores http://hwbot.org/community/user/l3p?tab=submissions
#18
Seems I messed up the previous post with the video above, it's all good now :)


And here's the final shoot :)
















































Another awesome experience in France together with the LDLC crew and my co-modders!
And ... I'm very honored to reach second place in the contest :)





Thanks for following!
