Project SR-2 Desk

Discussion in 'Project Logs' started by The Boy Riley, Dec 17, 2011.

  1. Yo_Wattup New Member

    Joined:
    Jan 26, 2012
    Messages:
    790 (0.48/day)
    Thanks Received:
    200
    Location:
    Brisbane, Australia
    subbed like a mofo

  2. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,263 (1.00/day)
    Thanks Received:
    523
    Location:
    Canada
    Hey there! Any update's for us mere mortal's? Hope everything is alright as it's been a while since the last one :eek:

  3. The Boy Riley

    The Boy Riley

    Joined:
    Dec 17, 2011
    Messages:
    14 (0.01/day)
    Thanks Received:
    44
    Updates !

    UPDATES :O

    so here's what you might expect when I've been quiet for this long...

    [​IMG]

    But just started a new job so on with the build :)

    Frame back together and panels back on

    [​IMG]

    [​IMG]

    Got the second pump, now I don't need to dismantle the current pc to rob its D5

    [​IMG]

    Made the threaded strips that retain the I/O shield on the back panel... these took longer than you might think, but they turned out really nice.

    [​IMG]

    [​IMG]

    [​IMG]

    Cut the mesh to size for the radiator chamber vents

    [​IMG]

    [​IMG]

    Got the fans the other day so dropped them in

    [​IMG]

    [​IMG]

    And checked to see if the board fits with the newly attached I/O shield ( it does :) )

    [​IMG]

    currently at the point where all the places for HDD's and the aquaero are drawn on, so working out what needs to be cut to accommodate the wiring for everything and trying to deicide how I want the cooling to look :)

    more to come soon.

    Last edited: Oct 28, 2013
  4. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,263 (1.00/day)
    Thanks Received:
    523
    Location:
    Canada
    AWESOME! Worth the wait :)

    Do you plan to run the KB on top of the desk or are you building a sliding tray? Sorry if i missed it :eek:

    Congratz on the new job and best of luck with it! :)

  5. patrico

    patrico

    Joined:
    Jul 6, 2006
    Messages:
    473 (0.13/day)
    Thanks Received:
    305
    Location:
    ireland, galway
    WOW epic build, your making very good of the equipment, and your work is looking quality, big thumbs for you, thanks for sharing

    10 Year Member at TPU
  6. The Boy Riley

    The Boy Riley

    Joined:
    Dec 17, 2011
    Messages:
    14 (0.01/day)
    Thanks Received:
    44
    Tubes!

    Been getting on with the wiring layout and tubing this weekend, so here's some pictures :)

    Picked up some fittings so I could see what they look like in person and how many I'll need with the layout etc, got some test tubing too so don't get scared off by the horrible white tube.

    Dropped the Radiators in one side and put the grills on, last thing I wanted was to put my finger through one of them whilst wrestling tubing.
    [​IMG]

    This seemed like the easiest and least kink-worthy way to do the rads and it looks awesome, the pictures unfortunately don't do the fittings justice.

    [​IMG]

    [​IMG]

    moved onto playing with the motherboard, so I cracked out the CPU and RAM blocks for a play.

    [​IMG]

    these look nice, but I'll be swapping the angles for 90 degrees then I wont need any other rotary joints for the rest of the board (apart from ram block to res at the end)

    Found some tubing from my last rig (shows the quality of Tygon as its been sat for 4 1/2 years and is still perfect) using the tygon gave a much better visual than the white stuff but it is only 7/16 so the real thing will be a smidge thicker but the extra flex was really noticeable compared to the XSPC white stuff. I was a bit shocked at the difference as a lot of people I've spoken to rave on about the XSPC tubing, but then again Tygon is about 5 times the price...

    [​IMG]

    [​IMG]

    Spent the rest of today cutting down some offcuts of box section to start the hard drive brackets and they look good so far :)

    [​IMG]

    Reverse progress :O

    Had a setback with the wiring, I had to send back my Aquaero so I'll be jumping back on the fans and whatnot once I get a new one, should be trying to forge ahead with the rest of the wiring though.

    Thanks for reading :)

    Last edited: Oct 28, 2013
    Random Murderer, m1dg3t and cadaveca say thanks.
  7. cadaveca

    cadaveca My name is Dave

    Joined:
    Apr 10, 2006
    Messages:
    15,452 (4.11/day)
    Thanks Received:
    9,091
    Location:
    Beaumont, Alberta
    Looking good!

    10 Year Member at TPU
  8. The Boy Riley

    The Boy Riley

    Joined:
    Dec 17, 2011
    Messages:
    14 (0.01/day)
    Thanks Received:
    44
    Just a quick update today, in the process of finding some bits and pieces so I finished the HDD mounts this afternoon.

    Stole some screws from an old Thermaltake case I used to have (first water cooled build... memories...) then added some rubber dampers from a maplins DIY kit (it's screws were crap) then milled the indents into the brackets :)


    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Oct 28, 2013
    m1dg3t says thanks.
  9. james888

    james888

    Joined:
    Jun 27, 2011
    Messages:
    5,492 (2.96/day)
    Thanks Received:
    2,879
    I repeat all the good things previously said. This is just amazing.

    Crunching for Team TPU
  10. Iactus New Member

    Joined:
    Mar 9, 2011
    Messages:
    86 (0.04/day)
    Thanks Received:
    6
    I love the look of clear tubing, Such a shame it wont stay clear tho :/

  11. m1dg3t

    m1dg3t

    Joined:
    May 22, 2010
    Messages:
    2,263 (1.00/day)
    Thanks Received:
    523
    Location:
    Canada
    Awesome! Your attention to detail is :D

    I liked the white tubing, picked up 3ft to use in my next build lol

    Patiently waiting the next "suckerpunch" lol

    :toast:

  12. The Boy Riley

    The Boy Riley

    Joined:
    Dec 17, 2011
    Messages:
    14 (0.01/day)
    Thanks Received:
    44
    Apologies!

    It would appear ive been a terrible human being and forgotten to update this thread...

    I hope this offering appeases, rolled up updates..


    Evening, its been a while.

    Firstly excuses

    Got a grown up job, moved house, desk stayed put, now work in a different part of the country to where I moved to... (with the desk nicely placed smack in the middle)


    On with the good bit,

    put it back together and make some holes for wires...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Also some holes for tubes...

    [​IMG]

    And more wires...

    [​IMG]

    [​IMG]

    Add some bits n pieces

    [​IMG]

    [​IMG]

    Sata Cables

    [​IMG]

    [​IMG]

    I needed to raise the SSDs up by about 6 mm so the plugs fir correctly were I'm putting them, so I made these plinths for them that turned out rather well

    Hopefully they'll look good once they get anodised too (brushed first)

    [​IMG]

    [​IMG]

    Got a few of the more wierd and wonderful bolts I needed too...

    [​IMG]


    Then my sleeving arrived...

    [​IMG]

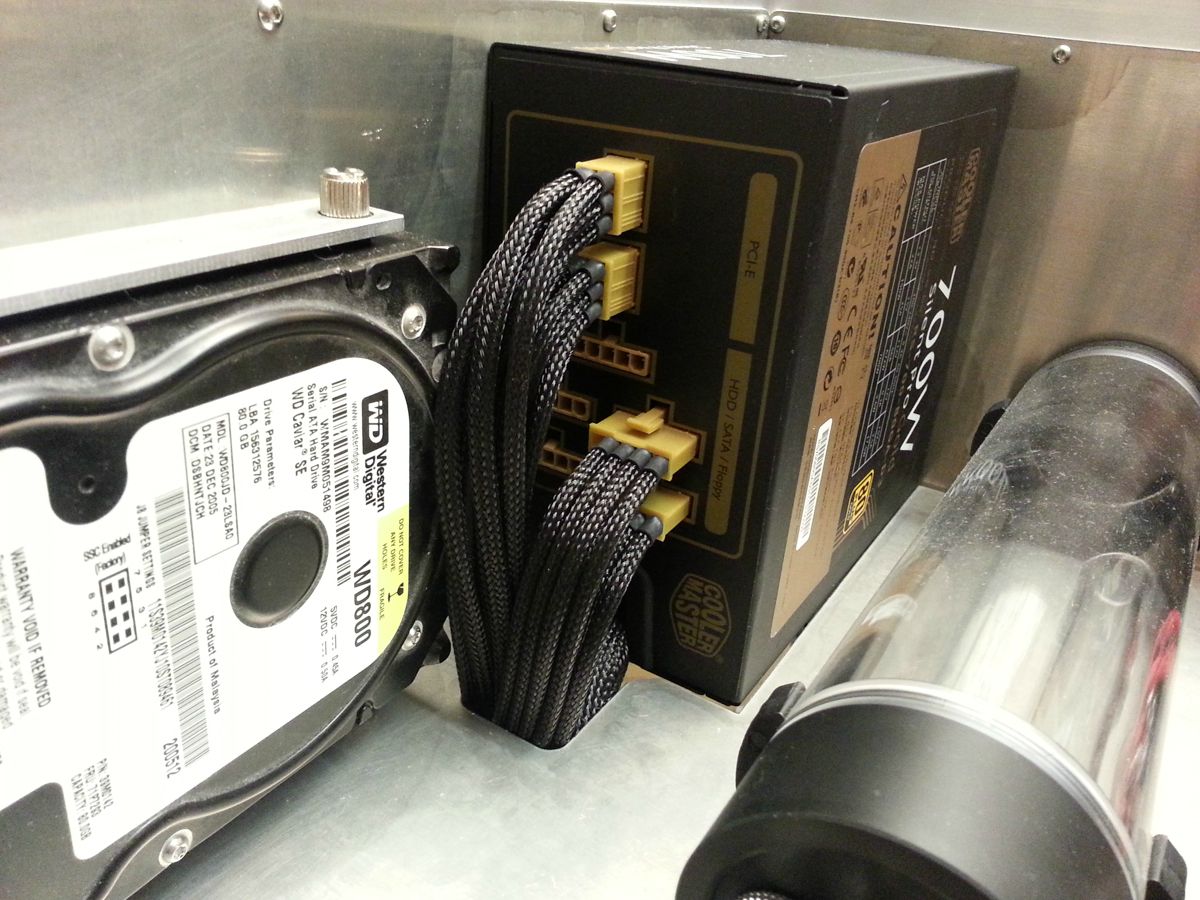

    Decided to sleeve the power cables that go under the cards in the SATA sleeving, which turned out really well.

    [​IMG]

    [​IMG]

    I had hoped to use the bitfenix extensions I had managed to get hold of... but they looked too different to the sleeving I was using, so I made the executive decision to re-sleeve them...

    [​IMG]

    [​IMG]

    A few people commented on how long the sleeving took... this may have been why... also if you sit down and work out how may cables are in this desk... you'll realise why this was a soul crushing exercise.

    but...

    [​IMG]

    it looks so much better for it :D

    [​IMG]

    Dual PSU link sorted too.
    [​IMG]

    and after running out of sleeving... got some more and daisy chained all the fans

    [​IMG]

    [​IMG]
    usb cable here looks a bit grubby, I may have to do something about that...

    and then put some better sleeving on the PSU...
    [​IMG]


    Now for the bits you don't really see every day...

    The issue of the screen stand I haven't really touched yet, the problem being, I cannot have my screen mounted to the wall as some desk builds do and I refuse to have a dirty great screen covering my motherboard that I've gone to great lengths to have in the middle.

    So I got a triple monitor stand... then the upright...

    [​IMG]

    needed to be bigger...

    [​IMG]


    Make a push fit bung with a copy of the thread

    [​IMG]

    and you get a 2.4m monitor stand... (shortest piece of that strength Aluminium I could get :) )

    [​IMG]

    now for again a more fun bit, another issue, I have a set of 5.1 speakers that I love, so how will these go on? well, make a drop in mount on top of your screen stand, this was really fun to make, probably one of my favourite parts so far.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    So now my speaker can perch above my screen without wall mounting, which will keep my land-lord happy.


    A new addition to the workshop made this next piece very simple, everyone, Id like you to meet the future of "home" pc builds...

    [​IMG]

    and it does things like this...

    [​IMG]

    then you swap some bolts around

    [​IMG]

    and after a while

    [​IMG]

    [​IMG]

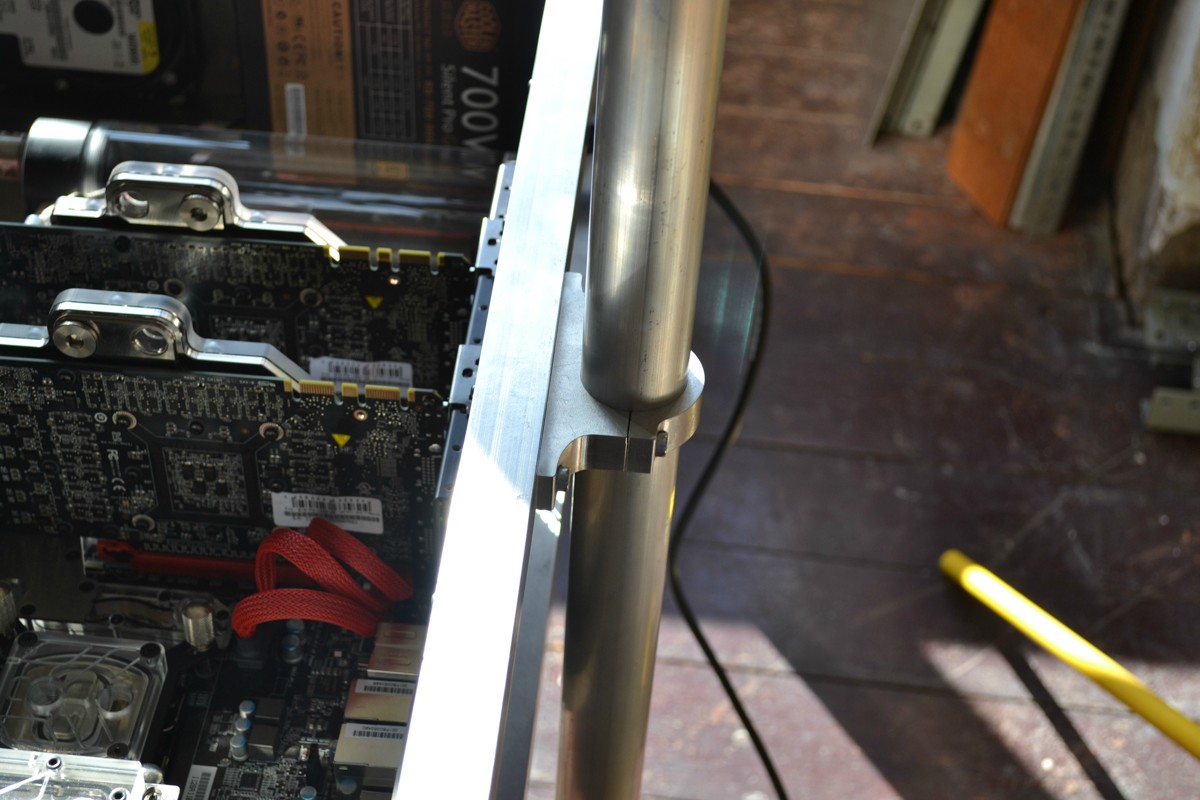

    Put some more holes in the back of the desk and voila...

    [​IMG]

    A screen stand clamp, with floor plate

    [​IMG]

    That's about it for now, this has been going on for a while but I'll be up at home sleeving the last (hopefully) of the PSU modular cables this weekend.

    Then just the finer details to be done before coating the metal... I've hopefully got access to a polishing machine so I can brush the frame before it gets anodised too :D

    Cheers everyone who's still interested, more to come.

    Sam.


    ----------------------------------------------


    Evening, been a bit busy as usual, working, holidays, moving house again, the usual stuff that gets in the way.

    Firstly, my apologies for the quality of the pictures, the DSLR that I've been using is on it's holidays at the minute.

    So...

    Bored out the screen stand to fit the extension bar from the last update

    [​IMG]

    [​IMG]

    This meant I could put the new screen on to cut the pole to length once I'd measured up with the speaker

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Should be getting the side screens this week and I'll be mounting the left/right speakers to those :)

    So I've been making my way through the little jobs that are finishing touches, ideally I wanted to do these whilst it was getting coated etc, but I was waiting on a few more bits n pieces.

    Firstly a bit of a rant I never had at the time. If anyone else has used the EK SR-2 water block, you will be aware of the spacer shipped with the block. The instructions for which are shown below.

    [​IMG]

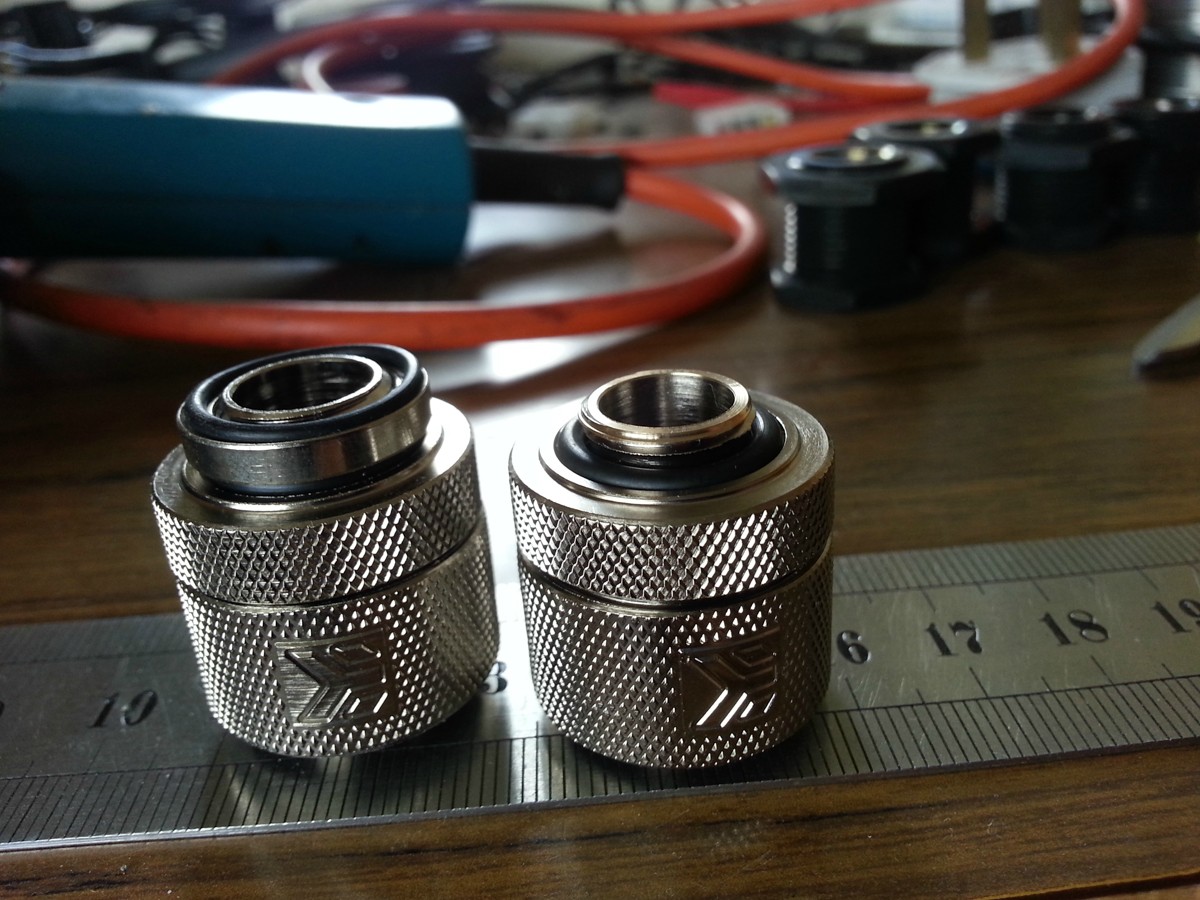

    As you can see... it shows an EK compression fitting and the 3mm spacer that is in the box...

    Here's the thing; if you compare the length of the thread on an EK compression fitting to the thread on an EK barb fitting, you will notice that the thread on the barb is about 1.5 mm longer than a compression. so this happens.

    [​IMG]

    without "unreasonable" force you cannot get this fitting into the block.

    HOWEVER... EK do (or did) sell a 1.8 mm spacer which you can buy separately. My point is this, if you're going to tell me I can use your fittings in the instructions, at least draw the instructions with a type of fitting that will actually work.

    rant over... handily with the liberal application of a lathe you can work around this, just slap a fitting in and take a couple of mm off. I'm sure not that many people have this issue, but even less of those will have a lathe handy to fix it.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Problem solved and it didn't involve me shipping a spacer from Slovenia

    The Bulkhead fittings needed shortening down as they were huge

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    And then finished off the sleeving :D

    [​IMG]

    [​IMG]

    I had a quick test run of the soft felt topping to the frame which the glass will sit on

    [​IMG]

    Finally one of the last pieces, got some grills for the underside of the rads, I was going to strip off the black anodising and redo it red to match the frame. But its just so pretty as is, I might just let it blend in to the black underside.

    [​IMG]

    [​IMG]


    -----------------------------------------------------


    Hello!

    Busy weekend, I was planning on having the desk finished by the 20th, as I'll be moving into my new place, but it doesnt look like ill be able to get the metal work polished this week, so it may take an extra week or two to get the coating and anno sorted.

    BUT

    In theory, the metal work and building.... is done... the last of this was the side speaker stands.

    First, turned some bits to mimic the current base for the speakers

    [​IMG]

    [​IMG]

    [​IMG]

    Milling a slot in the back of these at the right angle to have the speaker vertical, then drill n tap the mounting holes

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Then for the extension bars

    [​IMG]

    Made some conical washers for mounting the bars onto the groove in the screen stand

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    That's it for this weekend, this lot took a bit longer than expected and I only had one day for desking this weekend.

    Next week should be taking it all apart and I've got a plan to make the DVD drive a bit more entertaining too, so ill have a bash at that.

    One word.... Soon...

    Sam.


    ----------------------------------------------------


    So, been getting stuff sorted for moving and getting the desk coated, a final count of fittings etc and then...

    [​IMG]


    waiting to be brushed we now have the Red pile of bits,

    [​IMG]

    waiting to be powder coated we have the black pile of panels and bits

    [​IMG]

    and all boxed up and ready to go to the new house,

    [​IMG]

    [​IMG]

    Bolts?.... anyone?

    [​IMG]

    So, as soon as I can get it all coated it's good to go!

    Sam.


    -----------------------------------------------------


    Hello!

    Just to give a quick update; I've moved house, I have a room full of computer parts and no desk to put them in yet and getting the frame polished is proving annoying as the machine I was planning on using is broke.

    However, it should be fixed this week, then all will be well with the world.

    Also I polished up the screen stand as the machine I'm waiting on can't do round stuff properly.

    [​IMG]

    [​IMG]

    You will all be please to know that the glass survived the journey to the new house and made it up the stairs without incident!

    I also had to get my new landlords permission to move a radiator to accommodate where I'll be putting the desk... nothing like a nice simple move...

    Also fun, try describing a computer desk to a contents insurer.


    -----------------------------------


    Hello! picked up the metalwork from the powdercoaters this morning...

    [​IMG]

    Soon :)


    ---------------------------------------------


    Quick apology, some of the pictures aren't quite right, as you can imagine. lighting was a bit of an issue :)

    Right, so I basically gutted my room, took the bed out to give plenty of space to work, you can also see where I had to move my radiator to fit the desk into the room :)

    [​IMG]

    First time I unwrapped all the metalwork...

    [​IMG]

    I'm not sure of the rules on here for posting outside companies (if they aren't competitors etc) but if anyone would like the information on the Metal finishing company I went to, PM me, I couldn't be happier with them.

    Firstly, I put on the felt strips which the glass will sit on

    [​IMG]

    Cleaning out any extra powder that made it into the threads

    [​IMG]

    [​IMG]

    [​IMG]

    Starting to get the brackets on and getting the frame together...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The switches go in as you assemble the frame

    [​IMG]

    Love this photo...

    [​IMG]

    Panels!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    My flatmate laser cut me a matte black disk to cover the hole in the DVD drive, its simple and looks rather smart (about a million times better than the horrible sticker that was on it)
    [​IMG]

    [​IMG]

    Now a "fun" part, group your PCI-e cables in overlapping groups of four and bind them together using a matching red thread.

    [​IMG]

    [​IMG]

    Creating a core group which you can then attach the outer cables around.

    (top part done)
    [​IMG]

    [​IMG]

    This took a very...very long time, but was completely worth it. this was the most time consuming part of the build, but I used this approach on all the cables and they all now hold their shape without cable ties.

    [​IMG]

    Starting the tubing :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I then put the screen stand on, This is where the problem happened... I obviously needed to sand out the clamp so it would fit the newly powder coated pole. the clamp went on fine with some persuasion. However, the monitor stand armature which holds the screens did not.

    Instead of making their screen stands out of aluminium, they are in fact made of cheese, sheared the clamp straight off the bar. I've got a new one on the way which has a more practical design which I can modify to fit the screen pole.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The moment of truth...

    [​IMG]

    [​IMG]

    So currently the desk has all the screens just stood on the glass until I get the screen stand sorted, so I'll have some yummy pictures for you all in a week or so.

    Current Clock/Cooling

    Cpu(s) clocked @ 3.8Ghz
    40 degrees Idle, 50-55 under load.

    Gfx cards 45 Degrees Idle 55-60 under load

    All with the fans at 70% (inaudible)

    So the loudest things in the desk are the pumps so two D5's set to 3... its blissfully quiet.

    Thank you to everyone who maintained an interest over the two years it took to make the thing, sorry for the wait, but I hope this makes up for it.

    Sam.

    GreiverBlade, -KarL-, khemist and 5 others say thanks.
  13. gaetan New Member

    Joined:
    Oct 28, 2013
    Messages:
    1 (0.00/day)
    Thanks Received:
    0
    Location:
    Belgium
    Epic Awesomness

    I had to register to subscribe as I want...no... I HAVE to see the final result!

    This is truly awesomely epic!

    I really have to congratulate you on your work, this is really an impressive built, I'm actually jealous of your desk and of your talent on making this desk.

    Keep on the good work, I'm impatient on seeing this desk finished.


    P.S.: If, by any chance, you want to get rid of it ;) :p

  14. Vario

    Vario

    Joined:
    Oct 21, 2005
    Messages:
    3,153 (0.80/day)
    Thanks Received:
    1,059
    Your dad has an awesome work shop I am very jealous. Your results are fucking epic.

    10 Year Member at TPU
  15. crmaris

    crmaris Reviewer

    Joined:
    Mar 3, 2011
    Messages:
    605 (0.31/day)
    Thanks Received:
    671
    Location:
    Greece
    this is an epic project!!! Congrats man!

  16. night.fox

    night.fox

    Joined:
    Dec 23, 2012
    Messages:
    1,301 (0.99/day)
    Thanks Received:
    836
    Location:
    south korea
    oh man.....

    It makes me wanna rob a bank so I can buy something like that :banghead: :banghead: :banghead: :banghead:

    That looks awesome......... :rockout::rockout:

  17. t_ski

    t_ski Former Staff

    Joined:
    Apr 11, 2006
    Messages:
    11,779 (3.14/day)
    Thanks Received:
    6,030
    Nice skills :pimp:

    10 Year Member at TPU Crunching for Team TPU
  18. karmen1983

    karmen1983 New Member

    Joined:
    Oct 28, 2013
    Messages:
    1 (0.00/day)
    Thanks Received:
    0
    Location:
    Athens,Greece
    Just one word Sir!

    PERFECTION!!! :respect:

    subbed

  19. Lionheart

    Lionheart

    Joined:
    Apr 30, 2008
    Messages:
    4,201 (1.40/day)
    Thanks Received:
    950
    Location:
    Multidimensional
    [​IMG]

  20. james888

    james888

    Joined:
    Jun 27, 2011
    Messages:
    5,492 (2.96/day)
    Thanks Received:
    2,879
    Not enough red... :p

    Seriously though. Awesome.

    Crunching for Team TPU
  21. GreiverBlade

    GreiverBlade

    Joined:
    May 9, 2012
    Messages:
    4,561 (2.97/day)
    Thanks Received:
    3,799
    Location:
    Ovronnaz, Wallis, Switzerland
    sorry i have to ...

    HOLY GOTHER OF MOD!!! aherm i mean HOLY MOTHER OF GOD!


Currently Active Users Viewing This Thread: 1 (0 members and 1 guest)
