Realtek Announces New Flash Controllers, Including one for PCIe Gen 4 NVMe SSDs

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
41,796 (8.19/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) BenQ 1440p 60 Hz 27-inch
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
At the 2019 Flash Memory Summit, Realtek announced a slew of new Flash memory controllers targeting a diversity of devices, spanning from USB flash drives to USB external SSDs, M.2/U.2 NVMe internal SSDs. Leading the pack is the RTS5771, the company's new flagship NVMe SSD controller that features a PCI-Express 4.0 x4 host interface, 8 NAND Flash channels with up to 1,200 MT/s speeds per channel, NVMe 1.3, and DRAM cache. This becomes the third PCIe gen 4.0-capable client-segment NVMe SSD controller after the Phison E16 and the Marvell 88SS132x.

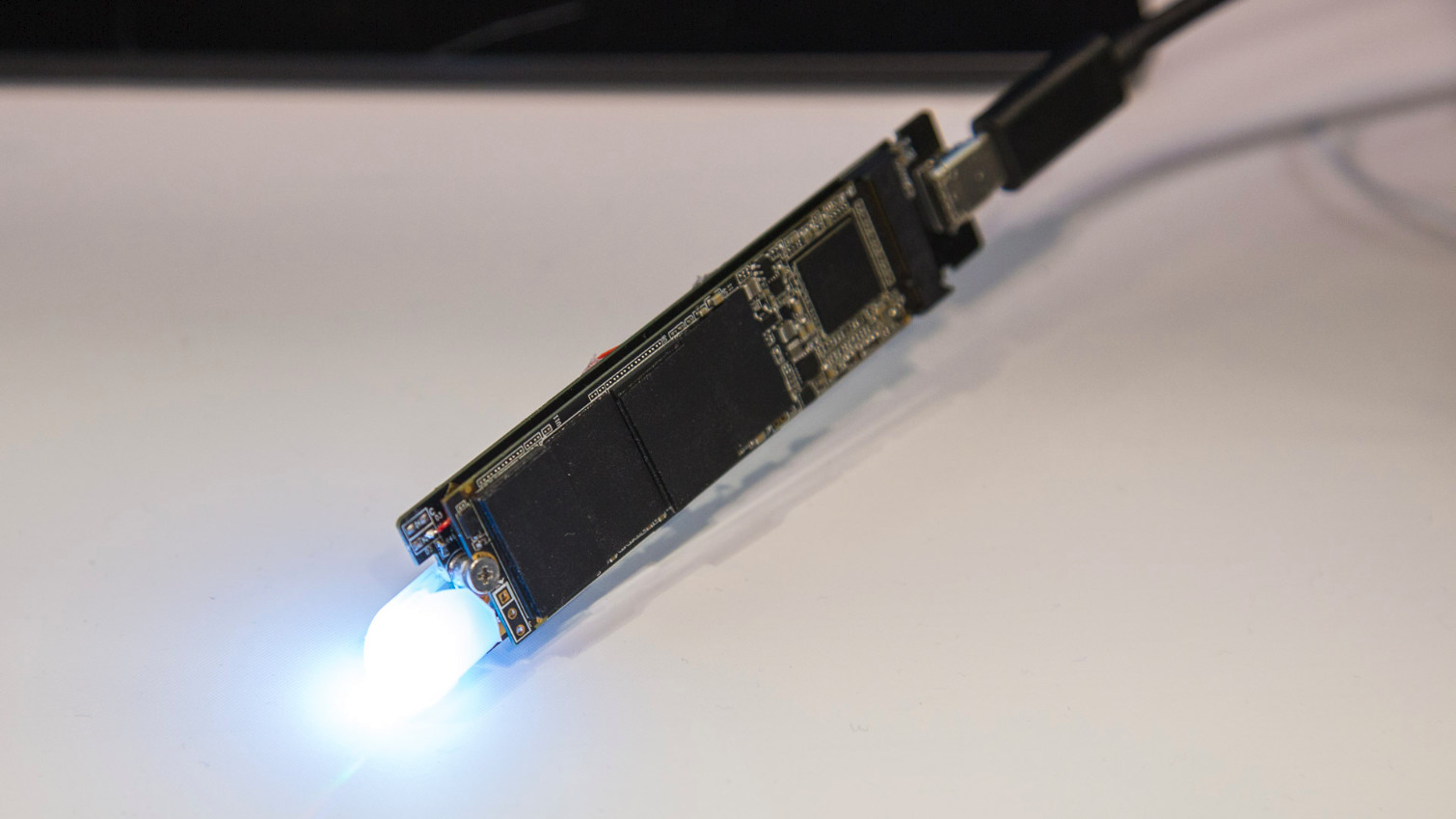

The RTS5765DL is its cost-effective sibling, which has PCI-Express 3.0 x4 host interface, just 4 NAND Flash channels, and is DRAM-less, allowing manufacturers to design cost-effective SSDs. It still has 1,200 MT/s bandwidth per channel, so drives that implement it can offer sequential speeds similar to premium drives from the previous generation. The new RTL9210 is a bridge chip that converts USB 3.1 gen 2 (10 Gbps) to PCI-Express 3.0 x2, ideal for cost-effective external NVMe SSDs. The controller also features an integrated RGB LED logic, so drive designers can bling up their creations.



View at TechPowerUp Main Site

Joined
Nov 11, 2004
Messages
9,020 (1.46/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si

iO

Joined
Jul 18, 2012
Messages
486 (0.14/day)
Location
Germany
Processor R5 3600
Motherboard MSI B450i Gaming
Cooling Accelero Mono CPU Edition
Memory 16 GB VLP
Video Card(s) RX580 Armor w/ Accelero Mono
Storage P34A80 512GB
Display(s) LG 27UM67 UHD
Case none
Power Supply SS G-650
Joined
Nov 11, 2004
Messages
9,020 (1.46/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G502 Lightspeed
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si

iO

Joined
Jul 18, 2012
Messages
486 (0.14/day)
Location
Germany
Processor R5 3600
Motherboard MSI B450i Gaming
Cooling Accelero Mono CPU Edition
Memory 16 GB VLP
Video Card(s) RX580 Armor w/ Accelero Mono
Storage P34A80 512GB
Display(s) LG 27UM67 UHD
Case none
Power Supply SS G-650
That's PCIe 3.0.
Yes the Shasta named one is. But scroll down a bit, they have got a PCIe 4.0 one for client and one for enterprise products.

Joined
Mar 7, 2011
Messages
2,047 (0.53/day)
Yes the Shasta named one is. But scroll down a bit, they have got a PCIe 4.0 one for client and one for enterprise products.
Samsung also has their own pci-e 4.0 drives in work. PM1733 is enterprise drive coming shortly.
