[Case Gallery] Rev. 4

Joined
Jun 3, 2008
Messages
238 (0.07/day)
Likes
22
Location
Pacific Coast
System Name Z77 Rev. 1
Processor Core i7 2600K
Motherboard ASRock Z77 Extreme4
Cooling Water Cooling
Memory 4x2GB G.Skill 1600MHz DDR3
Video Card(s) 2x GTX 580
Storage Samsung 850 Pro 512GB
Display(s) Samsung SyncMaster SA550
Case Silverstone TJ07
Audio Device(s) Onboard
Power Supply Corsair AX1200
Mouse Razer
Keyboard Leopold Tenkeyless
Software Windows 8.1 64
#1
To view this case mod, go here.

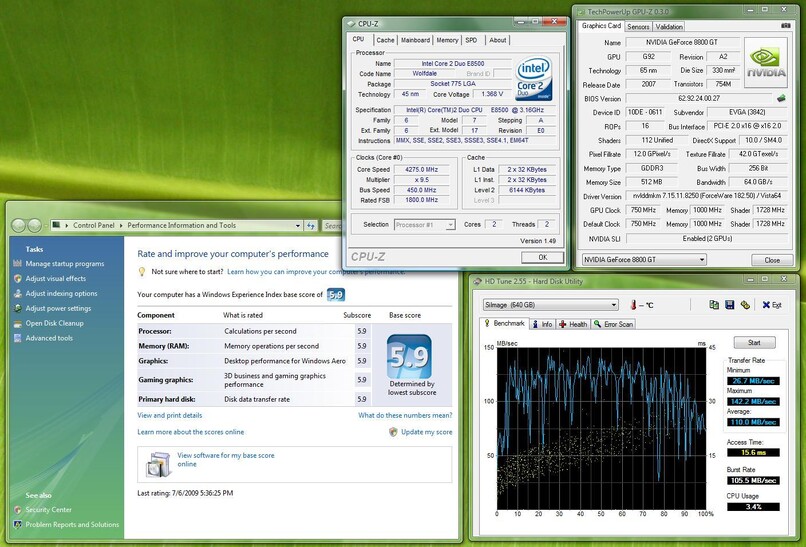

Specs:
E8500 @ 4.27GHz
PC2-8500 HyperX @ 1,080MHz 4-4-4-12
8800GT SLI @ 700/1000
9400GT Physx
WD Raptor 150GB

Mods:

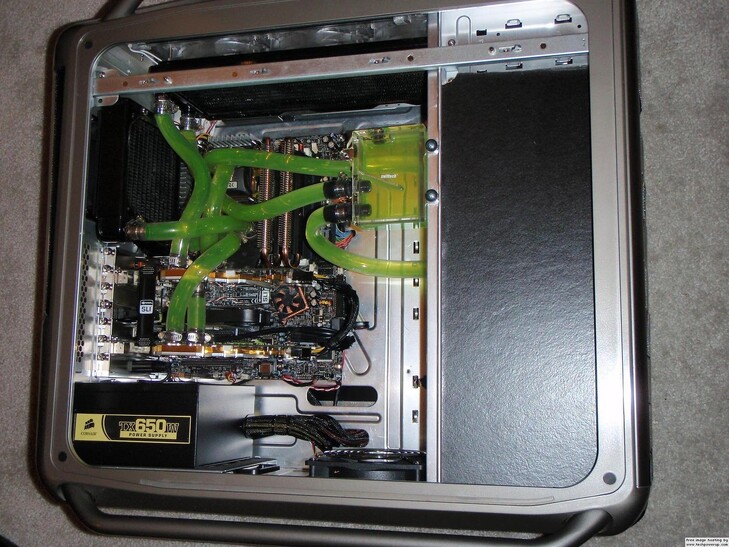

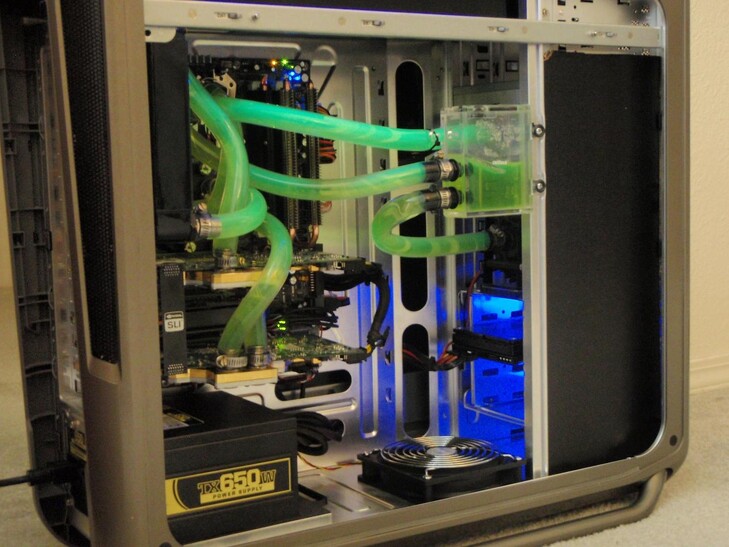

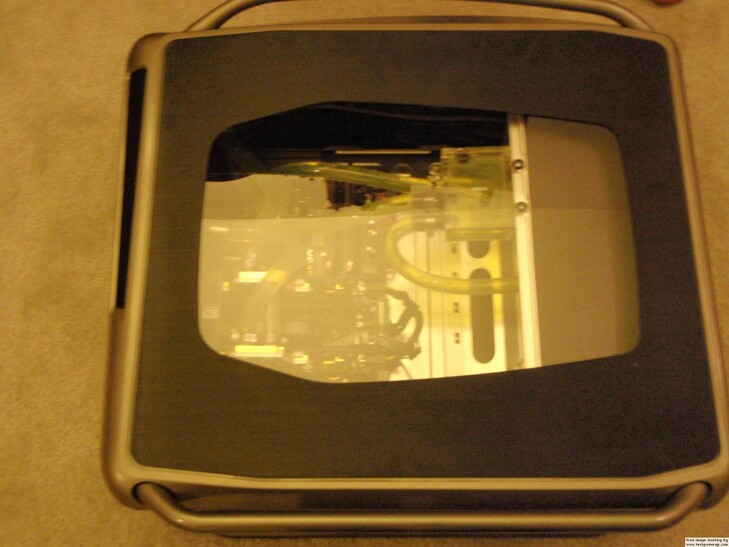

Made plexiglass side panel. Installed black drive bay insert. Cut motherboard tray holes for wire management. Installed water cooling system.

Last edited by a moderator:
Joined
Nov 17, 2007
Messages
2,229 (0.60/day)
Likes
316
Location
Larisa, Greece
System Name StarCruiser Dark Knight v.2
Processor Intel® Core™ i5-3570K
Motherboard P8Z77-V LX
Cooling 1x custom W/C loop/ inflow:6x120 /outflow:4x120, 2x200
Memory Viper 3 Black Mamba (4x4GB)
Video Card(s) Powercolor LCS 5870
Storage 1X 128GB OCZ, 2 x 1.500 Gb Seagate
Display(s) Samsung 24" LC24F396
Case custom MDF case (I BUILT IT) check sig.....NOW
Audio Device(s) Onboard
Power Supply Tagan 900 watt
Software Win 7 RC / Open office / Games
#2
basic mods.... superbly applied! 7/10

K

kyle2020

Guest
#3
yo tiger, is that loop better than one way looping? i have one 12cm radiator and two 24 cm radiator, my old setup was pump->cpu->nb->vga->12cm->24cm->24cm->pump do you think better if i use the setup like urs but it's pump->cpu->12cm->nb->vga->24cm->24cm->pump, can u give me some suggestion . ^^
Id suggest a 24cm in between the CPU and the VGA.

Joined
Nov 26, 2008
Messages
4,250 (1.27/day)
Likes
2,802
Location
S.Cali
System Name Freeman's Box (HL2 mod)
Processor Intel core i7 860 @ 3.6Ghz
Motherboard Asus Maximus III Formula P55
Cooling ApogeeXT/EK pump/ 140 rad x2
Memory Kingston HyperX 2166 8Gb
Video Card(s) Evga SSC GTX 970 4Gb
Storage SSD 840 250Gb, WD 640Gb
Display(s) 32" Samsung SyncMaster
Case NZXT Tempest Case
Audio Device(s) Creative SupremeFX
Power Supply Corsair TX 750W
Mouse Razer DeathAdder
Keyboard Razer Tarantula
Software Win.7 Home Prem. x64
Benchmark Scores Good enough ;)
#5
Very clean case, great mod. 7/10

Joined
Jun 3, 2008
Messages
238 (0.07/day)
Likes
22
Location
Pacific Coast
System Name Z77 Rev. 1
Processor Core i7 2600K
Motherboard ASRock Z77 Extreme4
Cooling Water Cooling
Memory 4x2GB G.Skill 1600MHz DDR3
Video Card(s) 2x GTX 580
Storage Samsung 850 Pro 512GB
Display(s) Samsung SyncMaster SA550
Case Silverstone TJ07
Audio Device(s) Onboard
Power Supply Corsair AX1200
Mouse Razer
Keyboard Leopold Tenkeyless
Software Windows 8.1 64
#6
yo tiger, is that loop better than one way looping? i have one 12cm radiator and two 24 cm radiator, my old setup was pump->cpu->nb->vga->12cm->24cm->24cm->pump do you think better if i use the setup like urs but it's pump->cpu->12cm->nb->vga->24cm->24cm->pump, can u give me some suggestion . ^^

The loop has to be done on a case by case basis based on what hardware you have.

I chose to place the small 12cm radiator after the CPU because my GPUs run nice and cool. I placed the large 36cm radiator after the GPUs because my CPU runs a bit warm with the OC and I want to keep it as cool as possible. My CPU temps with IBT are 64c max temp and 56c max temp with Prime95 small FFTs.

Last edited:
