RV740 to Make Radeon HD 4730, HD 4750 SKUs?

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.22/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1
AMD is on course of releasing the industry's first GPU built on the 40nm silicon process: the RV740. Its specifications make it a cheap yet powerful GPU for the segment it is about to cater to. With the earliest pointers hinting at 640 stream processors and a 128-bit wide GDDR5 memory interface. The GPU also marks the industry's first mainstream implementation of the GDDR5 standard.

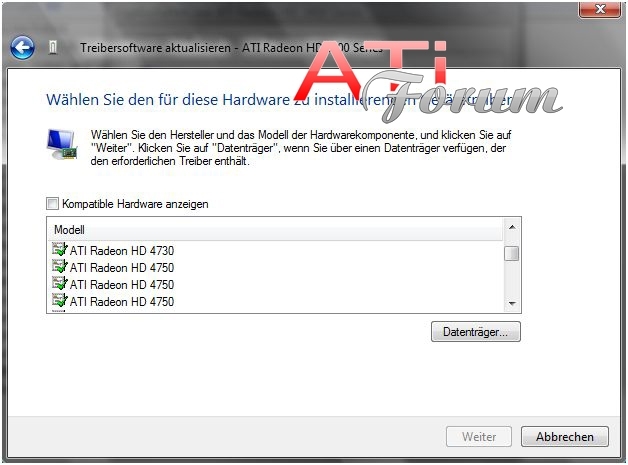

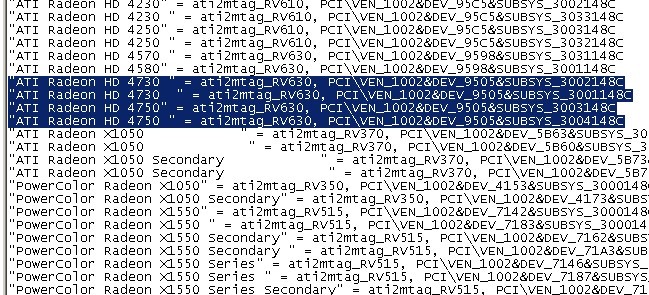

Fresh details emerging out of the inspection of the driver information files of ATI Catalyst version 9.1, as German website ATI Forum finds out, hints at the possibility of the RV740 being implemented in two SKUs: the Radeon HD 4730 and Radeon HD 4750. While in the driver file, the device string lists with "RV630", it can be seen throughout the file that several strings are assigned to the same RV630, and is merely a means to identifying a whole class or generation of graphics processors to the driver. Additionally, the string bears the device ID of the RV670, again, that's not relevant. The strings are what matter. The RV740 is not very far away from large scale production. It should become a reality by the upcoming CeBIT event, in March. From the view of being a mere postulation, RV740 being the GPU that goes into making the new SKUs, does end up sounding plausible. When released, these cards are intended to further strengthen AMD's market position in the sub-US $150 market.

Show full news post

Last edited:
Joined
Mar 28, 2007
Messages
2,481 (0.63/day)
Likes
340
Location
Your house.
System Name Jupiter-2
Processor Intel i3-6100
Motherboard H170I-PLUS D3
Cooling Stock
Memory 8GB Mushkin DDR3L-1600
Video Card(s) EVGA GTX 1050ti
Storage 512GB Corsair SSD
Display(s) BENQ 24in
Case Lian Li PC-Q01B Mini ITX
Audio Device(s) Onboard
Power Supply Corsair 450W
Mouse Logitech Trackball
Keyboard Custom bamboo job
Software Win 10 Pro
Benchmark Scores Finished Super PI on legendary mode in only 13 hours.
#3
Wow -- glad I got in before someone complained about the presence of GDDR5 with a 128-bit memory interface.

Just so you know -- GDDR5 with 128-bit should be comparable to GDDR3 with 256-bit (please correct me if I'm wrong). I'm just amazed that GDDR5 is cheap enough where it's more profitable to pair it up with a 128-bit interface that it is to just go with regular GDDR3+256-bit.


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.22/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#4
Joined
Apr 5, 2005
Messages
6,571 (1.42/day)
Likes
1,164
Location
Republic of Asia (a.k.a Irvine), CA
System Name Red Spy
Processor FX 8350 @ 4.35 Ghz with 1.28v
Motherboard Gigabyte 990FX-UD3 v4.0
Cooling TT Water 3.0 Performer + 2 x Cougar 120mm fan, 1 x 120mm Blue LED, 1 x 200 mm Red LED fan
Memory Kingston HyperX DDR3 1333 16GB
Video Card(s) Asus R9 290 OC @ GPU - 1050, MEM - 1300
Storage ADATA 128GB Sata III SSD for OS, WDC Black - 1TB Storage, OCZ Vertex 3 120GB SSD - Games
Display(s) AOC 23" 1080P LCD
Case AeroCool XPredator X3
Audio Device(s) Built-in Realtek
Power Supply Corsair HX1000 Modular
Software Windows 7 Ultimate 64 bit
Benchmark Scores BF4 with Mantle on Ultra settings gets around 60 FPS.
#5
How will these compare to 4850 or 4830? Is it going to be in the same price range? or in the 46xx series?

Joined
Apr 14, 2008
Messages
3,338 (0.94/day)
Likes
500
Location
Brooklyn, New York 11223
System Name Mine | Dad + Mom
Processor E8500 E0 Wolfdale @ 4.6GHz 1.5V | E2180 M0 Allendale @ 3.0GHz 1.3V
Motherboard Asus Maximus Formula (X48) w/ Rampage BIOS | Asus P5Q Pro (P45)
Cooling Xigmatek Rifle HDT-S1283 w/ SFF21F Fan | Arctic Cooling Freezer 7 Pro
Memory G.Skill Pi Black 2x2GB 1.02GHz CL5 | OCZ Reaper 2x2GB 1.05GHz CL5
Video Card(s) Sapphire 4870X2 2GB 820/1020MHz | Sapphire 4850 1GB 700/1100MHz
Storage WD VR 150GB 10K RPM + WD 500GB 7.2K RPM | WD 200GB 7.2K RPM
Display(s) Acer P243WAID 24" 1920x1200 LCD | Acer V193W 19" 1440x900 LCD
Case Cooler Master HAF 932 Full-Tower | Antec Twelve Hundred Mid-Tower
Audio Device(s) Fatal1ty Xtreme Gamer w/ Z-5500 5.1 | On-Board Audio w/ S-220 2.1
Power Supply PC Power and Cooling 750W Non-Modular | Corsair HX-520W Modular
Software Windows Vista Home Premium X64 | Windows Vista Home Premium X64
Benchmark Scores Not Wasting Time!
#6
How will these compare to 4850 or 4830? Is it going to be in the same price range? or in the 46xx series?
Seeing that it has a 128-bit bus and 640 sp's it will be priced a bit lower than the current 4830 which is $100. These will be like $50-$80.


AKlass

New Member
Joined
Oct 10, 2007
Messages
297 (0.08/day)
Likes
18
Location
MD
Processor Intel Pentium Dual Core E2180~MO 3.16ghz 316x10
Motherboard Gigabyte 945GCM-S2C
Cooling HDT S963 2x120mm Rosewill intake fans 2x80mm Rosewill exhaust fans
Memory 2 x 2GB Wintec Ampo DDR2 632 5-4-4-14 2.0v
Video Card(s) ATI 5770 950/1400
Storage 750GB WD Caviar Black SATA
Display(s) Sceptre x42 naga
Case Apevia Qboii
Audio Device(s) C-Media 8768
Power Supply OCZ ModXstream 500w
Software Win7 Ultimate (X64)
#7
wont these be on par with the 4830 and 4850 then?

Joined
Jan 19, 2009
Messages
318 (0.10/day)
Likes
28
Location
New York, NY
System Name The Baconator
Processor Phenom II X4 965 @ 4.00GHz
Motherboard Gigabyte GA-790FX
Cooling Zalman 9900 CPU Cooler
Memory 16Gb DDR3 @ 1600MHz
Video Card(s) ATi Radeon HD 5870
Storage OS: WD 300Gb @ 10,000rpm. Storage: 2 x 1Tb @ 7,200rpm
Display(s) ASUS 27" LED 1080p Monitor
Case Cooler Master Sniper Medium Tower
Audio Device(s) MoBo Integrated
Power Supply Corsair PSU 750W
Software Windows 7 Ultimate x64
#8
Great... now I want my Radeon-8 series, lol.

Joined
May 13, 2008
Messages
538 (0.15/day)
Likes
146
System Name HTPC whhaaaat?
Processor 2600k @ 4500mhz
Motherboard Asus Maximus IV gene-z gen3
Cooling Noctua NH-C14
Memory Gskill Ripjaw 2x4gb
Video Card(s) EVGA 1080 FTW @ 2037/11016
Storage 2x512GB MX100/1x Agility 3 128gb ssds, Seagate 3TB HDD
Display(s) Vizio P 65'' 4k tv
Case Lian Li pc-c50b
Audio Device(s) Denon 3311
Power Supply Corsair 620HX
#9
wont these be on par with the 4830 and 4850 then?
I think it will break down like this:

4750:
640 shaders
32 tmus (22.4 gt/s)
16 ROP (11.2 gp/s)
128-bit
700/3600 (900 Gflops, 57.6gbps)
50-60W

4730?:
640 shaders
32 tmus (18.4 gt/s)
16 ROP (9.2 gp/s)
128-bit
575/2000 (736Gflops, 32 gbps)

compared to:

4850:
800 shaders
40 tmus (25 gt/s)
16 ROP (10 gp/s)
256-bit
625/2000 (1000 gflops, 64gbps)
110W

4830:
640 shaders
32 tmus (18.4 gt/s)
16 ROPs (9.2 gp/s)
256-bit
575/1800 (736 Gflops, 57.6gbps)
110W

To find your answer, compare the numbers in the parenthesizes.

Last edited:
Joined
Jan 2, 2009
Messages
289 (0.09/day)
Likes
96
Location
Canada
System Name The (Modified) Futureshop Deal/The Machine
Processor Q6600 @ 2.4 (stock, see mobo)/ I5 3570k @ 4.3
Motherboard Generic Foxconn/ Asus P8z77-v lk
Cooling stock/ Antec Kuhler 620
Memory 4Gb@800/ 16gb Mushkin Enhanced Blackline Frostbyte@1600
Video Card(s) Sapphire 4850/ Gigabyte 7950
Storage Hitachi 500GB, WD Blue 500gb/ Kingston Hyperx 3K 120gb, WD green 2tb
Display(s) Acer 24" 1920x1080/ Benq VA 24" 1920x1080 and HP 24" 1920x1200
Case Acer/ Antec 302
Audio Device(s) On Board for both
Power Supply 500w OCZ Modxstream-pro/ Antec Truepower new 750w
Software W7 Home Premium 64bit for both
#10
what wattage of psu do u think that this could run off? Running a Q6600, 1 hd and 1 dvd drive, minimal fans and everything @ stock

Joined
Jul 17, 2008
Messages
1,062 (0.31/day)
Likes
68
System Name REBEL R1
Processor Core i7 920
Motherboard ASUS P6T
Cooling Stock
Memory 6GB OCZ GOLD TC LV Kit 1866MHz@1.65V 9-9-9-24
Video Card(s) Two Sapphire HD 5770 Vapor-X Xfire'd and OC'd (920/1330)
Storage Seagate 7200.11 500GB 32MB
Case Antec Three Hundred
Audio Device(s) ASUS Xonar D1 PCI Sound Card
Power Supply OCZ StealthXStream 500W
Software Windows 7 Ultimate 64-bit
Benchmark Scores 16585 Performance Score on 3DMark Vantage
#11
I can't wait for these cards! I heard that they can out run the HD 4850 once OC'ed, a true budget steal for the guy on a budget!

Joined
May 13, 2008
Messages
538 (0.15/day)
Likes
146
System Name HTPC whhaaaat?
Processor 2600k @ 4500mhz
Motherboard Asus Maximus IV gene-z gen3
Cooling Noctua NH-C14
Memory Gskill Ripjaw 2x4gb
Video Card(s) EVGA 1080 FTW @ 2037/11016
Storage 2x512GB MX100/1x Agility 3 128gb ssds, Seagate 3TB HDD
Display(s) Vizio P 65'' 4k tv
Case Lian Li pc-c50b
Audio Device(s) Denon 3311
Power Supply Corsair 620HX
#13
I can't wait for these cards! I heard that they can out run the HD 4850 once OC'ed, a true budget steal for the guy on a budget!
I don't doubt when overclocked they will beat the 4850. Let's break it down:

Memory: the same as 4870, rated at 4ghz...meaning with half the bus, it has the same bandwidth of 4850. Of course both could be subject to overclocking, achieving ~70gbps. A draw, give or take. (~2200mhz, 4400mhz.)

Core: We know the 4850/4830 are cores that didn't make the 750mhz cut at the required voltage, and thus used in parts with lower voltage, again limiting their potential to around 700mhz. The 4750 will not be constrained by this binning...At worst held back to not impede on the 4800 series. If it a comparable size/tdp to rv730, and I suspect perhaps a little less, I think it's logical to agree they will behave similar. RV730XT's, not unlike rv770XT's, can hit 800+ mhz. It might even do a little better.

So taking these constraints, or lack there-of, we could see something like this:

4850: 680/1100 (~1.1 TF, 70gbps)
4750: 850/4400 (~1.1TF, 70gbps)

What's interesting is that RV740 is a perfect 80% part vs Rv770...so they should stack up fairly evenly at proportional clockspeeds, except for that fact they both have 16 RBE's (ROPs). Therefore, in cases where pixel-pushing is needed, even at stock vs 4850, overclocked, or anywhere in-between, it could be the faster card at anywhere up to 12-25%.

I think that RV740 will go a long way to showing Rv770 was ROP-limited in many cases, and that this combination (640sp/16 ROP...or 320sp/8 ROP) at ATi's faithful clockspeeds is a more optimal arrangement. This can be shown by overclocking a 4830 vs a stock 4850.

:toast:

Last edited:
Joined
Dec 1, 2007
Messages
528 (0.14/day)
Likes
13
Location
Karachi, Pakistan
System Name mAkS
Processor Intel Core 2 Duo E0 E8400 @3.0Ghz (Acheived 4.4Ghz On Stock Cooling)
Motherboard Asus P5K-V (Dead :[ )
Cooling CPU + Front + Rear + Side
Memory XMS2 DHX TWIN2X2048-6400C5DHX/800 BUS
Video Card(s) Inno3D 9600 GT Overclocked
Storage Seagate Sata II 250 GB ++ 500 GB
Display(s) Hp 2009f 20-inch Wide-screen
Case Legend
Audio Device(s) Build-In 8 CHannel (Dell 5.1")
Power Supply CoolerMaster 460W eXtreme Power Plus
Software Many
Benchmark Scores E8400 hardware rank 94th on hwbot in wPrime :D
#14
buying this for sure.

Joined
Jun 10, 2005
Messages
1,769 (0.39/day)
Likes
96
Location
Singapore
Processor Intel Core i7 2600k 3.40Ghz @ 4.50Ghz
Motherboard Gigabyte P67 UD7 B3
Cooling Antec Kuhler H2O 920
Memory G.Skill RipjawsX DDR3 4GB X2 1600Mhz (Model F3-12800CL7Q-8GBXM)
Video Card(s) Powercolor R9 290 (Stock)
Storage Samsung 840 Pro 256GB / Western Digital Black Cavier 2TB X2
Display(s) Dell U2715H 2560X1440
Case NZXT Phantom
Audio Device(s) Creative Sound Blaster Recon3D Fatal1ty Professional
Power Supply Cooler Master Silent Pro Gold 1000W
Mouse Logitech G510
Keyboard Tesoro Excalibur Spectrum
Software Microsoft Windows 10 Professional
#15
It's meant to be an in-between for HD4600series and HD4800 series to counter Nvidia pricings.

Joined
Apr 21, 2008
Messages
5,230 (1.48/day)
Likes
661
Location
IRAQ-Baghdad
System Name MASTER
Processor Core i7 3930k run at 4.4ghz
Motherboard Asus Rampage IV extreme
Cooling Corsair H100i
Memory 4x4G kingston hyperx beast 2400mhz
Video Card(s) 2X EVGA GTX680
Storage 2X Crusial M4 256g raid0, 1TbWD g, 2x500 WD B
Display(s) Samsung 27' 1080P LED 3D monitior 2ms
Case CoolerMaster Chosmos II
Audio Device(s) Creative sound blaster X-FI Titanum champion,Creative speakers 7.1 T7900
Power Supply Corsair 1200i, Logitch G500 Mouse, headset Corsair vengeance 1500
Software Win7 64bit Ultimate
Benchmark Scores 3d mark 2011: testing
#16
150$ , looks not cheap
