RX 570 VBİOS BLACK SCREEN !!!

[pala27]

Which bios should I install?

I don't know if it is 4gb or 8gb

link please ?

.



[kapone32]

8 GB those look like 1 GB Memory Modules.



[Beginner Micro Device]

This is a 4 GB model.

The only 4 GB BIOS I found is this:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

It doesn't state compatibility with "Micron," yet it's compatible. Why? Because Elpida is Micron.



[kapone32]

This is a 4 GB model.
View attachment 313784

The only 4 GB BIOS I found is this:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

It doesn't state compatibility with "Micron," yet it's compatible. Why? Because Elpida is Micron.

I guess those are 512 Modules then?



[Beginner Micro Device]

I guess those are 512 Modules then?

512 MBytes each, yes.



[pala27]

This is a 4 GB model.
View attachment 313784

The only 4 GB BIOS I found is this:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

It doesn't state compatibility with "Micron," yet it's compatible. Why? Because Elpida is Micron.

My graphics card crashes immediately when playing games.

or amd gives an error report on the desktop, the screen goes on and off for 3 seconds

I install the driver without any problems

why ???

I can't download what you showed



[Beginner Micro Device]

why ???

One of these:

A. Mining BIOS (it's not supposed to run in Windows, that's why you run into errors). Flash the BIOS I provided and see if it makes any difference.
B. The GPU itself is toast. Nothing you can do but get a proper working one or send it to a technician (but it'll most probably cost more than a similar GPU).
C. Your Windows is a bloody mess. Try a fresh install.

I can't download what you showed

Get the version 2.93.
Run it in the cmd.exe with admin rights.

amdvbflash.exe -f -p 0 biosname.rom



[pala27]

version 2.93. I can not find

One of these:

A. Mining BIOS (it's not supposed to run in Windows, that's why you run into errors). Flash the BIOS I provided and see if it makes any difference.
B. The GPU itself is toast. Nothing you can do but get a proper working one or send it to a technician (but it'll most probably cost more than a similar GPU).
C. Your Windows is a bloody mess. Try a fresh install.


Get the version 2.93.
Run it in the cmd.exe with admin rights.

amdvbflash.exe -f -p 0 biosname.rom

One of these:

A. Mining BIOS (it's not supposed to run in Windows, that's why you run into errors). Flash the BIOS I provided and see if it makes any difference.
B. The GPU itself is toast. Nothing you can do but get a proper working one or send it to a technician (but it'll most probably cost more than a similar GPU).
C. Your Windows is a bloody mess. Try a fresh install.


Get the version 2.93.
Run it in the cmd.exe with admin rights.

amdvbflash.exe -f -p 0 biosname.rom



[Beginner Micro Device]

I can not find

Then scroll down to 2.93.



[pala27]

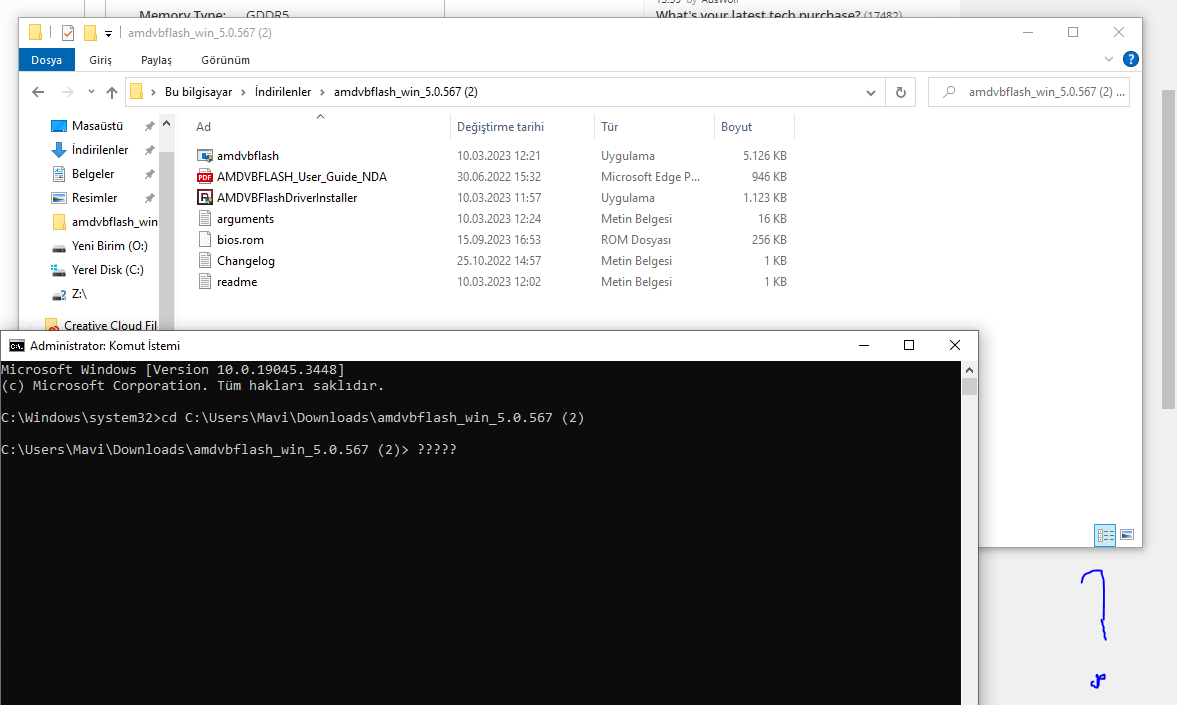

View attachment 313795

Then scroll down to 2.93.

S



[Beginner Micro Device]

S

This is the wrong version. You need 2.93.



[pala27]

version 2.93 dowland links ???

This is the wrong version. You need 2.93.

okay i found it

This is the wrong version. You need 2.93.

I updated VBIOS, computer restarted, black screen for 10 minutes

HELPP

I guess those are 512 Modules then?

Heyy



[Beginner Micro Device]

I updated VBIOS, computer restarted, black screen for 10 minutes

Do you have an iGPU or other dGPU? Can you run two GPUs simultaneously to see if this GPU is seen in Device Manager?



[pala27]

There is 1 entry in my startup

Do you have an iGPU or other dGPU? Can you run two GPUs simultaneously to see if this GPU is seen in Device Manager?



[VuurVOS]

I updated VBIOS, computer restarted, black screen for 10 minutes

Did you try the other outputs of the graphics card? Can you tell more about your system? Motherboard, cpu?

I think this is the correct bios for this card:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com



[pala27]

There is 1 entry in my startup

You didn't give me the wrong vbios, did you?

Did you try the other outputs of the graphics card? Can you tell more about your system? Motherboard, cpu?

I think this is the correct bios for this card:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Normally, I always get images via HDMI.

B450m k gigabyte

Ryzen5 3600x

16gb ram 3200mhz 1

Corsaie vs450 80plus

M2 ssd

1tb hdd

Are you kidding me that this file is different from the last one you sent?



[VuurVOS]

To reflash, you need to have screen. There is no second slot on the motherboard where you can put a graphics card. Your processor doesn't have IGP.
The only solution what I currently see, is to go to a friend which has an ATX motherboard with a second PCI-E 16x slot.



[pala27]

To reflash, you need to have screen. There is no second slot on the motherboard where you can put a graphics card. Your processor doesn't have IGP.
The only solution what I currently see, is to go to a friend which has an ATX motherboard with a second PCI-E 16x slot.

I installed the wrong bios you gave me. If you don't know, why did you make me install the wrong bios? !!!!!



[Beginner Micro Device]

I installed the wrong bios you gave me. If you don't know, why did you make me install the wrong bios? !!!!!

This BIOS must be right but your GPU is most probably toast.



[pala27]

To reflash, you need to have screen. There is no second slot on the motherboard where you can put a graphics card. Your processor doesn't have IGP.
The only solution what I currently see, is to go to a friend which has an ATX motherboard with a second PCI-E 16x slot.

My friend has a motherboard with 2 display slots, what if I take it to him?

My friend has a motherboard with 2 display slots, what if I take it to him?My friend has a motherboard with 2 display slots, what if I take it to him?

Dude, the first file you sent me and the second file I sent you are different, don't anger me, my graphics card chip is micro.



[VuurVOS]

I installed the wrong bios you gave me. If you don't know, why did you make me install the wrong bios? !!!!!

No I didn't! You are mixing me up with Beginner Micro Device.
Read the thread and you will see I replied after you told us you had 10 minutes of black screen.

This BIOS must be right but your GPU is most probably toast.

I have my doubts since the part number is different. The bios I provided after the damage was already done, has the exact same part number as the bios which was installed before pala27 flash it with the wrong bios.

My friend has a motherboard with 2 display slots, what if I take it to him?

You need a second PCI-E 16x slot or an system which has an IGP and a free PCI-E 16 slot.



[pala27]

No I didn't! You are mixing me up with Beginner Micro Device.
Read the thread and you will see I replied after you told us you had 10 minutes of black screen.


I have my doubts since the part number is different. The bios I provided after the damage was already done, has the exact same part number as the bios which was installed before pala27 flash it with the wrong bios.


You need a second PCI-E 16x slot or an system which has an IGP and a free PCI-E 16 slot.

I'm sorry, okay, I will find it, then what step should I take and what should I do?



[VuurVOS]

Download this bios:

XFX RX 570 VBIOS

4 GB GDDR5, 1286 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Use amdvbflash v2.93 to see adapter number belong to your graphics ard:
amdvbflash.exe -i

Flashing bios with adapter number:
amdvbflash.exe -f -p (adapter number) 230795.rom



[Jism]

Yep - likely too aggresive timings applied which benefits mining (with a certain error threshold) but cannot survive in any 3D game without chrashing.

You need to flash it to a stock bios of the RX470.

That would "reset" the tight memory timings back to normal again.



[pala27]

Yep - likely too aggresive timings applied which benefits mining (with a certain error threshold) but cannot survive in any 3D game without chrashing.

You need to flash it to a stock bios of the RX470.

That would "reset" the tight memory timings back to normal again.

why rx 470
