rx580 uefı not boot

xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
hello techpower famıly

I bought a mining ASRock Phantom Gaming D Radeon RX 580 8G OC but there seems to be a problem, it does not open with uefi, for example, it did not work with a320m motherboard but it worked with b550m and h81a ddr3 motherboard.

I will send you my rom file, where can I find the original? I downloaded TechPowerUp vga bios, but gpu clock and memory are not visible, drivers are not loaded.


Attachments

  • bios.rom
    512 KB · Views: 18

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
41,917 (6.61/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
You enable csm on the A320? Anyways get a gpu-z screenshot and a picture of the pn sticker on the card please, also go to advanced tab and get a pic of ram used


xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
I can install this driver and play games on the rom loaded on my graphics card that I bought right now.

But since I installed TechPowerUp vga bios, I can't install the driver and I can't play games, I get code:43 error driver update

I'm trying it on a gigabyte b550m motherboard, is it normal for it to work on bus interface 1.1, my 6900xt graphics card works on 4.0 rx580 have a 3.0

And my graphics card's fan is always spinning, it shouldn't spin if I'm not in a game.


Attachments

  • 1111.PNG
    64.6 KB · Views: 38
  • 3333.png
    75.2 KB · Views: 42
  • 2.png
    92.3 KB · Views: 30
  • WhatsApp Görsel 2024-10-10 saat 02.54.46_79d9d5c8.jpg
    WhatsApp Görsel 2024-10-10 saat 02.54.46_79d9d5c8.jpg
    105.3 KB · Views: 33
  • WhatsApp Görsel 2024-10-10 saat 02.54.46_ab2291a4.jpg
    WhatsApp Görsel 2024-10-10 saat 02.54.46_ab2291a4.jpg
    237.3 KB · Views: 36

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
41,917 (6.61/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I can install this driver and play games on the rom loaded on my graphics card that I bought right now.

But since I installed TechPowerUp vga bios, I can't install the driver and I can't play games, I get code:43 error driver update

I'm trying it on a gigabyte b550m motherboard, is it normal for it to work on bus interface 1.1, my 6900xt graphics card works on 4.0 rx580 have a 3.0

And my graphics card's fan is always spinning, it shouldn't spin if I'm not in a game.
Yeah you placed incorrect bios on card is why

Pull the card from system and see if you can identify a ram chip located on the card please with a picture, if you can't, you will need to remove the heatsink, use fresh paste on gpu die that is designed for the gpu, and get a picture of a ram chip please


xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
Yeah you placed incorrect bios on card is why

Pull the card from system and see if you can identify a ram chip located on the card please with a picture, if you can't, you will need to remove the heatsink, use fresh paste on gpu die that is designed for the gpu, and get a picture of a ram chip please

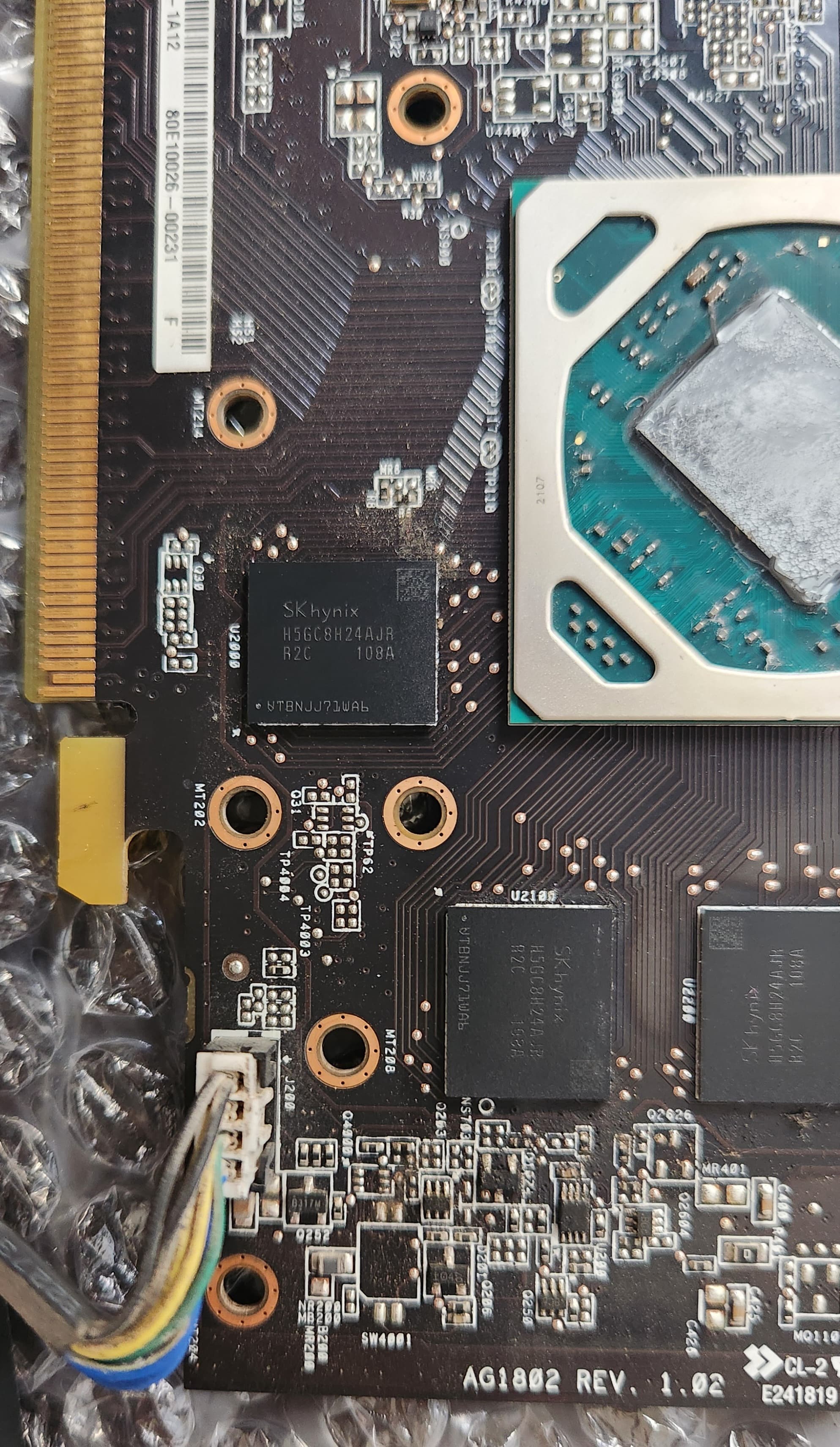

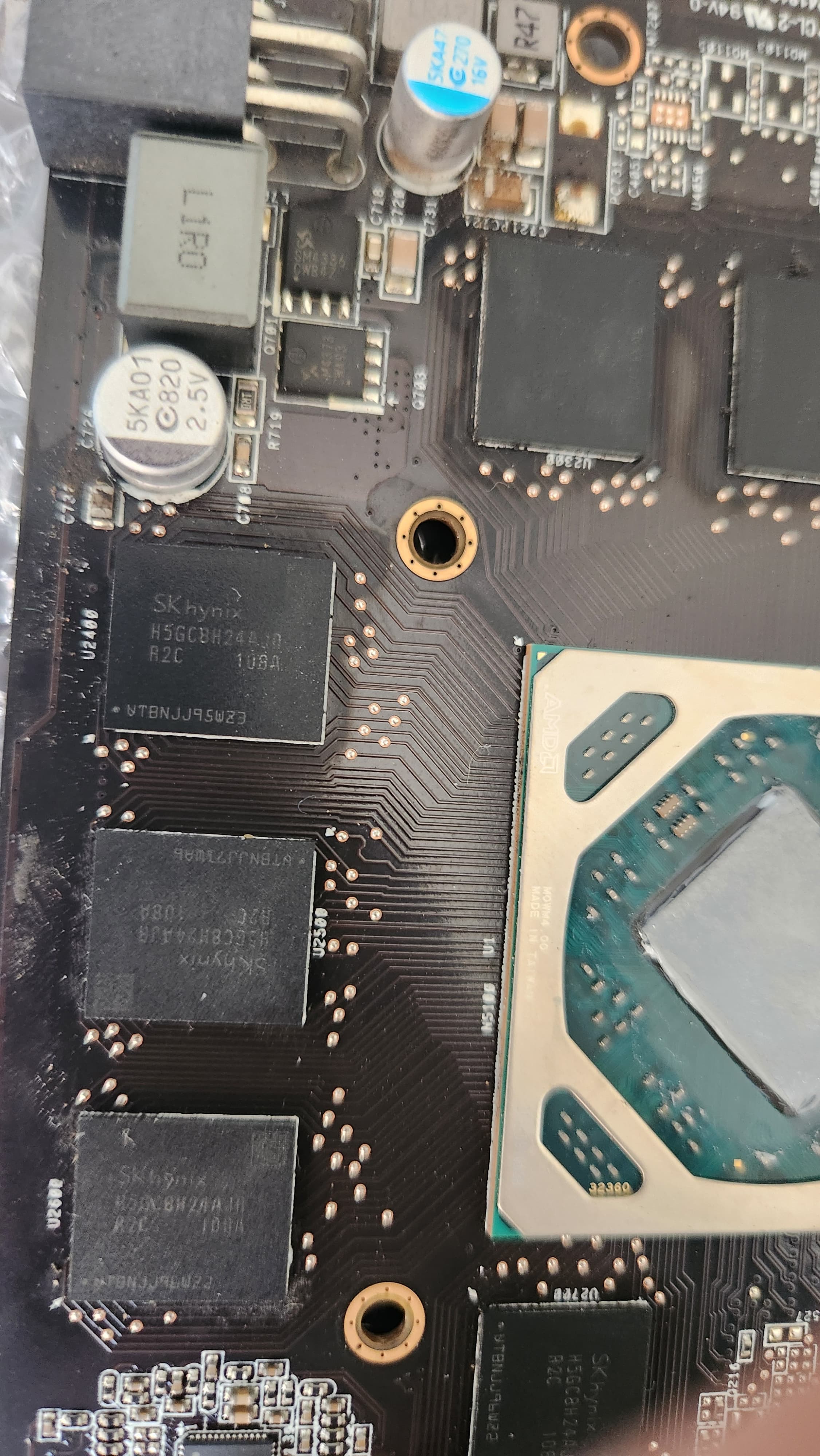

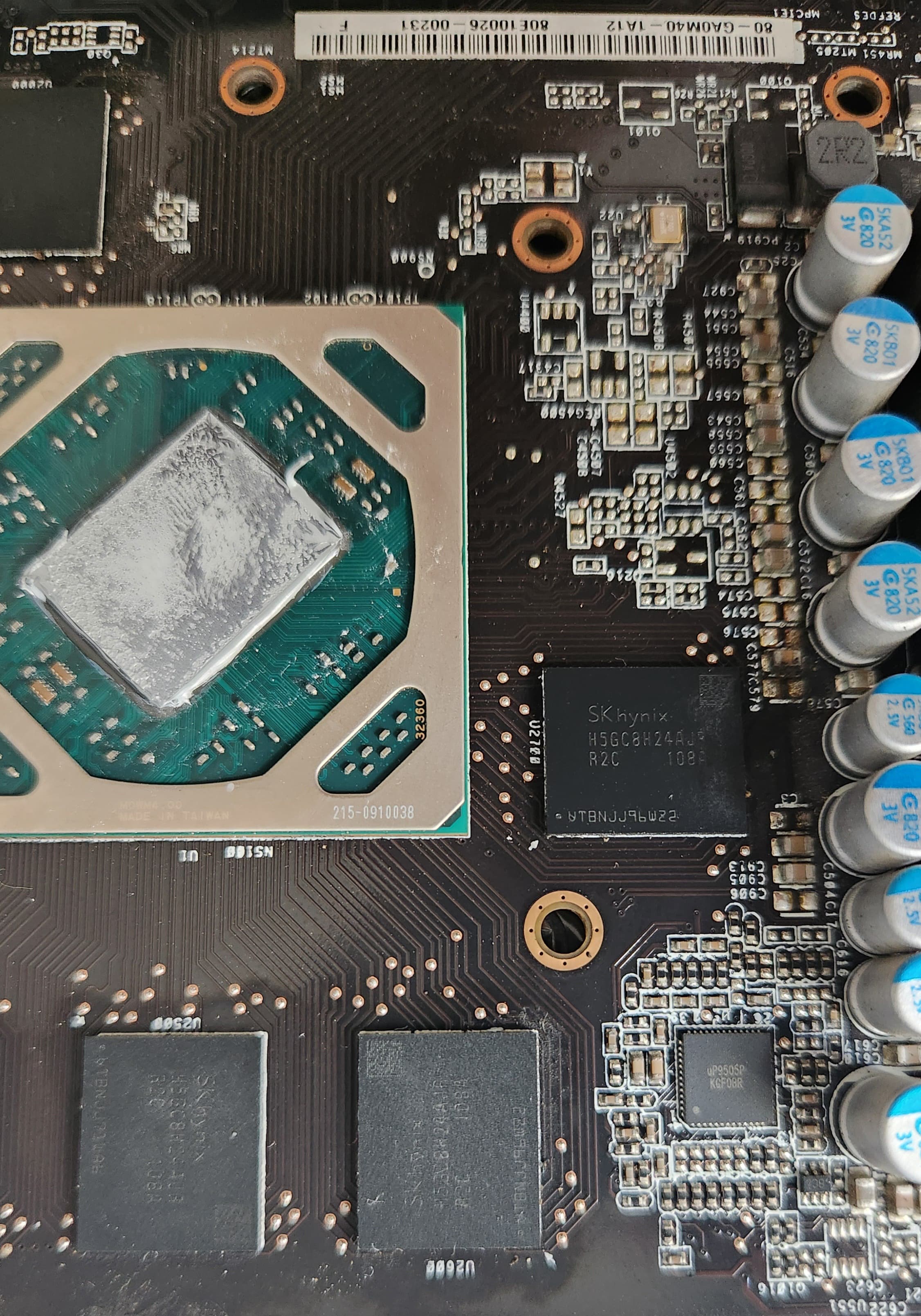

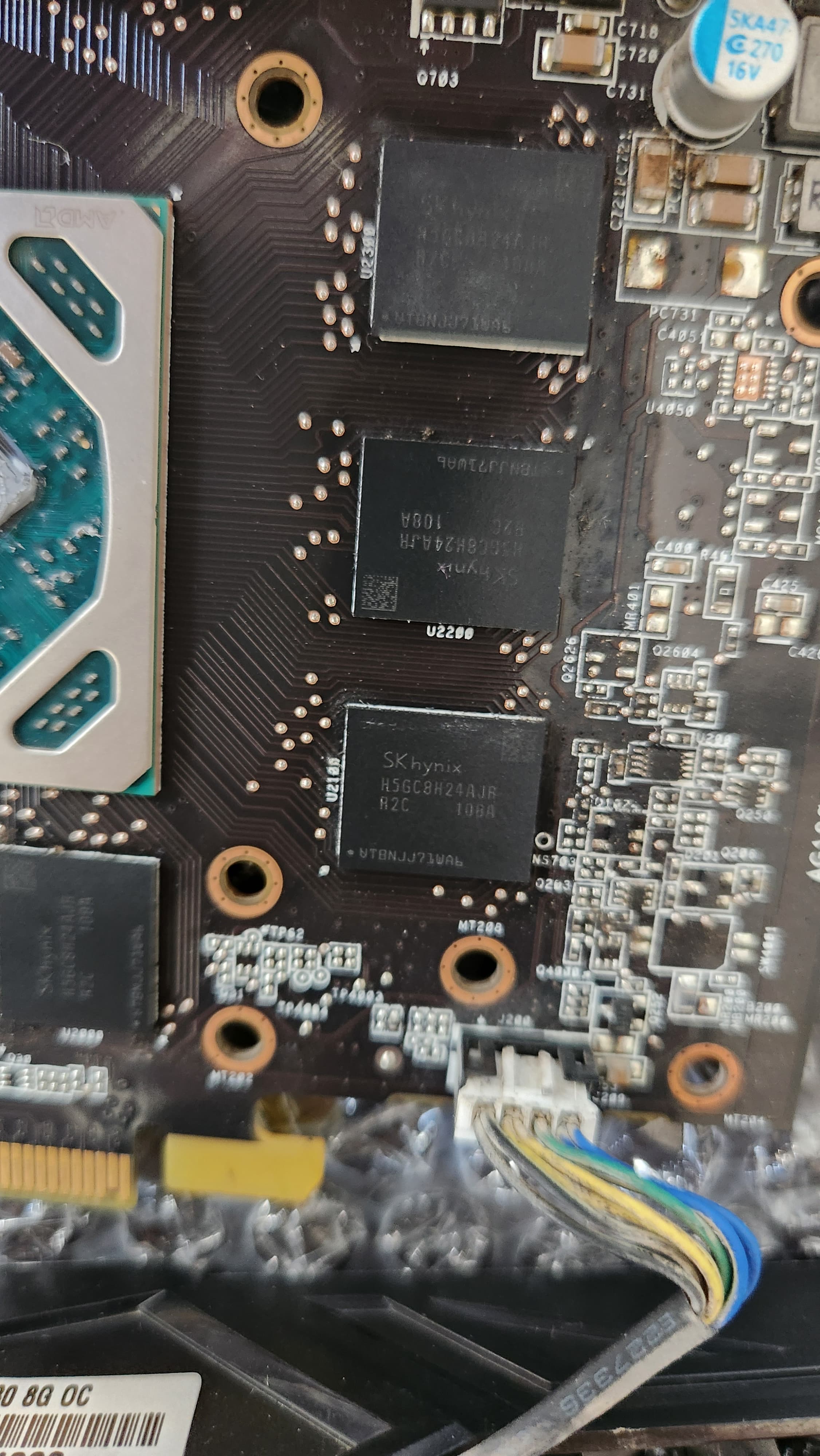

all hynix


Attachments

  • 5.jpeg
    725.1 KB · Views: 25
  • 4.jpeg
    812.2 KB · Views: 31
  • 3.jpeg
    823.4 KB · Views: 30
  • 2.jpeg
    787.7 KB · Views: 22
  • 1.jpeg
    845.4 KB · Views: 23

xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
Yeah you placed incorrect bios on card is why

Pull the card from system and see if you can identify a ram chip located on the card please with a picture, if you can't, you will need to remove the heatsink, use fresh paste on gpu die that is designed for the gpu, and get a picture of a ram chip please
@eidairaman1 Are the photos I posted enough?


Attachments

  • ds.jpg
    368.6 KB · Views: 12
Joined
Mar 20, 2008
Messages
1,780 (0.29/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black

xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
Please try one of these bioses.
@VuurVOS @eidairaman1
At first the GPU clock and memory were showing as 0. I updated the drivers and now they are showing

The bus interface sometimes changes to 3.0 and sometimes to 1.1, is that normal?

And my graphics card fan is always spinning, is that normal?


Attachments

  • 2.PNG
    44.7 KB · Views: 20
  • Ekran Alıntısı.PNG
    Ekran Alıntısı.PNG
    43.9 KB · Views: 19
Last edited:

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
41,917 (6.61/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Joined
Mar 20, 2008
Messages
1,780 (0.29/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
At first the GPU clock and memory were showing as 0. I updated the drivers and now they are showing
Did you flash a different vbios or are you using "unofficially" patched drivers? If you used patched drivers, the problem is still not solved!

The bus interface sometimes changes to 3.0 and sometimes to 1.1, is that normal?
Powersaving. Its normal when enabled. Under 3D load it should stay at 3.0.

And my graphics card fan is always spinning, is that normal?
ASRock doesn't mention something like zero DB cooling when the GPU is below a certain temperature. Its normal.


xprs

New Member
Joined
Oct 9, 2024
Messages
7 (0.23/day)
Did you flash a different vbios or are you using "unofficially" patched drivers? If you used patched drivers, the problem is still not solved!


Powersaving. Its normal when enabled. Under 3D load it should stay at 3.0.


ASRock doesn't mention something like zero DB cooling when the GPU is below a certain temperature. Its normal.
@VuurVOS @eidairaman1

thanks for the information.

I installed the bios with vbflash 2.93 and downloaded the drivers from amd's own website.

but there is a problem, I tried all the bios you sent but The problem continues I can't start it when csm is disabled. the screen does not come

My 6900 xt graphics card starts with csm disabled.


Attachments

  • 1.jpg
    119.1 KB · Views: 12
Last edited:

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
41,917 (6.61/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Contact asrock on this, they might be able to cook you something

Joined
Mar 20, 2008
Messages
1,780 (0.29/day)
System Name Ryzen5900X
Processor AMD Ryzen 5900X
Motherboard Gigabyte B550 AORUS PRO AC
Cooling NZXT Kraken X62
Memory 4x G.Skill F4-3600C17D-8GTZ
Video Card(s) AMD Radeon RX 6800XT Midnight Black
but there is a problem, I tried all the bios you sent but The problem continues I can't start it when csm is disabled. the screen does not come
Did you try all graphics card outputs? DP, HDMI etc?
