Ryzen 5 3600 turbo speeds

Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
7,457 (2.86/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K55
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
I just popped in to see what condition my condition was in...

After eyeing up a 5800X i might just try some experimental frying of my 3600 on a B450 board.
Who's with me for a 3600 @5GHz on all cores? :D
I've got a few bucks left if you wanna give that 3600 a home. ;)

Honestly burnt silicon doesn't smell good to the point of I'd suggest don't try it.

Joined
Nov 11, 2016
Messages
1,414 (0.86/day)
System Name The de-ploughminator
Processor I7 9900K @ 5.1Ghz
Motherboard Gigabyte Z370 Gaming 5
Cooling Custom Watercooling
Memory 4x8GB G.Skill Trident Neo 3600mhz 15-15-15-30
Video Card(s) RTX 3090 + Bitspower WB
Storage Plextor 512GB nvme SSD
Display(s) LG OLED CX48"
Case Lian Li 011D Dynamic
Audio Device(s) Creative AE-5
Power Supply Corsair RM1000
Mouse Razor Viper Ultimate
Keyboard Corsair K75
Software Win10
I am nowhere near afraid of degrading my 5600 as I am with my 3600. But I still wouldn't push more than 1.3v on it for anything long term. I am ok with 1.25v though. It has seen 1.45v by my hand for 4900Mhz briefly, but that's the highest I've benched. All core load on it with 1.3v @ 4700 with linpack and I can barely keep temps in check (under 85), but not only that, it is sucking 140w+. My 3600 pretty much stops reacting in a stable fashion to all core voltage @ 1.337v for 4500MHz. And linpack at that speed and voltage is about the same on the 5600X, very hard to tame and imo borderline dangerous, if not fully dangerous.

Everyone knows the crap cores come from the outer wafer. Everyone knows crap cores don't scale like good cores. No one can say with certainty what an acceptable all core voltage is with 7nm. In my opinion 1.25v is safe for any load under the sun. Whatever your FIT voltage is, you shouldn't go to far past it. The problem is further exasperated if your cooling solution isn't up to the task.

This was the only trial run I ran with the 3600 (stock + PBO)

4.1Ghz/1.37Vcore reduce the power consumption and temperature, so I guess that would mean lower current as well. Temperature is kept in check at all time with the Kraken X63 AIO, too bad I didn't record with 4.1ghz/1.37Vcore

Joined
May 15, 2020
Messages
468 (1.29/day)
I've got a few bucks left if you wanna give that 3600 a home. ;)

Honestly burnt silicon doesn't smell good to the point of I'd suggest don't try it.
You're in the US. The import taxes alone would be more than what the 3600 is worth.

Just thought I'd lighten the mood around here ;)

Last edited:
Joined
Sep 19, 2020
Messages
318 (1.35/day)
Processor AMD & Intel
Motherboard MSI & Gigabyte
Cooling Noctua & Scythe
Memory G.Skill, Team Group, & Kingston
Video Card(s) AMD and nVidia
Storage SSDs and Spinning Rust
Display(s) Asus & Dell
Case Phanteks & Antec
Audio Device(s) Schiit, Sennheiser, HiFi Man, & Beyerdynamic
Power Supply Seasonic & EVGA
Mouse Lenovo & Logitech
Keyboard Corsair & Logitech
I just popped in to see what condition my condition was in...

After eyeing up a 5800X i might just try some experimental frying of my 3600 on a B450 board.
Who's with me for a 3600 @5GHz on all cores? :D
I love the smell of melting silicon in the morning.

Joined
Nov 23, 2020
Messages
159 (0.92/day)
Location
Not Chicago, Illinois
System Name Desktop-TJ84TBK
Processor Ryzen 5 3600
Motherboard Asus ROG Strix B350-F Gaming
Cooling ARCTIC Liquid Freezer II 120mm, Noctua NF-F12
Memory B-Die 2x8GB 3200 CL14, Vengeance LPX 2x8GB 3200 CL16, OC'd to 3333 MT/s C16-16-16-32 tRC 48
Video Card(s) 2x GTX 650 Ti BOOST 2GB Superclocked Edition
Storage Crucial M4 128GB, WD 250GB, WD 2TB, WD 3TB, Intel Optane 16GB
Display(s) Samsung S22B350 1080p77, ASUS 1080p74
Case Rosewill CRUISER Black Gaming
Audio Device(s) SupremeFX S1220A
Power Supply Seasonic FOCUS GM-750
Mouse Kensington K72369
Keyboard Microsoft Comfort Curve 2000
Software Windows 10 Home 64-bit
Benchmark Scores are good
Joined
Feb 17, 2010
Messages
748 (0.18/day)
System Name Borg Cube
Processor R5 3600
Motherboard X470 Taichi
Cooling Water
Memory 32GB @3800CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
If you find this helpful, I'll re-run the test with default motherboard settings and/or PBO.

Ryzen 3600 @4200MHz
X470 Taichi
32GB 3800CL16

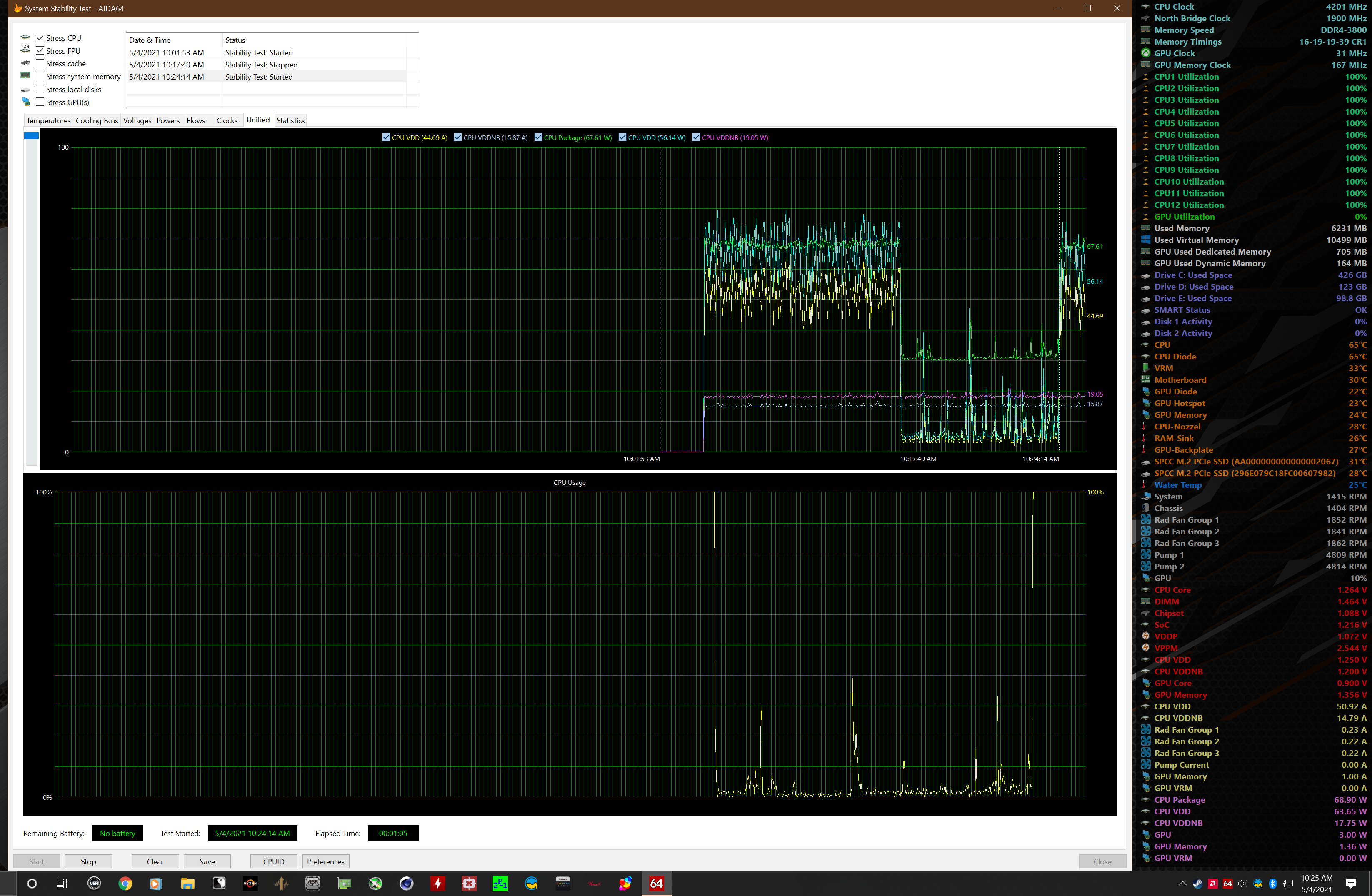

Tested with AVX ON. Graph set to 1 second intervals and about a 15 minute test of CPU/FPU.

all-core OC.png



Edit: here's a better pic with the load numbers.


Joined
Sep 16, 2018
Messages
1,744 (1.80/day)
Location
Winnipeg, Canada
Processor AMD R5 5600X
Motherboard Asus Strix B550-F Gaming
Cooling Thermalright Frost Commander w/ TL-D14X + TL-C12 Pro, 4x 120x38 Panaflo, TY-143, TY-147B
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200C14
Video Card(s) EVGA GTX 980 Classified
Storage WD SN750 1TB+500GB, 2x Intel 545s 256, WD1TB Black, 1TB Toshiba
Display(s) 22" Sammy, 55" Hisense
Case Fractal Design Meshify C
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Zalman ZM-MFC2, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G910
Software Yes
Benchmark Scores Yes
I guess mine wasn't as hot as I remembered.. but that could have been December.. was pretty cold outside by then :D


Moving to 4x8 looks like things warmed up a bit. Hard to say because my fan configuration was in the experimental stage, and was constantly changing. Or maybe the furnace came on..


Joined
May 4, 2021
Messages
5 (0.50/day)
System Name Ryzen first build
Processor AMD Ryzen 5 3600
Motherboard ASUS ROG Strix X570-F
Cooling Noctua NH12-US
Memory 2 x 8GB Gskill Trident Z Neo 3200 16-18-18-38
Video Card(s) MSI GTX 1660 Super Gaming X
Storage 1 x PNY CS900 500gb / 1 x WD Black SN750 1TB
Display(s) No comment!
Case Corsair Carbide Series Air 540
Power Supply Corsair AX-850 80 Plus Titanium
Mouse Logitech MX Master 2s
Keyboard Logitech G213
Software Windows 10 Pro
No, it's best to leave him to his delusions of 1.37v being safe.
I'm not delusional here and there is no need to get funny about it. Like I said on my first post, I'm new to OC and just wanted some 'friendly' advice.

Joined
Sep 3, 2019
Messages
2,248 (3.63/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3733MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
Found some old (2~3 months ago) tests with my bronze sample 3600 with PBO Enabled.
Anyone care to see stock voltage and speed during CB-R20 and P95(AVX)?

Here you go

P95 AVX 128-128KB

1.29V (avg), 3.915GHz and 111+W PPT (avg)



------------------------------------------------------

CB R20 MT

1.35V avg, 3.995GHz and 94+W PPT



-------------------------------------------------------------------

Keep in mind that those voltages and speeds are under the specific (each test) CPU temps. If temp was lower, voltage and speed would be higher and vice versa. Also same voltages and speeds are under the specific type of loads. Any other type of load would result (or required) different voltages and speeds.
If I use 1.35V for a static OC I must set speed no more than 4.0GHz, keep temps at 60C max, and never ever load an AVX load on the CPU.

Joined
May 4, 2021
Messages
5 (0.50/day)
System Name Ryzen first build
Processor AMD Ryzen 5 3600
Motherboard ASUS ROG Strix X570-F
Cooling Noctua NH12-US
Memory 2 x 8GB Gskill Trident Z Neo 3200 16-18-18-38
Video Card(s) MSI GTX 1660 Super Gaming X
Storage 1 x PNY CS900 500gb / 1 x WD Black SN750 1TB
Display(s) No comment!
Case Corsair Carbide Series Air 540
Power Supply Corsair AX-850 80 Plus Titanium
Mouse Logitech MX Master 2s
Keyboard Logitech G213
Software Windows 10 Pro
That's single core voltage. Even 1.5 is safe for single core loads. You had 1.4v for all loads before, including all core loads, which is very dangerous.

For all core loads, let the CPU boost accordingly, it will select a voltage it thinks is safe. 1.325 is not safe for all core on Zen 2, I'd stay at 1.25 max and even then I'd rather have the CPU run on stock. You're no smarter than the CPU, once you set your own voltage you disable all safety features like the voltage fitness regulator and the fate of the CPU is in your hands, so it's best to keep it at stock. If you want more performance, get a good cooler, a board with solid VRMs and enable PBO.
Thanks for the reply. I do have a good cooler and board.

Thanks for the reply. I do have a good cooler and board :)

Keep hearing this 'PBO' for overclocking. I've gone back into the BIOS and set to D.O.C.P for my RAM and just set the rest to auto! :)


Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
7,457 (2.86/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K55
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
You're in the US. The import taxes alone would be more than what the 3600 is worth.

Just thought I'd lighten the mood around here ;)
Bet. Still would do it.

Joined
Feb 17, 2010
Messages
748 (0.18/day)
System Name Borg Cube
Processor R5 3600
Motherboard X470 Taichi
Cooling Water
Memory 32GB @3800CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Found some old (2~3 months ago) tests with my bronze sample 3600 with PBO Enabled.
Anyone care to see stock voltage and speed during CB-R20 and P95(AVX)?

Here you go

P95 AVX 128-128KB

1.29V (avg), 3.915GHz and 111+W PPT (avg)

View attachment 199207

------------------------------------------------------

CB R20 MT

1.35V avg, 3.995GHz and 94+W PPT

View attachment 199209

-------------------------------------------------------------------

Keep in mind that those voltages and speeds are under the specific (each test) CPU temps. If temp was lower, voltage and speed would be higher and vice versa. Also same voltages and speeds are under the specific type of loads. Any other type of load would result (or required) different voltages and speeds.
If I use 1.35V for a static OC I must set speed no more than 4.0GHz, keep temps at 60C max, and never ever load an AVX load on the CPU.
Unlucky sample if you need that much voltage for such low clock.

My Cinebench R23

all-core CBR23.png

Joined
Sep 3, 2019
Messages
2,248 (3.63/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3733MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
Unlucky sample if you need that much voltage for such low clock.

My Cinebench R23

View attachment 199223

If you like comparisons you'll have to run CB-R20 and observe "CPU Core Voltage SVI2 TFN" and speed on HWiNFO with "Snapshot CPU Polling" Enabled from main settings.

Joined
Feb 17, 2010
Messages
748 (0.18/day)
System Name Borg Cube
Processor R5 3600
Motherboard X470 Taichi
Cooling Water
Memory 32GB @3800CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
If you like comparisons you'll have to run CB-R20 and observe "CPU Core Voltage SVI2 TFN" and speed on HWiNFO with "Snapshot CPU Polling" Enabled from main settings.
lol why. R20 is weaker than R23.


Toothless

Tech, Games, and TPU!
Supporter
Joined
Mar 26, 2014
Messages
7,457 (2.86/day)
Location
Washington, USA
System Name Veraltet
Processor 3700x
Motherboard AsRock Taichi Ultimate x470
Cooling NH-D15 Chromax
Memory G.Skill 2x16GB 3200mhz
Video Card(s) MSI GTX1080 Ti Gaming X
Storage 2 NVME + 4 HDD
Display(s) LG 34UB88-P + 2x AOC 2425W
Case CoolerMaster NR600
Audio Device(s) SteelSeries Arctis 5
Power Supply Rosewill Fortress 750w
Mouse Corsair Scimitar Pro
Keyboard Corsair K55
Software Windows 10 Professional
Benchmark Scores Brrrrrrr
Joined
Sep 3, 2019
Messages
2,248 (3.63/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3733MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
lol why. R20 is weaker than R23.

For sake of comparison. You can't compare different loads on a different binned CPU, even if its the same SKU and talk about voltages and speeds between them. I don't have R23. So I'm asking you, if you wouldn't mind running it (R20) like I did.

If you do so
Start R20, wait for CPU values to go to 100% (like 4~5sec), then reset HWiNFO values and take a screenshot at 1:10~1:15

Joined
Nov 23, 2020
Messages
159 (0.92/day)
Location
Not Chicago, Illinois
System Name Desktop-TJ84TBK
Processor Ryzen 5 3600
Motherboard Asus ROG Strix B350-F Gaming
Cooling ARCTIC Liquid Freezer II 120mm, Noctua NF-F12
Memory B-Die 2x8GB 3200 CL14, Vengeance LPX 2x8GB 3200 CL16, OC'd to 3333 MT/s C16-16-16-32 tRC 48
Video Card(s) 2x GTX 650 Ti BOOST 2GB Superclocked Edition
Storage Crucial M4 128GB, WD 250GB, WD 2TB, WD 3TB, Intel Optane 16GB
Display(s) Samsung S22B350 1080p77, ASUS 1080p74
Case Rosewill CRUISER Black Gaming
Audio Device(s) SupremeFX S1220A
Power Supply Seasonic FOCUS GM-750
Mouse Kensington K72369
Keyboard Microsoft Comfort Curve 2000
Software Windows 10 Home 64-bit
Benchmark Scores are good
If you'd like, I can record my R20 and/or R23 results and recorded voltages once I get home (in ~2 hours). It's currently on stock clocks, but RAM is 4x8GB 3333 C16-16-16-32 tRC 48.

Joined
Sep 3, 2019
Messages
2,248 (3.63/day)
Location
Thessaloniki, Greece
System Name PC alive since Aug 18th 2019
Processor Ryzen 5 3600 (PBO Enabled)
Motherboard Gigabyte X570 Aorus Pro, BIOS F32
Cooling Corsair H110i 280mm (Liquid metal for TIM)
Memory Corsair Vengeance LPX DDR4 2x8GB 3466MHz @3733MHz CL16-18-18-18-36 1T, B-die A0
Video Card(s) MSI RX 5700XT Gaming X
Storage Samsung NVMe: 970Pro 512GB (2019, OS drive) / SATA-III: 850Pro 1TB SSD (2015) 860Evo 1TB SSD (2020)
Display(s) 24" EIZO FlexScan S2411W 1920x1200, 16:10 60Hz samsung S-PVA 14-bit (16.7M/1.06B colors), 6ms G2G
Case None
Audio Device(s) Sound Blaster Z <--optical link--> Logitech Z5500 5.1 500W, Logitech G35 headset
Power Supply Corsair HX750i
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2)
Software Windows 10 Home 64bit (20H2)
If you'd like, I can record my R20 and/or R23 results and recorded voltages once I get home (in ~2 hours). It's currently on stock clocks, but RAM is 4x8GB 3333 C16-16-16-32 tRC 48.
RAM speed doesn't really matter for CB as long as it can keep the CPU fed up. Anything between 3200~3800 DRAM speed is practically the same for this benchmark. And even if it does make difference, for sure we are not comparing scores here, just CPU core voltages and speeds.
So yeah, please do so (R20 preferably). Just try to do it like I described at post #167.

EDIT:

And PBO Enabled (not Auto) for direct comparison as well.

Joined
Nov 23, 2020
Messages
159 (0.92/day)
Location
Not Chicago, Illinois
System Name Desktop-TJ84TBK
Processor Ryzen 5 3600
Motherboard Asus ROG Strix B350-F Gaming
Cooling ARCTIC Liquid Freezer II 120mm, Noctua NF-F12
Memory B-Die 2x8GB 3200 CL14, Vengeance LPX 2x8GB 3200 CL16, OC'd to 3333 MT/s C16-16-16-32 tRC 48
Video Card(s) 2x GTX 650 Ti BOOST 2GB Superclocked Edition
Storage Crucial M4 128GB, WD 250GB, WD 2TB, WD 3TB, Intel Optane 16GB
Display(s) Samsung S22B350 1080p77, ASUS 1080p74
Case Rosewill CRUISER Black Gaming
Audio Device(s) SupremeFX S1220A
Power Supply Seasonic FOCUS GM-750
Mouse Kensington K72369
Keyboard Microsoft Comfort Curve 2000
Software Windows 10 Home 64-bit
Benchmark Scores are good
Alright, results:

I've underlined what I think are important values.

No idea how to interpret them, though, so other people can explain it (to me as well).

Joined
Apr 14, 2019
Messages
194 (0.25/day)
System Name Violet
Processor AMD Ryzen 5800X
Motherboard ASRock x570 Phantom Gaming X
Cooling Be quiet! Dark Rock Pro 4
Memory G.Skill Flare x 32GB 3400Mhz
Video Card(s) Sapphire RX 5700 XT Nitro+
Storage Western Digital WD Black SN750 1TB
Display(s) 3440x1440
Case Lian Li LANCOOL II MESH Performance
Power Supply Corsair RM850x
Mouse Razer NAGA TRINITY
Keyboard Corsair K95 RGB
Software Windows 10 64bit
Ryzen 3600 here. From the start 2019 on 1,39v and still running very stable and smooth.

Joined
Mar 23, 2016
Messages
4,775 (2.54/day)
Processor Ryzen 7 3800X
Motherboard MSI B450 Tomahawk ATX
Cooling Cooler Master Hyper 212 Black Edition
Memory PNY Anarchy-X XLR8 Red DDR4-3200 16GB kit & PNY Anarchy-X XLR8 Red DDR4-2666 16GB kit
Video Card(s) MSI GeForce RTX 2060 GAMING Z 6G
Storage Samsung 970 EVO NVMe M.2 500 GB, SanDisk Ultra II 480 GB
Display(s) Samsung SyncMaster C27H711 OC refresh rate 110Hz
Case Phantek Eclipse P400S (PH-EC416PS)
Audio Device(s) EVGA NU Audio
Power Supply EVGA 850 BQ
Mouse SteelSeries Rival 310
Keyboard Logitech G G413 Silver
Software Windows 10 Professional 64-bit v21H1
Ryzen 3600 here. From the start 2019 on 1,39v and still running very stable and smooth.
I have a dead Ryzen 3600 from that year that stopped POSTing mid 2020. The early abuse with a manual multi/voltage, and PBO enhanced may of contributed to it's death. Working fine one day, and then the next nope, CPU LED lit on the board. Same board is fine with a 3800X, and the temp Ryzen 3 1200.


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
49,811 (8.21/day)
Location
Australalalalalaia.
System Name Rainbow Sparkles
Processor Ryzen R7 5800X
Motherboard Asus x570 Gaming-F
Cooling EK 240mm RGB AIO | Custom 280mm EK loop
Memory 64GB DDR4 3600 Corsair Vengeance RGB @ 3800 C16
Video Card(s) Galax RTX 3090 SG 24GB (0.8v 1.8GHz) - EK ARGB block
Storage 1TB Sasmsung 970 Pro NVME + 500GB 850 Evo
Display(s) Gigabyte G32QC + Phillips 328m6fjrmb (32" 1440p 165Hz/144Hz curved )
Case Fractal Design R6
Audio Device(s) Razer Leviathan + Corsair Void pro RGB, Blue Yeti mic
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE
Software Windows 10 pro x64 (all systems)
Benchmark Scores Lots of RGB, so you know it's fast.
Funny that I get lower core temperature with static 4.1ghz/1.37Vcore on my 3600 by 10C compare to stock clocks/voltages with PBO, so I guess I might as well be extending the life of my 3600, but not to the point that is last longer than its usefulness period (5-7 years).
Well if you treasure PC hardware that much why not just use 1.1Vcore then :roll: , why bother with 1.25VCore at all?
It's not temps that kill them, its amperage. Thats straight from AMD engineers.

Joined
Jun 24, 2015
Messages
2,753 (1.28/day)
Location
Western Canada
System Name Austere Box R1.4
Processor R9 5900X
Motherboard B550M TUF Wifi (2006)
Cooling NH-C14S iPPC
Memory 32GB 3600 16-19-19
Video Card(s) RTX 2060 Super FE (0.981V)
Storage 3TB SX8200/SN750/Blue3D
Case Sliger Cerberus
Power Supply Seasonic SGX-650
I have a dead Ryzen 3600 from that year that stopped POSTing mid 2020. The early abuse with a manual multi/voltage, and PBO enhanced may of contributed to it's death. Working fine one day, and then the next nope, CPU LED lit on the board. Same board is fine with a 3800X, and the temp Ryzen 3 1200.

I only tested my 3700X at sub-1.25V, but I did run it for a few months PBO with LLC. Turbo LLC on that IR35201 was unbelievably strong. And then I ran a aggressive PBO profile for a long time, with uncapped PPT, 83A EDC and 2X scalar. That 2X scalar is no joke, all-core Vcore damn close to 1.4V.

AMD imposed specific current/clock restrictions on AVX-type Vcore with 1.0.0.6/ComboV2, but some B450 boards never implemented those R20 and P95 limits (~Q1/Q2 2020) even when stock, PBO disabled. My 3 B550 boards, even with PBO on, were never able to replicate the ~4900-5000pt R20 stock, no PBO scores on my B450I Aorus Pro Wifi.

Did all that have a part to play in my 3700X's shenanigans later in life? Who knows.

BZ says that it takes a lot of effort to degrade any Matisse chip. Which makes sense, since I did do a LOT of stupid shit over 18 months. But iirc he mostly used his 8700K/9900K and modded Z390 Gene for the OC stuff through 2019 and early 2020, so I don't think his 3700X actually got much use before he made the degradation video earlier this eyar.

And then there's my no-fucks-given 4.4 @ 1.45V one week frenzy on my 4650G just to get that 9891 score in the R23 thread :laugh: we don't talk about that except to say that it will only do 4.0 now lol :D

Joined
Jan 22, 2020
Messages
150 (0.31/day)
Location
Turkey
System Name Asus Tuf
Processor AMD Ryzen 9 3900X
Motherboard Asus Tuf x570 Plus Wifi
Cooling AMD Wraith Prism + Arctic MX-4
Memory 32 GB
Video Card(s) MSI 1660
Storage 500 GB WD nvme + 2 TB Seagate HDD + 2 TB Seagate HDD
Display(s) 21,5" AOC Full HD
Case Asus Tuf
Audio Device(s) Altec Lansing
Power Supply Seasonic
Mouse Logitech G G102
Keyboard Corsair K68
Software Windows10 LTSC 64 bit
I'm really happy to see someone else also share my views (which is I firmly believe right). Those zen2 architecture requires excessive voltage already (design error maybe?) and that will certainly degrade the chip sooner or later. I would not push the chip more if I were you.

Last edited:
Top
