[Case Gallery] Smartgrid

Joined
Apr 17, 2013
Messages
11 (0.01/day)
Likes
0
#1
To view this case mod, go here.



Specs:

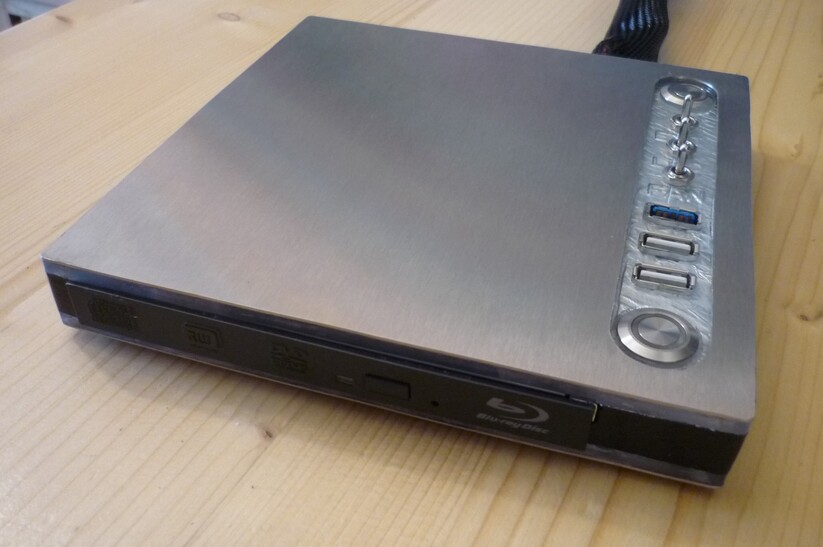

Hey guys. In this caseconstruction I have separated all the controls and the Bluray-Drive from the main case so that the maincase can have a clean look. I have build a case like this three times. You may use google to look for "exclaim kontrollmodul" and "exclaim le mans" if you are interested in those constructions. The third one has not been published because one detail of the construction is not finished. Well lets talk about "Smartgrid" now: The small case contains 4x USB 2.0, 2x USB 3.0, a connector and a switch for external HDD, 50 LEDs and a switch for all LEDs (the switch gives a signal to a transistor in the main case to control the 80 LEDs build in there), a swich for bypassing the fan-control and buttons for power and reset. The length of the cable is 2m. Now about the main case: As you see on one of the last pictures I tried to unite metal and MDF to become a clean and solid unit. I also used a lot of screws to make the construction stable. The upper chamber contains a PSU and up to two SSDs. The lower chamber contains a three-path-fan-control and a HDD packed in a bitumenbox to make it silent. The middle chamber contains a mATX motherboard and the rest of the hardware. One last comment: In my point of view the practice of sleeving all cables is kind of square. And as not many cables are visible I just neglected the sleeving part.

Moin,
Lang ist her, dass ich einen PC gebaut habe.
Nach meinem Cons Kontrollmodul, Le Mans und dem noch unveröffentlichten Silentdrive geht die Idee der Trennung von Laufwerk usw. und der eigentlichen Hardware in die vierte Runde:

In dem kleinen Case sind:
- BD-Laufwerk
- 4x USB 2.0
- 2x USB 3.0
- Anschluss für externe 12V-Geräte
- Schalter zur Überbrückung der Lütersteuerung
- Schalter für Licht
- Schalter für Anschluss für externe Geräte
- PWR-Taster (inkl PWR-LED)
- RST-Taster (inkl HDD-LED)
- 50 LEDs

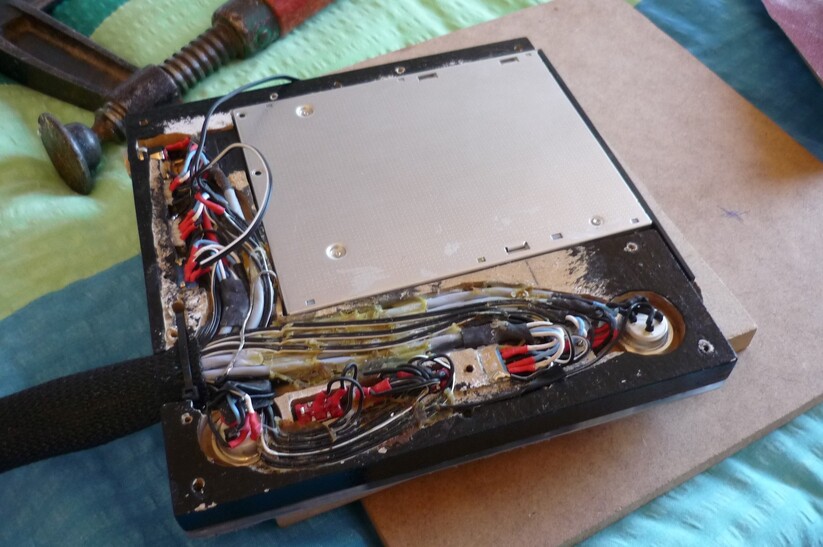

War ganz schon schwierig, das alles da unterzubringen, aber letztlich hats geklappt. Bloß kann man es nicht mehr auf machen. Das Laufwerk wird einfach reingeschoben. Auf der Unterseite sind Löcher, damit mdan es irgendwo aufhängen kann - z.b. an die Tischunterseite.

Das Kabel ist etwa 2m lang.

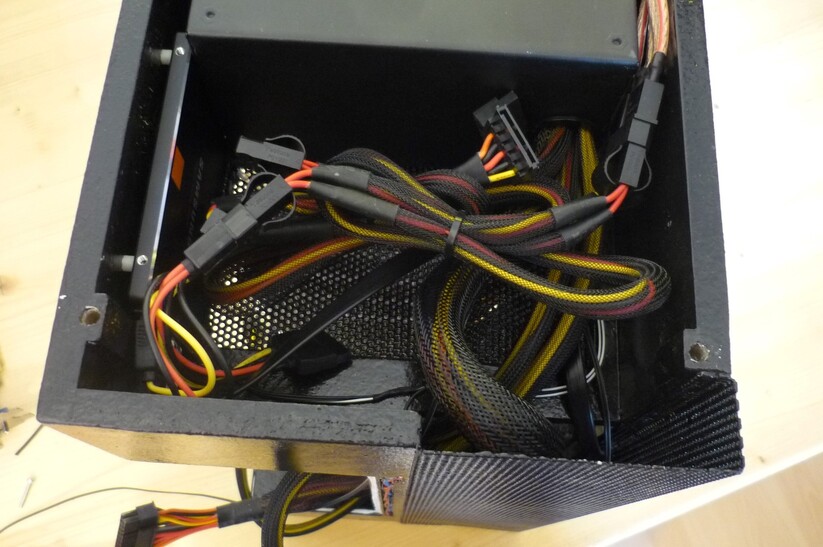

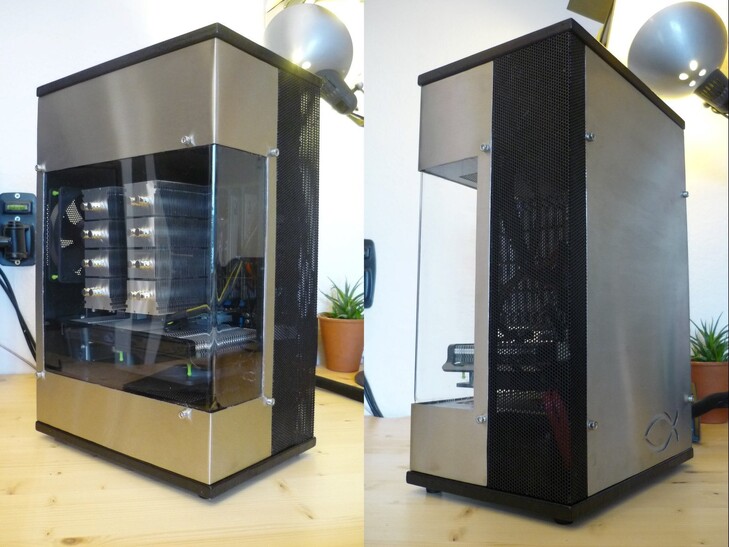

Das Hauptcase hat drei Kammern, die durch Gitter getrennt sind. Oben ist das NT und bis zu zwei SSDs. Unten ist eine in Bitumenbox verpackte HDD und eine Lüftersteuerung mit drei Kanälen. Die Decke und den Boden kann man abnehmen, um zu all dem Zugang zu erhalten. In die dritte Kammer passt ein mATX-Board.

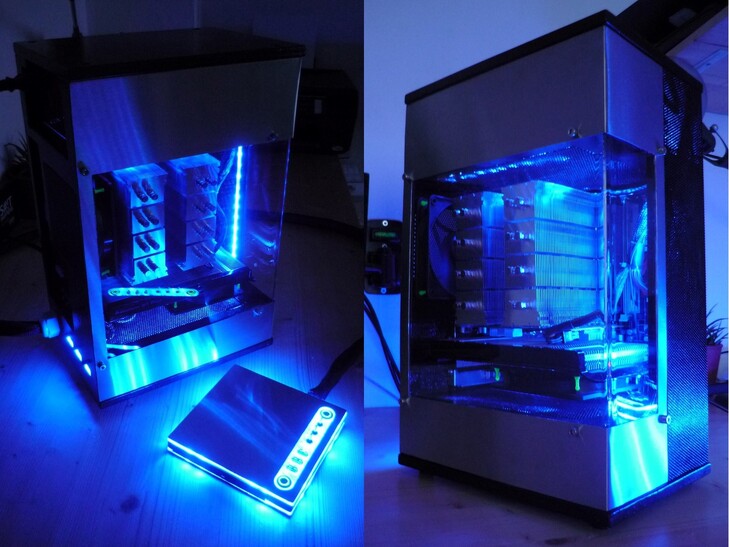

In der mittleren Kammer ist auch eine Strebe, die zusammen mit dem Frontgitter für Stabilität sorgt (alles ist miteinander verschraubt und die Schrauben sind verspachtelt). Außerdem sind da noch 18 LEDs drin. Ansonsten sind oben und unten in den Kammern je 20 LEDs, die durch die Gitter leuchten.

Auf der Rückseite sind neben dem Kabeleingang die drei Potis der Lüftersteuerung zu sehen. Darunter ist jeweils ein Schriftzug in Plexi gefräst und mit je zwei LEDs beleuchtet, damit man auch weiß, was man steuert.

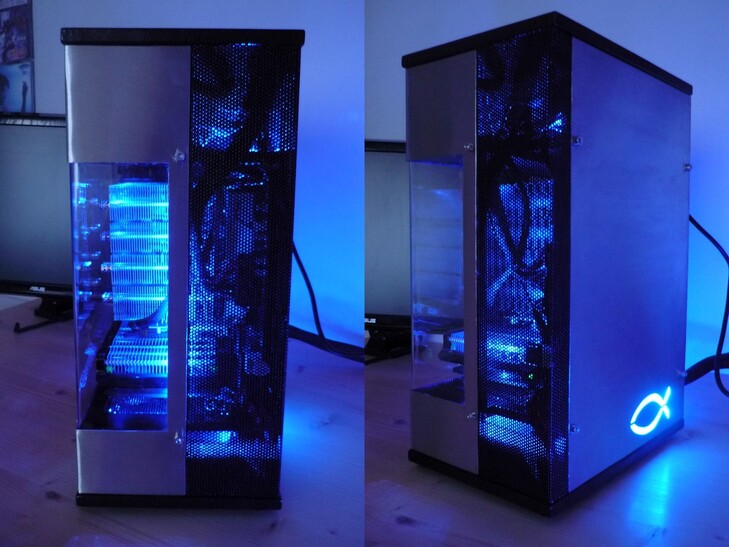

Die rechte Seite habe ich mit einem Fisch und 16 LEDs aufgelockert.

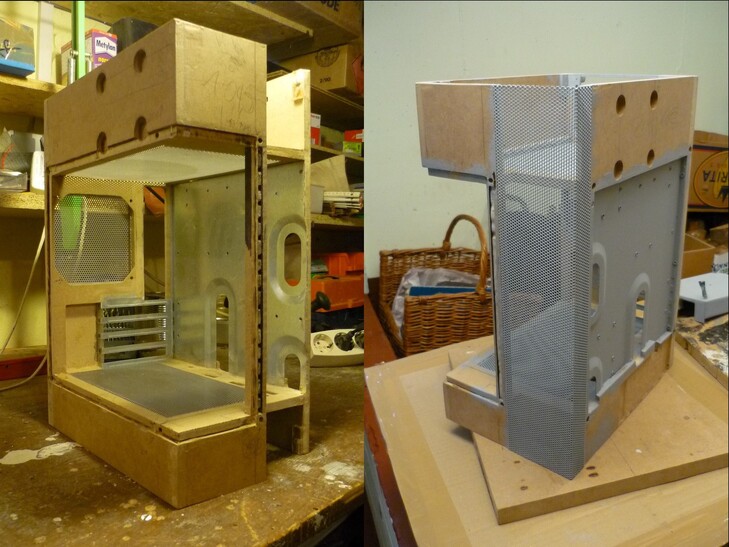

Das ganze besteht übrigens (sofern nicht offensichtlich Plexi oder Edelstahl) aus MDF und dem inneren eines alten Gehäuses, wobei ich nur den Ausschnitt für die I/O-Blende und die Konstruktion für die Erweiterungskarten sowie den MB-Teller mit den ganzen Schraubbefestigungen verwendet und geschickt in das MDF eingearbeitet habe. Motto war mehr oder weniger: Was kann ich mit meinem neuen Dremel samt Oberfräsvorsatzgerät so alles anstellen?

Kleines Highlight für mich: Man sieht auf der Rückseite des Cases sie Schrauben der Erweiterungskarten nicht. :)

Last edited by a moderator:
Joined
Aug 19, 2009
Messages
427 (0.14/day)
Likes
48
Location
The Netherlands
System Name Monolith // Fileserver
Processor Intel Core i7 2600K @ 3.4GHz // 2x Intel Xeon Nocona, @ 4x 2.8ghz
Motherboard ASUS Maximus IV Extreme-Z // ASUS NCCH-DL Socket 604
Cooling Corsair H60 // 2x Thermaltake Full Copper Blocks
Memory 16GB DDR3 1600MHz Corsair // 1.5GB of Kingston and Corsair @ 400MHZ
Video Card(s) ASUS GTX570 DCII // ASUS X800XT 256MB
Storage 2x Samsung 830 128GB, 1TB Samsung, 1TB WD Black // 74 WD Raptor, 120GB Seagate
Display(s) 3x 22" LG LCD Screen // Neovo 15" LCD Screen
Case Lian Li PC-A71F // Chieftec Big Tower
Audio Device(s) Creative F4tality Champion Series 7.1 // Onboard AC97 audio
Power Supply Corsair HX 1000W // BeQuiet 520w
Software Windows 7 Professional x64 // Windows XP Professional x86
Benchmark Scores Can play Pacman and Space Invaders. Lags a bit, but still playable :D
#2
Thats the most creative build I have seen in a long looong while. Excellent job! 10/10

Joined
Mar 26, 2010
Messages
7,646 (2.71/day)
Likes
1,983
Location
Jakarta, Indonesia
System Name micropage7
Processor Intel G4400
Motherboard MSI B150M Bazooka D3
Cooling Stock ( Lapped )
Memory 16 Gb Team Xtreem DDR3
Video Card(s) Nvidia GTX460
Storage Seagate 1 TB, 5oo Gb and SSD A-Data 128 Gb
Display(s) LG 19 inch LCD Wide Screen
Case HP dx6120 MT
Audio Device(s) Stock
Power Supply Be Quiet 600 Watt
Software Windows 7 64-bit
Benchmark Scores Classified
#5
great case, simple and clean
but the description not in english may make little bit difficult for some

Joined
Apr 17, 2013
Messages
11 (0.01/day)
Likes
0
#6
translation

okay, you are right - i wrote an english text as well to give all the important facts.


de.das.dude

Pro Indian Modder
Joined
Jun 13, 2010
Messages
8,202 (2.99/day)
Likes
2,390
Location
Pune
System Name la de da... | Samsung NP355V5C-S05IN
Processor FX 8320 | AMD A8-4500
Motherboard ASRock 990FX Extreme 4 | Samsung something something
Cooling CM Hyper 212 EVO push:pull+ 1 panaflow 113CFM + 2 x 120mm NZXTs | Coolermaster Notepal
Memory 2x4GB DDR3 Corsair Vengeance 1600MHz CL9 | Samsunng 4GB + 2GB DDR3 1600MHz
Video Card(s) AMD 7790 GHZ edition! | 7670M + 7640G
Storage 1TB WD10EZEX | W.D 500GB Green AADS | Samsung 1TB
Display(s) dell S2240l 1080p IPS 21.5" | Samsung antiglare 15.6"
Case NZXT Guardian 921RB(@home) and Antec ASK4000B U3(Current)
Audio Device(s) Realtek ALC892 with THX True Studio | Realtek something
Power Supply Corsair GS600 | 90W Brick, 6 cell 48000mAh battery
Mouse Logitech G400, GOD TIER MOUSE!! LOGitech F310 gamepad!
Keyboard Logitech K200
Software Windows 8.1 x64 | Windows 8.1 x64
Benchmark Scores real men do bench presses not bench marks.
#7
gave it 9/10 because : my neck hurts :D
jokes apart, there is good attention to detail, but some parts dont seem to fit clean.

would love to see the worklog if you can link it.

Joined
Jan 17, 2010
Messages
10,041 (3.47/day)
Likes
6,647
Location
Oregon
System Name Delta // Alpha-HTPC
Processor Intel i7 6700K // Intel i5 4570
Motherboard GIGABYTE Z270X-Gaming K7 // Gigabyte H97M -D3H
Cooling Corsair H80i V2 // Silverstone NT-06 Pro
Memory Corsair DDR4 3000 32gb //G.SKILL Ripjaws X Series 8GB 1600
Video Card(s) EVGA GTX980ti// EVGA GTX 1050ti
Storage Samsung 950 Pro 512, 2 Tb FireCuda// Samsung 850 Pro, 1 X 4 Tb HGST, 1 x 6Tb Toshiba
Display(s) ASUS PB278Q 27" 1440X 2560 // 50" Samsung Plasma 720p
Case Corsair Obsidian Series 550D // Silverstone Granada GD05
Audio Device(s) ASUS Xonar DGX // HDMI to Yamaha RX V571
Power Supply Corsair TX850M // SeaSonic G Series 550w
Mouse Logitech G502
Keyboard Corsair K70
Software Windows 10 64bit // Windows 7 64bit with Kodi
#9
Very creative but sideways pictures? Why not rotate them

Joined
Mar 17, 2013
Messages
395 (0.23/day)
Likes
1,186
Location
Amadora, Portugal
System Name CM Cosmos Dean Kreij Kortenhoven edition
Processor Intel i7 4770
Motherboard Asus H97M-Plus
Cooling EK block with custom solution
Memory Corsair Dominator Platinum 4x4 GB 1600 cl7
Video Card(s) .... something planed, not happened yet...
Storage Crucial MX200 250gb M2,Corsair gt120, WD 1tb Faex, Hitachi 0,5tb
Display(s) Mirai 22"
Case CM K 280 modded to CM Cosmos DKKe
Audio Device(s) Cooler Master Sirus 5.1 headset
Power Supply Antec HPC 850W
Mouse Razer Abissus
Keyboard CM Storm Devastator
Software Windows 10
Benchmark Scores Just checked, the computer still works.
#10
That S-ata cable junction to Blu-ray its a good solution,
and the minimalist design its nice too,
I wonder if the led´s in the blu drive doesn't affect your vision if it gets to closer to screen monitor at night or with lights off because their brightness.
For that you get 8/10.

Joined
Apr 21, 2011
Messages
494 (0.20/day)
Likes
56
Location
Hesperus IV
System Name Salvaged
Processor AMD Phenom II X6, 1055T
Motherboard MSI (cant remember model..)
Cooling Antec Kühler + extra fans (Antec, Zalman, Coolermaster, Generic brand)
Memory 8Gb (2 x 4Gb)
Video Card(s) ATI Radeon HD6870
Storage Samsung 1TB, 320 Seagate, 250 Samsung
Display(s) LG Electronics
Case ANTEC Sonata III 500 (found/salvaged + modified)
Audio Device(s) 8Ch + Harman Kardon 2.1 (modified, electronics in JVC wood speakers)
Power Supply It's made in Denmark, never seen a PSU made there..
Software Win7 X64 Ultimate
#11
10/10 from me!
I love to see these "home made" cases!!

Joined
Apr 17, 2013
Messages
11 (0.01/day)
Likes
0
#12
sideways pictures

Very creative but sideways pictures? Why not rotate them
Well the pictures are rotated back to be sideways when uploading. I tried to combine two upright photos in one picture but that does not work neither. What shall I do? I onlay have these pictures.


I wonder if the led´s in the blu drive doesn't affect your vision if it gets to closer to screen monitor at night or with lights off because their brightness.
In that case I would but the desktop-case at the other end of the table. By the way - it has holes underneath which allow mounting it to the bottom of a table. Unfortunately I did not make any foto of that.

Last edited:
Joined
Jan 17, 2010
Messages
10,041 (3.47/day)
Likes
6,647
Location
Oregon
System Name Delta // Alpha-HTPC
Processor Intel i7 6700K // Intel i5 4570
Motherboard GIGABYTE Z270X-Gaming K7 // Gigabyte H97M -D3H
Cooling Corsair H80i V2 // Silverstone NT-06 Pro
Memory Corsair DDR4 3000 32gb //G.SKILL Ripjaws X Series 8GB 1600
Video Card(s) EVGA GTX980ti// EVGA GTX 1050ti
Storage Samsung 950 Pro 512, 2 Tb FireCuda// Samsung 850 Pro, 1 X 4 Tb HGST, 1 x 6Tb Toshiba
Display(s) ASUS PB278Q 27" 1440X 2560 // 50" Samsung Plasma 720p
Case Corsair Obsidian Series 550D // Silverstone Granada GD05
Audio Device(s) ASUS Xonar DGX // HDMI to Yamaha RX V571
Power Supply Corsair TX850M // SeaSonic G Series 550w
Mouse Logitech G502
Keyboard Corsair K70
Software Windows 10 64bit // Windows 7 64bit with Kodi
#13
thanks

Joined
Jan 25, 2014
Messages
1,662 (1.17/day)
Likes
1,070
System Name AMD Black Widow
Processor AMD FX-6100 3.3GHz
Motherboard GIGABYTE GA-780T-D3L (rev. 4.0)
Cooling Cooler master hyper 212 EVO
Memory Kingston HyperX DDR3 2x4GB 1600MHz KHX1600C9D3B1K2/8GX
Video Card(s) MSI Radeon HD 7850 2GB OC GDDR5 Twin Frozr 3
Storage WESTERN DIGITAL 1TB 64MB 7k SATA600 Blue WD10EZEX
Display(s) LG W2453SQ-PF
Case Thermaltake Chaser A31 Black
Power Supply Cooler Master Extreme Power plus 460w
Software Windows 7 64bit
#15
You are the second person who got a 10/10 from me in the case mod section. The fact that you fabricated the case from scratch is definitive +. Good job.
