SSD Different values in test

lu1996

New Member
Joined
Oct 29, 2020
Messages
2 (0.06/day)
Hello all! So i bought one ADATA SU750 512GB as my first SSD. Well ran crystaldiskmark and AS SSD for performance test and im having issues with the values! The temperature is also strange, always at 70º and above which is bad i guess? Anyway im in doubt if i should ask for a refund or not cause im very confused here, never had SSD before.


Attachments

Joined
Jan 8, 2020
Messages
372 (1.13/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
Looks like CDM is returning sequential speeds that are right in line with what your SU750 is marketed as being capable of. If you hover over the bars in CDM (for example, the 258.6 bar in the second row) it will display the IOPS, which you can also compare to those marketed by ADATA (65K IOPS for 4K random read and 75K IOPS for 4K random write). I've never heard of AS SSD, and your CDM results look normal to me. What are you using to measure your drive temperatures ad where are they located?

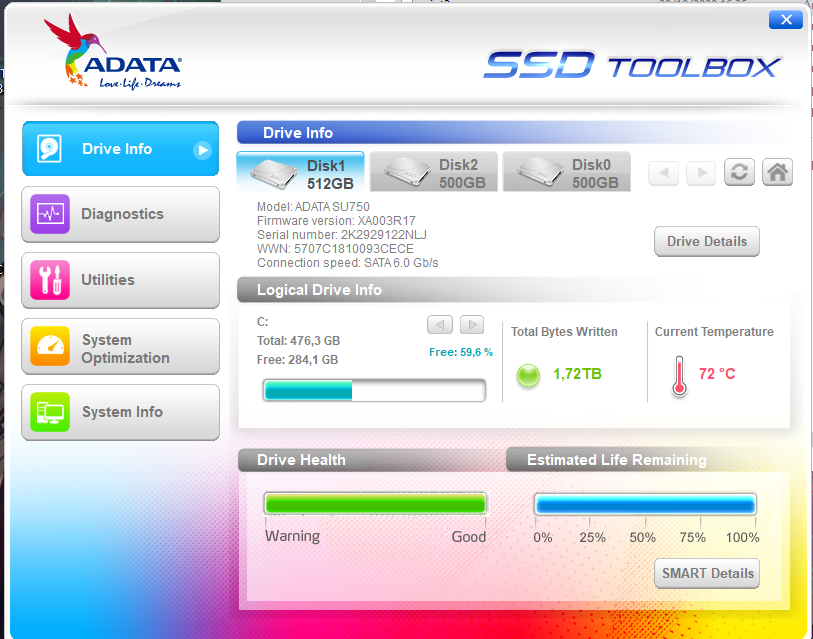

Edit: I see you've added the screenshot with your ADATA SSD software that includes the temperature. Download HWinfo64 and install that. Open it, check the box for "sensors only" and see what it lists for drive temperature. Getting another measurement will help us rule out a software reporting error

  • Like
Reactions: Rei
Joined
Jun 23, 2014
Messages
589 (0.25/day)
Processor 3900X 4.4
Motherboard X570 Tomahawk
Cooling 2x EK Phoenix 240 tubed together with Vardar push-pull
Memory 2x8gb Trident-Z 3600
Video Card(s) Duke 2080
Storage Optane 280gb PCI-E + 980 Pro 500gb
Display(s) PG348Q
Case Core P3
Audio Device(s) ATOLL DAC 100SE, Magnat RV-1 to Dali Ikon 1 MK2, QED banana cabling
Power Supply AX1500i
Mouse Projects Gaming S001
Keyboard Topre Realforce 87U with all 30g keys
Software Win 10 Pro
AS SSD is actually a big name benchmark as far as SSD benches go, it's been around for some while now and is used by quite some people as well. Just not updated nowadays by the Alex guy that makes it I believe.

The values seem a bit on the lower end but then again, that looks like a SATA SSD so probably based on an older controller with meh speeds. The strange thing is overheating though, I'd check temperature with AIDA64, they have a decent database as far as SSD sensor value readings go.


lu1996

New Member
Joined
Oct 29, 2020
Messages
2 (0.06/day)
Looks like CDM is returning sequential speeds that are right in line with what your SU750 is marketed as being capable of. If you hover over the bars in CDM (for example, the 258.6 bar in the second row) it will display the IOPS, which you can also compare to those marketed by ADATA (65K IOPS for 4K random read and 75K IOPS for 4K random write). I've never heard of AS SSD, and your CDM results look normal to me. What are you using to measure your drive temperatures ad where are they located?
well i was comparing with the speed test of this vídeo:
(i attached the pic of his results)
which is the same SSD and thats why i thought i ran into some kind of issue here. Im using adata toolbox and crystaldiskinfo, both show me a high temperature that never go below 70º (no idea why). They are located in the C: drive which is the SSD. Im noob with this kind of things lol sorry if my answer is confusing

AS SSD is actually a big name benchmark as far as SSD benches go, it's been around for some while now and is used by quite some people as well. Just not updated nowadays by the Alex guy that makes it I believe.

The values seem a bit on the lower end but then again, that looks like a SATA SSD so probably based on an older controller with meh speeds. The strange thing is overheating though, I'd check temperature with AIDA64, they have a decent database as far as SSD sensor value readings go.
Oh allright thanks for the info! I will try to check with AIDA64


Attachments

Joined
Jan 8, 2020
Messages
372 (1.13/day)
Location
Maryland, USA
Processor Ryzen 5 2600
Motherboard MSI B450 Gaming Pro Carbon AC
Cooling CPU: bequiet! Dark Rock 4. Case fans: 2x bequiet Silent Wings 3 140s, 2x Silent Wings 3 120s
Memory 2 x 8 GB Corsair Vengeance LPX DDR4-3000 C15
Video Card(s) Sapphire NITRO+ RX 5700 XT
Storage 500 GB Samsung 860 Evo, 1 TB WD Blue 3D M.2, 1 TB Inland Professional
Display(s) MSI Optix MAG271CQR 1440p 144Hz, MSI Optix MAG241C 1080p 144Hz
Case Fractal Design Meshify C Black
Audio Device(s) Philips SHP9500 + V-Moda BoomPro
Power Supply EVGA SuperNOVA G3 80+ Gold 750W
Mouse Razer Mamba Wireless
Keyboard CoolerMaster Masterkeys Pro S - Cherry MX Browns
AS SSD is actually a big name benchmark as far as SSD benches go, it's been around for some while now and is used by quite some people as well. Just not updated nowadays by the Alex guy that makes it I believe.
Ah okay, I had just never heard of it. Thanks for letting me know.

well i was comparing with the speed test of this vídeo:
(i attached the pic of his results)
which is the same SSD and thats why i thought i ran into some kind of issue here. Im using adata toolbox and crystaldiskinfo, both show me a high temperature that never go below 70º (no idea why). They are located in the C: drive which is the SSD. Im noob with this kind of things lol sorry if my answer is confusing
Ah, so it looks like the pic you originally had in your post was this guy's results and yours are lower. Yeah, those write speeds look pretty low. What I meant by location was where is your SSD physically located in your PC? Does your case minimal airflow and then your SSD is jammed away in a corner sandwiched between a bunch of cables? Regardless, I would agree with @X71200 that 70C is definitely unusual. Check with AIDA64 and/or HWinfo64

Joined
Nov 11, 2004
Messages
7,135 (1.22/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si
well i was comparing with the speed test of this vídeo:
(i attached the pic of his results)
which is the same SSD and thats why i thought i ran into some kind of issue here. Im using adata toolbox and crystaldiskinfo, both show me a high temperature that never go below 70º (no idea why). They are located in the C: drive which is the SSD. Im noob with this kind of things lol sorry if my answer is confusing


Oh allright thanks for the info! I will try to check with AIDA64
Please fill in your system specs in your profile. Without knowing the rest of your hardware it's really hard to give suggestions.
That said, your thermals are crazy for a SATA drive, did you put on top of your graphics card?


Rei

Joined
Aug 1, 2020
Messages
399 (3.24/day)
Location
Guam
System Name 1 Desktop/2 Laptops/1 Nettop
Processor AMD Athon X2 64/Intel Pentium 997/Intel Pentium 4/Intel Atom
Motherboard EpoX ATX motherboard
Cooling Stock
Memory 4 GB/4 GB/2 GB/2 GB
Video Card(s) Asus GeForce GTX 780 Ti/Intel HD Graphics/GeForce 4MX/Intel GMA
Storage 6+ TB Total
Display(s) HP Pavilion 14 Inch 1024x768@60Hz 4:3 Aspect Ratio CRT Monitor
Case None
Audio Device(s) Various
Power Supply Seasonic 500 Watt & VenomRX 500 Watt
Mouse Wayes Iron Man Wireless Mouse
Keyboard Rexus VR2 Wireless Keyboard
Software Win10 & WinXP SP3
Benchmark Scores It sucks...
Hello all! So i bought one ADATA SU750 512GB as my first SSD. Well ran crystaldiskmark and AS SSD for performance test and im having issues with the values! The temperature is also strange, always at 70º and above which is bad i guess? Anyway im in doubt if i should ask for a refund or not cause im very confused here, never had SSD before.
Looks like you are using an obsolete version of CrystalDiskMark. Download the newest version which is version 8.0.0 RC1 as of this writing. Even though your current score is still somewhat viable, the methodology which the old version uses is rather outdated. Using the newest version ensure that by using the latest methodology, you might get a more accurate benchmark score. While you are there, might as well get the latest version of CrystalDiskInfo which right now is at version 8.8.9 to ensure accurate reading of your SSD's stats & temperature.
