• Welcome to TechPowerUp Forums, Guest! Please check out our forum guidelines for info related to our community.

Support bracket = overheating

Joined
Aug 5, 2021
Messages
51 (0.04/day)
Processor Intel i7-4790K @ 4.7 GHz
Motherboard ASUS Z97-A USB3.1
Cooling DEEPCOOL GAMMAXX400V2
Memory 16GB DDR3-1600
Video Card(s) HP RX 5500 4GB
Storage 500GB Samsung 860 EVO SSD
Display(s) Gigabyte M28U (4K 144Hz 10-bit)
Case Corsair 4000D
Audio Device(s) Audio-Technica ATH-M50x
Power Supply Corsair CX550M
Mouse Logitech MK295
Keyboard Logitech MK295
I just got a support bracket for my ASUS Strix R9 285. The bracket supports it perfectly fine and fixes the sagging, however I was really surprised to find the GPU temps quickly hitting 90°C+ under a minor/moderate load - it normally hits 80°C max under full load. So I unscrewed the bracket and let it hang as it always did, and the temps were instantly much lower, although they don't seem to be back to normal (I'm sure a repaste is necessary at this point after breaking contact). If I push the card up by hand to support it while under moderate load the temps start going up instantly.

I imagine that by propping it up it is causing the cooler to lose good contact with the die so it heats up.

My question is, is there any way to make this work with the bracket or should I just forget about it?

Last edited:
Joined
Sep 18, 2014
Messages
426 (0.11/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532
The cards PCB would have been bent after being in a sagging position for so long....so when you put a support bracket under it, the pcb would have been straightened and made it to lose contact with the gpu cooler. And cause instant overheating..

What i would do is to remove the cooler from the card.. clean and remove the old thermal paste and place a heavy weight over the gpu pcb, like a heavy book or something, and leave it undisturbed for a week or so.....this will slowly bend the pcb back into a straight shape...
then you can reapply the thermal paste and remount the gpu together with the support bracket. this can prevent further sagging of the card..


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I say do the washer mod for the heat sink bracket

Joined
Aug 5, 2021
Messages
51 (0.04/day)
Processor Intel i7-4790K @ 4.7 GHz
Motherboard ASUS Z97-A USB3.1
Cooling DEEPCOOL GAMMAXX400V2
Memory 16GB DDR3-1600
Video Card(s) HP RX 5500 4GB
Storage 500GB Samsung 860 EVO SSD
Display(s) Gigabyte M28U (4K 144Hz 10-bit)
Case Corsair 4000D
Audio Device(s) Audio-Technica ATH-M50x
Power Supply Corsair CX550M
Mouse Logitech MK295
Keyboard Logitech MK295
The cards PCB would have been bent after being in a sagging position for so long....so when you put a support bracket under it, the pcb would have been straightened and made it to lose contact with the gpu cooler. And cause instant overheating..

What i would do is to remove the cooler from the card.. clean and remove the old thermal paste and place a heavy weight over the gpu pcb, like a heavy book or something, and leave it undisturbed for a week or so.....this will slowly bend the pcb back into a straight shape...
then you can reapply the thermal paste and remount the gpu together with the support bracket. this can prevent further sagging of the card..
Convenient, I'm going on vacation for a week in a few days. Will do.

I say do the washer mod for the heat sink bracket
Never heard of this before but it looks interesting, I'll probably do this too.

Last edited:

AsRock

TPU addict
Joined
Jun 23, 2007
Messages
19,102 (2.99/day)
Location
UK\USA
Any chance of a picture of how this bracket is supporting the card ?.

Sure the bracket is not pushing against the heatsink or shroud ?, so it's messing up the contact of the GPU chip. Might want to re paste too

Joined
Sep 18, 2014
Messages
426 (0.11/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532
Convenient, I'm going on vacation for a week in a few days. Will do.


Never heard of this before but it looks interesting, I'll probably do this too.
The washer mod is a very simple mod...you just put a couple of plastic or nylon washer underneath your heatsink screws...the washers will increase mounting pressure resulting in a snug fit between the gpu and the heatsink..

Here is a pic i found on reddit..



you can see the white nylon washers under the heatsink screws...

Joined
Aug 5, 2021
Messages
51 (0.04/day)
Processor Intel i7-4790K @ 4.7 GHz
Motherboard ASUS Z97-A USB3.1
Cooling DEEPCOOL GAMMAXX400V2
Memory 16GB DDR3-1600
Video Card(s) HP RX 5500 4GB
Storage 500GB Samsung 860 EVO SSD
Display(s) Gigabyte M28U (4K 144Hz 10-bit)
Case Corsair 4000D
Audio Device(s) Audio-Technica ATH-M50x
Power Supply Corsair CX550M
Mouse Logitech MK295
Keyboard Logitech MK295
Any chance of a picture of how this bracket is supporting the card ?.

Sure the bracket is not pushing against the heatsink or shroud ?, so it's messing up the contact of the GPU chip. Might want to re paste too
Focus a little off in the first picture but you can get the idea. The PCB does have a nice bend to it, at least in person.
This is supporting it only 25-50% of what I had it at originally since I loosened it. The piece near the middle isn't doing much, I just put it there - the one on the end is doing all the work.





eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Focus a little off in the first picture but you can get the idea. The PCB does have a nice bend to it, at least in person.
This is supporting it only 25-50% of what I had it at originally since I loosened it. The piece near the middle isn't doing much, I just put it there - the one on the end is doing all the work.

View attachment 211685

View attachment 211686
Check motherboard alignment with your case.

Joined
Aug 5, 2021
Messages
51 (0.04/day)
Processor Intel i7-4790K @ 4.7 GHz
Motherboard ASUS Z97-A USB3.1
Cooling DEEPCOOL GAMMAXX400V2
Memory 16GB DDR3-1600
Video Card(s) HP RX 5500 4GB
Storage 500GB Samsung 860 EVO SSD
Display(s) Gigabyte M28U (4K 144Hz 10-bit)
Case Corsair 4000D
Audio Device(s) Audio-Technica ATH-M50x
Power Supply Corsair CX550M
Mouse Logitech MK295
Keyboard Logitech MK295

AsRock

TPU addict
Joined
Jun 23, 2007
Messages
19,102 (2.99/day)
Location
UK\USA
I am sure your picture is not 100% straight but to me it looks like your pushing on the cooler way to much. It looks like after the GPU it starts to get way out of control.

Joined
Sep 18, 2014
Messages
426 (0.11/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532

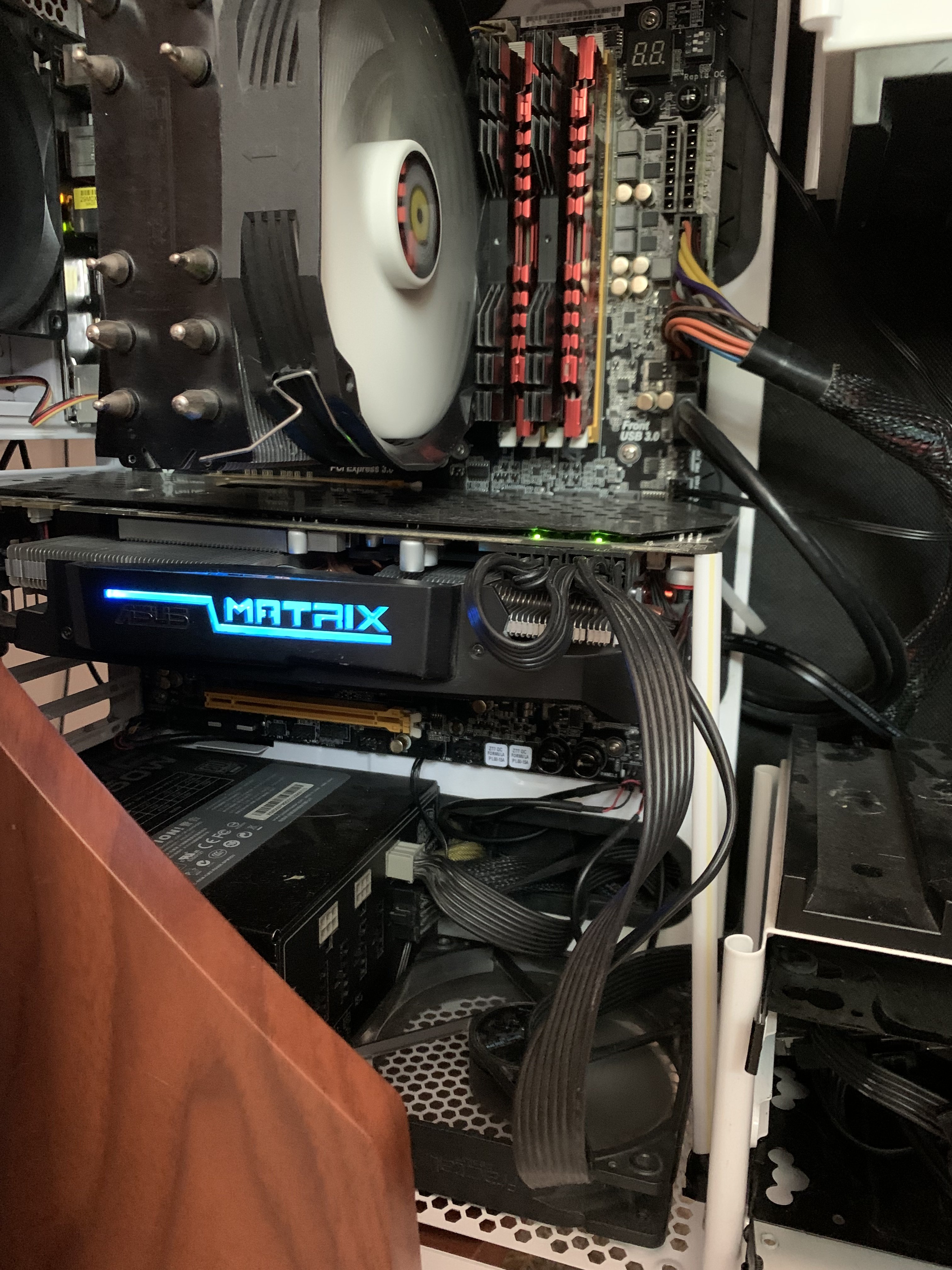

Imho, I think you are better off using a GPU support stand rather than a support bracket attached to the empty pci\pcie slot screws...gpu stands in my opinion offer much better support and moreover you can customise the support just exactly where you need it...

some pics...







The base is magnetised...hence the stand will not topple over even if you accidently nudge it....

I have a old stand supporting my R7 260X in my old system...





freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,696 (3.82/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Pretty fancy!

I just use a McDonalds straw.. the old fashioned plastic kind :D



eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I am sure your picture is not 100% straight but to me it looks like your pushing on the cooler way to much. It looks like after the GPU it starts to get way out of control.
View attachment 211731
He needs to loosen the motherboard screws and remove the screws from the gpu, it is strained.

My card is triple slot and doesnt sag, and it is a brick but that is because I check the alignment of the motherboard to the case along with the gpu. I just don't "wam, bam, thank you ma'am" anything.

Last edited:

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,696 (3.82/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Slide that board in till it hits the io, then line up all the holes until they are centered perfectly, and don't forget there is an actual torque sequence that you should follow but I doubt many do..


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Joined
Sep 18, 2014
Messages
426 (0.11/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532
GPU coolers are getting heavier and bigger everyday...the poor thin pcb cant support the weight...

i had looked up some universal vertical gpu mounting brackets.....i personally have not tried it...but i believe the bracket can ease the strain on the gpu pcb....
anybody here using such brackets can enlighten us about the pros and cons..



eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
GPU coolers are getting heavier and bigger everyday...the poor thin pcb cant support the weight...

i had looked up some universal vertical gpu mounting brackets.....i personally have not tried it...but i believe the bracket can ease the strain on the gpu pcb....
anybody here using such brackets can enlighten us about the pros and cons..

View attachment 211734
Jumpers increase latency, need proper grounding too


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,696 (3.82/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Joined
Aug 5, 2021
Messages
51 (0.04/day)
Processor Intel i7-4790K @ 4.7 GHz
Motherboard ASUS Z97-A USB3.1
Cooling DEEPCOOL GAMMAXX400V2
Memory 16GB DDR3-1600
Video Card(s) HP RX 5500 4GB
Storage 500GB Samsung 860 EVO SSD
Display(s) Gigabyte M28U (4K 144Hz 10-bit)
Case Corsair 4000D
Audio Device(s) Audio-Technica ATH-M50x
Power Supply Corsair CX550M
Mouse Logitech MK295
Keyboard Logitech MK295
Imho, I think you are better off using a GPU support stand rather than a support bracket attached to the empty pci\pcie slot screws...gpu stands in my opinion offer much better support and moreover you can customise the support just exactly where you need it...

some pics...

View attachment 211722
View attachment 211723
View attachment 211724
View attachment 211725
View attachment 211728

The base is magnetised...hence the stand will not topple over even if you accidently nudge it....

I have a old stand supporting my R7 260X in my old system...

View attachment 211730

View attachment 211732
I liked the look of the type that I bought better but I may consider it

I am sure your picture is not 100% straight but to me it looks like your pushing on the cooler way to much. It looks like after the GPU it starts to get way out of control.
View attachment 211731
He needs to loosen the motherboard screws and remove the screws from the gpu, it is strained.

My card is triple slot and doesnt sag, and it is a brick but that is because I check the alignment of the motherboard to the case along with the gpu. I just don't "wam, bam, thank you ma'am" anything.
Slide that board in till it hits the io, then line up all the holes until they are centered perfectly, and don't forget there is an actual torque sequence that you should follow but I doubt many do..
I'm confused, how could the motherboard be an issue if it is seated properly and lines up with and is screwed in with all 9 screws? I'll admit I wasn't aware of a torque sequence though.

I do think I made a mistake by trying to hold the card up as I tightened the GPU--->case screws (tightly, probably overdid that too). When I loosened them the GPU dropped a little so maybe that was making things worse. I imagine those screws should just be snug.

Joined
Sep 18, 2014
Messages
426 (0.11/day)
Location
620004
System Name Blackbelt 2
Processor AMD FX 8350
Motherboard ASUS M5A99FX PRO R 2.0
Cooling Cooler Master Hyper TX3 evo
Memory 8GB Corsair Value Select DDR3
Video Card(s) ASUS R7260X DC2OC 2GB
Storage INTEL 530 series SSD 120 GB, Seagate Barracuda 1 TB 7200 RPM
Display(s) DELL ST 2240L
Case Cooler Master Elite 311
Power Supply CORSAIR VS Series 550W
Software Windows 7 Ultimate 64 Bit
Benchmark Scores 3DMark 11 6532
the screws ideally should be just snug enough..you should never overtighten the screws and risk misaligning the motherboard..

a simple rule i follow is to tighten all screws by holding the screwdriver with my fingers rather than holding the screwdriver with the palm of my hand..holding with the palm of your hand risks overtightening and stripping the screws or worse cracking the motherboard pcb..


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,696 (3.82/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Is that a nideq fan in your avatar?
3x Panaflo's and a DC Centaur 24v in the rear :)

But! I have retired them from my rig for now..

I'm confused, how could the motherboard be an issue if it is seated properly and lines up with and is screwed in with all 9 screws? I'll admit I wasn't aware of a torque sequence though.
It shouldn't be an issue.. It could be the case too, I have had cases in the past made by minimum wage operators. I say that because manufacturing tolerances are there for a reason, I have had a case where the GPU sat way the fuck out to lunch and could not tighten the GPU down safely. Mind you that was not remotely recently.. The thumbscrew would not line up with the pci mount on the gpu..
a simple rule i follow
You don't want too loose though. There are still vibrations that care nothing for your screws. I just turn until it stops, good enough. Actually I loosely install my screws then I go around and torque them down in sequence.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
42,411 (6.66/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
I liked the look of the type that I bought better but I may consider it




I'm confused, how could the motherboard be an issue if it is seated properly and lines up with and is screwed in with all 9 screws? I'll admit I wasn't aware of a torque sequence though.

I do think I made a mistake by trying to hold the card up as I tightened the GPU--->case screws (tightly, probably overdid that too). When I loosened them the GPU dropped a little so maybe that was making things worse. I imagine those screws should just be snug.

You should of had the case laying on the side with the gpu installed, did a test fit, made sure card alignment is relaxed and no tension on it and the mobo squared up.

Top
