TechPowerUp Deploys New PSU Testing Equipment

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
34,335 (9.23/day)
Likes
17,427
Location
Hyderabad, India
System Name Long shelf-life potato
Processor Intel Core i7-4770K
Motherboard ASUS Z97-A
Cooling Xigmatek Aegir CPU Cooler
Memory 16GB Kingston HyperX Beast DDR3-1866
Video Card(s) 2x GeForce GTX 970 SLI
Storage ADATA SU800 512GB
Display(s) Samsung U28D590D 28-inch 4K
Case Cooler Master CM690 Window
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Corsair HX850W
Mouse Razer Abyssus 2014
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro Creators Update
#1

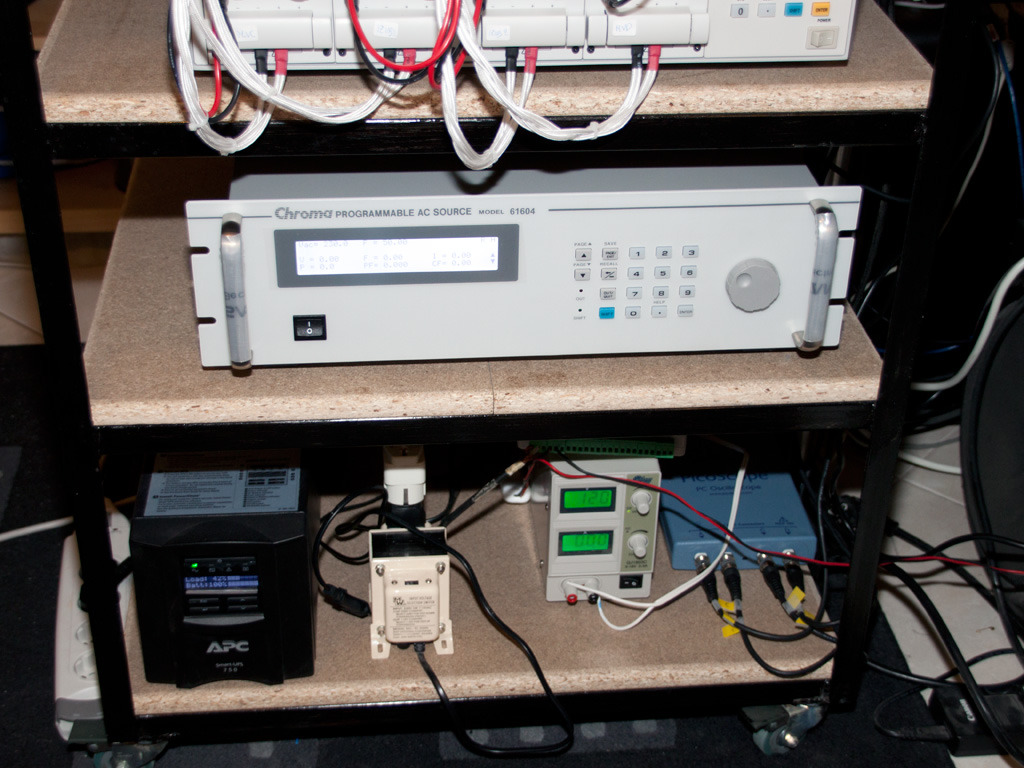

In pursuit of delivering the most comprehensive power supply reviews on the web, TechPowerUp upgraded its testing methodology with new cutting-edge testing equipment that meets industrial standards. Our PSU reviewer deployed eight new Chroma DC loads, which let us simulate the most precise load onto a PSU, testing its efficiency and other parameters. The new setup includes two Chroma 6314A mainframes, equipped with six 63123A loads (350 W each), one 63101A load (200 W) and one 63102A load (2 x 100 W). Our equipment allows us to load 12V rails with up to 2100 W loads, 5V with 200W, 5VSB and 3.3V with 100 W, each. We make our own software to the extant possible. Our PSU reviewer developed a new software that automates most of our crossload testing. Industry alternatives for this cost a bomb.

Show full news post
