Tesla M2090 6Gb gaming fun

Joined
Jul 15, 2019
Messages
190 (0.16/day)
Location
Hungary
System Name Big Ass Xena
Processor Intel Xeon Silver 4215R
Motherboard Supermicro X11SPM-F
Cooling Noctua NH-U14S DX-3647
Memory 5x8Gb + 1x16Gb DDR4 2666 ECC REG
Video Card(s) Quadro M2000 4Gb + Tesla M40 12Gb modded for gaming
Storage Samsung PM9A1 1Tb nvme + Kingston HyperX 480Gb + Samsung 860 evo 250 gb + Samsung 970 evo 250gb
Display(s) Dell U2311H
Case Chieftek ATX from trash + AMD Sempron sticker
Audio Device(s) Genius Cavimanus
Power Supply Super Flower Leadex 750w Platinum
Mouse Logitech G400
Keyboard Dell standard + Fk2000 plus AT to PS2 to USb adapter
VR HMD don't need it, i have strong drinks so i have multiple visions
Software Windows 11 Pro x64
Benchmark Scores low, but this system has soul not scores
Yes, it is light oc-d with the russian k20x bios.
954mhz core, 1450mhz vram


Schaka

New Member
Joined
Jul 14, 2021
Messages
22 (0.05/day)
I found a forum post claiming that Tesla C2075 shades are just soft locked and we can get full performance out of it. Now I can't figure this out at all, but would anytime here know what this bios mod requires?

I have a C2075 at hand to try as well as an M2090 atm. I probably won't resell these for a while.


Attachments

  • 404779_1606374123437.png
    7.5 KB · Views: 42
Joined
Jul 15, 2019
Messages
190 (0.16/day)
Location
Hungary
System Name Big Ass Xena
Processor Intel Xeon Silver 4215R
Motherboard Supermicro X11SPM-F
Cooling Noctua NH-U14S DX-3647
Memory 5x8Gb + 1x16Gb DDR4 2666 ECC REG
Video Card(s) Quadro M2000 4Gb + Tesla M40 12Gb modded for gaming
Storage Samsung PM9A1 1Tb nvme + Kingston HyperX 480Gb + Samsung 860 evo 250 gb + Samsung 970 evo 250gb
Display(s) Dell U2311H
Case Chieftek ATX from trash + AMD Sempron sticker
Audio Device(s) Genius Cavimanus
Power Supply Super Flower Leadex 750w Platinum
Mouse Logitech G400
Keyboard Dell standard + Fk2000 plus AT to PS2 to USb adapter
VR HMD don't need it, i have strong drinks so i have multiple visions
Software Windows 11 Pro x64
Benchmark Scores low, but this system has soul not scores
Found it!
fount it.PNGmodded.PNG

I dont have time to test is, i also have a C2075 but now i have other projects (Tesla M40 and Radeon MI8)


Attachments

  • modded.rom
    64 KB · Views: 30
Last edited:
Joined
Jul 15, 2019
Messages
190 (0.16/day)
Location
Hungary
System Name Big Ass Xena
Processor Intel Xeon Silver 4215R
Motherboard Supermicro X11SPM-F
Cooling Noctua NH-U14S DX-3647
Memory 5x8Gb + 1x16Gb DDR4 2666 ECC REG
Video Card(s) Quadro M2000 4Gb + Tesla M40 12Gb modded for gaming
Storage Samsung PM9A1 1Tb nvme + Kingston HyperX 480Gb + Samsung 860 evo 250 gb + Samsung 970 evo 250gb
Display(s) Dell U2311H
Case Chieftek ATX from trash + AMD Sempron sticker
Audio Device(s) Genius Cavimanus
Power Supply Super Flower Leadex 750w Platinum
Mouse Logitech G400
Keyboard Dell standard + Fk2000 plus AT to PS2 to USb adapter
VR HMD don't need it, i have strong drinks so i have multiple visions
Software Windows 11 Pro x64
Benchmark Scores low, but this system has soul not scores

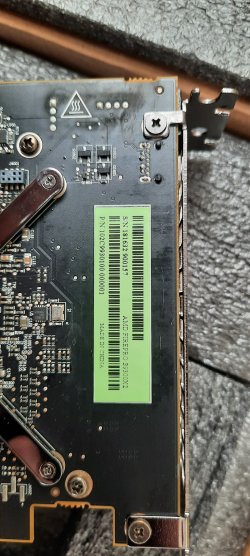

Next fun card is an AMD Instinct m8 that you can use for gaming.

https://www.miyconst.com/Blog/View/...etailed-review-and-tests-cooling-bios-drivers

Pros:
very good price (105 euro with coupon, free shipping in EU)
performance is good for FullHD gaming (but not all ultra setting because 4gb vram) like GTX1060-1070
newer used new card (from slovakian webshop, 1y warranty in EU)
not good for miners

Const:
only 4gb vram
only one DP port that hidden (still better than tesla cards without output)
needs additional cooling
no updated drivers (but there is modded new drivers called nimez)
card made in 2016-2017 so possible that thermal paste needs to replaced



Attachments

  • 20220214_091717.jpg
    1.5 MB · Views: 28
  • 20220214_091815.jpg
    922.8 KB · Views: 31
  • 20220214_091822.jpg
    952 KB · Views: 42
  • 20220214_181012.jpg
    1.3 MB · Views: 43

Schaka

New Member
Joined
Jul 14, 2021
Messages
22 (0.05/day)
Found it!
View attachment 236548View attachment 236549

I dont have time to test is, i also have a C2075 but now i have other projects (Tesla M40 and Radeon MI8)

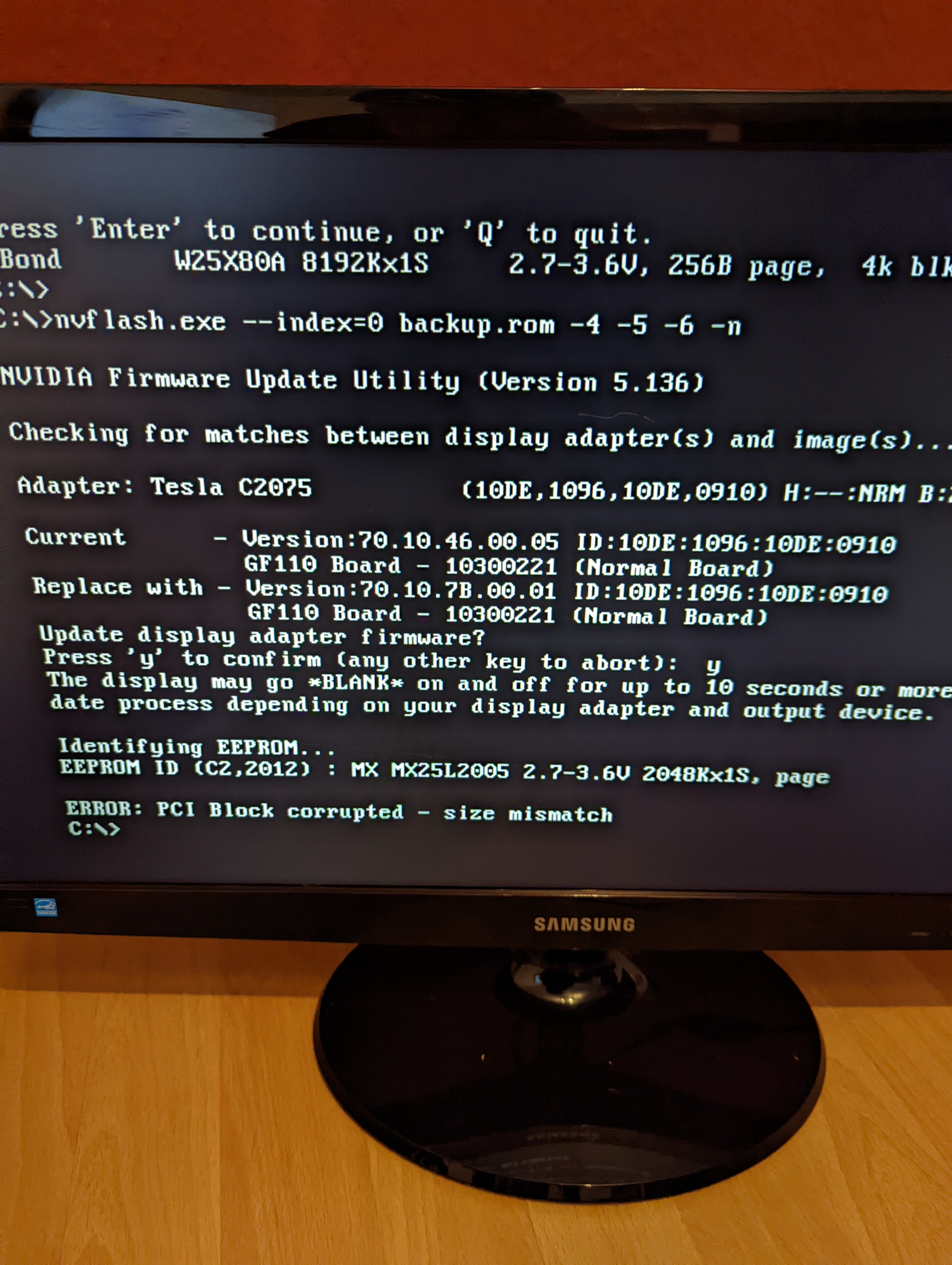

This didn't work. I have a 84kbit BIOS. Unfortunately, nvflash let me flash the 64kbit one and now it's corrupted. I still get an image, but I can't flash it back to the 84kbit one due to "PCI block corrupted" error, so I will have to flash it with a hardware programmer in the coming days. If you have any idea how to do this via software to save me the hassle, let me know.

Would be nice if you could mod my BIOS too, I'll let you know if it worked.


Attachments

  • backup.rom
    84 KB · Views: 13
Last edited:
Joined
Jul 15, 2019
Messages
190 (0.16/day)
Location
Hungary
System Name Big Ass Xena
Processor Intel Xeon Silver 4215R
Motherboard Supermicro X11SPM-F
Cooling Noctua NH-U14S DX-3647
Memory 5x8Gb + 1x16Gb DDR4 2666 ECC REG
Video Card(s) Quadro M2000 4Gb + Tesla M40 12Gb modded for gaming
Storage Samsung PM9A1 1Tb nvme + Kingston HyperX 480Gb + Samsung 860 evo 250 gb + Samsung 970 evo 250gb
Display(s) Dell U2311H
Case Chieftek ATX from trash + AMD Sempron sticker
Audio Device(s) Genius Cavimanus
Power Supply Super Flower Leadex 750w Platinum
Mouse Logitech G400
Keyboard Dell standard + Fk2000 plus AT to PS2 to USb adapter
VR HMD don't need it, i have strong drinks so i have multiple visions
Software Windows 11 Pro x64
Benchmark Scores low, but this system has soul not scores
This didn't work. I have a 84kbit BIOS. Unfortunately, nvflash let me flash the 64kbit one and now it's corrupted. I still get an image, but I can't flash it back to the 84kbit one due to "PCI block corrupted" error, so I will have to flash it with a hardware programmer in the coming days. If you have any idea how to do this via software to save me the hassle, let me know.

Would be nice if you could mod my BIOS too, I'll let you know if it worked.
Ok i modded it
i getting pci block corrupted size mismatch. dont know why.


Attachments

  • C2075mod.rom
    84 KB · Views: 20
Last edited:

Schaka

New Member
Joined
Jul 14, 2021
Messages
22 (0.05/day)
Thank you. I hardware flashed my backup BIOS and things worked again. Unfortunately, I still get PCI block corrupt issue when trying to flash any other BIOS.
I tried your modded 84kbit one (hardware flash with EZP2019 again) and while it runs just fine, shaders aren't unlocked. So the unlock is probably way more complicated. I'll keep my card disassembled for a bit so I can test quicker, but I think I'll just put the backup on and resell it.

I'll give the Quadro 7000 BIOS a try. In this video, the Quadro 7000 BIOS seems to match his bios and clocks. Maybe that one needs to be modded?

According to this post there's secret register for Fermi core enablement at 0x022588. Quadro 7000 BIOS has it recognized as a Tesla C2075, but the DVI port stops working. Additionally, it's still stuckat 448 Shaders. I'll keepit disassembled and pack it away to mess around with later.

Last edited:
Joined
Jul 15, 2019
Messages
190 (0.16/day)
Location
Hungary
System Name Big Ass Xena
Processor Intel Xeon Silver 4215R
Motherboard Supermicro X11SPM-F
Cooling Noctua NH-U14S DX-3647
Memory 5x8Gb + 1x16Gb DDR4 2666 ECC REG
Video Card(s) Quadro M2000 4Gb + Tesla M40 12Gb modded for gaming
Storage Samsung PM9A1 1Tb nvme + Kingston HyperX 480Gb + Samsung 860 evo 250 gb + Samsung 970 evo 250gb
Display(s) Dell U2311H
Case Chieftek ATX from trash + AMD Sempron sticker
Audio Device(s) Genius Cavimanus
Power Supply Super Flower Leadex 750w Platinum
Mouse Logitech G400
Keyboard Dell standard + Fk2000 plus AT to PS2 to USb adapter
VR HMD don't need it, i have strong drinks so i have multiple visions
Software Windows 11 Pro x64
Benchmark Scores low, but this system has soul not scores
My new toy S9300X2 or dual FuryX/Nano. (brand new, 1y wrty, 130 Eur from slovakian webshop)
It can play games, if CF is working it is like a GTX1080 if not it is only GTX1060-1070. Needs modded active cooling, modded bioses, only one miniDP port.
video is not mine.
20220225_094420.jpg20220225_094609.jpg20220225_094657.jpg20220225_094816.jpg20220225_094831.jpg20220225_094838.jpg20220225_094901.jpg20220225_094910.jpg

Last edited:

Necromorfo_kawaii

New Member
Joined
Feb 28, 2022
Messages
1 (0.00/day)
Bro i'm questions for you of M2090
Thank you. I hardware flashed my backup BIOS and things worked again. Unfortunately, I still get PCI block corrupt issue when trying to flash any other BIOS.
I tried your modded 84kbit one (hardware flash with EZP2019 again) and while it runs just fine, shaders aren't unlocked. So the unlock is probably way more complicated. I'll keep my card disassembled for a bit so I can test quicker, but I think I'll just put the backup on and resell it.

I'll give the Quadro 7000 BIOS a try. In this video, the Quadro 7000 BIOS seems to match his bios and clocks. Maybe that one needs to be modded?

According to this post there's secret register for Fermi core enablement at 0x022588. Quadro 7000 BIOS has it recognized as a Tesla C2075, but the DVI port stops working. Additionally, it's still stuckat 448 Shaders. I'll keepit disassembled and pack it away to mess around with later.


Schaka

New Member
Joined
Jul 14, 2021
Messages
22 (0.05/day)
I will not be answering questions privately. That is not what a public forum is meant for. Everything is going to be documented for future use many years down the road. If you cannot ask publicly, I'm afraid you're out of luck.

Joined
Jan 11, 2022
Messages
9 (0.04/day)
Processor Intel® Core™ i5-3570 3.40GHz
Motherboard Dell inc. 00F82W (generic)
Cooling Default 1155
Memory 8Gb ddr3 1300 Ghz
Video Card(s) Tesla m2050, gt 710 (one day i will have my gtx 1080 ti ;-;)
Storage 250 gb mechanical disc
Display(s) generic 720p, from the age of the dinosaurs :v
Power Supply 500 watts astec generic
hello someone help me D:
I have an Nvidia Tesla m2050 3gb and I tried to convert it to quadro 5000, I already managed to change from tcc to wddm but when I try to flash it tells me id board and ID device,I already used other nvflash that don't ask for confirmation and still doesn't work I've been going crazy for 2 days and I'm going crazy :) thanks eat crazy chicken, sorry if it's another forum but here is the only one I found about Nvidia Tesla ;-;

Last edited:

Moicesar

New Member
Joined
Nov 14, 2021
Messages
9 (0.03/day)
Location
Ecuador
tengo un tesla m2070 necesito ayuda hermanos
i hope conver in tesla k6000 i need help
