The Official Thermal Interface Material thread

freeagent · Jan 27, 2023

I put a pro application of AS5 on my 5600X and 5800X3D today.. great stuff

lexluthermiester · Jan 27, 2023

jayjr1105 said:
GD-2 order came pretty quick... Not bad for $5 total, you even get a couple finger condoms
View attachment 280956

This is alot for $5. Do some comparative testing and share the results!

jayjr1105 · Jan 27, 2023

Pictus said:
They usually send condoms when the paste is dense.
Good sign as I like dense pastes.

I really liked the way it dispensed. Reminded me of the skinny syringe ShinEtsu pastes

VeqIR said:
Do report back on the performance and consistency/pump-out!

Consistency felt great, a good dense (but not dry) paste

lexluthermiester said:
This is alot for $5. Do some comparative testing and share the results!

Working from home today, I'll see if I can get a few comparisons in. I have a spare 8700 (non K) system with a very basic thermaltake cooler.

KLiKzg · Jan 27, 2023

Has anybody tested Zalman ZM-STC9 Thermal Compound? Does anybody here has some experiences with that paste?

lightning70 · Jan 27, 2023

I'm using Cooler Master Mastergel and I'm quite satisfied. Both CPU and GPU work well.

ThrashZone · Jan 27, 2023

freeagent said:
I put a pro application of AS5 on my 5600X and 5800X3D today.. great stuff

Hi,
Damn

Garlic · Jan 28, 2023

Tried PTM7950 on a 12900KF and a 6900XT, not sure how it compares but worked super nicely on GPU

freeagent · Jan 28, 2023

ThrashZone said:
Hi,
Damn

I did another pro application today on my old FC140, and now running semi-passive with AS5 :laugh:

lexluthermiester · Jan 28, 2023

jayjr1105 said:
I really liked the way it dispensed. Reminded me of the skinny syringe ShinEtsu pastes

Consistency felt great, a good dense (but not dry) paste

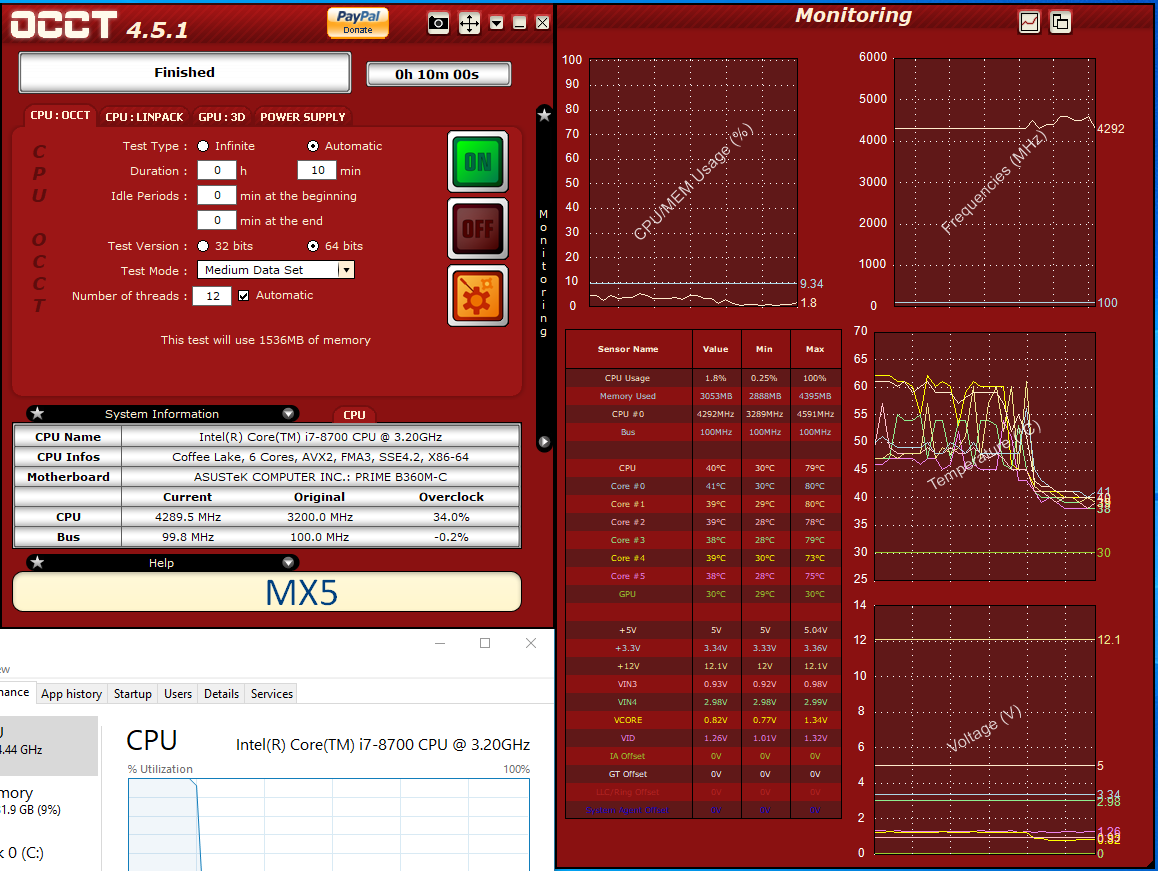

Working from home today, I'll see if I can get a few comparisons in. I have a spare 8700 (non K) system with a very basic thermaltake cooler.

View attachment 281049

View attachment 281080
View attachment 281081
View attachment 281082
View attachment 281083
View attachment 281084
View attachment 281085
View attachment 281087
View attachment 281088

Seems to perform well. Nice!

ThrashZone · Jan 28, 2023

freeagent said:
I did another pro application today on my old FC140, and now running semi-passive with AS5

Hi,
Okay now that's ghetto, no fans :eek:

DR4G00N · Jan 28, 2023

I'm running GD900 on most of my stuff atm, bought 120g so might as well put it to use.

The only thing it didn't work well with was my laptops i7 2760QM, used IC Diamond instead since it's much thicker, lowered from 90c to 80c.

freeagent · Jan 28, 2023

ThrashZone said:
Hi,
Okay now that's ghetto, no fans

My yawn is louder than my computer lol

Shrek · Jan 28, 2023

DR4G00N said:
I'm running GD900 on most of my stuff atm, bought 120g so might as well put it to use.

I also have 120g of GD900; no regrets.

jayjr1105 · Jan 30, 2023

Shrek said:
I also have 120g of GD900; no regrets.

Tub or syringes? Tubs seem like they would go bad quicker or develop a crust if not used often.

Shrek · Jan 30, 2023

Tubs and mine don't seem to age; I don't think GD900 dries out at all.

Borc · Feb 1, 2023

KLiKzg said:
Has anybody tested Zalman ZM-STC9 Thermal Compound? Does anybody here has some experiences with that paste?

Yes I have. On a notebook it is a bad paste. STC8 from Zalman is much better because it's much more viscous.

Zalman-STC9
93/97/94/95

Zalman-STC8
88/91/89/88

DR4G00N said:
I'm running GD900 on most of my stuff atm, bought 120g so might as well put it to use.
The only thing it didn't work well with was my laptops i7 2760QM, used IC Diamond instead since it's much thicker, lowered from 90c to 80c.

Same for me, GD900 performs really bad on my laptop.

Foshan GD900
93/96/93/94

Compared to a really good one:

Kooling Monster KOLD-01
85/87/86/86

lexluthermiester · Feb 1, 2023

Shrek said:
Tubs and mine don't seem to age; I don't think GD900 dries out at all.

Specifically engineered, many TIMs will stay viable for decades if not longer. Synthetic suspension fluids can last centuries.

Shrek · Feb 2, 2023

Separation may be an issue for some people, but my GD900 shows no such sign and is already a few years old.

KLiKzg · Feb 3, 2023

Borc said:
Yes I have. On a notebook it is a bad paste. STC8 from Zalman is much better because it's much more viscous.

Zalman-STC9
93/97/94/95

Zalman-STC8
88/91/89/88

Same for me, GD900 performs really bad on my laptop.

Foshan GD900
93/96/93/94

Compared to a really good one:

Kooling Monster KOLD-01
85/87/86/86

But I would be using it on desktop, which has screws with springs for tightening. Those might be more powerful, then some smaller ones on notebook. :confused:

freeagent · Feb 3, 2023

The power of AS5 compels you

No fans on the cooler :cool:

DR4G00N · Feb 12, 2023

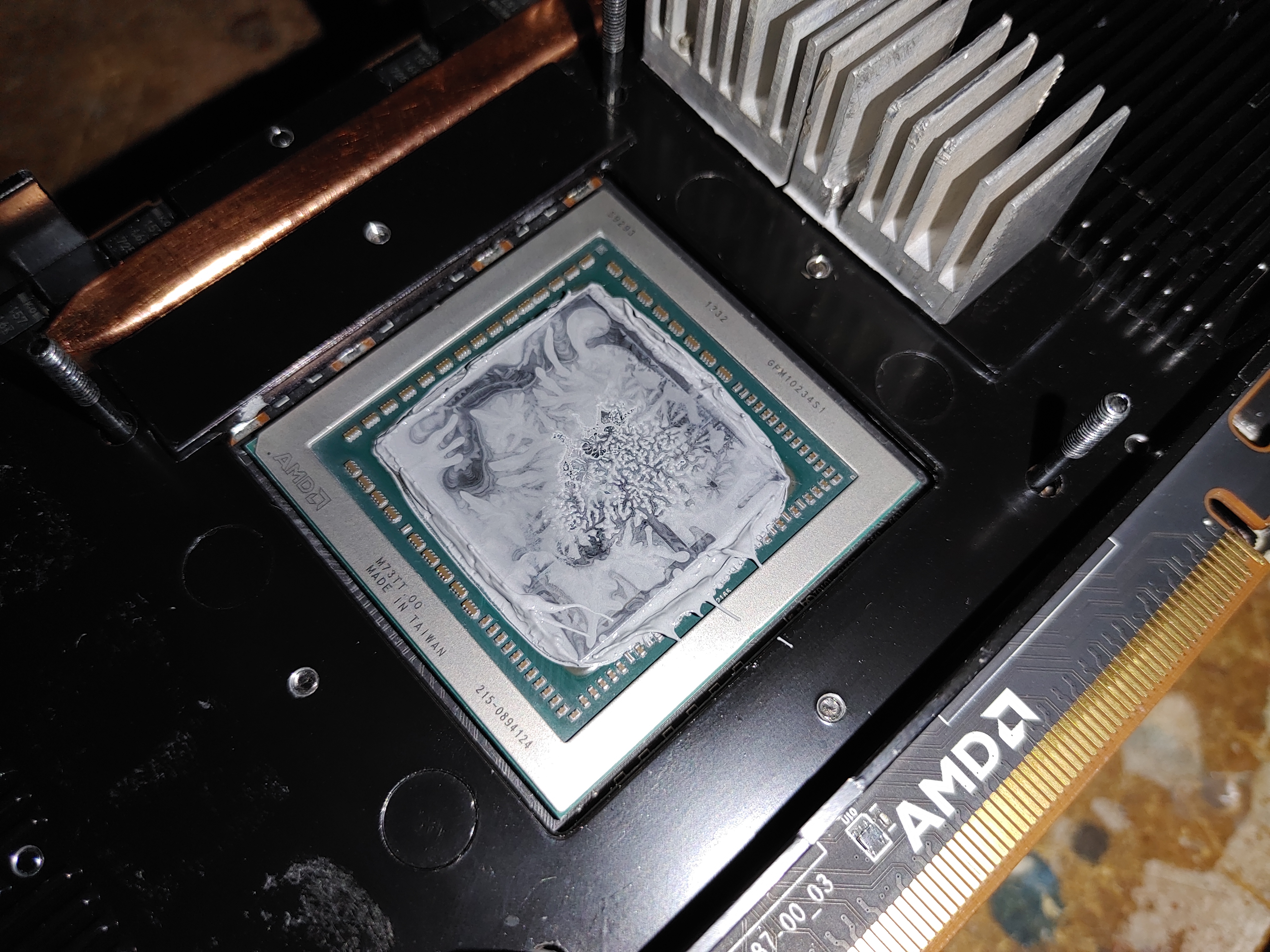

As it turns out GD900 isn't that great for Vega. On initial application temps are quite good @ ~50c core/65c hotspot, but after a few days the hotspot temps creep up to 80c+ when gaming.
I can only imagine this effect being much worse on an air cooled card.

Decided to try out some IC Diamond since I still had some left. It took a while but I eventually got it "spread" well enough, certainly not the nicest paste to use.
But the results are quite good, bringing down the hotspot to within 10c of the core. Still need to see how it does in the long term though.

Shrek · Feb 13, 2023

Very important result, but strange given how much was left when you removed the heatsink.

Soul_ · Feb 22, 2023

DR4G00N said:
As it turns out GD900 isn't that great for Vega. On initial application temps are quite good @ ~50c core/65c hotspot, but after a few days the hotspot temps creep up to 80c+ when gaming.
I can only imagine this effect being much worse on an air cooled card.

View attachment 283541 View attachment 283542

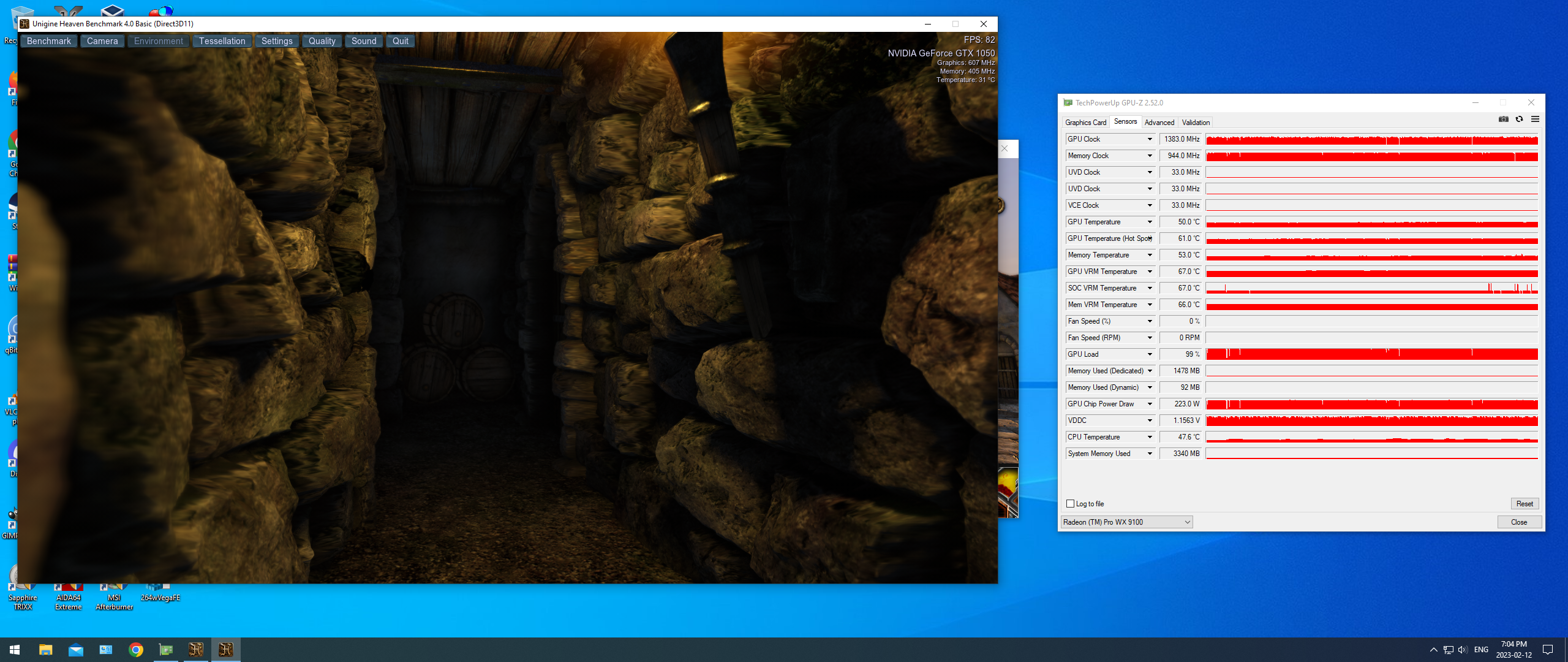

Decided to try out some IC Diamond since I still had some left. It took a while but I eventually got it "spread" well enough, certainly not the nicest paste to use.
But the results are quite good, bringing down the hotspot to within 10c of the core. Still need to see how it does in the long term though.

View attachment 283544

How is IC Diamond holding? I got KOLD-01 recently for my FTW3 3080ti, and in the first week temps have gone up 2C. So, not sure how it will behave in next few weeks. Wondering if IC Diamond would be better.

Shrek · Feb 22, 2023

Does IC diamond cause scratches?

nomdeplume · Feb 22, 2023

IMO a lot of you are slowly accommodating shifts in non-premium staples towards top shelf branding reliant on marketing trickery.
Something unique that triggers one or more of the five senses along with a positive mental association.
