The Ultimate Realtek HD Audio Driver Mod for Windows 10

JohnS

New Member
Joined
Jan 26, 2019
Messages
4 (0.00/day)
What do you mean by all options? the 16/24bit stereo in the list, or using the Dolby enhancements?
16/24bit stereo. When Dolby enhancements (dolby home theater) are on, it is still stereo, not 5.1. Actually, digital output does not detect 5.1 somehow according to this.

Joined
Sep 17, 2017
Messages
41 (0.02/day)
@Alan Finote
This is how control panel looks.

No option to redirect headphones and speakers.Also if i turn dolby digital plus or home theater 4,it sounds like laptop speakers.:confused:

Joined
Apr 30, 2017
Messages
213 (0.10/day)
Run the application below. It will look for these files that are conflicting with your current version of Dolby PCEE4 and delete them automatically. Then restart your computer and see if it has normalized.
Sadly this not works. :(
After that the Dolby application error had appeared on the screen.
I had deleted the Dolby driver, but not a reaction. :(
I had installed your Speakers/Headphones driver, is this the problem?

Joined
Mar 1, 2017
Messages
1,081 (0.52/day)
Location
Rio de Janeiro, Brazil
System Name Home PC/Lenovo IdeaPad S145-15API
Processor AMD Phenom II X4 960T (Quad-Core)/AMD Ryzen 5 3500U (4C/8T)
Motherboard Gigabyte GA-880GM-UD2H (Rev 1.3)/Lenovo Motherboard
Cooling DeepCool Gammaxx L120T/Stock
Memory 11GB/8GB
Video Card(s) GT 730 1GB/AMD Radeon RX Vega 8 (Onboard)
Storage [1x GoldenFir SSD 256GB + 1x HDD 1TB]/[1x Netac SSD M.2 NMVe 256GB + 1x GoldenFir SSD SATA3 1TB]
Case Cooler Master Storm Scout/Stock
Audio Device(s) AAF Optimus Sound
Power Supply 600W/Stock
Benchmark Scores Mikrotik RB760iGS with 1Gb/s Up/Down
@Aleksandar012
Open RAR and extract rtkhdaud.dat to "%systemroot%\System32\drivers"

I am uploading the new installer already fixed on this back panel issue addressed in the forum. In a few minutes I'll be posting the link.
After that, restart your PC.

@JohnS @Aleksandar012
FIXED DRIVER LINK (PCEEv4)


Attachments

  • rtkhdaud.rar
    331 bytes · Views: 456
Last edited:

JohnS

New Member
Joined
Jan 26, 2019
Messages
4 (0.00/day)
@Aleksandar012
Open RAR and extract rtkhdaud.dat to "%systemroot%\System32\drivers"

I am uploading the new installer already fixed on this back panel issue addressed in the forum. In a few minutes I'll be posting the link.
After that, restart your PC.

@JohnS @Aleksandar012
FIXED DRIVER LINK (PCEEv4)

Hello again. Thank you very much for your effort but still i hear hissing sound by using 5.1 format options. Even though in a new version "Dolby/DTS" is unlocked when i use 5.1, there is no use of it, since it doesn't change anything except of letting to push music/movie buttons and get nothing else but hissing while playing audio.

Once again i'll try to clear out the situation:
  1. I'm trying to play audio via optical cable a 5.1 audio system using MSI motherboard and Realtec audio card. Speakers work fine using TV as audio source via optical cable.
  2. Thanks to Alan Finote, I've downloaded drivers which let me play at least stereo by using formats 16 and 24 bits (just noticed that 192000hz make blerbing sounds while others quite low quality but still a bearable sound).
  3. Only "digital output" in audio manager works for me playing via SPDIF .
  4. I get no 5.1 experience since drivers don't work for this situation. Using 5.1 default format options hear only hissing sounds (kind of different hissing in DTS interactive and Dolby digital live. No normal sounds. When i play no music, no hissing. When i play, it hisses all the time monotonously).

By using this default format option, I still hear hissing sound, no audio.

Thank you for unlocking this, but it didn't change the situation.

Please help me, it's really unbearable to buy such audio system and have nothing but poor quality stereo sound or hissing by using 5.1 options. Maybe there is something I could send you to clear out a problem more deeply? I'm not a programmer but I will try to get a code or such if you explain how. Thank you very much!

Joined
Mar 1, 2017
Messages
1,081 (0.52/day)
Location
Rio de Janeiro, Brazil
System Name Home PC/Lenovo IdeaPad S145-15API
Processor AMD Phenom II X4 960T (Quad-Core)/AMD Ryzen 5 3500U (4C/8T)
Motherboard Gigabyte GA-880GM-UD2H (Rev 1.3)/Lenovo Motherboard
Cooling DeepCool Gammaxx L120T/Stock
Memory 11GB/8GB
Video Card(s) GT 730 1GB/AMD Radeon RX Vega 8 (Onboard)
Storage [1x GoldenFir SSD 256GB + 1x HDD 1TB]/[1x Netac SSD M.2 NMVe 256GB + 1x GoldenFir SSD SATA3 1TB]
Case Cooler Master Storm Scout/Stock
Audio Device(s) AAF Optimus Sound
Power Supply 600W/Stock
Benchmark Scores Mikrotik RB760iGS with 1Gb/s Up/Down
Hello again. Thank you very much for your effort but still i hear hissing sound by using 5.1 format options. Even though in a new version "Dolby/DTS" is unlocked when i use 5.1, there is no use of it, since it doesn't change anything except of letting to push music/movie buttons and get nothing else but hissing while playing audio.

Once again i'll try to clear out the situation:
  1. I'm trying to play audio via optical cable a 5.1 audio system using MSI motherboard and Realtec audio card. Speakers work fine using TV as audio source via optical cable.
  2. Thanks to Alan Finote, I've downloaded drivers which let me play at least stereo by using formats 16 and 24 bits (just noticed that 192000hz make blerbing sounds while others quite low quality but still a bearable sound).
  3. Only "digital output" in audio manager works for me playing via SPDIF .
  4. I get no 5.1 experience since drivers don't work for this situation. Using 5.1 default format options hear only hissing sounds (kind of different hissing in DTS interactive and Dolby digital live. No normal sounds. When i play no music, no hissing. When i play, it hisses all the time monotonously).
View attachment 115158
By using this default format option, I still hear hissing sound, no audio.
View attachment 115159
Thank you for unlocking this, but it didn't change the situation.

Please help me, it's really unbearable to buy such audio system and have nothing but poor quality stereo sound or hissing by using 5.1 options. Maybe there is something I could send you to clear out a problem more deeply? I'm not a programmer but I will try to get a code or such if you explain how. Thank you very much!
If your goal is 5.1 Surround, the way will be to unlock the Dolby Digital encoder through PCEEv4, as in the image below by @alanfox2000 :


JohnS

New Member
Joined
Jan 26, 2019
Messages
4 (0.00/day)
If your goal is 5.1 Surround, the way will be to unlock the Dolby Digital encoder through PCEEv4, as in the image below by @alanfox2000 :
Unfortunately, i have nothing like that. Even upper tabs are in two rows and the name includes no S/PDIF like in your sample picture. Attaching what do I see.

Any solutions? Dolby digital live and dts interactive make different hissing sounds, that's it. No audio whatever i try using 5.1 settings.

Joined
Nov 11, 2017
Messages
76 (0.04/day)
You can through device manager force another version of the Realtek drivers onto your system, so long as the win64 directory from the install directory is there. You will retain the sound blaster components. It might just be this version of the driver that is problematic for you.

Joined
Jun 20, 2017
Messages
616 (0.31/day)
How come this is happening, i installed everything correctly and this happens in soundblaster uwp connect. i know that i got it working because it doesn't come up with the sound device not detected message. I have soundblaster cinema 5's kga file in the creative folder directory.

Windows 10 64bit

Last edited:
Joined
Nov 1, 2018
Messages
74 (0.05/day)
I found the perfect setting for classical music, and share it here.
feel that this setting is the most similar to lossless compression music with losslessness
also music quality of the creative CiNEMA 3 and Dolby ATMOS For Gaming combo is probably fantastic !

i using the Realtek ALC 1150 + Creative CiNEMA 3 + Dolby Digital Plus APO

edit: I just found that the dialog enhancer made a fast beat and responded to the treble in a friendly manner

Creative CiNEMA 3
SURROUND 40% / 67 % / 80 %
CRYSTALIZER 100%
BASS 2%
SMART VOLUME _ LOUD
DIALOG PLUS 1%

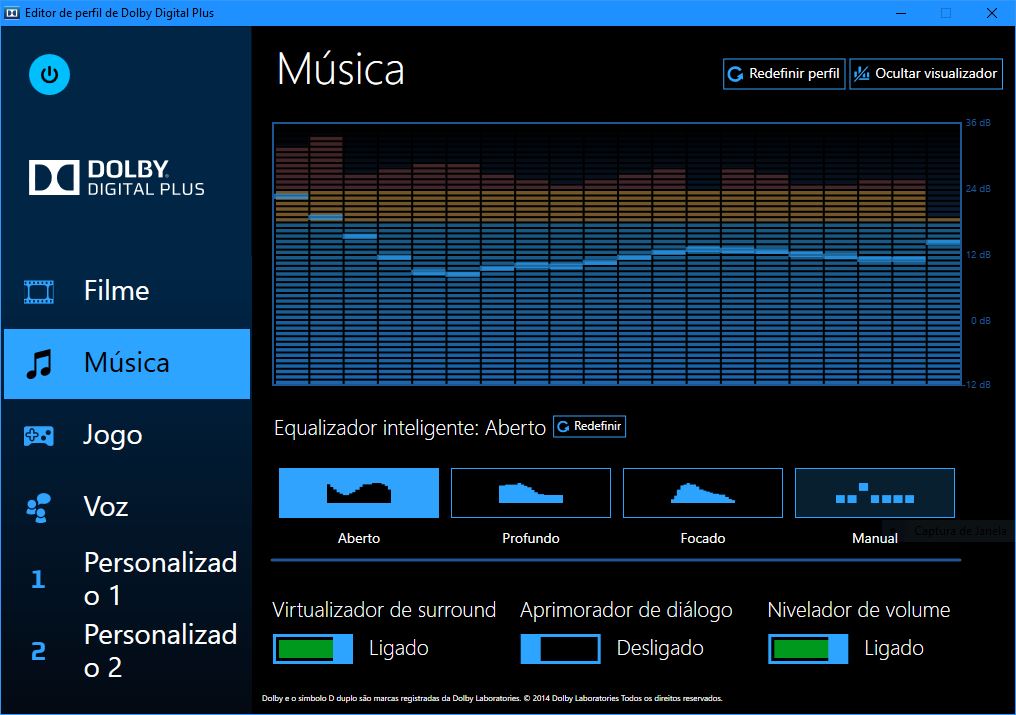

Dolby Digital PLUS
Voice + Rich
Sound Virtualizer ON ( 2.1 Channel only )
Dialogue Enhancer OFF
Volume leveler ON or OFF

"

Last edited:

leanmattos

New Member
Joined
Jan 15, 2019
Messages
2 (0.00/day)
@Alan Finote
I did the installation as recommended, but I'm still getting these messages. My notbook is an Acer Aspire 5 A515-51G. Something that tells me to do it. Thank you.

Joined
May 20, 2018
Messages
196 (0.12/day)
Location
Germany
System Name Metal-Tom-PC
Processor AMD Ryzen 5 2600x
Motherboard ASUS ROG Crosshair VI Extreme
Cooling Boxed
Memory Mushkin DDR4 16 GB
Video Card(s) ASUS RX560 4GB
Storage 1x M2-SSD @256GB/1x Intenso SATA-SSD @120GB/1x Intenso SATA-SSD @240GB/2x WD10EZRX @1TB/1,5 TB HDD
Display(s) 1x Samsung LE40F86BDX (TV)/1x Samsung SyncMaster T240
Case Thermaltake Kandalf LCS
Audio Device(s) Realtek ALC1220A
Power Supply SeaSonic Focus Plus Gold 80+ 750W
Mouse Logitech M210
Keyboard Logitech K260
Software Win 10 Pro x64 v20H2
Hi @all
Who can deliver me a specially for Asus MB's build Realtek ALC892 (https://www.asus.com/de/Motherboards/SABERTOOTH_990FX_R20/specifications/) modded Driver for using the full Audio-featured Experience?

In Audio-Hardware, I've an AVR347 from H/K in use per 7.1-Ch-surround, connected both with SPD/IF & HDMI

At last I found here the "Realtek Mod Suite for Win10", was tryin' to Install, with no success. Actually I'm using the "Realtek_hda_8059_dolbyHPhonesDTSrdy"-Driver, but I'm even not fully satisfied. :-(
So please, who can help me?

Joined
Dec 13, 2014
Messages
382 (0.13/day)
Processor AMD Phenom II X4 925
Motherboard Gigabyte GA-78LMT-USB3 R2
Memory 4 GB DDR3 1333Mhz
Audio Device(s) onboard Realtek ALC892
Power Supply Seasonic S12II 620w (SS-620GB)
Software Windows 10 Education x64 21H2
@Alan Finote
I did the installation as recommended, but I'm still getting these messages. My notbook is an Acer Aspire 5 A515-51G. Something that tells me to do it. Thank you.
View attachment 115329

sorry leanmattos. your Acer A515-51G computer uses a Realtek SST (Smart Sound Technology) audio device [as indicated in the screenshot saying "Realtek High Definition Audio(SST)"] and the SBConnect and Dolby enhancements do not work with SST based Realtek devices (therefore Alan's modded driver will not support the Realtek SST audio device). Realtek HD Audio [SST] have HWIDs beginning with INTELAUDIO instead of HDAUDIO. use another computer that does not use Realtek SST audio and uses the "regular" Realtek HDA audio device (w/out SST).

Last edited:
Joined
May 20, 2018
Messages
196 (0.12/day)
Location
Germany
System Name Metal-Tom-PC
Processor AMD Ryzen 5 2600x
Motherboard ASUS ROG Crosshair VI Extreme
Cooling Boxed
Memory Mushkin DDR4 16 GB
Video Card(s) ASUS RX560 4GB
Storage 1x M2-SSD @256GB/1x Intenso SATA-SSD @120GB/1x Intenso SATA-SSD @240GB/2x WD10EZRX @1TB/1,5 TB HDD
Display(s) 1x Samsung LE40F86BDX (TV)/1x Samsung SyncMaster T240
Case Thermaltake Kandalf LCS
Audio Device(s) Realtek ALC1220A
Power Supply SeaSonic Focus Plus Gold 80+ 750W
Mouse Logitech M210
Keyboard Logitech K260
Software Win 10 Pro x64 v20H2
NEW REALTEK DRIVERS RELEASED
VERSION 6.0.1.8603 - HDA



GOOD RESORT



Now, I've found & installed this Package, my rear Jack-Connectors Area will do crazy:
Anmerkung 2019-01-30 183514.jpg

I've put all 4 Jacks in, but if I do the green Front-Jack out, the Center/Subwoofer & Side-Surround will be active (like above)

Now I put him in, it will deactivate the named Connectors :-( Full Crazy :-(
Anmerkung 2019-01-30 183207.jpg

Joined
Nov 1, 2018
Messages
74 (0.05/day)
Hi @all
Who can deliver me a specially for Asus MB's build Realtek ALC892 (https://www.asus.com/de/Motherboards/SABERTOOTH_990FX_R20/specifications/) modded Driver for using the full Audio-featured Experience?

In Audio-Hardware, I've an AVR347 from H/K in use per 7.1-Ch-surround, connected both with SPD/IF & HDMI

At last I found here the "Realtek Mod Suite for Win10", was tryin' to Install, with no success. Actually I'm using the "Realtek_hda_8059_dolbyHPhonesDTSrdy"-Driver, but I'm even not fully satisfied. :-(
So please, who can help me?


# 1549 on page 62 will probably help you.
View attachment 110055
Try use the this two softwere
DriverStoreExplorer
Link

DDU
Link



1. edit HDXRT file.View attachment 1100582. Run GENKGA as administrator
View attachment 110059


3. install realtek setup
4. Enjoy

Joined
May 20, 2018
Messages
196 (0.12/day)
Location
Germany
System Name Metal-Tom-PC
Processor AMD Ryzen 5 2600x
Motherboard ASUS ROG Crosshair VI Extreme
Cooling Boxed
Memory Mushkin DDR4 16 GB
Video Card(s) ASUS RX560 4GB
Storage 1x M2-SSD @256GB/1x Intenso SATA-SSD @120GB/1x Intenso SATA-SSD @240GB/2x WD10EZRX @1TB/1,5 TB HDD
Display(s) 1x Samsung LE40F86BDX (TV)/1x Samsung SyncMaster T240
Case Thermaltake Kandalf LCS
Audio Device(s) Realtek ALC1220A
Power Supply SeaSonic Focus Plus Gold 80+ 750W
Mouse Logitech M210
Keyboard Logitech K260
Software Win 10 Pro x64 v20H2
# 1549 on page 62 will probably help you.


Sorry, but how should I exactly do? My hdxrt.inf-File got totally other Informations as shown in the Att. 110058, which is unrecognizable to do so, & what about Genkga? The Att. 110059 is just only written in Chinese :-(
So you can please help me? Eventually in German?


Attachments

  • hdxrt.zip
    972 bytes · Views: 175
Joined
Jun 20, 2017
Messages
616 (0.31/day)
How come this is happening, i installed everything correctly and this happens in soundblaster uwp connect. i know that i got it working because it doesn't come up with the sound device not detected message. I have soundblaster cinema 5's kga file in the creative folder directory.

Windows 10 64bitView attachment 115269
Can someone please help install Soundblaster Cinema 5? i already tried install it from @alanfox2000's apo driver and standalone one and both gave me the screenshot above or said the that the sound device isn't detected.

Last edited:
Joined
Nov 1, 2018
Messages
74 (0.05/day)
Sorry, but how should I exactly do? My hdxrt.inf-File got totally other Informations as shown in the Att. 110058, which is unrecognizable to do so, & what about Genkga? The Att. 110059 is just only written in Chinese :-(
So you can please help me? Eventually in German?

Realtek Mod Suite for Win10+7
Link

Driver Signing ( TEST MODE ) On Off
Link

.KGA List
Link




Führen Sie die Digital_sign_Enable.cmd-Datei als Administrator aus und starten Sie den Computer Rebooting. →

Führen Sie in der Systemsteuerung den Geräte-Manager aus. →

Audio-, Video- und Gamecontroller → High-Definition-Audiogerät → Eigenschaften → Details → Eigenschaften (P) Hardware-iD → Kurze Satzlänge Kopieren Sie den Artikel. →

Öffnen Sie das HDXRT.inf in Ihrem Installationsordner mit Notepad. →
Nachdem Sie [AzaliaManufacturerID.NTamd64.6.0] gefunden haben, fügen Sie "Realtek High Definition Audio" = IntcAzAudModel, Ihr Hardware-ID, hinzu. →

Führen Sie Setup.exe aus und installieren Sie es. →
Installieren Sie die Sound Blaster-, Dolby- und DTS APO-Softwaredatei. →

Führen Sie die GenKGA-Datei als Administrator aus. →
Fügen Sie die .kga-Datei des gewünschten SoundBlaster-Produkts in diesen Pfad ein.
C: \ ProgramData \ Creative \ SoftwareLock

→ Digital_sign_Disable.cmd mit Administratorrechten REBOOTING →

Funktioniert perfekt!

Tipp: Deaktivieren Sie Ihre Antivirensoftware.


Ich bin Suth-Koreaner und kein Chinese.
Ich verwende auch Übersetzungssoftware, weil ich kein Englisch und Deutsch kann.
Wenn Sie seltsame Sätze finden
Bitte akzeptiere es als Humor. :>


Can someone please help install Soundblaster Cinema 5? i already tried install it from @alanfox2000's apo driver and standalone one and both gave me the screenshot above or said the that the sound device isn't detected.

@alanfox2000 is a UWP + CiNEMA 5 .bat file is perfect, but the file was not properly removed or installed.
So I knew it was an error!

Creative Sound Blaster update file.
Data 2019-01-31
Link

Last edited:

Ktzeeb

New Member
Joined
Jan 31, 2019
Messages
3 (0.00/day)
Hello. I have ASRock h370 performance with alc1220 realtek codec. I use headphones plugged into back of motherboard. How do I install and use this modded driver?

Joined
Jan 30, 2018
Messages
420 (0.24/day)
Can someone please help install Soundblaster Cinema 5? i already tried install it from @alanfox2000's apo driver and standalone one and both gave me the screenshot above or said the that the sound device isn't detected.
1. Open device manager, Software Components -> Sound Blaster Connect -> Creative Audio Effects Component.
2. Check if the signer is WHQL (not PureSoftApps CA).
3. If so, remove Creative Audio Effects Component (tick checkbox [remove driver software] ).
4. Remove "Realtek(R) Audio " but don't tick checkbox [remove driver software]
5. Disconnect to internet (disable network adapter)
6. Press "Scan hardware changes" icon (menu button)
7. You should find "Generic Software " under Software Components (if you find Creative Audio Effects Component go to step 3)
8. Run install.cmd (SBC UWP mod driver installation folder)
9. You will find "Creative Audio Effects Component" and the signer is "PureSoftApps CA"

Note: MBAPO264.dll & MBAPO232.dll should be 2.0.0.14

Joined
Mar 1, 2017
Messages
1,081 (0.52/day)
Location
Rio de Janeiro, Brazil
System Name Home PC/Lenovo IdeaPad S145-15API
Processor AMD Phenom II X4 960T (Quad-Core)/AMD Ryzen 5 3500U (4C/8T)
Motherboard Gigabyte GA-880GM-UD2H (Rev 1.3)/Lenovo Motherboard
Cooling DeepCool Gammaxx L120T/Stock
Memory 11GB/8GB
Video Card(s) GT 730 1GB/AMD Radeon RX Vega 8 (Onboard)
Storage [1x GoldenFir SSD 256GB + 1x HDD 1TB]/[1x Netac SSD M.2 NMVe 256GB + 1x GoldenFir SSD SATA3 1TB]
Case Cooler Master Storm Scout/Stock
Audio Device(s) AAF Optimus Sound
Power Supply 600W/Stock
Benchmark Scores Mikrotik RB760iGS with 1Gb/s Up/Down
A-Volute NAHIMIC 3 working in Realtek HDA Driver :D:D:D:D:D:D:laugh::laugh::laugh::laugh::laugh::roll:
Coming soon here...:toast:
Making more adjustments.





Ktzeeb

New Member
Joined
Jan 31, 2019
Messages
3 (0.00/day)
I want to know is this mod useful if I only use headsets/headphones for my PC?

Joined
May 20, 2018
Messages
196 (0.12/day)
Location
Germany
System Name Metal-Tom-PC
Processor AMD Ryzen 5 2600x
Motherboard ASUS ROG Crosshair VI Extreme
Cooling Boxed
Memory Mushkin DDR4 16 GB
Video Card(s) ASUS RX560 4GB
Storage 1x M2-SSD @256GB/1x Intenso SATA-SSD @120GB/1x Intenso SATA-SSD @240GB/2x WD10EZRX @1TB/1,5 TB HDD
Display(s) 1x Samsung LE40F86BDX (TV)/1x Samsung SyncMaster T240
Case Thermaltake Kandalf LCS
Audio Device(s) Realtek ALC1220A
Power Supply SeaSonic Focus Plus Gold 80+ 750W
Mouse Logitech M210
Keyboard Logitech K260
Software Win 10 Pro x64 v20H2
Realtek Mod Suite for Win10+7
Link

Driver Signing ( TEST MODE ) On Off
Link

.KGA List
Link




Führen Sie die Digital_sign_Enable.cmd-Datei als Administrator aus und starten Sie den Computer Rebooting. →

Führen Sie in der Systemsteuerung den Geräte-Manager aus. →

Audio-, Video- und Gamecontroller → High-Definition-Audiogerät → Eigenschaften → Details → Eigenschaften (P) Hardware-iD → Kurze Satzlänge Kopieren Sie den Artikel. →

Öffnen Sie das HDXRT.inf in Ihrem Installationsordner mit Notepad. →
Nachdem Sie [AzaliaManufacturerID.NTamd64.6.0] gefunden haben, fügen Sie "Realtek High Definition Audio" = IntcAzAudModel, Ihr Hardware-ID, hinzu. →

Führen Sie Setup.exe aus und installieren Sie es. →
Installieren Sie die Sound Blaster-, Dolby- und DTS APO-Softwaredatei. →

Führen Sie die GenKGA-Datei als Administrator aus. →
Fügen Sie die .kga-Datei des gewünschten SoundBlaster-Produkts in diesen Pfad ein.
C: \ ProgramData \ Creative \ SoftwareLock

→ Digital_sign_Disable.cmd mit Administratorrechten REBOOTING →

Funktioniert perfekt!

Tipp: Deaktivieren Sie Ihre Antivirensoftware.


Ich bin Suth-Koreaner und kein Chinese.
Ich verwende auch Übersetzungssoftware, weil ich kein Englisch und Deutsch kann.
Wenn Sie seltsame Sätze finden
Bitte akzeptiere es als Humor. :>




@alanfox2000 is a UWP + CiNEMA 5 .bat file is perfect, but the file was not properly removed or installed.
So I knew it was an error!

Creative Sound Blaster update file.
Data 2019-01-31
Link

About the Link for (Gen)KGA: I can't do with, and the Application can't found in my all folders/drives

But the other Setups, incl. the Digital Signing on/off was done properly
Only the Jack-Detection for Center/LFE is blinking on/off :-( So now I think, this is a Bug to fix...

Top
